Step 1: Mount the Feet

The modem comes with a strip of self-adhesive plastic feet, which you can optional-
ly mount on the bottom of the modem. To install the feet, simply peel them from
their paper strip and press them into the recesses on the bottom of the modem.

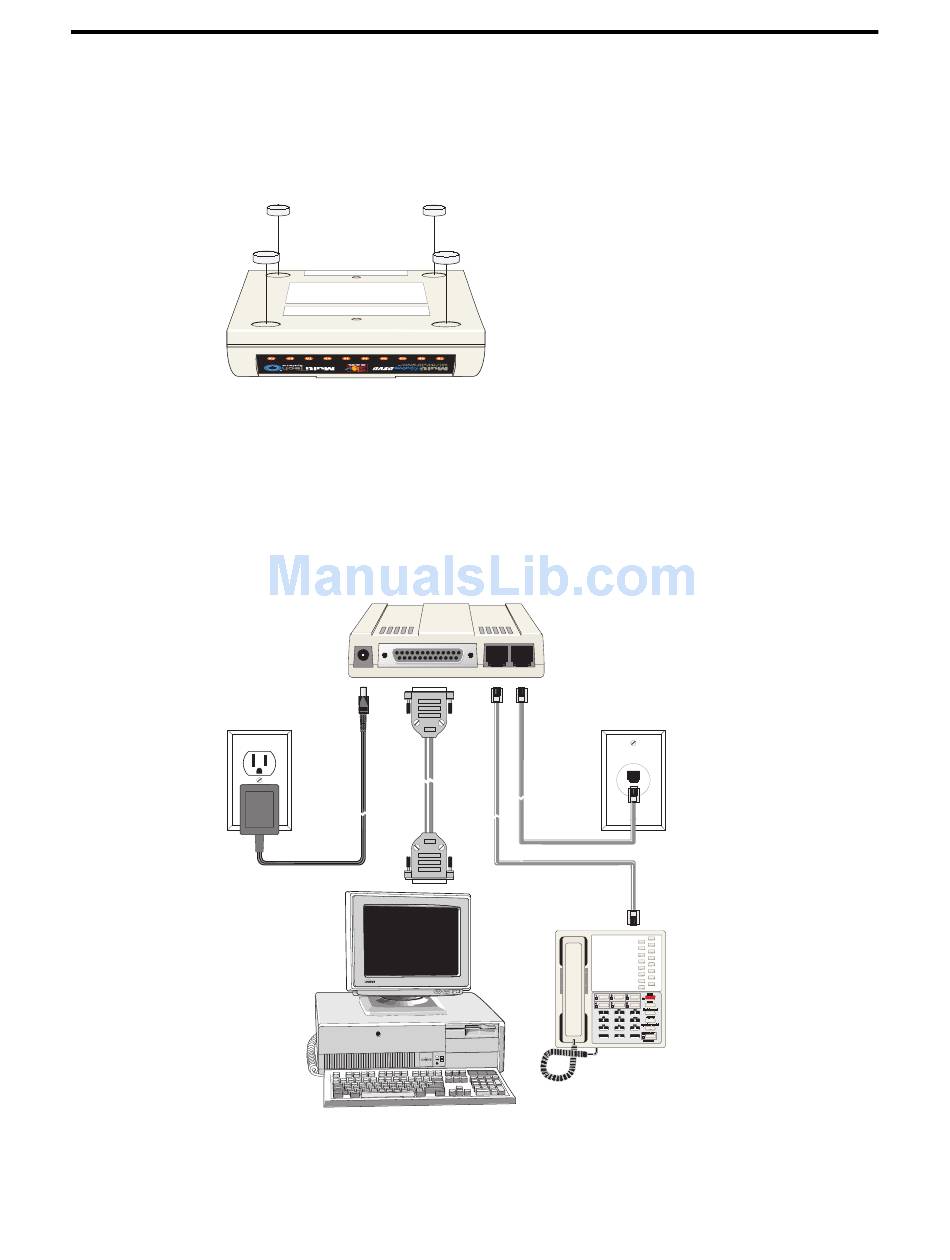

Figure 2-1. Mounting the feet.

Step 2: Connect the Modem to Your System

Placing the modem in a convenient location, connect it to your computer's serial
port, to the telephone line, to a telephone, and to AC power.
Figure 2-2. Modem connections.
PWR RS232 PHONE LINE
