BEA IS40 Manual

Visit website for
available languages of
this document.

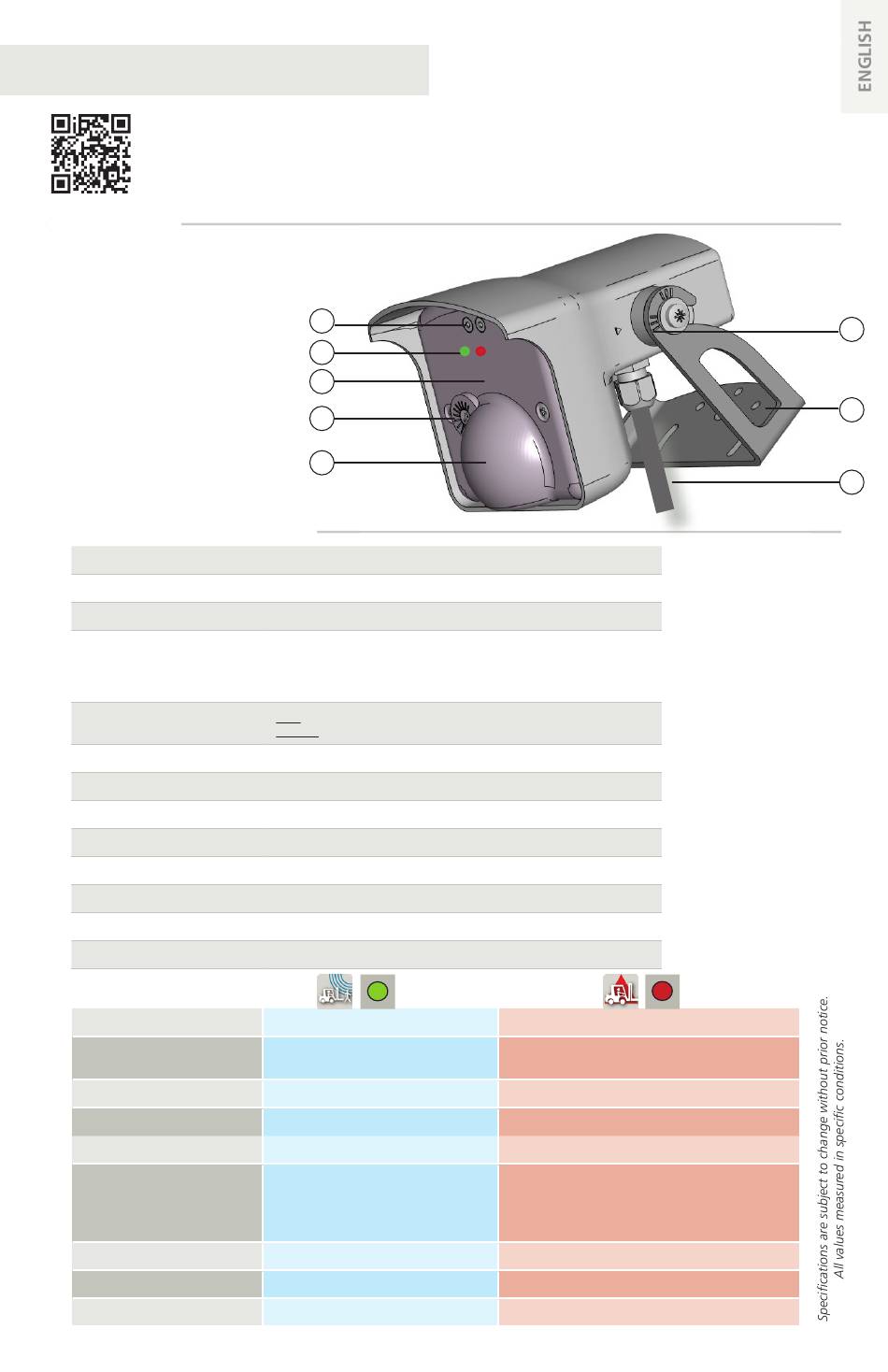

DESCRIPTION
1. push buttons
2. LEDs
3. infrared detection (AIR)
4. radar angle
5. radar detection
6. sensor angle indicator
7. bracket
8. cable
TECHNICAL SPECIFICATIONS
Supply voltage:
Power consumption:
Mains frequency:
Output:
max. contact voltage:
max. contact current:
max. switching power:
Mounting height*:
Temperature range:
Humidity:
Degree of protection:
DImensions:
Materials:
Weight:
Cable length:
Norm conformity:
Technology:
Transmitter frequency/
wavelength:
Output holdtime:
Transmitter power density:
Detection mode:
Detection field:
Min. detection speed:
Reaction time:
Tilt angle:
75.5695.08 IS40 IS40XL 20230627

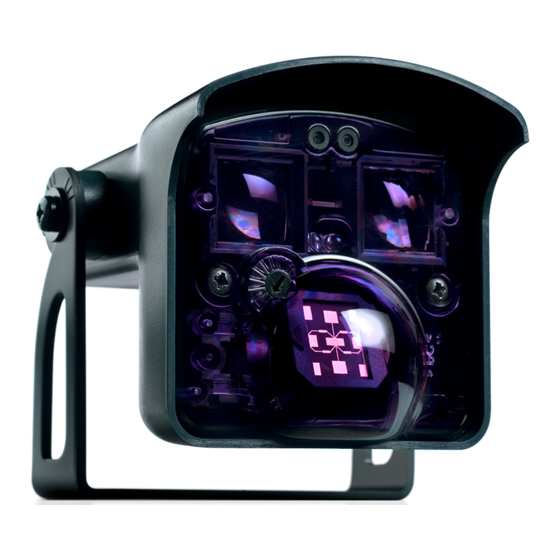

Motion and presense sensor for automatic industrial doors
1
2
3
4
5
12 – 24 VAC +10%, 12 – 24 VDC +10% / -3%
< 3.5 W
50 – 60 Hz
2 relays (free of potential change-over contact)
42 VAC/VDC
1 A (resistive)
30 W (DC) / 48 VA (AC)
IS40: 8 – 16'
IS40 XL: 6.5 – 11.5'
-22 – 140 °F
0 – 95% non-condensing
IP65 / NEMA4
3.75" (W) × 4" (H) × 5" (D)
ABS and polycarbonate
14 oz
32'
R&TTE 1999/5/EC; EMC 2004/108/EC, R&TTE: 1999/5/EC
green
microwave doppler radar
24.150 GHz
0.5 – 9 s
< 5 mW/cm
2
motion
IS40: 13' × 16.5'
IS40 XL: 13' × 6.5'
measured at 30º, field size 9,
mounting height 16' × 11.5'
2 in/s
100 ms
-8 – 22º (relative to sensor front face)
IS40
/
IS40: for normal to high mounting 8 – 16 ft
IS40 XL: for low mounting 6.5 – 11.5 ft
active infrared (AIR)
875 nm
0.5 s
< 250 mW/cm
2
presence
IS40: 10' × 10'
IS40 XL: 7.5' × 7.5'
zone detected with SPOTFINDER; therefore,
slightly larger than the effective detection field
0 in/s to activate detection
250 ms
15 – 45º
IS40 XL
(US version)
6
7
8
red
