BEA IXIO-DT3 User Manual

TECHNICAL SPECIFICATIONS

Supply voltage: 12 V - 24 V AC +/-10% ; 12 V - 30 V DC +/-10%
Power consumption: < 2.5 W
Mounting height: 2 m to 3.5 m
(local regulations may have an impact on the acceptable mounting height)
Temperature range: -25°C to +55°C; 0-95% relative humidity, non condensing
Degree of protection: IP54
Expected lifetime: 20 years
Applicable directives: R&TTE 1999/5/EC; EMC 2004/108/EC; MD 2006/42/EC; RoHS 2002/95/EC
Detection mode: Motion
Min. detection speed: 5 cm/s
Technology:
Microwave doppler radar
Transmitter frequency: 24.150 GHz
Transmitter radiated power: < 20 dBm EIRP
Transmitter power density: < 5 mW/cm
Output: Solid-state-relay
(potential and polarity free)
Max. contact current: 100 mA
Max. contact voltage: 42 V AC/DC
Frequency Output:
Pulsed signal (f= 100 Hz +/- 10%)
Current Source Output:
Galvanically isolated current source
No detection: current source ON
Open circuit voltage: 6.5 V
Output voltage available at 10 mA: 3 V min.
Typical load: up to 3 optocouplers in series
Detection: current source OFF
Open-circuit remained voltage: < 500 mV
Test input:
Noise:
< 70 dB
Norm conformity:
EN 12978
EN ISO 13849-1:2008 PL «d» CAT. 2
EN 16005:2012 Chapter 4.6.8*;
DIN 18650-1:2010 Chapter 5.7.4; AutSchR
(only applicable for frequency and current source
output)
* at the time of the product launch, the standard was not approved yet
(FprEN 16005:2012)
BEA SA | LIEGE Science Park | ALLÉE DES NOISETIERS 5 - 4031 ANGLEUR [BELGIUM] | T +32 4 361 65 65 | F +32 4 361 28 58 | INFO@BEA.BE | WWW.BEA.BE
BEA hereby declares that the IXIO-DT3 is in conformity with the basic requirements and the other relevant
provisions of the directives 1999/5/EC, 2004/108/EC and 2006/42/EC.
Notified Body for EC-type inspection: 0044 - TÜV NORD CERT GmbH, Langemarckstr. 20, D-45141 Essen
Angleur, June 2012 Jean-Pierre Valkenberg, Authorized representative
The complete declaration of conformity is available on our website: www.bea-pedestrian.be
Only for EC countries: According to the European Guideline 2002/96/EC for Waste Electrical and Electronic Equipment (WEEE)
(to be operated from SELV compatible power supplies only)
Presence
Typical response time: < 200 ms (max. 500 ms)
Active infrared with background analysis
Spot: 5 cm x 5 cm (typ)
Number of spots: max. 24 per curtain
Number of curtains: 2
2
Solid-state-relay
(potential and polarity free)
Max. contact current: 100 mA
Max. contact voltage: 42 V AC/DC
Holdtime: 0.3 to 1 s
Sensitivity: Low: < 1 V; High: > 10 V (max. 30 V)
Response time on test request: typical: < 5 ms
EN 12978
EN ISO 13849-1:2008 PL «c» CAT. 2
(under the condition that the door control system
monitors the sensor at least once per door cycle)
EN 16005:2012 Chapter 4.6.8*;
DIN 18650-1:2010 Chapter 5.7.4
Specifications are subject to changes without prior notice.
All values measured in specific conditions.

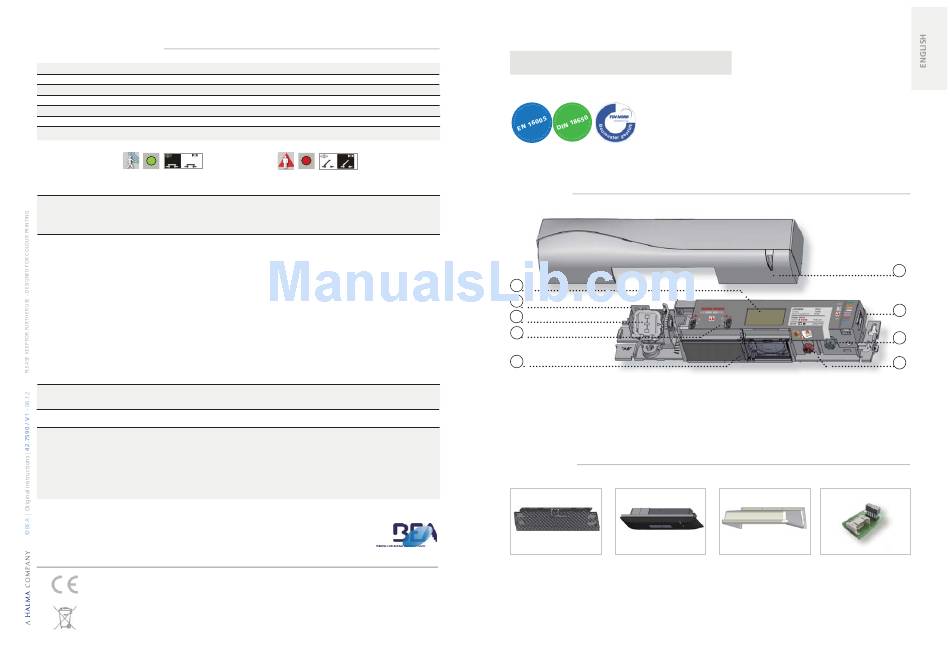

DESCRIPTION
1
2
3
4
5
1. LCD
2. radar antenna (narrow field)
3. radar antenna (wide field)
4. AIR-curtain width adjustment
5. AIR-lenses
ACCESSORIES
BA: Bracket Accessory CA: Ceiling Accessory
IXI I O-D D T3 3

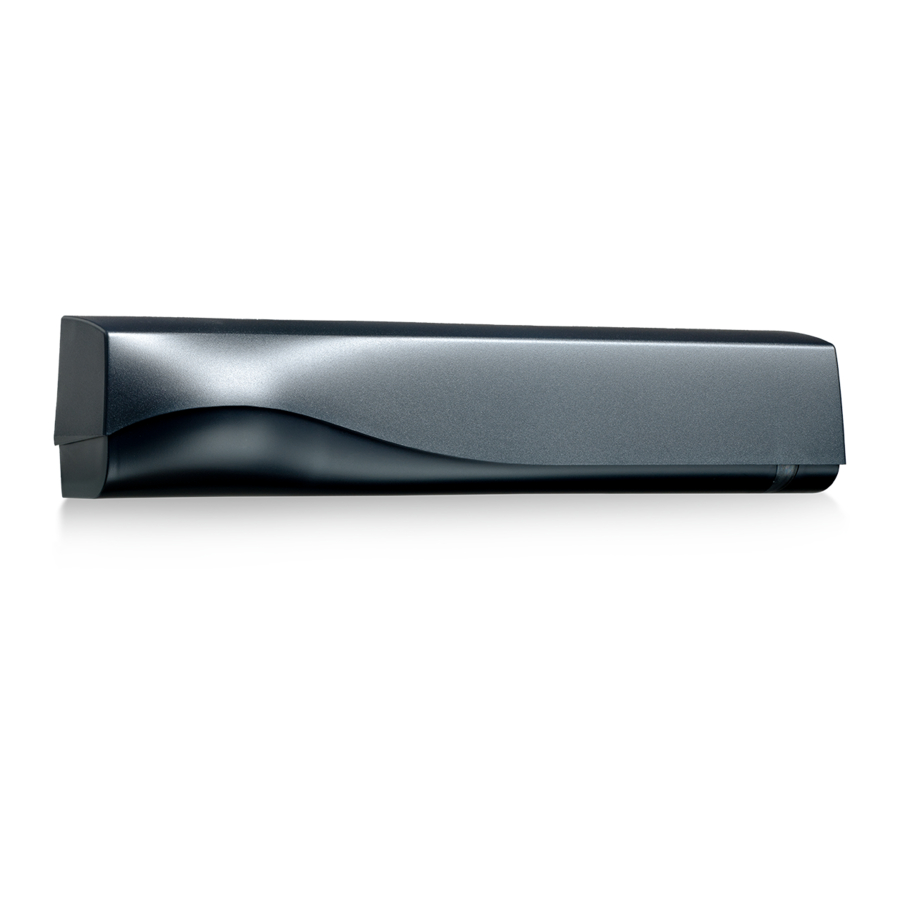

Opening & safety sensor
for automatic sliding doors
(according to EN 16005 and DIN 18650,
including emergency exits)
User's Guide for product version 0100 and higher
See product label for serial number
6
7
8
9
6. cover
7. main connector
8. main adjustment knob
9. AIR-curtain angle adjustment knob
RA: Rain Accessory Retrofit interface
