BEA IXIO-DT3 Manual

BEA IXIO-DT3 Manual

Opening & safety sensor for automatic sliding doors
Hide thumbs Also See for IXIO-DT3:
Table of Contents

Advertisement

Quick Links

Download this manual
JOIN OUR
COMMUNITY!
Download the BEA DECODER app
for a quick overview of settings

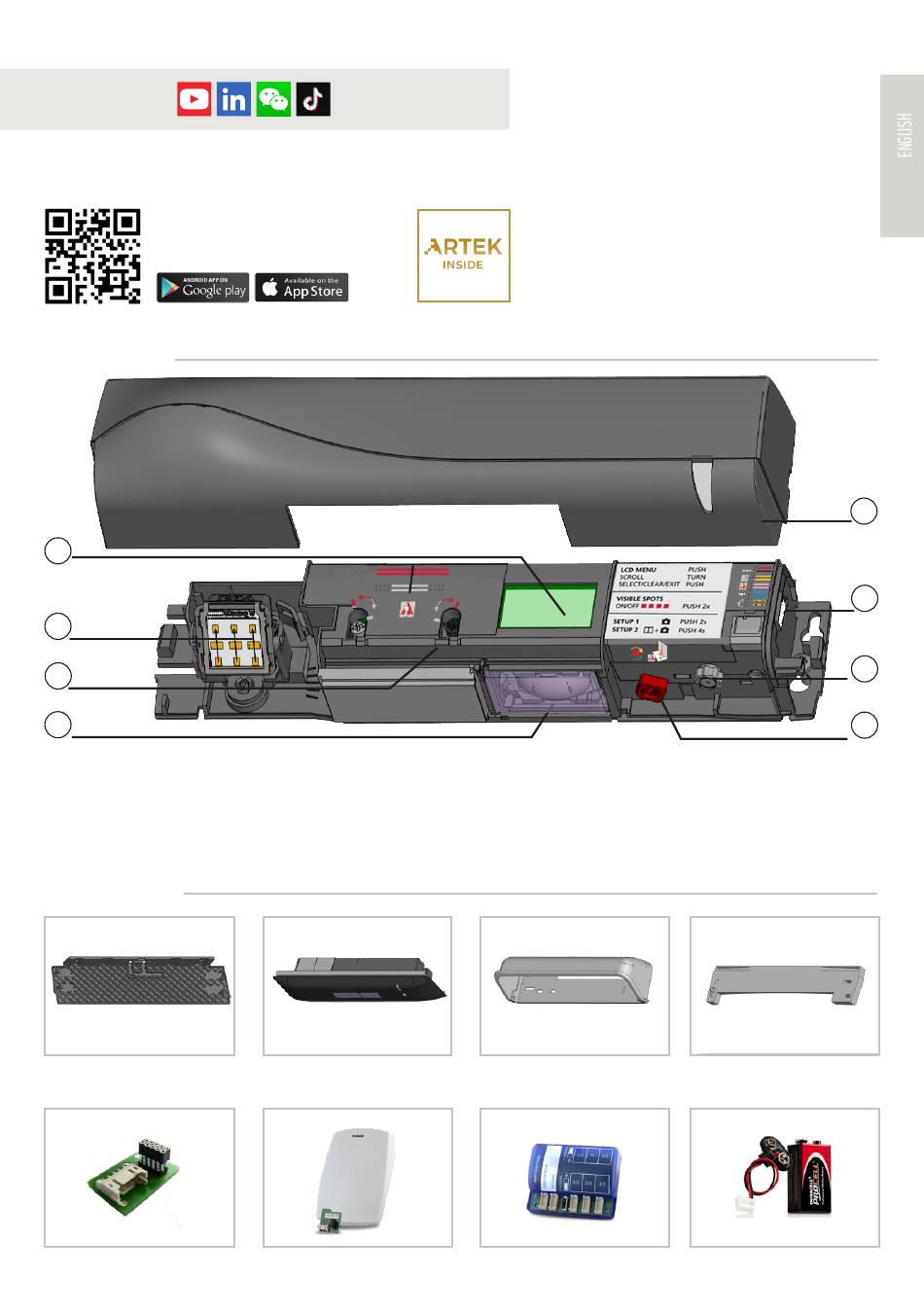

DESCRIPTION
1
2
3
4
ACCESSORIES
BA: Bracket accessory
Retrofit interface
1.
LCD
2.
radar antenna
3.
IR-curtain width adjustment
4.
IR-lenses
5.
cover
CA: Ceiling accessory
Door bell interface
IXIO-DT3
OPENING & SAFETY SENSOR
FOR AUTOMATIC SLIDING DOORS
(according to EN 16005 and DIN 18650,
including emergency exits)
User's Guide for software version 0600 and higher
(refer to tracking label on product)
6.
main connector
7.
main adjustment knob
8.
IR-curtain angle adjustment knob
RA: Rain accessory
Smart Daisy Chain hub
5
6
7
8
CDA: Curved door accessory
9 V battery

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IXIO-DT3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BEA IXIO-DT3

Summary of Contents for BEA IXIO-DT3

  • Page 1 COMMUNITY! OPENING & SAFETY SENSOR FOR AUTOMATIC SLIDING DOORS (according to EN 16005 and DIN 18650, Download the BEA DECODER app including emergency exits) for a quick overview of settings User’s Guide for software version 0600 and higher (refer to tracking label on product)

  • Page 2: Navigating In Menus

    HOW TO USE THE LCD? DISPLAY DURING NORMAL FUNCTIONING Opening Safety Negative display = active output To adjust contrast, push and turn impulse the grey button simultaneously. During normal function only. FACTORY VALUE VS. SAVED VALUE displayed value = saved value displayed value = factory value NAVIGATING IN MENUS Select your language before...

  • Page 3: Mounting And Wiring

    IXIO-DT3: INSTALLATION GUIDE MOUNTING & WIRING DOOR CONTROLLER POWER SUPPLY BLACK YELLOW OPENING YELLOW PINK PINK SAFETY BLUE BLUE TEST YE/RED + OPENING YE/BK - FOR CURRENT SOURCE * Depending on OUTPUT CONFIGURATION settings Fixation is compatible with the ACTIV8.
  • Page 4 INFRARED SAFETY FIELD DOOR CLOSER CLOSER max. 9 cm** AWAY AWAY If necessary, adjust the IR-curtain Activate the visible* spots to verify angle (from -7° to 4°, default 0°). the position of the IR-curtain. * Visibility depends on external conditions. When spots are not visible, use the Spotfinder to locate the curtains. ** The distance between the inner curtain of the inside door sensor and the inner curtain of the outside door sensor should always be smaller than 20 cm.

  • Page 5: Overview Of Settings

    OVERVIEW OF SETTINGS BASIC Back More factory values for radar immunity, IR immunity, IR number and redirection shopping standard critical increased immunities, 1 curtain PRESETTINGS street env. increased immunities, redirection = motion and presence RAD: FIELDSIZE small > > > >...

  • Page 6: Troubleshooting

    TROUBLESHOOTING ORANGE LED flashes 1 x. The sensor signals an internal fault. Replace sensor. ORANGE LED flashes 2 x. The power supply is too low or too Check power supply (in the diagnostics menu of the LCD). high. Check wiring. ORANGE LED flashes 3 x.

  • Page 7: Installation

    LED-SIGNAL Presence Motion detection detection LED flashes LED flashes LED flashes LED flashes LED is off red-green quickly x times INSTALLATION The sensor should be Do not cover the sensor. Avoid highly Avoid moving objects fixed firmly to avoid and light sources in reflective objects in extreme vibrations.

  • Page 8: Technical Specifications

    BEA SA | LIEGE Science Park | Allée des Noisetiers, 5 - 4031 ANGLEUR [BELGIUM] | T +32 4 361 65 65 | F +32 4 361 28 58 | info-eu@beasensors.com | www.beasensors.com BEA hereby declares that this product is in conformity with the European directives : 2014/53/EU (RED), 2006/42/EC (Machinery), 2011/65/EU (ROHS).
