BEA IS40P User Manual

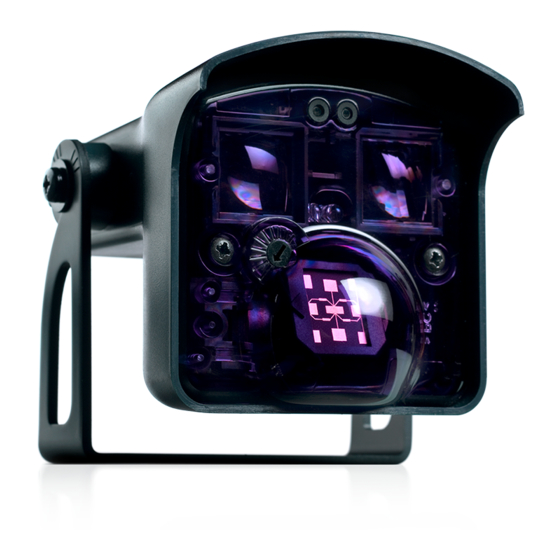

Active infrared (ir) presence sensor
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

1
DESCRIPTION
- The IS40P uses Active
Infrared technology for
presence detection.
2
3
2

SPECIFICATIONS

DESCRIPTION
SENSOR TILT ANGLE
SUPPLY VOLTAGE
MAIN FREQUENCY
POWER CONSUMPTION
RELAY OUTPUT
- Max. Voltage
- Max. Current
- Max Switching Power
INSTALLATION HEIGHT
TEMPERATURE RANGE
PROTECTION DEGREE
NORM CONFORMITY
DIMENSIONS (D X W X H)
MATERIAL
- Housing
- Face
COLOR
- Housing
- Face
CABLE LENGTH
TECHNOLOGY
RADIATED FREQUENCY
RADIATED POWER DENSITY
DETECTION MODE
MAXIMUM DETECTION FIELD
OUTPUT HOLD TIME
REACTION TIME
MINIMUM TARGET SPEED
LED SIGNAL
SENSOR ANGLE
75.5696.02 EN 20120213
1
IS40P
Electromagnetic compatibility (EMC) according to 2004/108/EEC, R&TTE: 1999/5/EC
ACTIVE INFRARED (IR) PRESENCE SENSOR
SPECIFICATION
15° to 45°
12 to 24 VAC ±10%
12 to 24 VDC +30% / -5%
50 to 60 Hz
< 2 W
2 Relays with switch-over contact (voltage free)
60 VDC / 125 VAC
1 A (resistive)
30 W (DC) / 60 VA (AC)
8 ft - 16 ft (2.5 m – 6 m)
-22°F ( -30°C) to + 140°F (60°C)
IP65 / NEMA 4
5 in × 4 in × 3.75 in (127 mm × 102 mm × 96 mm)
ABS
Polycarbonate
Black
Transparent Purple
32 ft (10 m)
INFRARED
875 nm
< 250 mW/m²
Presence
10 ft x 10 ft (3 m x 3 m)
0.5 s – 9 s (Activation Relay) / 0.5 s (Presence Relay)
250 ms
0 in/s (0 cm/s)
Green = Activation Relay / Red = Presence Relay
15°, 30°, 45°
IS40P
USER'S GUIDE
4

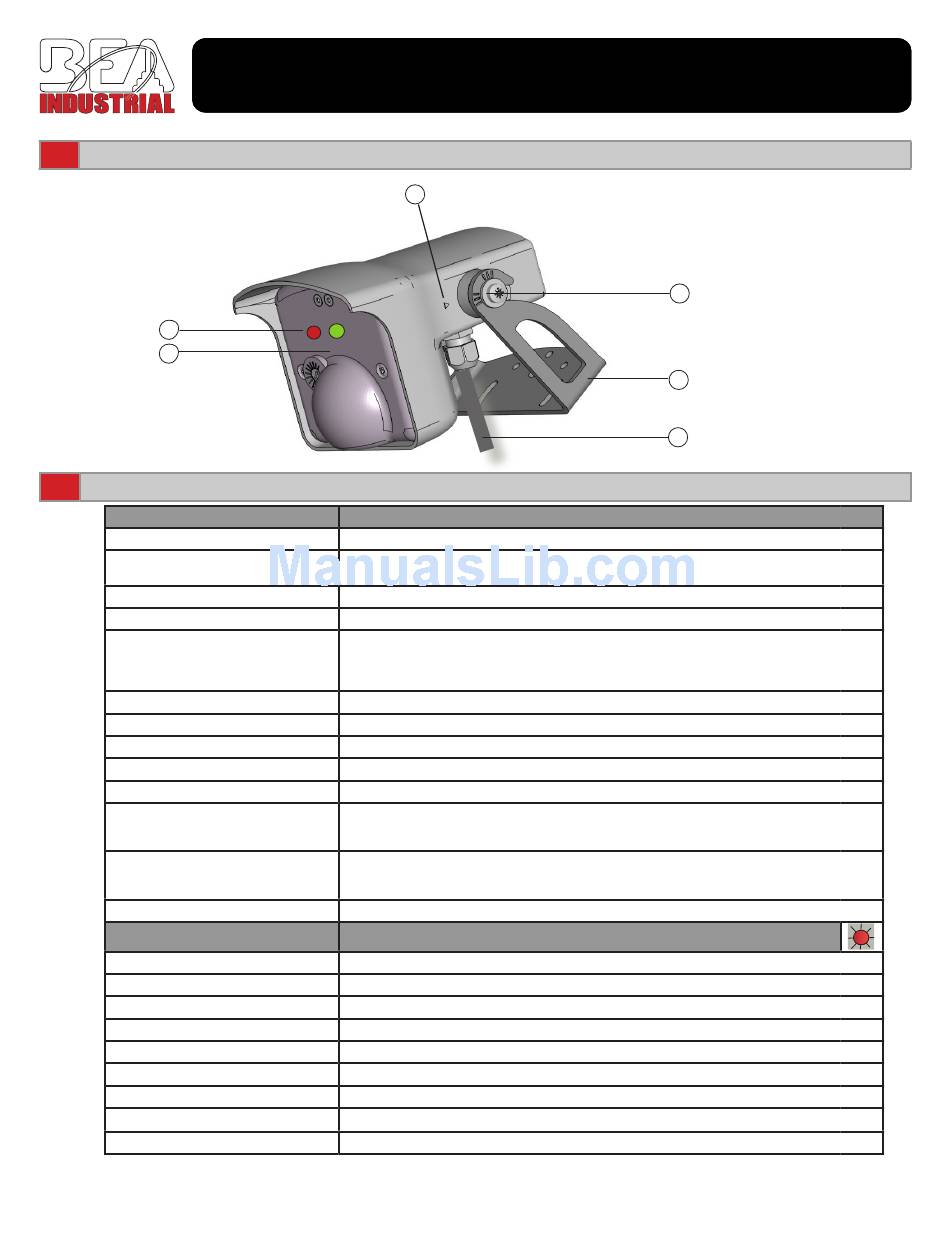

1. IR angle indicator
2. LED's
3. IR emitters
4. Sensor angle adjustment
5
5. Bracket
6. Cable
6
Page 1 of 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IS40P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BEA IS40P

Summary of Contents for BEA IS40P

  • Page 1: Specifications

    IS40P USER’S GUIDE ACTIVE INFRARED (IR) PRESENCE SENSOR DESCRIPTION - The IS40P uses Active IS40P Infrared technology for presence detection. 1. IR angle indicator 2. LED’s 3. IR emitters 4. Sensor angle adjustment 5. Bracket 6. Cable SPECIFICATIONS DESCRIPTION SPECIFICATION SENSOR TILT ANGLE 15°...

  • Page 2: Wall Mounting

    Ensure compliance with all applicable safety standards upon completion of installation.  DO NOT attempt any internal repair of the sensor. All repairs and/or component replacements must be performed by BEA Inc. Unau-  thorized disassembly or repair: 1. May jeopardize personal safety and may expose one to the risk of electrical shock.
  • Page 3 WIRING AND RELAY CONFIGURATION 12-24 V POWER BLACK AC-DC WHITE Green LED WIRING GREEN ACTIVATION RELAY Presence YELLOW WHITE/BLACK Red LED GREEN/BLACK PRESENCE RELAY Presence YELLOW/BLACK RELAY Activation Presence Description Active Passive CONFIGURATION Relay Relay Active Passive Detection Passive Active Passive Passive Detection...
  • Page 4 8.5 ft 8.5 ft E = 16 ft 10 ft 10 ft Maximum Mounting Height IS40P 16 ft * Dimensions are approximate Use of BEA Spotfinder may be utilized to locate IR field. 12” 75.5696.02 EN 20120213 Page 4 of 8...

  • Page 5: Output Configuration

    REMOTE CONTROL PARAMETERS OUTPUT CONFIGURATION PRESENCE RELAY IS40P 0 – 6: ALL MODES Activates when object is in presence zone. OUTPUT ACTIVATION RELAY IS40P CONFIGURATION 0: STANDARD MODE Activates when object is in presence zone Activates when object enters presence zone...
  • Page 6 REMOTE CONTROL PARAMETERS (CONTINTUED) IR / Presence Settings (Continued) IR PATTERN AVAILABLE TARGET SIZE SIZE DOOR The target (Target Size) can vary location within the field (IR Pattern Size) DOOR DOOR DOOR DOOR DOOR DOOR DOOR DOOR FACTORY VALUES 75.5696.02 EN 20120213 Page 6 of 8...

  • Page 7: Troubleshooting

    REMOTE CONTROL PARAMETERS (CONTINUED) Check parameter values The number of green flashes QUESTION A VALUE indicates the value of the chosen parameter. SENSOR SETUP SEQUENCE / FACTORY VALUES / ACCESS CODE IMPORTANT: ENSURE TO SAVE ANY CHANGES DURING THE ADJUSTMENT Parameter Value SESSION VIA PRESSING LOCK LOCK.
  • Page 8 Do not leave problems unresolved. If a satisfactory solution cannot be achieved after troubleshooting a problem, please call BEA, Inc. If you must wait for the following workday to call BEA, leave the door inoperable until satisfactory repairs can be made. Never sacrifice the safe operation of the automatic door or gate for an incomplete solution.
