BEA EAGLE Original Instructions
Unidirectional activation sensor for automatic,
pedestrian doors and high-mount doors
Hide thumbs
Also See for EAGLE:
- Quick start quide (4 pages) ,
- Brochure (2 pages) ,
- User manual (9 pages)
Advertisement
Quick Links
DESCRIPTION
1
2
1. main connector
2. wide zone antenna (Eagle only)
3. narrow zone antenna (optional for Eagle, default for Eagle HM)
4. push buttons
5. cover
TECHNICAL SPECIFICATIONS
Technology:
Transmitter frequency:
Transmitter radiated power:
Transmitter power density:
Detection mode:
Min. detection speed:
Supply voltage:
Mains frequency:
Max power consumption:
Output:
max. contact voltage:
max. contact current:
max. switching power:
Mounting height:
Degree of protection:
Temperature range:
Dimensions:
Tilt angles:
Material:
Weight:
Cable length:
Norm conformity:
75.5957.01 EAGLE FAMILY 20180508
microwave and microprocessor
24.150 GHz
< 20 dBm EIRP
< 5 mW/cm²
motion
2 in/s
12 – 24 VAC ±10%; 12 – 24 VDC +30% / -10%
50 – 60 Hz
< 2 W
relay (free of potential changeover contact)
42V AC/DC
1A (resistive)
30W (DC) / 60VA (AC)
Eagle: 6' – 13'
Eagle HM: 10' − 16'6"
IP54
-4 – 131 °F
4.7" (L) × 3.1" (H) × 2.0" (W)
0 – 90° vertical; -30 – 30° lateral
ABS
7.6 oz
Eagle: 8'
Eagle HM: 30'
R&TTE 1999/5/EC, LVD 2006/95/EC, RoHS 2 2011/65/EU
Specifications are subject to change without prior notice.
All values measured in specific conditions.
EAGLE & EAGLE HM
Unidirectional activation sensor for automatic,
pedestrian doors and high-mount doors

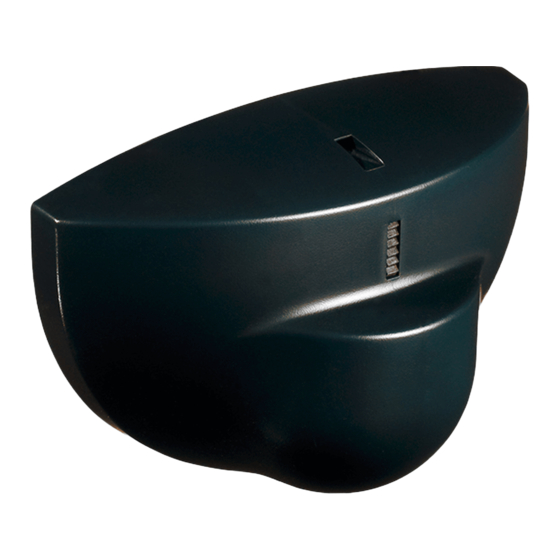

The image shown here is a standard Eagle.
Antennae differ between the standard and high-mount versions of the Eagle.
3
4
Page 1 of 4
5
