BEA EAGLE (10EAGLEHM) Manual

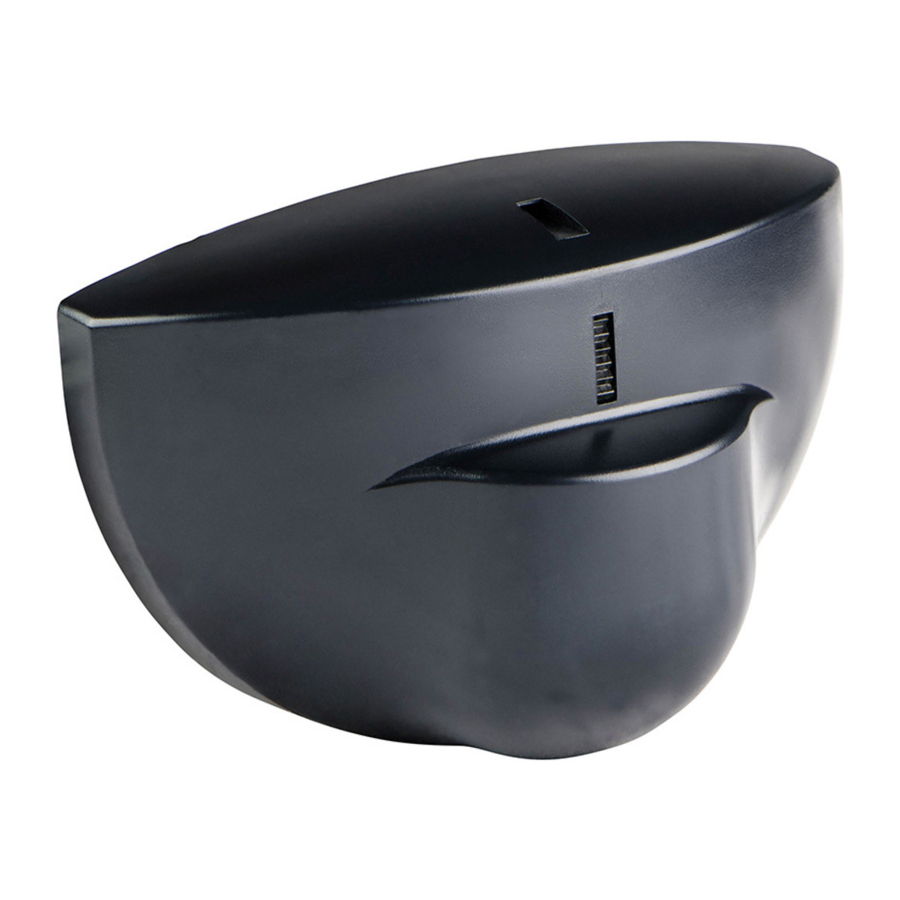

Description

Description - Part 1
NOTE: For mounting heights between 10' and 16', use BEA model 10EAGLEHM (high mount).

Description - Part 2

main connector
wide zone antenna
narrow zone antenna
push buttons
cover

Technical Specifications

DESCRIPTION	SPECIFICATION
Frequency:	24.125 GHz
Supply voltage:	12 to 24 V AC: ± 10%: 12 to 24 V DC: -10% / +30%:
Mounting height:	Normal: 7'; Maximum: 10'-0"
Tilt angle:	0° to 90° vertical -15° to +15° lateral
Detection area: Wide Narrow	13ft (W) x 6.5ft (D) 6.5ft (W) x 8.2ft (D) (supplied as optional)
Minimum detection speed:	2 in/sec. (measured in axis)
Power consumption:	< 2 W
Standard output relay: Max contact voltage Max contact current Max switching power	60 VDC / 125 VAC 1 A (resistive) 30W (DC) / 60VA (AC)
Hold time:	0.5 sec. to 9 sec. (adjustable)
Temperature range:	-4°F to 131°F
Dimensions:	4.75in (W) x 3.15in (H) x 2.0in (D)
Weight:	0.5lbs
Material:	ABS
Housing color:	Black. Can be painted with non-metallic paint
Cable length:	6ft

TECHNICAL SPECIFICATIONS

Technology:	microwave and microprocessor
Transmitter frequency:	24.150 GHz
Transmitter radiated power:	< 20 dBm EIRP
Transmitter power density:	< 5 mW/cm²
Detection mode:	motion
Min. detection speed:	2 in/s
Supply voltage:	12V to 24V AC ±10%; 12V to 24V DC +30% / -10%
Mains frequency:	50 to 60 Hz
Max power consumption:	< 2 W
Output: Max. contact voltage: Max. contact current: Max. switching power:	relay (free of potential change-over contact) 42V AC/DC 1A (resistive) 30W (DC) / 60VA (AC)
Mounting height:	from 6 ft to 13 ft
Degree of protection:	IP54
Temperature range:	from -4°F to + 131°C
Dimensions:	4.7 in (L) x 3.1 in (H) x 2.0 in (W)
Tilt angles:	0° to 90° vertical; -30° to +30° lateral
Material:	ABS
Weight:	7.6 oz
Cable lenght:	8 ft
Norm conformity:	R&TTE 1999/5/EC, LVD 2006/95/EC, RoHS 2 2011/65/EU

Specifications are subject to changes without prior notice. Measured in specific conditions.
* Other use of the device outside of the intended purpose can not be guaranteed by the manufacturer.

caution

The device should not be used for purposes other than its intended use. All other uses cannot be guaranteed by the manufacturer of the sensor.
The installer of the door system is responsible for carrying out a risk assessment and installing the sensor and the door system in compliance with applicable national and international regulations and standards on door safety.
The manufacturer of the sensor cannot be held responsible for incorrect installations or inappropriate adjustments of the sensor.

Installation

Tips

The sensor must be firmly fastened to prevent vibration.

The sensor must not be placed directly behind a panel or any kind of material.

The sensor must not have any object likely to move or vibrate in its sensing field.

The sensor must not have any fluorescent lighting in its sensing field.

Safety Precautions

Shut off all power going to the header before attempting any wiring procedures.
Maintain a clean & safe environment when working in public areas.
Constantly be aware of pedestrian traffic around the door area.
Always stop pedestrian traffic through the doorway when performing tests that may result in unexpected reactions by the door.
Always check placement of all wiring and components before powering up to insure that moving door parts will not catch any wires and cause damage to equipment.
Ensure compliance with all applicable safety standards upon completion of installation.

ELECTROSTATIC DISCHARGE (ESD) PRECAUTIONS

Circuit board components are vulnerable to damage by electrostatic discharge (ESD). ESD can cause immediate or subtle damage to sensitive electronic parts. An electrostatic charge can build up on the human body and then discharge when you touch a board. A discharge can be produced when walking across a carpet and touching a board, for example. Before handling any board, make sure you dissipate your body's charge.

In the event a unit needs to be opened, observe the following precautions.
Ground yourself by touching a conductive surface of the door or other element connected to common earth ground to discharge the static electricity present in your body. Avoid walking around while replacing items inside the case, especially if you are on carpet or during conditions of low temperature and low humidity. Handle the board by the edges only to avoid touching electronic components. Store a loose board in an anti-static bag.

Mechanical Installation
Opening the sensor

From behind, before installation
From the front, after installation

Mounting the sensor

Paste the template at desired location.
Drill as instructed.

Insert screws but do not screw them fully in.
Pass the cable where indicated.

Optional cable routing: Notch the cover as shown in the picture.

Electrical Installation

Run the cable through the wire passage hole just below PCB.

Position the sensor and tighten the two screws. Make sure you leave enough cable to reach the terminal block near the top of the sensor.

Terminal	Connection
1 (Red)	12 to 24 VAC / DC (+)
2 (Black)	12 to 24 VAC / DC (-)
3 (White)	Relay Common
4 (Green)	Relay N.O.
5	Relay N.C.
Note: Input power tolerance is +/- 10% for AC, and -10% to +30% for DC power.

Wiring connections are as shown above.

Mechanical Adjustments

THE WIDTH OF THE SENSING FIELD IS DETERMINED BY THE CHOICE OF THE PLANAR ANTENNA (OPTION)
Wide sensing field: 3-element antenna

Carefully remove the protective cover of the antenna with a screwdriver.

Narrow sensing field: 6-element antenna

Change the antenna and replace the protective cover.

SENSING FIELDS ACCORDING TO THE TYPE OF ANTENNA
The sensing fields above correspond to the following adjustments: vertical angle of the antenna: 30° sensitivity: 9 Mounting height: 7'

THE POSITION OF THE SENSING FIELD IS DETERMINED BY THE VERTICAL TILT ANGLE OF THE ANTENNA
Sensing field as close to the door as possible: -antenna set at the position of 0°

Sensing field close to the door: -antenna set at the position of 30°

Sensing field far from the door: -antenna set at the position of 45°

SENSING FIELDS ACCORDING TO THE VERTICAL TILT ANGLE OF THE ANTENNA
The sensing fields on the right correspond to the following adjustments: wide sensing field antenna vertical angle of the antenna: 0°, 20°, 45° sensitivity: 9 Mounting height: 7'
- For ceiling mounting, the vertical tilt angle of the antenna must be set at the maximum position of 70-75° and the spherical part of the sensor must be oriented in the opposite direction to the door.
  SENSING FIELDS – CEILING MOUNT
  The sensing fields above correspond to the following adjustments:
- Vertical angle of antenna: 70º
- Sensitivity: 9
- Mounting height: 7'

THE LATERAL POSITION OF THE SENSING FIELD IN FRONT OF THE DOOR IS DETERMINED BY THE LATERAL TILT ANGLE OF THE ANTENNA.
The sensing fields on the right correspond to following adjustments: Wide sensing field antenna Lateral angle of the antenna: +30°, -30° Sensitivity: 1= min., 6 = middle, 9 = max. Mounting height: 7'

THE DIMENSIONS (WIDTH, DEPTH) OF THE SENSING FIELD DEPEND ON THE SENSITIVITY SETTING.
The sensing fields on the right correspond to the following adjustments:
Wide sensing field antenna
Vertical angle of the antenna: 30°
Mounting height: 7'
THE DIMENSIONS (WIDTH, DEPTH) OF THE SENSING FIELD DEPEND ON THE MOUNTING HEIGHT
The sensing fields on the right correspond to the following adjustments:
Wide sensing field antenna
Vertical angle of the antenna: 20°
Sensitivity: 9
Mounting height: 9.6'

Programming Guide
The Eagle is equipped with a Motion Tracking Feature (MTF). The MTF is available when the Eagle is used in the unidirectional mode. The Eagle is factory preset with the MTF ON. MTF is recommended for use in short vestibule areas to help reduce unwanted door hold-open time. Refer to the Programming Guide to alter this setting. BEA recommends keeping the MTF enabled for all applications. The detection capabilities perform as follows:

BI-DIRECTIONAL MODE:

Detection of all motion towards or away from the sensor.

UNI-DIRECTIONAL MODE:

The detector will work in a uni-directional mode at all times regardless of traffic patterns - detecting only motion moving toward the sensor.

OR
UNI-DIRECTIONAL MODE WITH MTF: The principle is as follows:

The detector does NOT activate its relay as long as it detects movement exclusively moving away from the detector. It acts like the classic unidirectional detector.
As soon as the Eagle detects movement toward the sensor, it automatically switches to bi-directional mode.
The Eagle maintains the bi-directional function for approximately 2 seconds following the last detection of motion toward the door.
At the end of the 2-second time frame, if the Eagle does not detect any further motion, it switches back to the unidirectional mode.

Programming Guide - Part 1
Programming Guide - Part 2
* Every adjustment, when using the infrared remote control, must start with the unlocking function, and end with the locking function.

Manual Setup
If a remote control is not available, only the sensitivity parameter can be adjusted manually, by means of the push buttons + (Plus) and - (Minus).
The sensor parameters that are not accessible manually will remain at the factory preset values.

Pressing the two push buttons located on the circuit board, simultaneously for at least two seconds, will restore all default values except the lock code. Previously set lock codes will be retained.

Troubleshooting

SYMPTOMS	PROBABLE CAUSE	CORRECTIVE ACTION
The door will not open and no red LED lights up	The sensor power is off. The door control is set to level 3.	Check the wiring and power supply. Set door control to automatic mode (level 1).
The door opens and closes constantly	The sensor "sees" the door moving When closing the door creates vibrations picked up by the sensor.	Increase the tilt angle and/or reduce the sensitivity and/or increase the immunity. Ensure the sensor is correctly fixed. Switch to unidirectional mode. Increase the immunity. Reduce the sensitivity.
The door will not close the. Red LED off	On Off switch at door control in wrong position or is faulty. Improper output configuration on the sensor.	Check to insure On-Off switch for door is in the ON or AUTOMATIC position. Check the output configuration setting on each sensor connected to the door operator.
It rains and the sensor detects for no apparent reason.	The sensor detects the motion of the raindrops.	Use the ERA accessory. Switch to unidirectional mode (without MTF) and increase the immunity.
In airlock vestibules, the sensor sees the opposite door.		Increase immunity.
In airlock vestibules, the sensor sees the movement of the door leaves, despite of an increased immunity.		Make sure the antenna for the narrow sensing field is used.
In metallic environments, the sensor detects objects outside its detection field.		Increase immunity.
The sensor will not unlock when access code is entered.	Batteries in the remote control are weak or installed improperly. Remote control improperly pointed.	Check the batteries insertion. Change the batteries. Point the remote control toward the sensor.

The door remains closed.	The sensor power is off.	Check the wiring and the power supply.
The LED is OFF.	The door control setting (F2) is set to value 3 (closed).	Change the door control setting (F2) to value 1 (automatic).
The door does not react as expected.	Improper output configuration on the sensor.	Change the output configuration setting on each sensor connected to the door operator.
The door opens and closes constantly.	The sensor is disturbed by the door motion or vibrations caused by the door motion.	Make sure the sensor is fixed properly. Make sure the detection mode is unidirectional. Increase the antenna angle. Increase the immunity filter. Reduce the zone size.
The door opens for no apparent reason	It rains and the sensor detects the motion of the rain drops.	Make sure the detection mode is unidirectional. Increase the immunity filter. Install the rain accessory.
	In highly reflective environments, the sensor detects objects outside of its detection zone.	Change the antenna angle. Decrease the zone size. Increase the immunity filter.
	In airlock vestibules, the sensor detects the movement of the opposite door.	Change the antenna angle. Change the antenna. Increase the immunity filter.
The LED flashes quickly after unlocking.	The sensor needs an access code to unlock.	Enter the right access code. If you forgot the code, cycle the power to access the sensor without access code. Change or delete the access code.
The sensor does not respond to the remote control.	Batteries in the remote control are weak or installed improperly.	Check and change the batteries if necessary.
The sensor does not respond to the remote control.	Remote control poorly oriented.	Point the remote control towards the sensor.

Accessories (sold individually)

PN: 10ECA
For mounting into the ceiling, use the ECA embedding accessory.

PN: 10EMB
Bracket for mounting on the top of the door header.

PN: 10ERA
Rain protection accessory.

Company Contact

Do not leave problems unresolved. If a satisfactory solution cannot be achieved after troubleshooting a problem, please call BEA, Inc. If you must wait for the following workday to call BEA, leave the door inoperable until satisfactory repairs can be made. Never sacrifice the safe operation of the automatic door or gate for an incomplete solution. The following numbers can be called 24 hours a day, 7 days a week. For more information, visit www.beasensors.com.

West: 1-888-419-2564	Mid-West: 1-888-308-8843
South-East: 1-800-407-4545	North-East: 1-866-836-1863
US and Canada: 1-866-249-7937	Canada: 1-866-836-1863

OPENING THE SENSOR

Before mounting

After mounting

MOUNTING & WIRING

TIPS

Do not touch electrical parts.

Avoid vibrations.

Do not cover the sensor.

Avoid proximity to neon lamps or moving objects.

APPLICATIONS
Header mounting above sliding or revolving door

Ceiling mounting in front of door (sliding, revolving or swing doors)

Apply the mounting template. Drill 1 hole for the cable and pull it through. Drill 2 holes for the screws.
Connect the wires accordingly:
1. RED - POWER SUPPLY +
2. BLACK - POWER SUPPLY
3. WHITE - COM
4. GREEN - NO
5. GREEN - NC or
Position the cable as indicated. Mount the sensor firmly.

MECHANICAL ADJUSTMENTS

WIDTH
MECHANICAL ADJUSTMENTS - WIDTH

ANGLE

Adjust the lateral antenna angle.
Adjust the vertical antenna angle.

SETTINGS (by remote control or push buttons)

SETTINGS

ACCESS CODE

The access code (1 to 4 digits) is recommended to set sensors installed close to each other.

Once you have saved an access code, you always need to enter this code to unlock the sensor. If you forget the access code, cycle the power. For the first minute, you can access the sensor without an access code.
