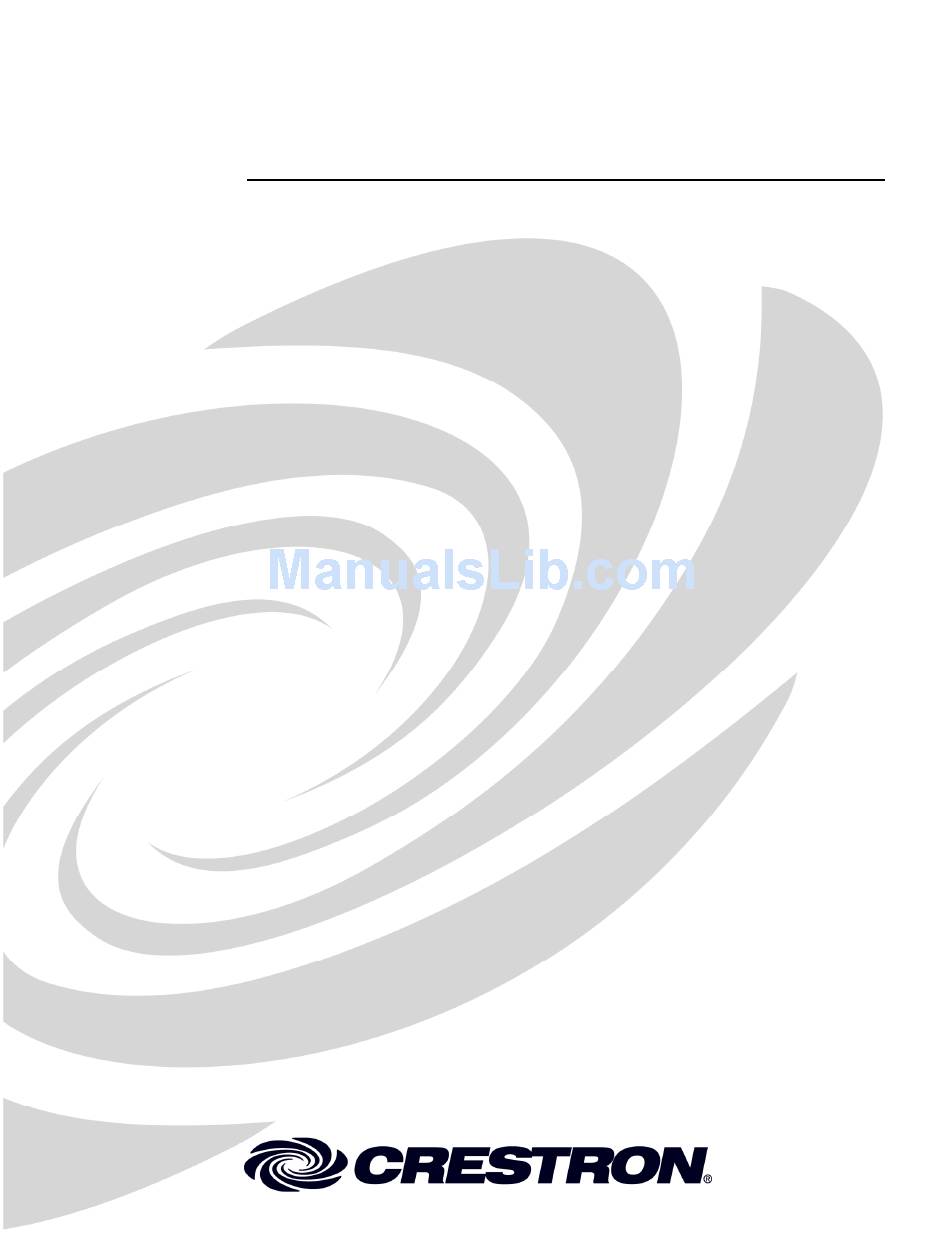

- Page 1 Crestron SWE-8 Sonnex™ Multiroom Audio Expansion Switcher, 8 Zone Operations Guide...
-
Page 2: Important Safety Instructions
This document was prepared and written by the Technical Documentation department at: Important Safety Instructions WARNING: Read these instructions. Keep these instructions. TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, Heed all warnings. DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. -
Page 3: Regulatory Compliance
United States and/or other countries. Other trademarks, registered trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of others. -
Page 5: Table Of Contents
Reference Documents....................18 Further Inquiries ......................18 Future Updates ......................19 Return and Warranty Policies ....................20 Merchandise Returns / Repair Service ..............20 Crestron Limited Warranty..................20 Contents i Operations Guide – DOC. 7202A... -
Page 7: Sonnex™ Multiroom Audio Expander, 8 Zone: Swe-8

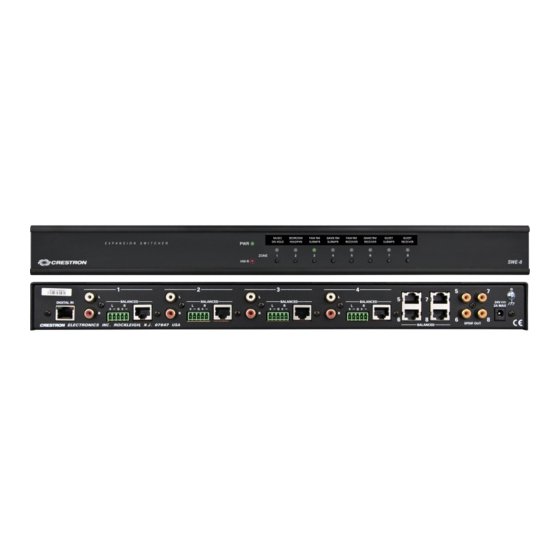

Eight zone Sonnex expansion with line-level outputs Four zones with balanced and unbalanced line outputs Four zones with S/PDIF digital outputs All eight zones include Crestron Home CAT5 balanced outputs All ports on an output are paralleled Professional-quality audio performance ... - Page 8 SWE-8 functions provided through the SWAMP-24X8. 1. Item(s) sold separately. 2. For connection of the Sonnex Link between the SWE-8 and SWAMP-24X8, use Crestron DM-CBL-8G or high-quality CAT5e shielded twisted-pair cable. The maximum cable length is 200 feet (61 meters). For longer distances, use the S-EXT1-S.
-
Page 9: Applications
Crestron SWE-8 Sonnex™ Multiroom Audio Expansion Switcher, 8 Zone Applications The following diagram shows a SWE-8 in a multi-zone application. SWE-8 in a Multi-Zone Application Sonnex™ Multiroom Audio Expansion Switcher, 8 Zone: SWE-8 3 Operations Guide – DOC. 7202A... -
Page 10: Specifications
DETAILS Audio Input Signal Type Sonnex Link Output Signal Types Stereo analog line (unbalanced and balanced), S/PDIF coaxial (2-channel PCM only), Crestron Home CAT5 Balanced Audio Typical of 8 stereo zone outputs: Digital-to-Analog 24-bit 48 kHz Conversion Output Resolution/Bitrate 24-bit 48 kHz... - Page 11 10.19 in (259 mm) Weight 5.0 lbs (2.3 kg) Included Accessory 24 VDC, 2A regulated universal power pack Available Accessories ABAR-1 Crestron Home CAT5 Balanced Audio Receiver High Performance CAT5e Shielded Twisted DM-CBL-8G Pair Cable DM-8G-CONN-100 Cable Connector for DM-CBL-8G, 100-Pack...
-
Page 12: Physical Description
Sonnex™ Multiroom Audio Expansion Switcher, 8 Zone Crestron SWE-8 Physical Description This section provides information on the connections, controls and indicators available on your SWE-8. SWE-8 Physical View (Front) SWE-8 Physical View (Rear) SWE-8 Overall Dimensions 10.19 in (259 mm) 17.30 in... - Page 13 100 Ohms unbalanced; Maximum output level: 4 V balanced, unbalanced Balanced (CH) (Outputs 1-8) (1) 8-wire RJ-45 female, shielded “Crestron Home” CAT5 balanced stereo audio output port. Connect to any “CH” CAT5 audio input 2, 5 port or bidirectional audio port...
- Page 14 5. This eight-pin RJ-45 port uses CAT5 wiring to provide connectivity to the ABAR-1 CAT5 Balanced Audio Receiver and other Crestron Home products such as the C2N-IADS30X24, CNX-BIPAD8, CNXRMCLV, C2N-DAP8, and certain Crestron touch screens. Refer to the following table for connector pinouts.
-
Page 15: Setup
Sonnex™ Multiroom Audio Expansion Switcher, 8 Zone Setup Sonnex Link Wiring Crestron recommends using Crestron DM-CBL-8G (sold separately) or high-quality CAT5e shielded twisted-pair cable for Sonnex Link connections between the SWE-8 and the SWAMP-24X8 or S-EXT1-S. NOTE: Shielded connectors such as the DM-8G-CONN (sold separately) must be used. -
Page 16: Hardware Hookup
Sonnex™ Multiroom Audio Expansion Switcher, 8 Zone Crestron SWE-8 To install the ears: 1. There are screws that secure each side of the SWE-8 top cover. Using a #1 or #2 Phillips screwdriver, remove the three screws closest to the front panel from one side of the unit. - Page 17 NOTE: When the SWAMP-24X8 is connected to a control system using Cresnet only one SWE-8 can be connected. NOTE: When connecting a SWAMP-24X8 or S-EXT1-S to a SWE-8, Crestron recommends using Crestron DM-CBL-8G or high-quality CAT5e shielded twisted-pair cable. Shielded connectors such as the DM-8G-CONN (sold separately) must be used.
- Page 18 SWE-8 is 200 feet (61 meters). Label the Buttons Use Crestron Engraver software to print custom labels for the SWE-8’s front panel buttons and LEDs. Crestron recommends printing on 100-pound paper. Paper weighing less than 100 pounds tends to crumple while sliding in, while paper weighing more than 100 pounds may not fit.
-
Page 19: Configuration
SWAMP-24X8 or by Sonnex Tools software. For more information on configuration options, refer to the latest version of the SWAMP(I)-24X8 Sonnex Multiroom Audio System Operations Guide (Doc. 7049) which is available from the Crestron Web site (www.crestron.com/manuals). Sonnex™ Multiroom Audio Expansion Switcher, 8 Zone: SWE-8 13... -
Page 20: Programming Software
Have a question or comment about Crestron software? Answers to frequently asked questions (FAQs) can be viewed in the Online Help section of the Crestron Web site. To post a question or view questions you have submitted to Crestron’s True Blue Support, log in at www.crestron.com/support. - Page 21 SWE-8 expansion switcher can be connected. Program Manager Program Manager is the view where programmers “program” a Crestron control system by assigning signals to symbols. The symbol can be viewed by double clicking on the icon or dragging it into Detail View.
-
Page 22: Uploading And Upgrading
Crestron SWE-8 Uploading and Upgrading Crestron recommends using the latest programming software and that each device contains the latest firmware to take advantage of the most recently released features. However, before attempting to upload or upgrade it is necessary to establish communication. -
Page 23: Operation
Crestron SWE-8 Sonnex™ Multiroom Audio Expansion Switcher, 8 Zone Operation The SWE-8 operates in either Zone mode or Source mode. The SWE-8’s operating mode is determined by the operating mode of the SWAMP-24X8. For information on operating the SWAMP-24X8, refer to the latest version of the SWAMP(I)-24X8 Sonnex Multiroom Audio System Operations Guide (Doc. -
Page 24: Problem Solving
Check Wiring To ensure optimum performance over the full range of your installation topology, use Crestron Certified Wire. Failure to do so may incur additional charges if support is required to identify performance deficiencies because of using improper wire. Reference Documents The latest version of all documents mentioned within the guide can be obtained from the Crestron Web site (www.crestron.com/manuals). -
Page 25: Future Updates
Sonnex™ Multiroom Audio Expansion Switcher, 8 Zone Future Updates As Crestron improves functions, adds new features and extends the capabilities of the SWE-8, additional information may be made available as manual updates. These updates are solely electronic and serve as intermediary supplements prior to the release of a complete technical documentation revision. -
Page 26: Return And Warranty Policies
(property or economic damages inclusive) arising from the sale or use of this equipment. Crestron is not liable for any claim made by a third party or made by the purchaser for a third party. - Page 27 Crestron SWE-8 Sonnex™ Multiroom Audio Expansion Switcher, 8 Zone This page is intentionally left blank. Sonnex™ Multiroom Audio Expansion Switcher, 8 Zone: SWE-8 21 Operations Guide – DOC. 7202A...
- Page 28 Crestron Electronics, Inc. Operations Guide – DOC. 7202A 15 Volvo Drive Rockleigh, NJ 07647 (2033120) Tel: 888.CRESTRON 05.12 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
