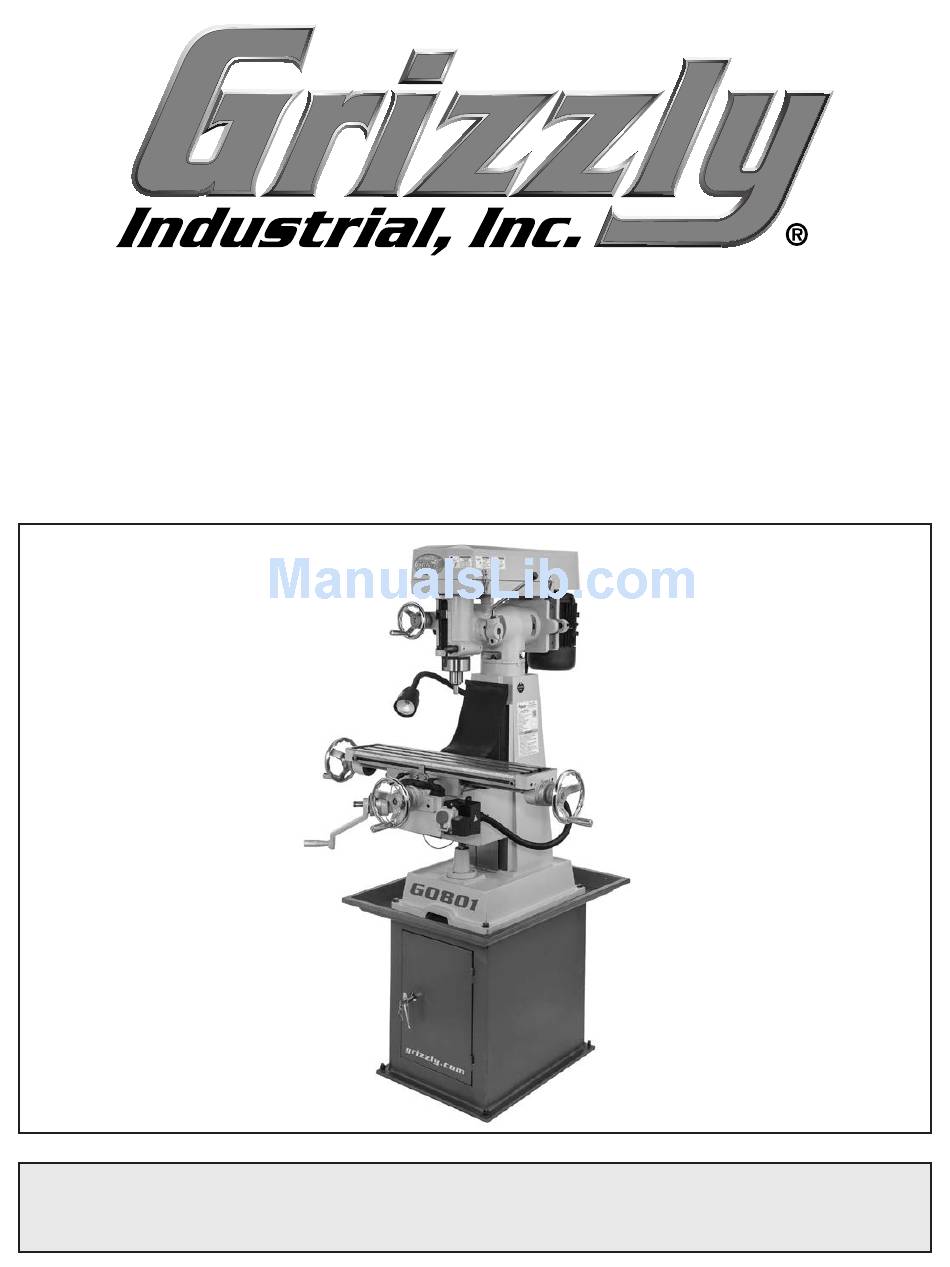

MODEL G0801/G0802
6" x 26" VERTICAL MILL
OWNER'S MANUAL
(For models manufactured since 09/15)
COPYRIGHT © FEBRUARY, 2016 BY GRIZZLY INDUSTRIAL, INC. REVISED MAY, 2018 (HE)
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#WK17759 PRINTED IN CHINA
V1.05.18
