Lantronix XPress DR Quick Start Manual

XPress
WHAT'S
IN THE
BOX
Quick Start Guide

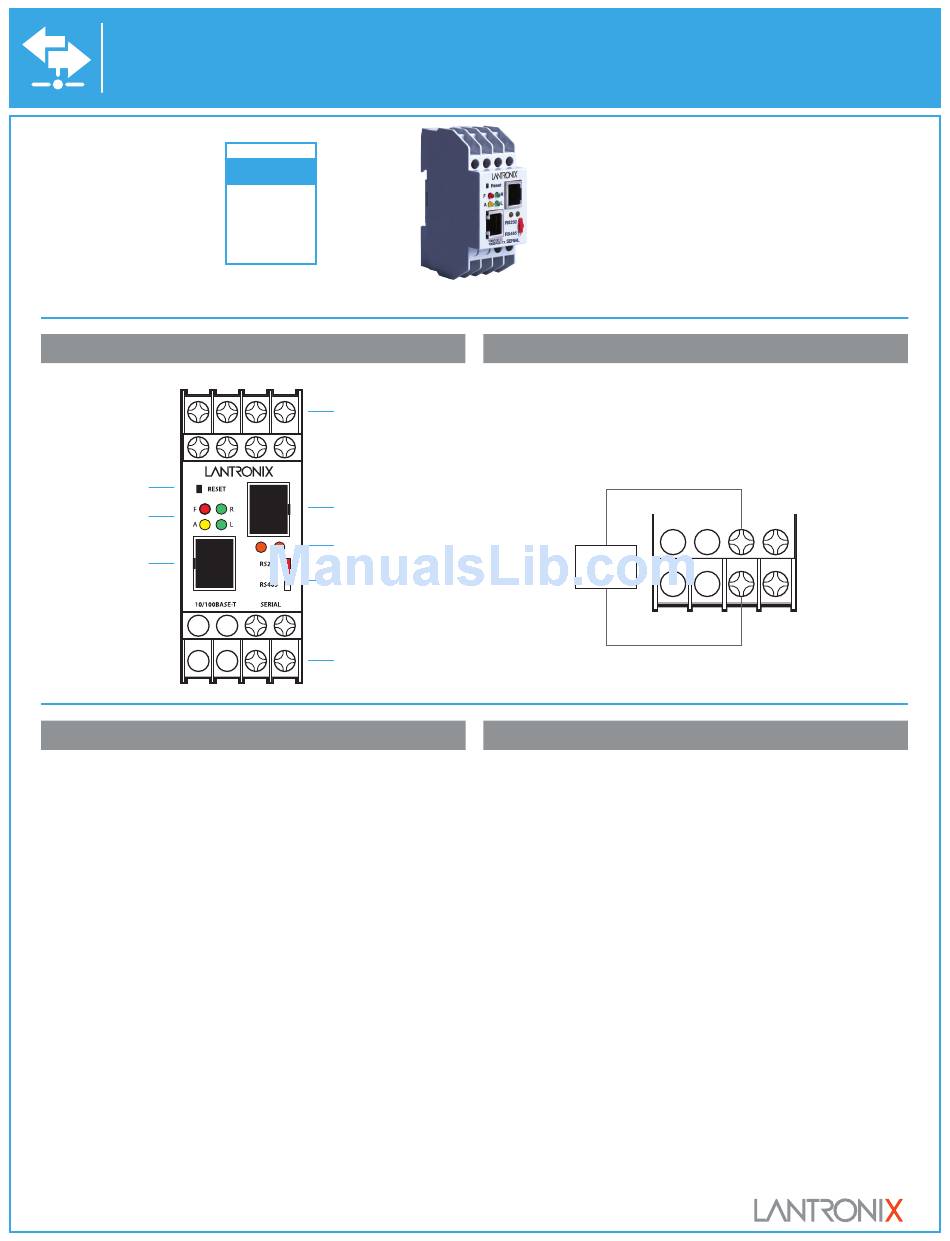

1 HARDWARE REVIEW
Reset Switch
Status LEDs
(Fault/Ready/Activity/Link)
RJ45 Ethernet Port
(10/100BASE-T)
3 IP ADDRESSING
Your XPress DR must have a unique IP address on your network.
The IP address can be assigned automatically or manually.
DHCP
Many networks use an automatic method of assigning an IP
address called DHCP. If you are unsure whether your network
uses DHCP, check with your systems administrator.
The XPress DR looks for a DHCP server when it first powers
up. You can use the DeviceInstaller™ graphical user interface
to search the network if your unit has been assigned an IP
address by the DHCP server. If the XPress DR does not acquire
an IP address, or you do not use DHCP, you must assign a
fixed IP address.
FIXED IP ADDRESS
In most installations, a fixed IP address is desirable. The
systems administrator generally provides the IP address.
The IP address must be within a valid range, unique to your
network, and in the same subnet as your PC.
The following section describes assigning an IP address using
DeviceInstaller.
DR Quick Start Guide
TM
START
XPress DR Device Server
Screw Terminals
(RS-232 and RS-422/485)
®
Serial RJ45 Port
(RS-232 and RS-422/485)
Serial Data Activity LEDs
(Transmit/Receive)
RS-232 or RS-422/485
Select Switch
(for Serial Screw Terminal Block)
Screw Terminals
(9-30VDC or 9-24VAC)
2 HARDWARE INSTALLATION
1. Connect the XPress DR to the network through the Ethernet port.
(The unit must be on the same network as your computer.)
2. Connect power (9-30 VDC or 9-24VAC).
9-30VDC
9-30VAC
3.
Verify that the green Link "L" LED is lit.
4 DEVICEINSTALLER
INSTALL DeviceInstaller™
REQUIREMENTS:
Computer must have a working Ethernet adapter
running Windows as the Operating System (OS). For device
discovery, the computer and device should be connected to the
same IP subnet.
1. Download the latest version of DeviceInstaller from
http://www.lantronix.com/downloads.
required version for DeviceInstaller is
2. Run the executable to start the installation process on the
computer being used to configure the XPress DR.
3. Follow the installation wizard prompts.
DC+ GND
DC- GND
The minimum
4.4.0.2.
