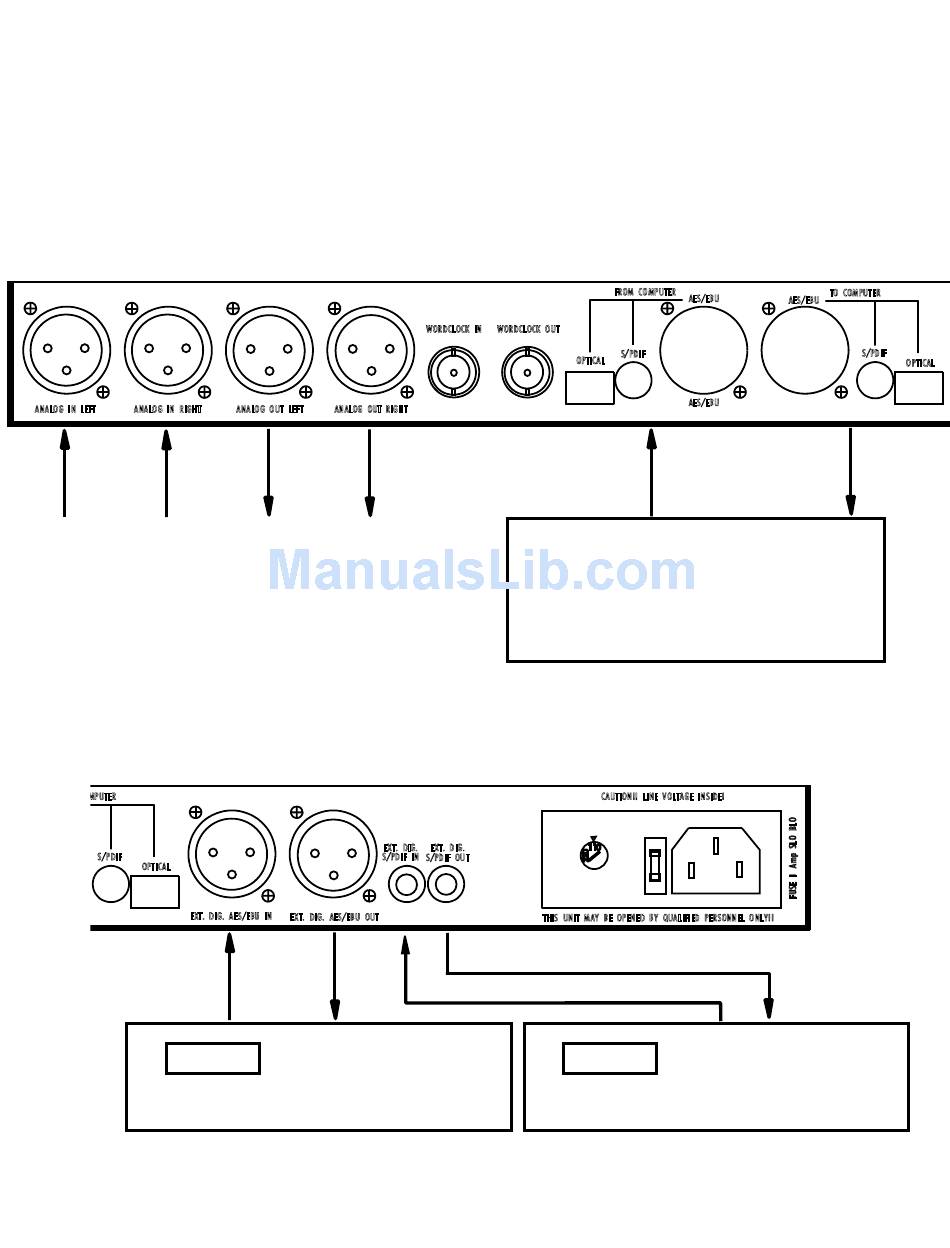

This diagram shows how to set-up your system. This is the basic setup for a digital workstation and two
DAT machines. If you don't use a computer please refer to chapter 6. If you want to use external sync
please refer to chapter 7. Digital in/outs can also be used for any other digital device such as CD player,
CD recorder, digital multitrack, digital console, sampler etc.
ANALOG IN LEFT ANALOG IN RIGHT
FROM
ANALOG SOURCE
(pin 2 hot)
TO COMPUTER
AES/EBU
S/PDIF
OPTICAL
EXT. DIG. AES/EBU IN
2. Setting up your system.
ANALOG OUT LEFT ANALOG OUT RIGHT
TO
ANALOG MONITOR
(pin 2 hot. Lift pin 3
for unbalanced
operation.)
EXT. DIG.
S/PDIF IN
EXT. DIG. AES/EBU OUT
1ST DAT MASTER
OR DIGITAL RECORDER
WORDCLOCK IN WORDCLOCK OUT
OPTICAL
ANY COMPUTER DIGITAL AUDIO CARD
WITH DIGITAL I/O SUCH AS:
Sonic Solutions SSP, USP,
Sadie, Protools, Digital Audio Labs,
Audiomedia, Adb, Zefiro, Wavecenter
Sonorus, Prodif, TripleDat,
or any other card w/ digital I/O
CAUTION!! LINE VOLTAGE INSIDE!
110
EXT. DIG.
S/PDIF OUT
THIS UNIT MAY BE OPENED BY QUALIFIED PERSONNEL ONLY!!
FROM COMPUTER
AES/EBU
AES/EBU
S/PDIF
AES/EBU
2ND DAT MASTER
OR CD player
TO COMPUTER
S/PDIF
OPTICAL
EXT. DI
