DDD-603 Digital AES/EBU/SPDIF Meter

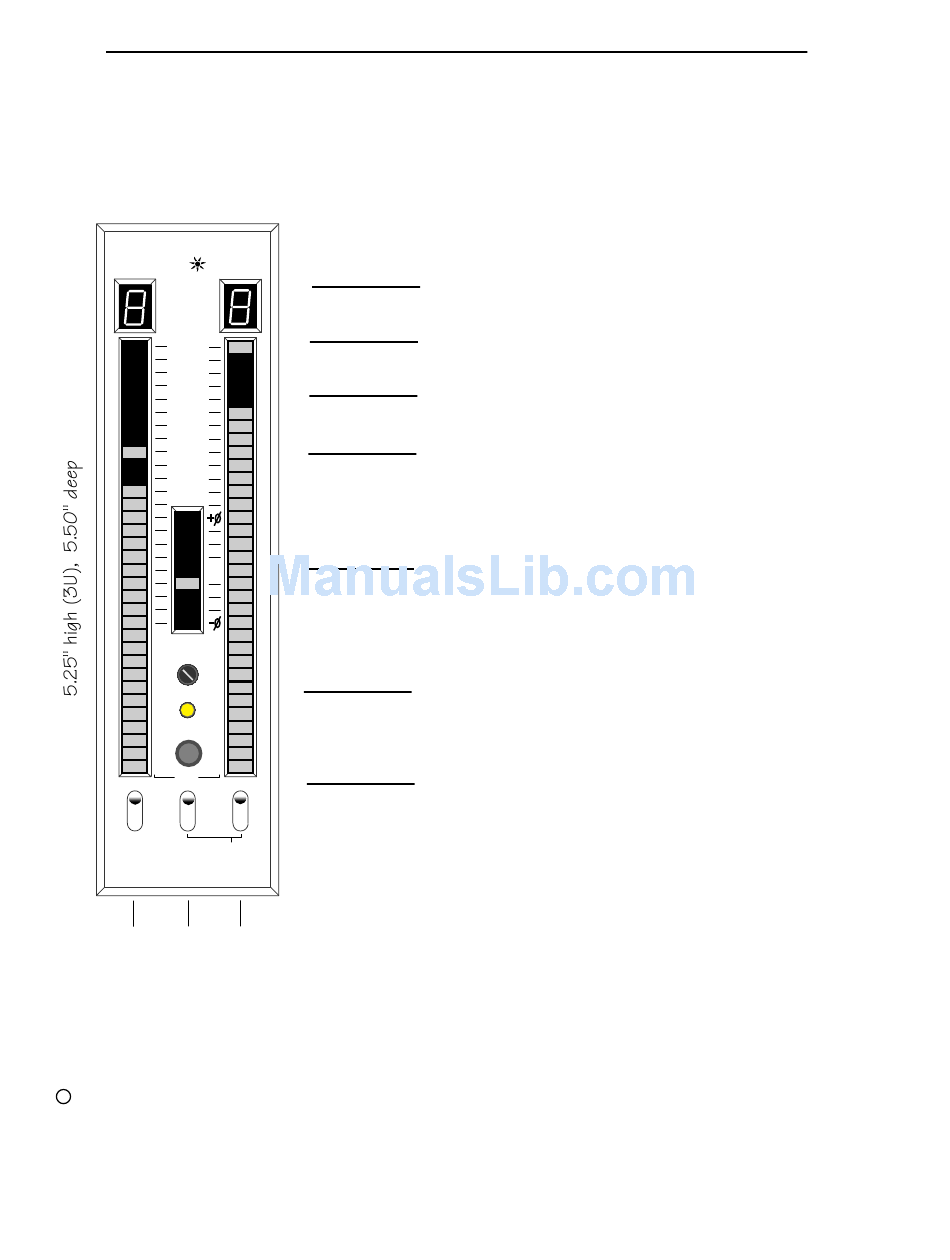

ACTUAL SIZE
1.425" wide
12 units fit
into 19" rack
DDD-603
MYTEK USA
OVERLOAD
COUNTER
OVER
0.5
1
2
3
4
5
6
7
8
9
10
11
+
12
13
14
15
0
16
17
18
19
-
20
25 21 21
CALREF
22 22
30
ADJUST
23 23
35
24 24
40
25 25
50
IN OK
26 26
60
27 27
65
28 28
70
CLEAR
29 29
75
30
80 30
85 50 50
PK+VU
1SEC PEAK CALREF
HOLD PK+VU SIMPLE
NONE CAL PHASE
POWER OFF
DIGITAL AES/EBU METER
C
A B
c 1994 Mytek Technologies
This mastering quality meter has ballistics
and overload indication same as Sony 1630
plus additional very useful peakcounter
and phase meter.
normal "peak mode" shown only:
(there are two more modes:
"peak+VU" and "calibration")
Overload counter counts every time the "over" l.e.d. is lit. The
counter counts up to 10. "E" reading means 10 or more. The counter
can be cleared by "clear" button.
"Over" l.e.d. shows true digital overload (after 3 subsequent samples
exceed max. range).
The L and R bargraph indicates peak value of the signal. The meter
ballistics are carefully managed by internal software to naturally
represent incoming sound.
The highest lit l.e.d. (including "over" l.e.d.) can be held for 1 sec.,
memorized or immediately turned off. These functions are controlled
by switch A. Memorized segment can be cleared by "clear" button.
11
12
13
14
15 The middle small bargraph has two functions controlled by switch C.
16
In the "phase" mode it serves as a phase correlation meter. In the
17
"CALREF" mode the bar shows 0 VU reference level..
18
19
20
25
30
35
40 "In OK" l.e.d. shows presence of input AES/EBU signal i.e. indicates
50
proper digital connection.
60
65
70
Position "simple" of the switch C leaves active the L and R bargraph
75
80
only. The overload counter and the middle bargraph are turned off.
85
This feature facilitates equipment operation during long hours of
The front panel finish is black anodized aluminium. The unit is powered through an
external international (100-240 VAC) power adaptor (included). Another type external
+5V regulated power supply (1.5 Amp per meter) can also be used. DDD-603 is
portable, can be placed ontop of a console bridge, mounted into console or in a 19" rack
(w/ optional hardware). Both digital input and digital throughput are provided on two
XLR connectors mounted in the back. The meter accepts AES/EBU or SPDIF inputs.
An RCA to XLR adaptor is required for SPDIF signals.
