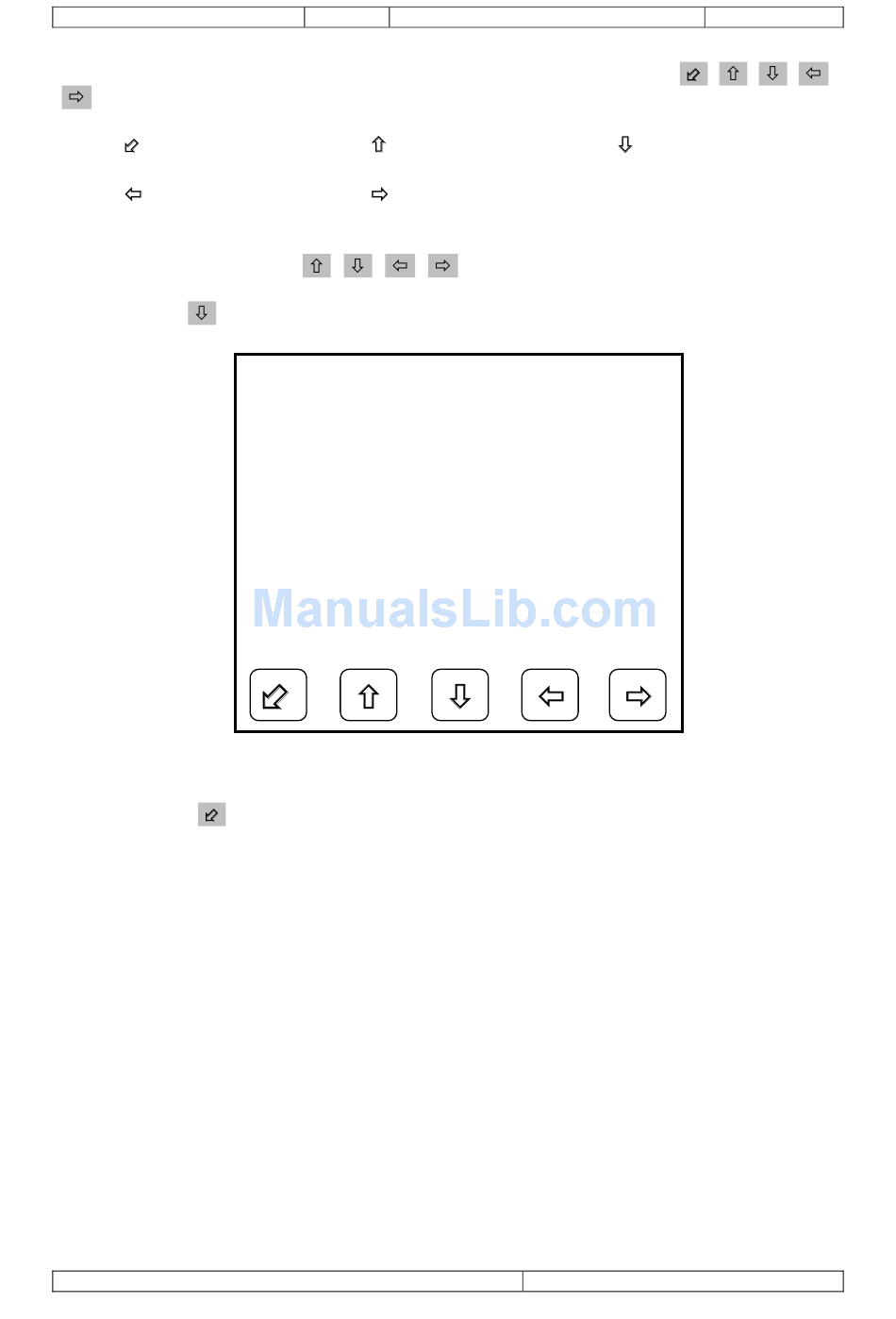

The figure above shows the reports display and keypad, where the '[ ], [ ], [ ], [ ],
[ ]' keys have the following meanings :
= Exit
= Pan Left
The reports display shows a 'window' onto the full page printout, which is to big to fit
the screen, therefore the '[ ], [ ], [ ], [ ]' keys are used to view the left and right
extents of the page, or to scroll more pages into view. From the above figure
pressing the '[ ]' key will scroll the next page of the displayed reports into view as
follows:
Figure: Reports display showing event reports
Touching the [ ] 'Exit' key will close the ADC display and return to the initial
bargraph display. If the 'Reports Display' was initially accessed by a Supervisor or
Engineer level user, then an option to clear all reports from memory will first be
displayed as follows:
File Name: Q875-0143 ENG Iss2 Met30+ Operating.doc
Issue 2
= Scroll Up
= Pan Right
26/11/04 8:00:15 PRODUCT A S 156 P 68.0
26/11/04 8:02:23 PRODUCT A S 200 P 76.3
26/11/04 8:05:39 product selected [2] PILLS
26/11/04 8:07:48 PILLS S 227 P 130.3
26/11/04 8:07:55 PILLS S 51 P 37.9
26/11/04 8:10:08 PILLS S 221 P 2.1
26/11/04 8:14:21 PILLS S 224 P 3.4
26/11/04 8:18:27 PILLS S 121 P 2.1
26/11/04 8:26:50 PILLS S 324 P 0.2
26/11/04 8:28:17 PILLS S 224 P 0.2
26/11/04 8:56:44 test started
26/11/04 8:56:45 operator 1234
26/11/04 8:56:49 test passed
26/11/04 8:57:01 PILLS S 127 P 12.8
