The bar graph mode can be turned on by pressing [ ] or turned off by pressing [ ].
When in the bar graph mode the line of settings at the bottom of the display are
replaced by a small version of the bargraph.
9.1.1.6 Phase Angle Zoom (P) :
The product signal is rotated to the product phase angle and the height and width
are zoomed independently so that the product signal fits onto the display. This mode
of display is useful for product signals where the height is much larger than the
width.
9.1.2 Edit menu functions 'WCHPGN' / 'WCHPGNF' (3F)
Pressing the menu toggle key will show the editing letter menu WCHPGFN. The
letters have the following meanings:
W = Width adjustment
P = Phase adjustment
F = Select Frequency
(Met30 +3F only)

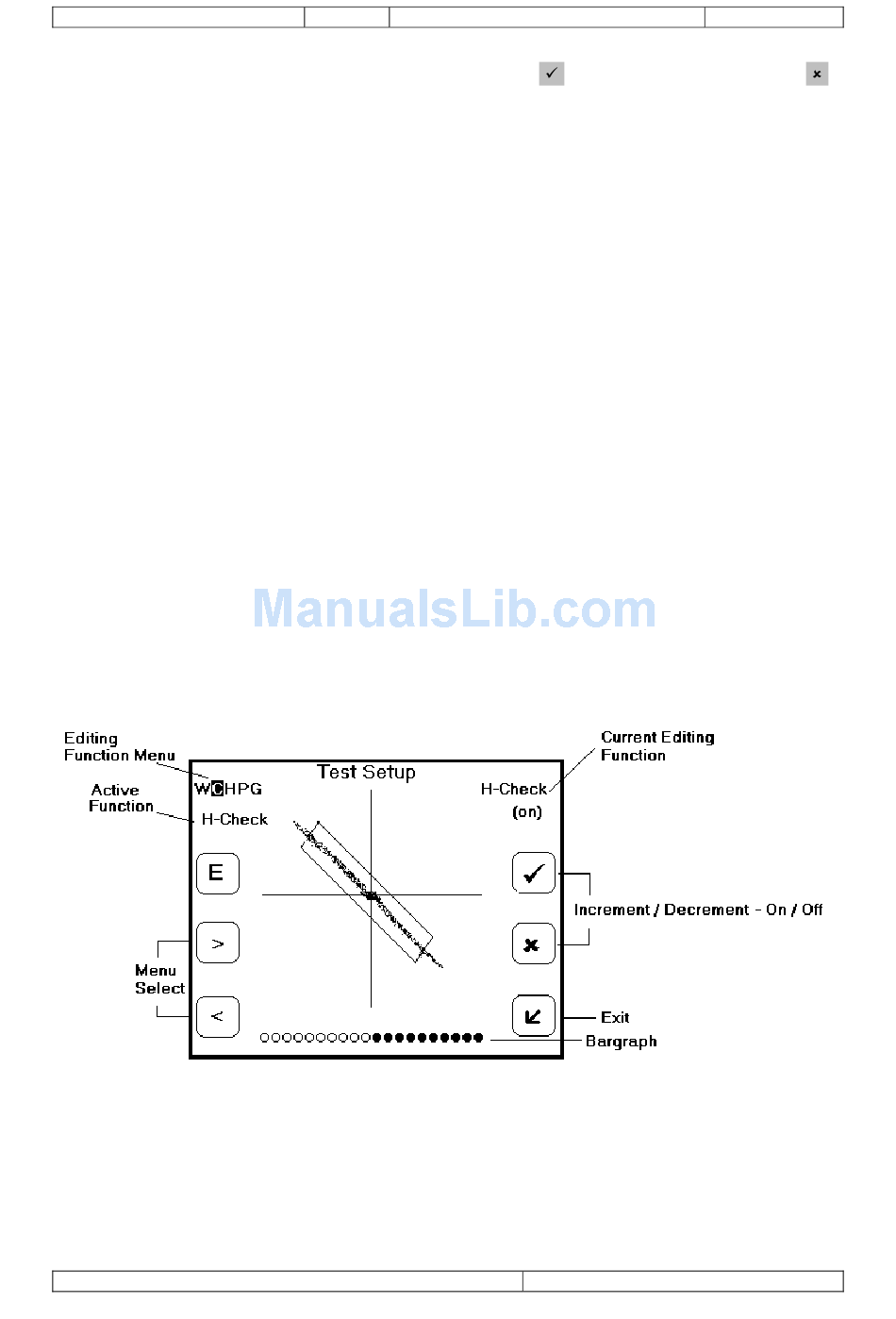

An example of the ADC screen showing the editing menu is shown in the figure
below.
Figure : ADC display in edit menu mode(Including bargraph display).
9.1.2.1 Adjust detection envelope width (W) :
File Name: Q875-0143 ENG Iss2 Met30+ Operating.doc
Issue 2
C = Height check on/off
G = Gain adjustment
NF
Met 30+ Operating Manual
12/01/10
H = Height adjustment
N = Edit product name
Page 48 of 58
