Summary of Contents for PolyVision ?no flex

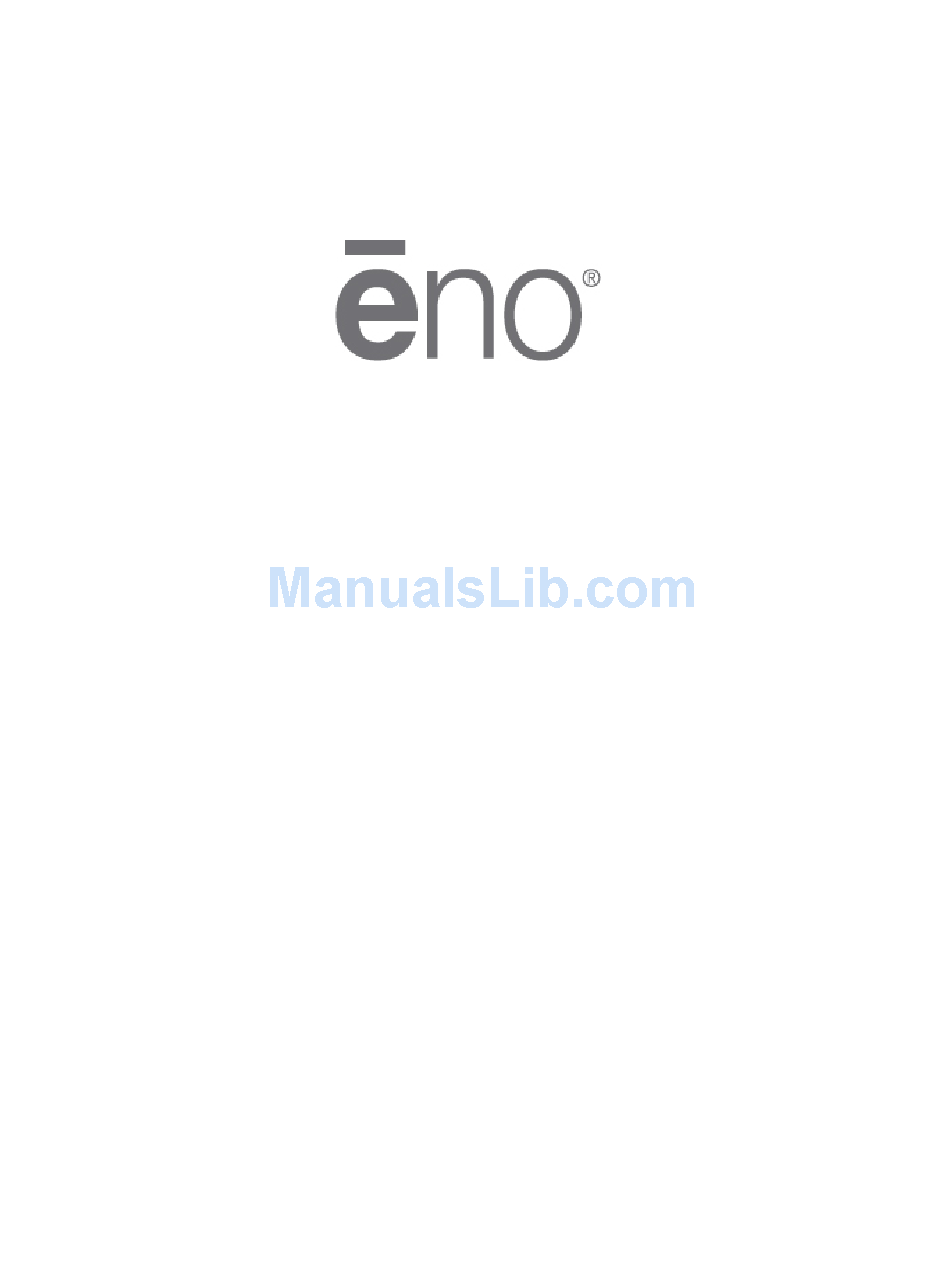

- Page 1 ēno flex Installation Guide Part number 2002083-001 Rev A ©2011 PolyVision Corporation All rights reserved...
-
Page 2: Table Of Contents
Step 9: Install left and right panels ......................14 Install end caps...............................15 Lock the tray together.............................16 Step 10: Install the map rail tack material, map clips, and flag holder ............16 Install the PolyVision driver........................17 Index ................................18 Installation and Operation Guide... -
Page 3: Overview
The building owner or designated agent is responsible for verifying that the installation is in compliance with all local Codes and regulations. If you have a problem, question, or request, call your local dealer or PolyVision at 800.620.POLY (7659) 678.542.3100 +32.089.32.31.30... -
Page 4: Tools And Supplies
ēno flex Installation Guide Tools and supplies What comes in the box ēno interactive whiteboard assembly Left panel assembly (Marker or Tack) Right panel assembly (Marker or Tack) Left and right chalk tray sections Center chalk tray sections Map rail tack material (roll) Map clips (x2) Flag holder “L”... -
Page 5: Required Items
ēno flex Installation Guide Required items Level #2 Phillips screw driver Pencil Stud finder (for sheetrock walls) Measuring tape Power Drill and/or Hammer drill Ladder Appropriate fasteners for wall material PolyVision... -
Page 6: Suggested Hardware Per Mounting Application
ēno flex Installation Guide Suggested hardware per mounting application NOTE: The following is a suggested hardware component list. All local codes and protocols should be reviewed and followed when installing this product. Follow all manufacturer directions and local code requirements for hardware instillation. If mounting to a wood stud wall: •... -
Page 7: Phase 1 - Installing Tray And Wall Hardware
84” (2.13m) from floor to ceiling for proper installation. Unpack wall hardware 1. Place the ēno flex box on the floor with the PolyVision logo facing upwards. 2. Locate the three tray sections, a bag of hardware and an installation guide. Unwrap and lay out the contents to prepare for installation. -
Page 8: Step 2: Position The Chalk Tray
ēno flex Installation Guide Step 2: Position the chalk tray 1. Using a tape measure, locate and mark the desired center location for the board. 2. Using a level, mark a level line 38” (968 mm) off the floor for adults or 32” for children. The line should be 144 inches (3.658 m) or 192 inches (4.877 m) wide off the center mark depending on the model being installed. -
Page 9: Step 3: Pre-Drill Clearance Holes In The Center Chalk Tray
18” out in each direction for ēno-Flex-A-2xx. Add the marks at 11” for the outside edges for ēno-Flex-A-1xx. 3. Drill clearance holes through the chalk tray at those locations using a drill bit size based on the bolt hardware appropriate for your wall material. PolyVision... -
Page 10: Step 4: Fasten The Center Chalk Tray To The Wall
ēno flex Installation Guide Step 4: Fasten the center chalk tray to the wall 1. Position the center tray section on the wall with the top edge of the tray on the marked level line and the center notch feature aligned with the center mark on the wall. 2. -
Page 11: Step 5: Add The Left And Right Chalk Tray Sections
6. Shim behind the left and right tray sections as needed to correct for uneven walls. Shims are provided in the hardware kit. 7. Repeat for the right tray section. Step 6: Fasten “L” clips to the wall Install two “L” clips per panel section for a total of six “L” clips. PolyVision... - Page 12 ēno flex Installation Guide To install “L” clips: 1. Using a tape measure and level, mark a level line 45” (1.14 m) above the top of the chalk tray all along the length of the tray. Along that chalk line, mark “L” clip locations as follows: For 12’...
-
Page 13: Phase 2 - Installing Panels
3. Place the center ēno interactive whiteboard panel into the center tray section, matching the set screw on the back of the panel assembly to the “key” in the center tray section to ensure the panel is centered left/right with the tray. PolyVision... -
Page 14: Step 8: Fasten The Center Panel
ēno flex Installation Guide Step 8: Fasten the center panel 1. Gently tap the two center panel “L” clips down so they are flush onto the top trim of the ēno interactive whiteboard panel. Ensure that the panel is flush with the wall. #8 x 1/2 2. -
Page 15: Install End Caps
5. Fasten the “L” clip into the top trim to lock the panel section into place using self tapping #8 x 1/2” screws (provided in the hardware kit). 6. Repeat this process for the right panel assembly. Install end caps To install end caps: 1. Fasten end caps to each end of the tray as shown below. PolyVision... -
Page 16: Lock The Tray Together
ēno flex Installation Guide Lock the tray together To lock the tray together: 1. Fasten the three tray sections together using six pan head #6 x 1/4" (6.4 mm) screws (provided in the hardware kit) into the tray from the bottom. The tray is pre-drilled for each screw location, as shown below. -
Page 17: Install The Polyvision Driver
6. Reinstall the map rail end cap and fasten it in place with the screw. The cap may need to be pressed inward to compress the tack material before installing the screw. Install the PolyVision driver Refer to the ēno interactive whiteboard installation and operation guide to continue preparing the ēno flex for use. -
Page 18: Index
ēno flex Installation Guide Index Center panel installation, 13 Center tray section, 9 End cap installation, 15 Left-right chalk tray installation, 11 Left-right panel installation, 14 Lock tray sections, 16 Map rail tack installation, 16 Position the chalk tray, 8 Sheet rock wall installations, 10 Wall clip installation, 12 Wall dimensions required, 7...
