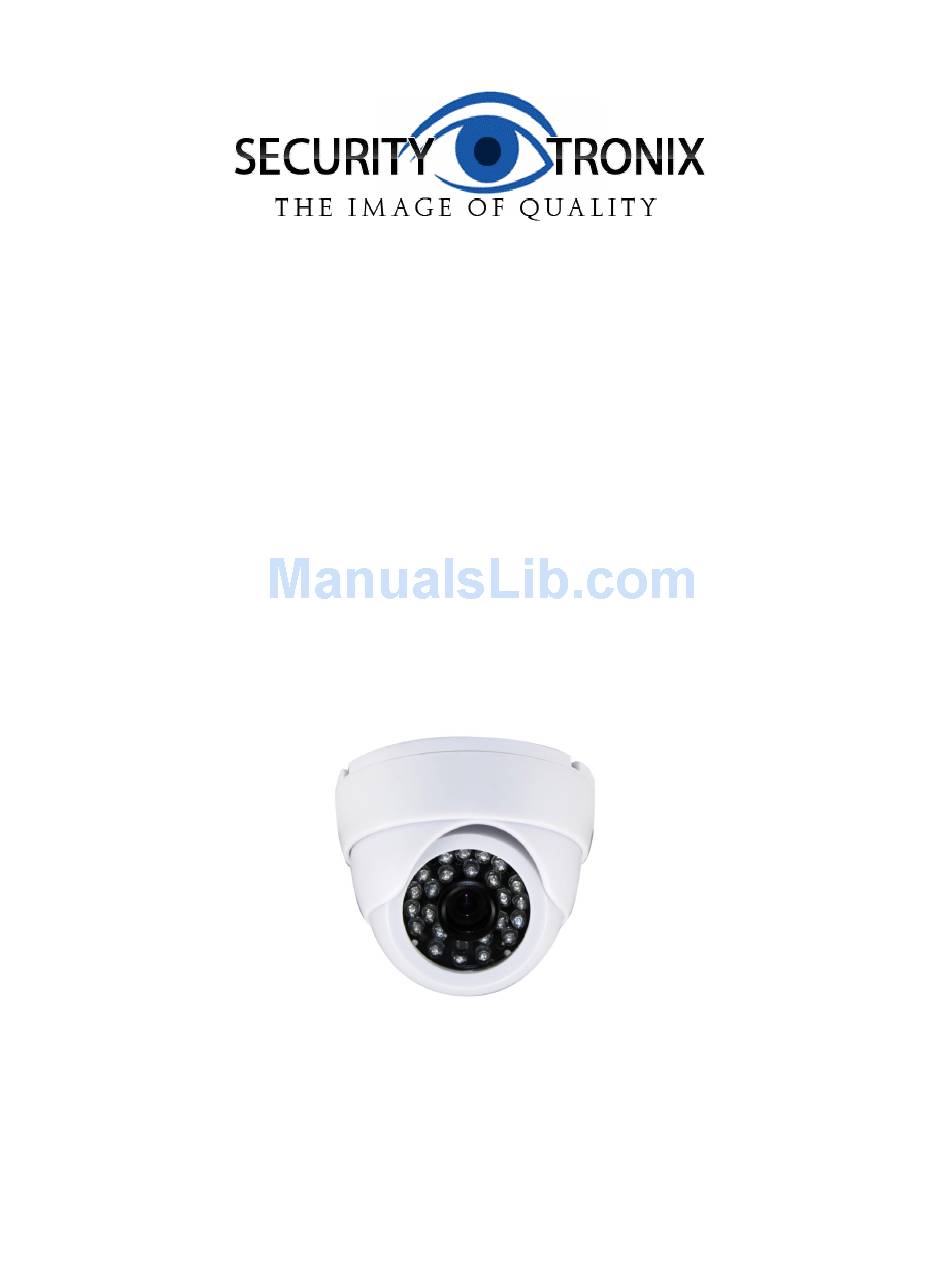

- Page 1 INSTALLATION MANUAL© ST-D420IR3.6 Dome Infrared CCD Camera Copyright North American Cable Equipment, Inc. v2.0 11/1/10...
-
Page 2: Package Contents

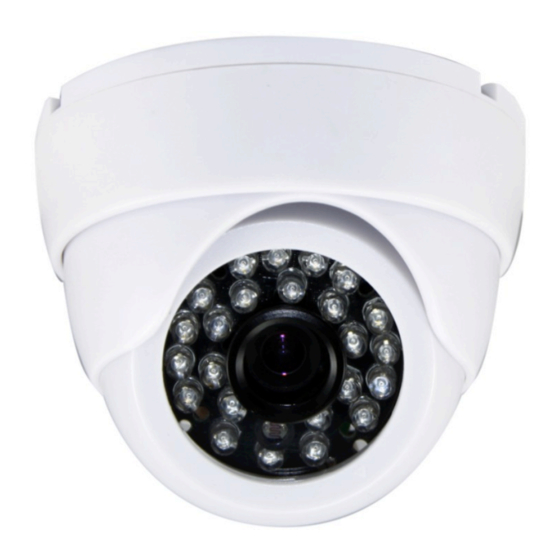

ST-PS12VDC2A. PRODUCT DESCRIPTION The ST-D420IR3.6 is an indoor infrared camera designed around a 1/3” Color SONY Super HAD CCD with 420TVL of resolution, 24 infrared LEDs providing infrared capability up to 65 feet. The ball style dome camera provides the installer with the ability to easily adjust the camera’s viewing area. -
Page 3: Installation And Operation
INSTALLATION AND OPERATION 1. UNPACKING and HANDLING Each unit is shipped assembled and factory tested. Ensure that all accessories are removed from the container before discarding packing material 2. MECHANICAL INSPECTION Inspect the front and rear of the equipment for shipping damage. Make sure the equipment is clean, and no connectors are broken, damaged, or loose. - Page 4 5. TROUBLESHOOTING a. No picture after applying power – (i) check all plugs and cables are securely connected to the proper connectors; (ii) ensure your power supply is providing the correct voltage and current. b. The picture has ripples – (i) check to see if the power supply is experiencing AC ripple, if so a filter may be required;...
