Summary of Contents for Security Tronix ST-DWD700-3.6-B

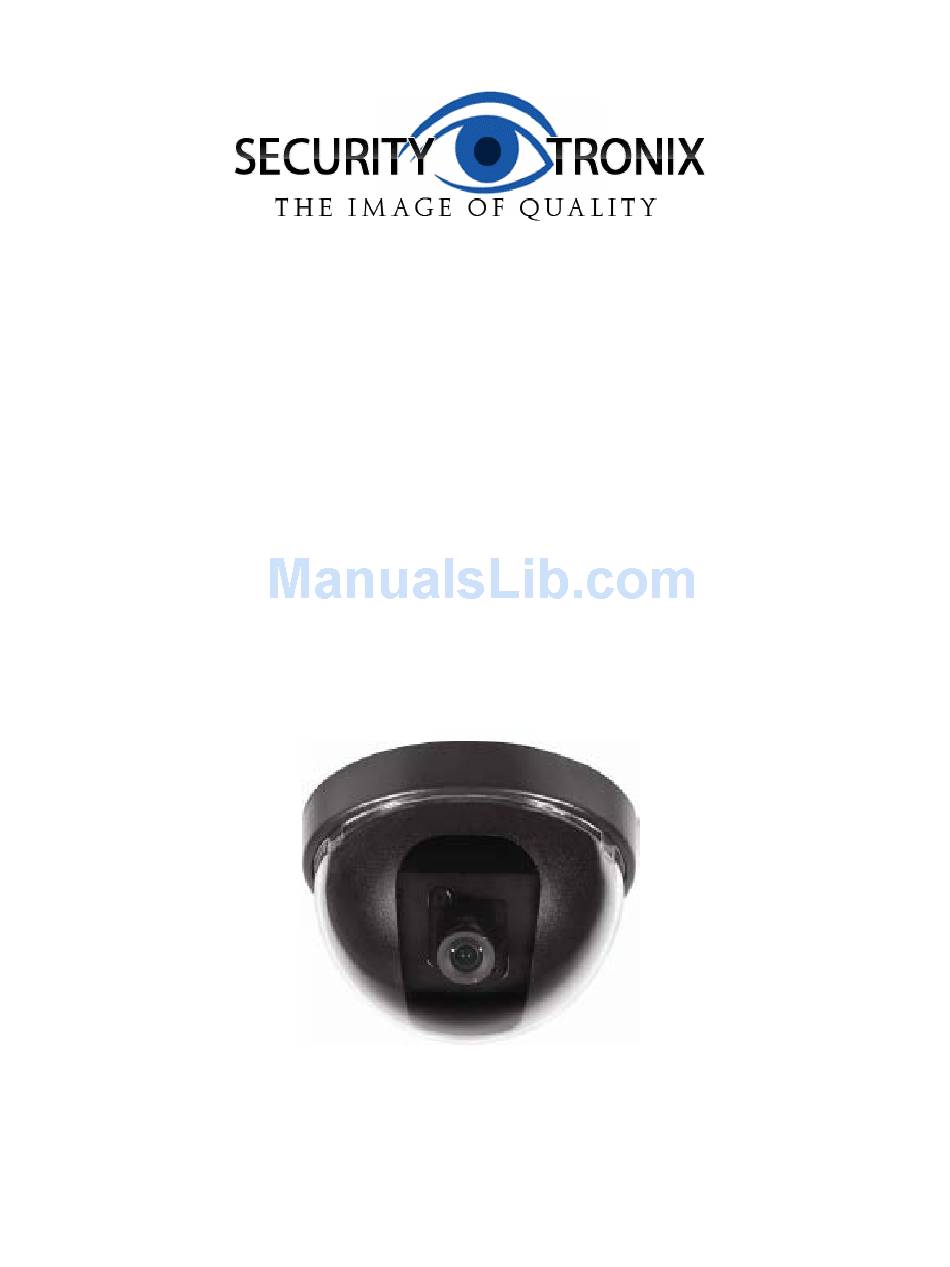

- Page 1 INSTALLATION MANUAL ST-DWD700-3.6-B Plastic Dome Color Camera v2.0 3/10/11...
-
Page 2: Package Contents
ST-PS12VDC1A or ST-PS12VDC2A. PRODUCT DESCRIPTION The ST-DWD700-3.6-B is an indoor plastic dome color camera designed around a 1/3” Color SONY ECview HAD CCD II with 700TVL of resolution. The ST-DWD700-3.6-B’s 3.6mm lens, size and packaging allow these cameras to be easily and discretely installed. Their rich color, high definition, stability and resistance to jamming make them attractive for CCTV security applications. -
Page 3: Installation And Operation
INSTALLATION AND OPERATION This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock. - Page 4 a. Connect the power supply’s DC plug to the camera’s power outlet. b. Connect the camera to the monitor with a 75Ω coaxial video cable. c. Connect power supply’s AC plug to a suitable AC power outlet. d. Adjust the lens direction according to the required surveillance area and environment. 5.
-
Page 5: Troubleshooting
OSD SETTINGS 6. TROUBLESHOOTING v2.0 3/10/11... - Page 6 a. No picture after applying power – (i) check all plugs and cables are securely connected to the proper connectors; (ii) ensure your power supply is providing the correct voltage and current. b. The picture has ripples – (i) check to see if the power supply is experiencing AC ripple, if so a filter may be required;...
