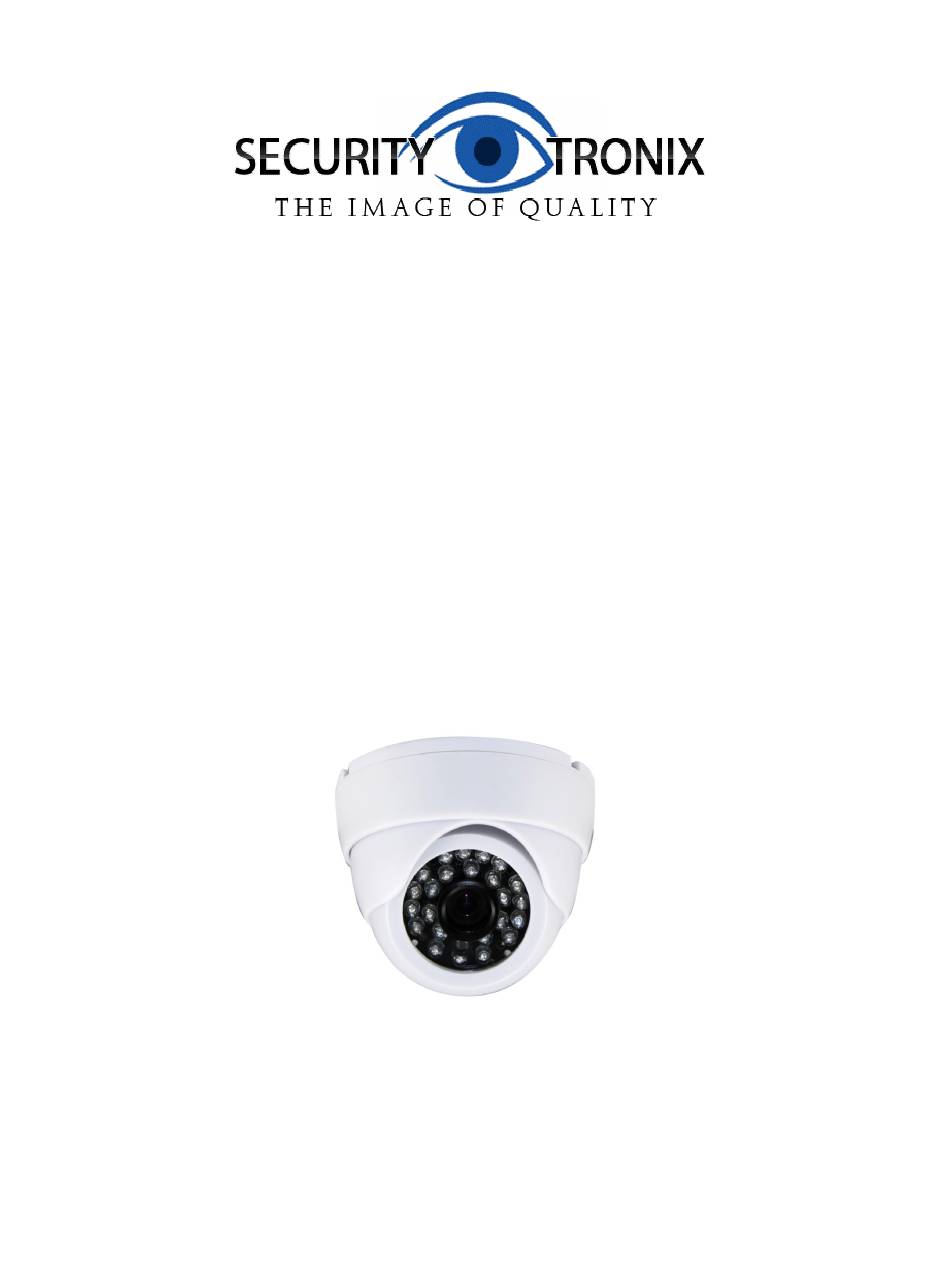

- Page 1 INSTALLATION MANUAL ST-D420IR6-B or -W Dome Infra Red CCD Camera...

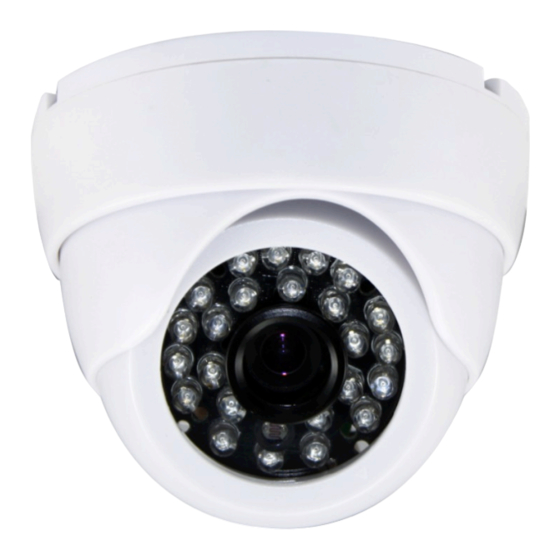

- Page 2 PACKAGE CONTENTS This package contains: One ST-D420IR6 Dome Infra Red CCD camera One installation manual Note: The ST-D420IR6 requires a 12VDC 500mA-1,000mA power supply such as the ST-PS12VDC1A or ST-PS12VDC2A. PRODUCT DESCRIPTION The ST-D420IR6 is an indoor infrared camera designed around a 1/3” Color SONY Super HAD CCD with 420TVL of resolution, 24 infrared LEDs providing infrared capability up to 80 feet.
- Page 3 INSTALLATION AND OPERATION 1. UNPACKING and HANDLING Each unit is shipped assembled and factory tested. Ensure that all accessories are removed from the container before discarding packing material 2. MECHANICAL INSPECTION Inspect the front and rear of the equipment for shipping damage. Make sure the equipment is clean, and no connectors are broken, damaged, or loose.
- Page 4 Troubleshooting assistance can be found on-line at www.securitytronix.com in addition to support from SecurityTronix sales engineers at 1-610-429-1511.
