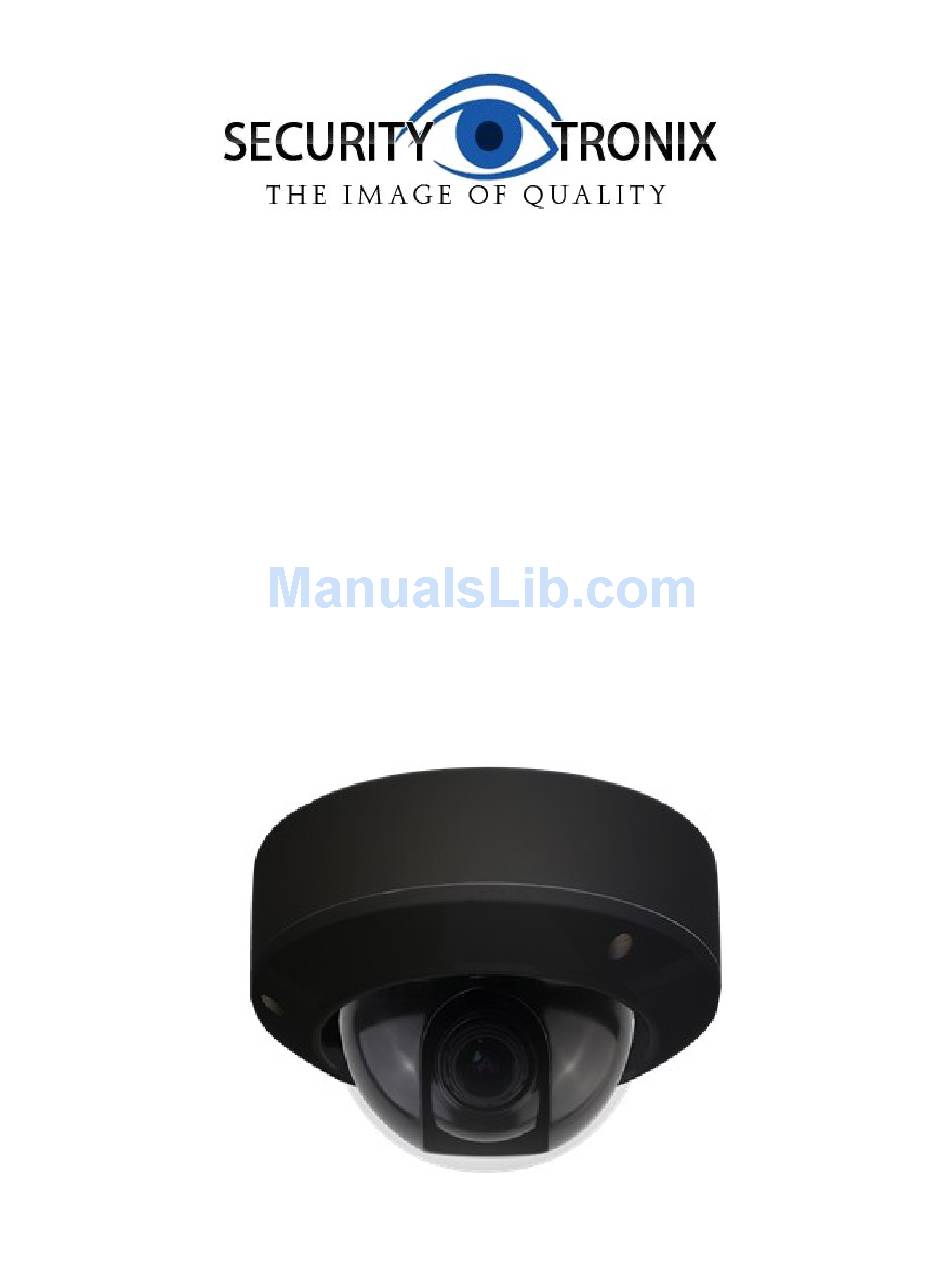

- Page 1 INSTALLATION MANUAL ST-DWDVF2812-720B/W Varifocal 720 TVL Color Camera V1.0 3/28/14...
-
Page 2: Package Contents
ST-PS12VDC1A or ST-PS12VDC2A. PRODUCT DESCRIPTION The ST-DWDVF2812-720B/W is a varifocal camera designed around a 1/3” Color SONY CCD with 720TVL of resolution, and a 2.8mm – 12mm manual zoom lens. The ST-DWDVF2812- 720B/W is a cost effective surveillance solution for any budget. -
Page 3: Installation And Operation
INSTALLATION AND OPERATION 1. UNPACKING and HANDLING Each unit is shipped assembled and factory tested. Ensure that all accessories are removed from the container before discarding packing material 2. MECHANICAL INSPECTION Inspect the front and rear of the equipment for shipping damage. Make sure the equipment is clean, and no connectors are broken, damaged, or loose. - Page 4 5. OSD SETTINGS Accessing the camera’s OSD menu and making menu selections is accomplished using the attached joystick (press to select). V1.0 3/28/14...
- Page 5 V1.0 3/28/14...
- Page 6 6. TROUBLESHOOTING a. No picture after applying power – (i) check all plugs and cables are securely connected to the proper connectors; (ii) ensure your power supply is providing the correct voltage and current. b. The picture has ripples – (i) check to see if the power supply is experiencing AC ripple, if so a filter may be required;...
