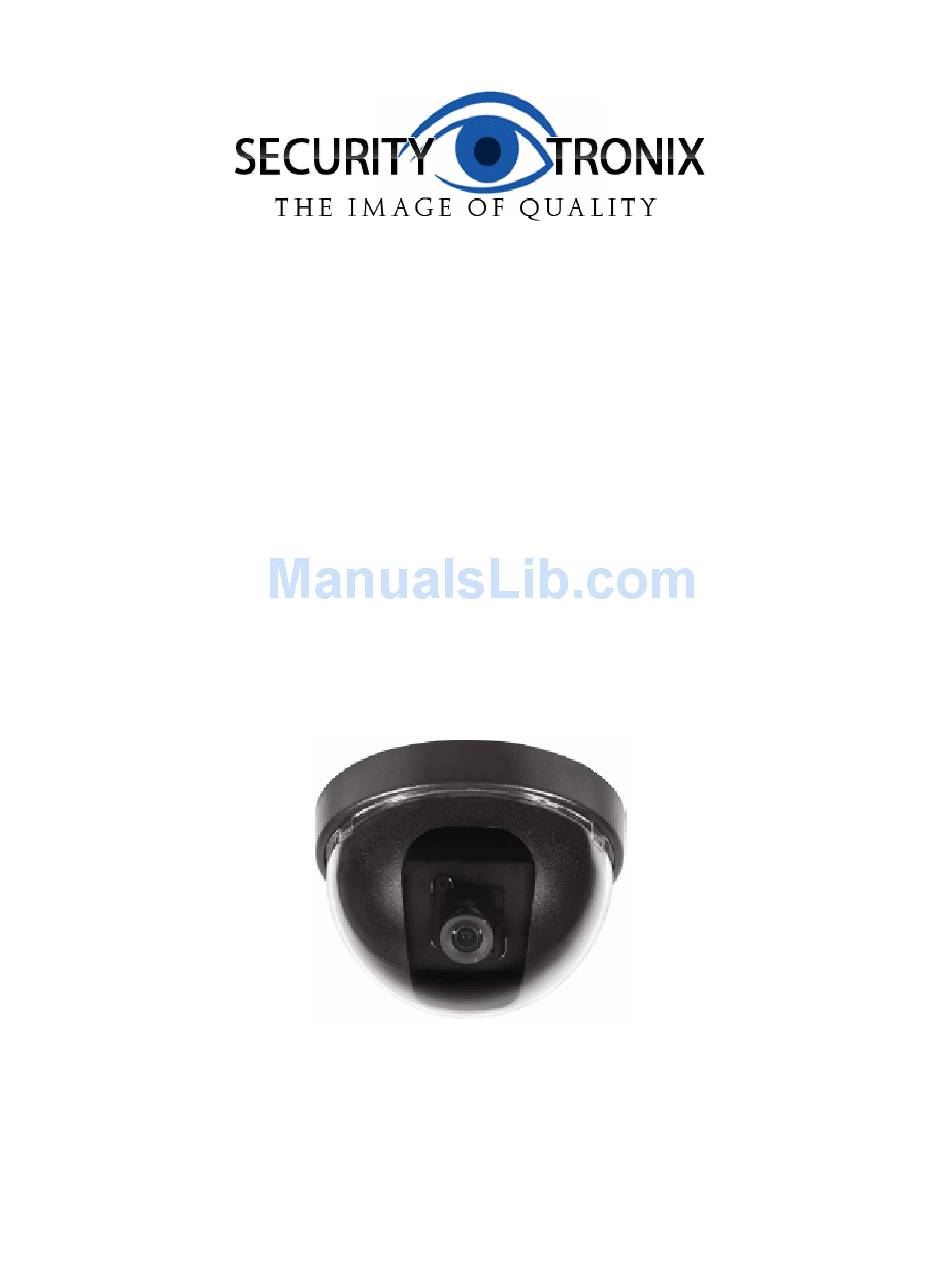

- Page 1 INSTALLATION MANUAL ST-D4203.6B ST-D4202.8B Plastic Dome Color Camera...
-
Page 2: Package Contents
The ST-D420 series is an indoor plastic dome color camera designed around a 1/3” Color SONY CCD with 420TVL of resolution. The ST-D4203.6B’s 3.6mm lens and the ST-D4202.8B’s 2.8mm lens, size and packaging allow these cameras to be easily and discretely installed. Their rich color, high definition, stability and resistance to jamming make them attractive for CCTV security applications. -
Page 3: Installation And Operation
INSTALLATION AND OPERATION This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock. - Page 4 4. WIRING CONNECTIONS a. Connect the power supply’s DC plug to the camera’s power outlet. b. Connect the camera to the monitor with a 75Ω coaxial video cable. c. Connect power supply’s AC plug to a suitable AC power outlet. d.
