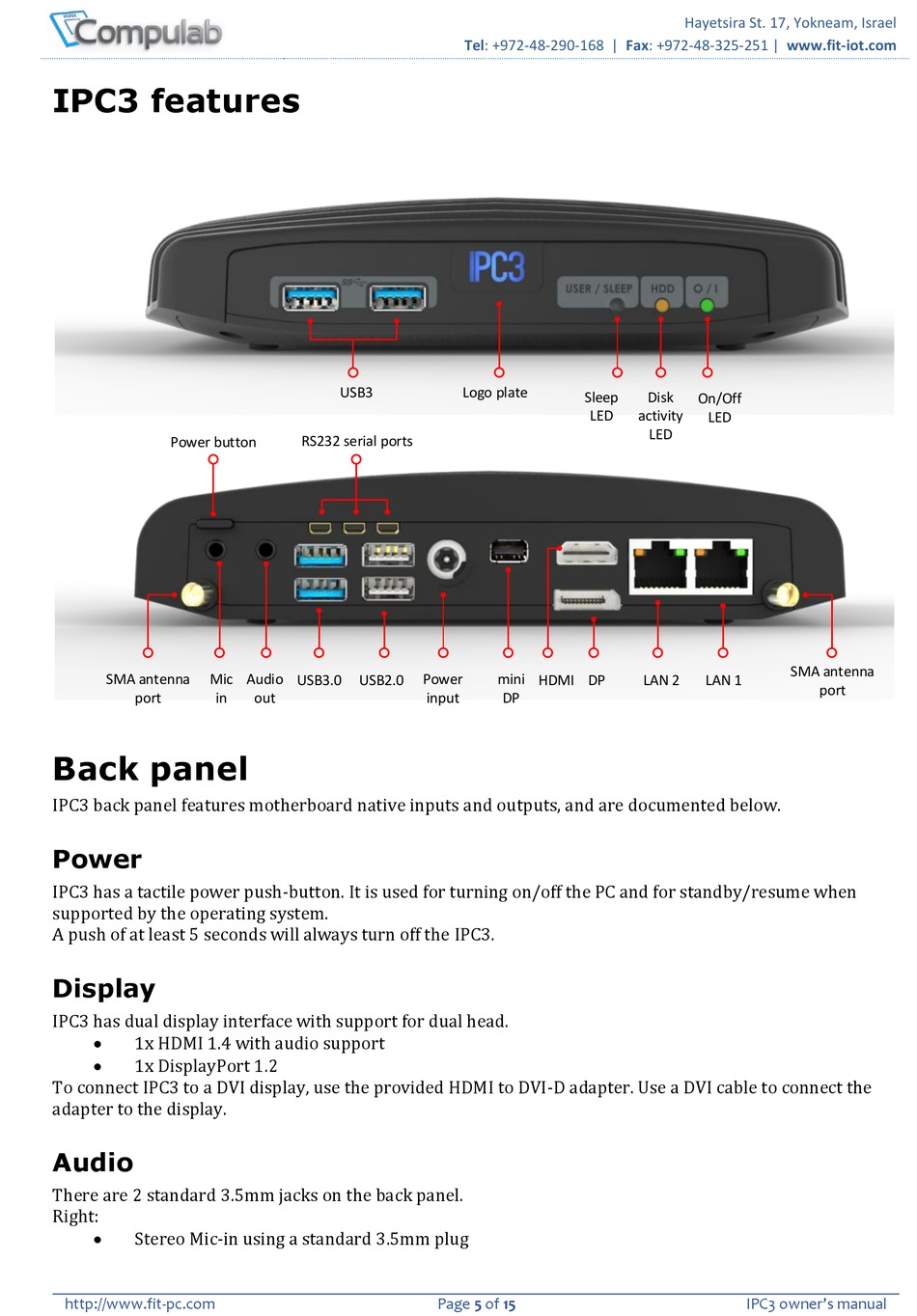

IPC3 features

Power button
SMA antenna Mic
port in

Back panel

IPC3 back panel features motherboard native inputs and outputs, and are documented below.
Power
IPC3 has a tactile power push-button. It is used for turning on/off the PC and for standby/resume when
supported by the operating system.
A push of at least 5 seconds will always turn off the IPC3.
Display
IPC3 has dual display interface with support for dual head.

1x HDMI 1.4 with audio support

1x DisplayPort 1.2
To connect IPC3 to a DVI display, use the provided HDMI to DVI-D adapter. Use a DVI cable to connect the
adapter to the display.
Audio
There are 2 standard 3.5mm jacks on the back panel.
Right:

Stereo Mic-in using a standard 3.5mm plug
