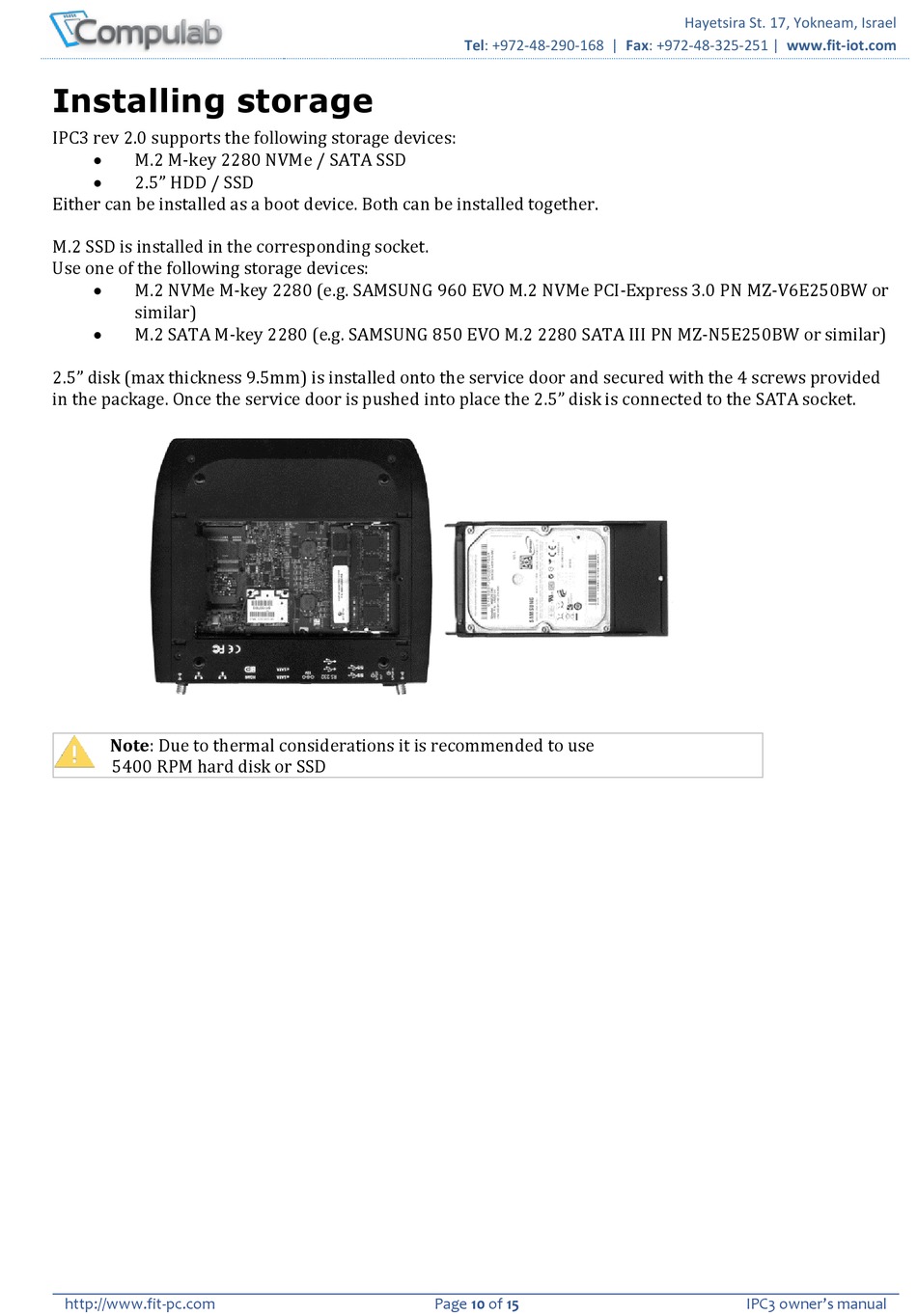

Installing storage

IPC3 rev 2.0 supports the following storage devices:

M.2 M-key 2280 NVMe / SATA SSD

2.5" HDD / SSD
Either can be installed as a boot device. Both can be installed together.
M.2 SSD is installed in the corresponding socket.
Use one of the following storage devices:

M.2 NVMe M-key 2280 (e.g. SAMSUNG 960 EVO M.2 NVMe PCI-Express 3.0 PN MZ-V6E250BW or
similar)

M.2 SATA M-key 2280 (e.g. SAMSUNG 850 EVO M.2 2280 SATA III PN MZ-N5E250BW or similar)
2.5" disk (max thickness 9.5mm) is installed onto the service door and secured with the 4 screws provided
in the package. Once the service door is pushed into place the 2.5" disk is connected to the SATA socket.
Note: Due to thermal considerations it is recommended to use
5400 RPM hard disk or SSD
