Wyrestorm MX-0404-HDBT-H2-KIT Quick Start Manual

4x4 4K UHD HDBaseT Matrix with HDCP 2.2
and 4x Low Profile PoH Receivers
MX-0404-HDBT-H2-KIT v2.1
WyreStorm's latest 4x4 'Kit'; this PoH matrix with 4 receivers ensures compatibility with the latest 4K sources that require HDCP 2.2 encryption.
Note: The following information applies to version 2.1 of this product as identified by v2.1 after the model number on the product label.
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the
installation process.
In the Box

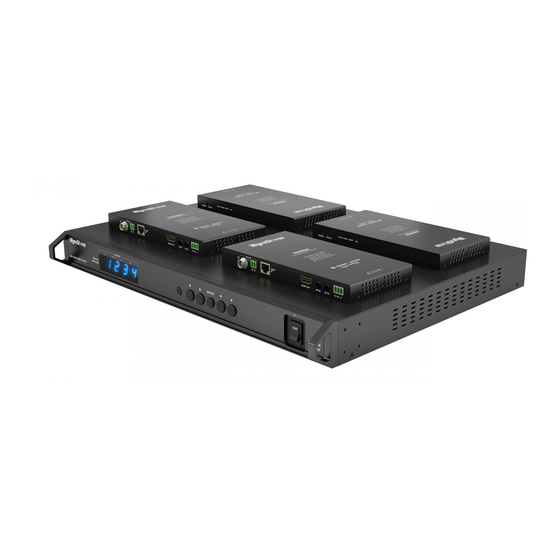

1x MX-0404-HDBT-H2-KIT Matrix
1x Matrix Switcher
4x HDBaseT Receivers
1x IR Remote Handset
8x IR Receivers (30KHz to 50KHz)
8x IR Emitters
1x IR Extension Cable
1x USB to DB9 RS-232 Cable
1x 100~240V AC 50/60Hz Power Cord with US Plug
1x 100~240V AC 50/60Hz Power Cord with UK Plug
1x 100~240V AC 50/60Hz Power Cord with EU Plug
4x 3-pin Screw Down Phoenix Connector
4x 2-pin Screw Down Phoenix Connector
2x Matrix Mounting Brackets
8x Receiver Mounting Brackets
1x Matrix Quickstart Guide
1x Receiver Quickstart Guide

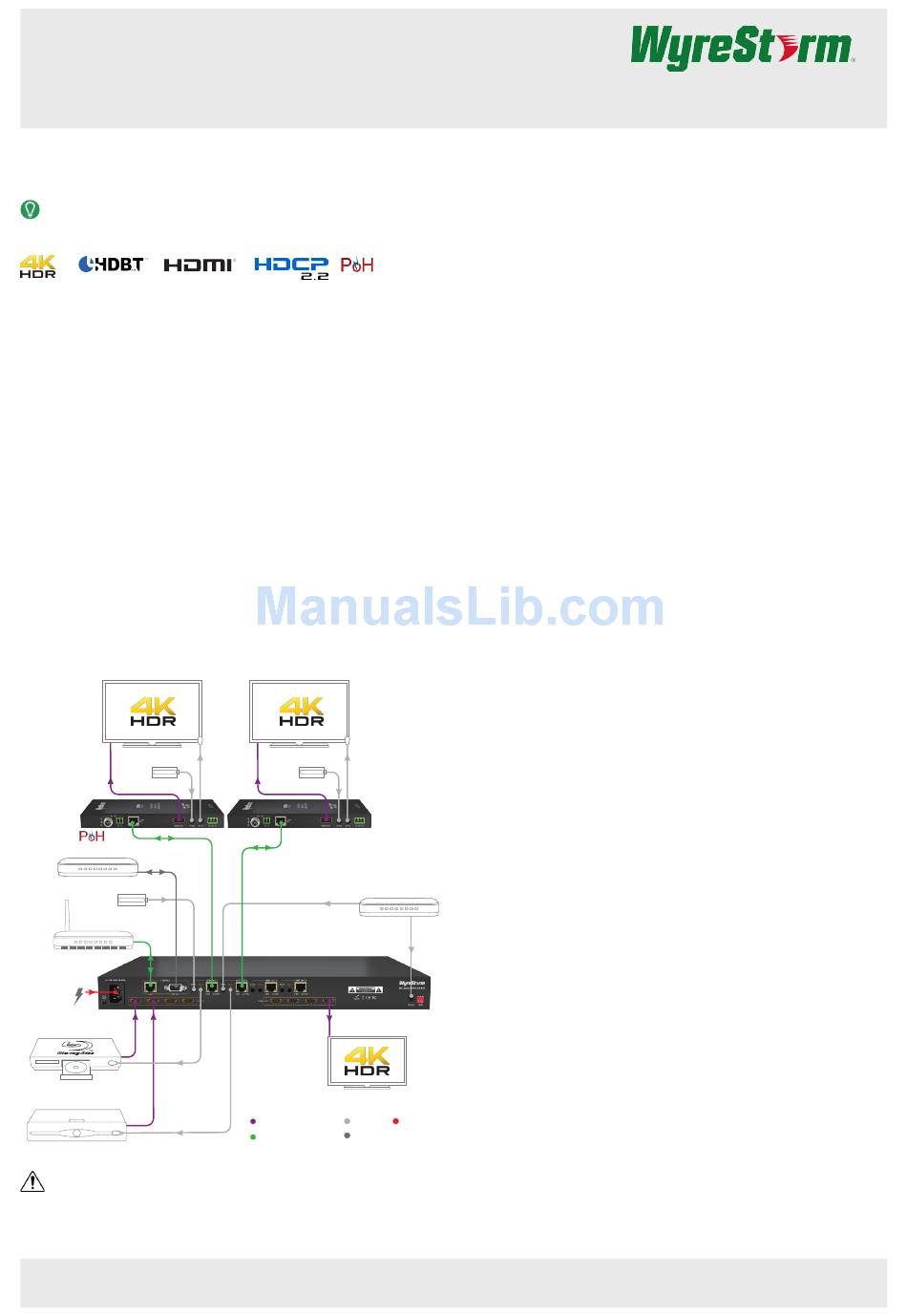

Basic Wiring Diagram
IR TX
IR RX
HDMI
Receivers
powered by
RS-232
Control System
IR RX
LAN
Cat5/5e/6
AC Mains
Power
HDMI HDMI
IR TX
Blu-ray Player
IR TX
Satelitte Box
IMPORTANT!
Disconnecting and connecting (hot plugging) HDMI or HDBaseT while devices
are powered on may cause damage. WyreStorm recommends powering off
devices before disconnecting these connections.
Copyright © 2016 WyreStorm Technologies |
MX-0404-HDBT-H2-KIT v2.1 Quickstart Guide | 160815
IR TX
IR RX
HDMI
MX-0404-HDBT-H2-KIT (recevier)
IR Control System
IR RX
CAB-IR-LINK (Sold Seperatley)
MX-0404-HDBT-H2-KIT (matrix)
HDMI
Display Mirrored to
HDBaseT Output
Key
HDMI/Digital Video IR Power
RS-232
HDBaseT/Ethernet
wyrestorm.com
Additional Information
This Quickstart Guide provides the basic steps for the common uses of this
product. Detailed installation and configuration information may be found in
the download tab located on the product page.
• WebUI Reference Guide - Setup for advanced Matrix features such as IP
and testing of connections
• H2 Matrix Operation User Guide - Single page document showing the
operation via front panel and included IR remote.
• Drivers and API - Pre-configured drivers for popular control systems and
API document.
Before Beginning
• WyreStorm recommends visiting the product page before installing this
product for updates to this Quickstart Guide as well as other information
about the product.
• Verify that all items are included in the packaging per the
Pre Wire
1. Run a Cat5e/6/6a cable from the matrix location to the receiver location
no longer than 35m/114ft (4K) and 70m/230ft (1080p). Terminate the
cable per the HDMI/HDBaseT Wiring
2. (Optional) If using IR emitters, run the wire and terminate per the
(Emitter) Wiring section.
3. (Optional) If using IR receivers or an IR control system, run the wire and
terminate per the IR RX/IR EXT (Receiver) Wiring
4. (Optional) If using RS-232 to control the matrix, run the wire and
terminate per the RS-232 Wiring
Matrix Installation
1. Connect an HDMI source to an HDMI In on the matrix using an HDMI
cable from a high quality brand such as
HDBaseT Wiring for important wiring guidelines. Repeat for all sources.
2. Using the cable created in
female plug to an HDBT Out jack on the switcher. Repeat for additional
HDBaseT receivers.
3. (Optional) Connect an HDMI display to an HDMI Out on the matrix using
an HDMI cable from a high quality brand such as
Repeat for additional displays.
4. (Optional) Using the included IR emitter or the cable created in Pre Wire
step 2, place an IR emitter onto the source device near the device's IR
sensor and connect the 3.5mm (1/8in) Mono Plug to an IR TX port.
Repeat for additional sources.
5. (Optional) Using one of the included IR receivers, connect the 3.5mm
(1/8in) stereo plug to the switchers IR RX port. If using a control system,
connect an IR out port on the control system to an IR RX port on the
switcher using the WyreStorm CAB-IR-LINK
Wire step 3.
6. (Optional) Using the cable created in
9-pin DB9 Female connector to the RS-232 port on the matrix and the
opposite end to a port on a control system. Set update switch on rear
panel to Normal in order us RS-232 control.
7. Configure EDIDs following the information in the
8. Install the receivers following the instructions provided in the MX-0404-
HDBT-H2-KIT RX Quickstart Guide.
