Wyrestorm MX-0404-HDBT-H2-KIT Quick Start Manual

4x4 HDBaseT Matrix with HDCP 2.2
and 4 Low Profile PoH Receivers (70m/230ft)

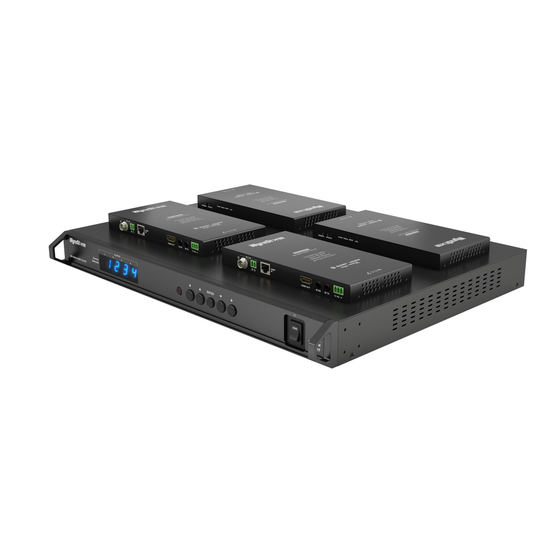

MX-0404-HDBT-H2-KIT Matrix Switcher
WyreStorm's latest 4x4 'Kit'; this PoH matrix with 4 receivers ensures compatibility with the latest 4K sources that require HDCP 2.2 encryption.
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the
installation process.
In the Box
1x MX-0404-HDBT-H2-KIT Matrix
1x Matrix Switcher
4x HDBaseT Receivers
1x IR Remote Handset
8x IR Receivers (30KHz to 50KHz)
8x IR Emitters
1x IR Extension Cable
1x USB to DB9 RS-232 Cable
1x 100~240V AC 50/60Hz Power Cord with US Plug
1x 100~240V AC 50/60Hz Power Cord with UK Plug
1x 100~240V AC 50/60Hz Power Cord with EU Plug
4x 3-pin Screw Down Phoenix Connector
4x 2-pin Screw Down Phoenix Connector
2x Matrix Mounting Brackets
8x Receiver Mounting Brackets
1x Matrix Quickstart Guide
1x Receiver Quickstart Guide

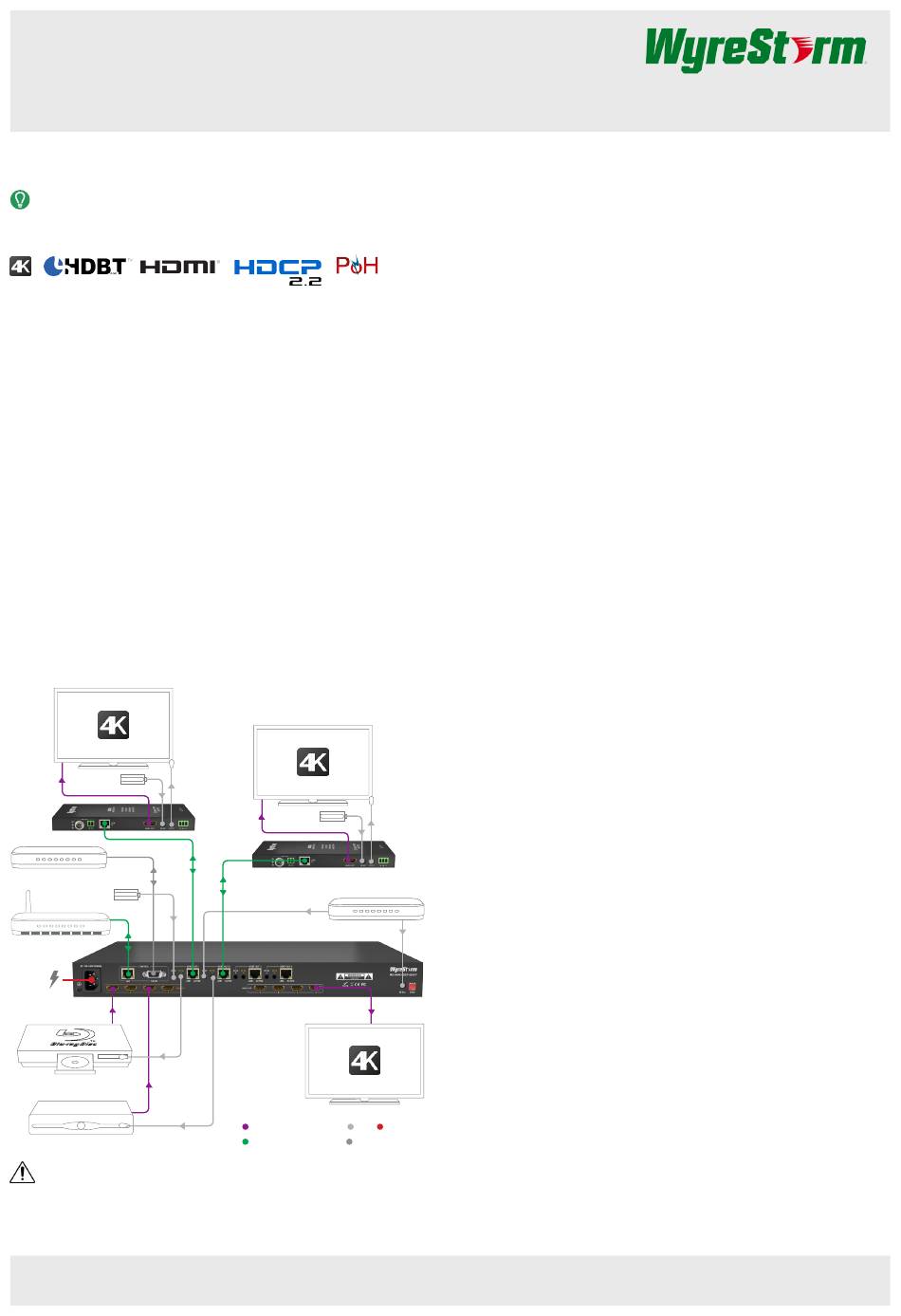

Basic Wiring Diagram
IR TX
HDMI to
IR RX
display
RS-232 Control System
IR RX
LAN Cat5/5e/6
AC Mains
Power
HDMI from
source
IR TX
HD Source
HDMI from
source
IR TX
HD Source
IMPORTANT!
Do not connect or disconnect (hot plug) the HDMI, or HDBaseT
connections while the transmitter or receiver is powered on. Doing so
may cause damage to the units or connected devices.
Copyright © 2015 WyreStorm Technologies |
MX-0404-HDBT-H2-KIT Quickstart Guide | 151105
IR TX
HDMI to
IR RX
display
MX-0404-HDBT-H2-KIT (receiver)
IR Control System
IR RX
CAB-IR-LINK (Sold Seperately)
MX-0404-HDBT-H2-KIT (matrix)
HDMI to
display
Display Mirrored to
HDBaseT Output
KEY
HDMI/Digital Video IR Power
HDBaseT/Ethernet RS-232
wyrestorm.com
Additional Information
This Quickstart Guide provides the basic steps for the common uses of
this product. Refer to the Installation Guide and other documentation on
the product page for additional information.
Before Beginning
• WyreStorm recommends visiting the product page before installing
this product for updates to this Quickstart Guide as well as other
information about the product.
• Verify that all items are included in the packaging per the
list.
Pre Wire
1. Run a Cat5e/6/6a cable from the matrix location to the receiver
location no longer than 35m/114ft (4K) and 70m/230ft (1080p).
Terminate the cable per the
2. (Optional) If using IR emitters, run the wire and terminate per the
TX (Emitter) Wiring
3. (Optional) If using IR receivers or an IR control system, run the wire
and terminate per the
4. (Optional) If using RS-232 to control the matrix, run the wire and
terminate per the RS-232 Wiring
Matrix Installation
1. Connect an HDMI source to an HDMI In on the matrix using an
HDMI cable from a high quality brand such as
See HDMI/HDBaseT Wiring
for additional sources..
2. Using the cable created in
45 female plug to an HDBT Out jack on the switcher. Repeat for
additional HDBaseT receivers.
3. (Optional) Connect an HDMI display to an HDMI Out on the matrix
using an HDMI cable from a high quality brand such as
Express. Repeat for additional displays.
4. (Optional) Using the included IR emitter or the cable created in Pre
Wire step 2, place an IR emitter onto the source device near the
device's IR sensor and connect the 3.5mm (1/8in) Mono Plug to an
IR TX port. Repeat for additional sources.
5. (Optional) Using one of the included IR receivers, connect the
3.5mm (1/8in) stereo plug to the switchers IR RX port. If using a
control system, connect an IR out port on the control system to an
IR RX port on the switcher using the
the cable created in
6. (Optional) Using the cable created in
9-pin DB9 Female connector to the RS-232 port on the matrix and
the opposite end to a port on a control system. Set update switch
on rear panel to Normal in order us RS-232 control.
7. Configure EDIDs following the information in the
section.
8. Install the receivers following the instructions provided in the MX-
0404-HDBT-H2-KIT RX Quickstart Guide.
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
1 of 4
Quickstart Guide
HDMI/HDBaseT Wiring
section.
IR RX/IR EXT (Receiver) Wiring
section.
WyreStorm
for important wiring guidelines. Repeat
Pre Wire step 1, connect the 8-pin RJ-
WyreStorm CAB-IR-LINK
Pre Wire step 3.
Pre Wire step 4, connect the
support@wyrestorm.com
In the Box
section.
IR
section.
Express.
WyreStorm
or
EDID Settings
