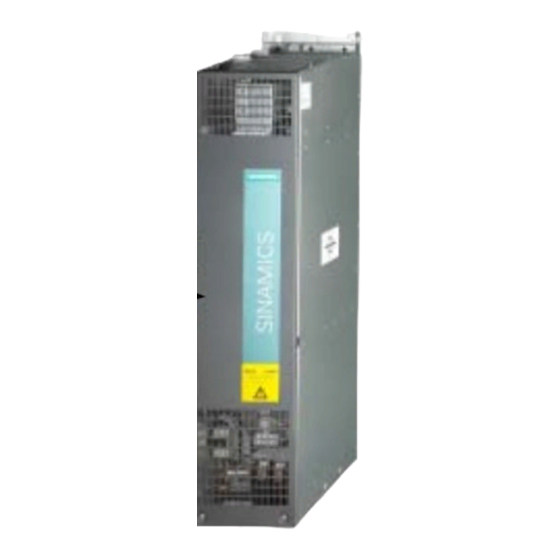

  • Page 3 ___________________ Motor reactors Safety information ___________________ General ___________________ Mechanical installation SINAMICS ___________________ Electrical installation SINAMICS G130 ___________________ Motor reactors Technical specifications Operating Instructions Control version V4.7 04/2014 A5E00409660A...
  • Page 4 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.
  • Page 5: Table Of Contents

    Table of contents Safety information ........................... 7 General safety instructions ......................7 General ..............................11 Mechanical installation .......................... 15 Electrical installation..........................19 Technical specifications ........................21 Motor reactors Operating Instructions, 04/2014, A5E00409660A...
  • Page 6 Table of contents Motor reactors Operating Instructions, 04/2014, A5E00409660A...
  • Page 7: Safety Information

    Safety information General safety instructions DANGER Danger to life due to live parts and other energy sources Death or serious injury can result when live parts are touched. • Only work on electrical equipment if you are appropriately qualified. • Always observe the country-specific safety rules for all work. Generally, six steps apply when establishing safety: 1.
  • Page 8 Safety information 1.1 General safety instructions WARNING Danger to life when live parts are touched on damaged devices Improper handling of devices can cause damage. For damaged devices, hazardous voltages can be present at the enclosure or at exposed components; if touched, this can result in death or severe injury. •...
  • Page 9 Safety information 1.1 General safety instructions WARNING Danger to life through unexpected movement of machines when using mobile wireless devices or mobile phones Using mobile radios or mobile phones with a transmit power > 1 W closer than approx. 2 m to the components may cause the devices to malfunction, influence the functional safety of machines therefore putting people at risk or cause material damage.
  • Page 10 Safety information 1.1 General safety instructions NOTICE Device damage caused by incorrect voltage/insulation tests Incorrect voltage/insulation tests can damage the device. • Before carrying out a voltage/insulation check of the system/machine, disconnect the devices as all converters and motors have been subject to a high-voltage test by the manufacturer, and therefore it is not necessary to perform an additional test within the system/machine.
  • Page 11: General

    General Description Motor reactors reduce the voltage load on the motor windings by reducing the voltage gradients at the motor terminals that occur during converter operation. At the same time, the capacitive charge/discharge currents that occur at the converter output when long motor cables are used are reduced.
  • Page 12 When using components that have not been released, damage or malfunctions can occur at the devices or the system itself. • Only use motor reactors that SIEMENS has released for SINAMICS. NOTICE Risk of damaging the motor reactor by exceeding the maximum output frequency The maximum permissible output frequency when a motor reactor is used is 150 Hz.
  • Page 13 General Assignment of motor reactor and Power Module Table 2- 1 Assignment of motor reactor and Power Module Power Module Unit rating of the Power Module Suitable motor reactor Line voltage 3-phase 380 – 480 VAC 6SL3310-1GE32-1AAx 110 kW 6SL3000-2BE32-1AA0 6SL3310-1GE32-6AAx 132 kW 6SL3000-2BE32-6AA0...
  • Page 14 General Using a motor reactor and dv/dt filter to limit the voltage gradient and transients IGBT converter switching frequencies result in high voltage gradients (dv/dt) at the converter output. If long motor cables are used, this leads to an additional current load on the converter due to capacitive charge/discharge currents.
  • Page 15: Mechanical Installation

    Mechanical installation Dimension drawing Figure 3-1 Dimension drawing, motor reactor Motor reactors Operating Instructions, 04/2014, A5E00409660A...
  • Page 16 Mechanical installation Table 3- 1 Dimensions of motor reactor, 380 V – 480 V 3 AC, part 1 (all specifications in mm) 6SL3000- 2BE32-1AA0 2BE32-6AA0 2BE33-2AA0 2BE33-8AA0 Connection Type 1 Type 1 Type 1 Type 1 type 12.5 12.5 12.5 12.5 Lengths n1 and n2 correspond to the drill hole spacing Table 3- 2...
  • Page 17 Mechanical installation Table 3- 3 Dimensions of motor reactor, 500 V – 600 V 3 AC, part 1 (all specifications in mm) 6SL3000- 2AH31-8AA0 2AH32-4AA0 2AH32-6AA0 2AH33-6AA0 Connection Type 1 Type 1 Type 1 Type 1 type 12.5 12.5 12.5 12.5 Lengths n1 and n2 correspond to the drill hole spacing Table 3- 4...
  • Page 18 Mechanical installation Table 3- 5 Dimensions of motor reactor, 660 V – 690 V 3 AC, part 1 (all specifications in mm) 6SL3000- 2AH31-0AA0 2AH31-5AA0 2AH31-8AA0 2AH32-4AA0 2AH32-6AA0 Connection type Type 1 Type 1 Type 1 Type 1 Type 1 12.5 12.5 12.5...
  • Page 19: Electrical Installation

    Electrical installation Connection When connecting the motor reactor, you must take into account the following conditions to ensure that it functions correctly: ● With analog control cables, connecting the shield at both ends can result in coupled-in noise. To prevent this, the shield must only be connected at one end on the Power Module.
  • Page 20 Electrical installation Motor reactors Operating Instructions, 04/2014, A5E00409660A...
  • Page 21: Technical Specifications

    Technical specifications General technical data Table 5- 1 General technical data Output frequency 0 to 150 Hz Product standard EN 61800-5-1 Ambient conditions Storage Transport Operation Ambient temperature -25 to +70 °C -25 to +70 °C 0 to +50 °C 95 % Relative air humidity 5 to...
  • Page 22 Technical specifications Detailed technical data Table 5- 2 Technical specifications of motor reactors 380 V – 480 V 3 AC, part 1 Order number 6SL3000- 2BE32-1AA0 2BE32-6AA0 2BE33-2AA0 2BE33-8AA0 Suitable for Power Module 6SL3310- 1GE32-1AAx 1GE32-6AAx 1GE33-1AAx 1GE33-8AAx Rated current Power loss - at 50 Hz 0.436...
  • Page 23 Technical specifications Table 5- 4 Technical specifications of motor reactors 380 V – 480 V 3 AC, part 3 Order number 6SL3000- 2AE41-0AA0 Suitable for Power Module 6SL3310- 1GE41-0AAx Rated current Power loss - at 50 Hz 0.939 - at 150 Hz 1.062 Connections - to the power module (1U1, 1V1,...
  • Page 24 Technical specifications Table 5- 6 Technical specifications of motor reactors 500 V – 600 V 3 AC, part 2 Order number 6SL3000- 2AH34-5AA0 2AH34-7AA0 2AH35-8AA0 2AH38-1AA0 Suitable for Power Module 6SL3310- 1GF34-1AA0x 1GF34-7AAx 1GF35-8AAx 1GF37-4AAx Rated current Power loss - at 50 Hz 0.481 0.631 0.705...
  • Page 25 Technical specifications Table 5- 8 Technical specifications of motor reactors 660 V – 690 V 3 AC, part 1 Order number 6SL3000- 2AH31-0AA0 2AH31-0AA0 2AH31-5AA0 2AH31-5AA0 Suitable for Power Module 6SL3310- 1GH28-5AAx 1GH31-0AAx 1GH31-2AAx 1GH31-5AAx Rated current Power loss - at 50 Hz 0.215 0.269 0.237...
  • Page 26 Technical specifications Table 5- 10 Technical specifications of motor reactors 660 V – 690 V 3 AC, part 3 Order number 6SL3000- 2AH34-5AA0 2AH34-7AA0 2AH35-8AA0 2AH38-1AA0 Suitable for Power Module 6SL3310- 1GH34-1AAx 1GH34-7AAx 1GH35-8AAx 1GH37-4AAx Rated current Power loss - at 50 Hz 0.481 0.631 0.705...
