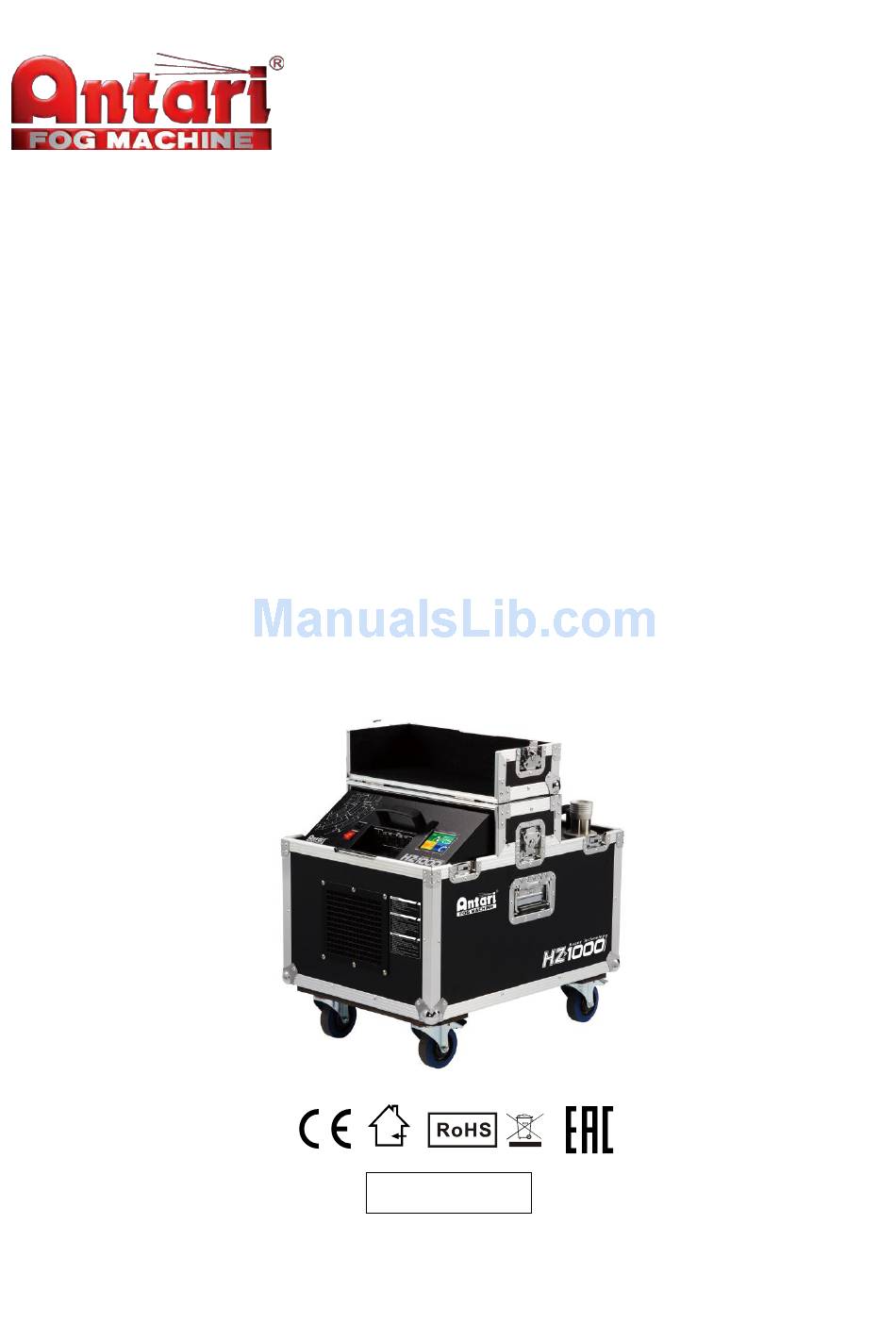

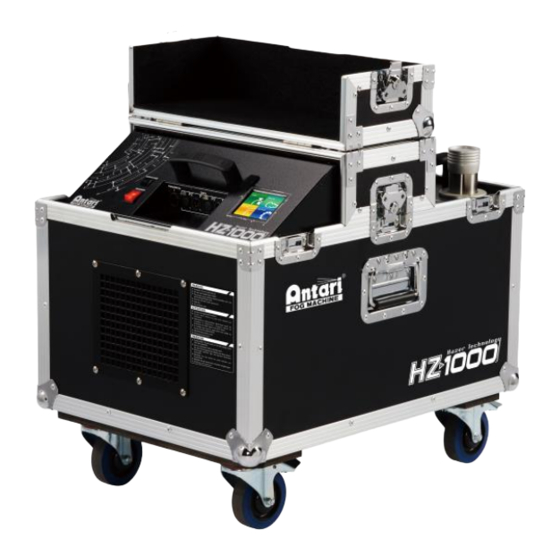

- Page 1 HZ-1000 Hazer Machine User Manual English © 2018 Antari Lighting and Effects Ltd.
-
Page 3: Safety Information
AC power and clean with a damp cloth. If fluid is spilled onto electronic parts, immediately unplug the machine and contact your local Antari dealer for advice. No user serviceable and modifiable parts inside. Never try to repair this product, an ․... -
Page 4: Unpacking And Inspection
If any parts appear damaged or mishandled from shipping, notify the shipper immediately and retain the packing material for inspection. What is included: 1 x HZ-1000 Hazer 1 x Power Cord 1 x User Manual Product Dimension... -
Page 5: Product Overview
Fluid Level Indicator Setting Up Step 1: Place the machine on a flat surface and in a suitably large area with at least 50 cm of open space around the machine. Step 2: Fill the fluid tank with Antari approved fluid. -
Page 6: Operation
Step 3: Connect the machine to a suitably rated power supply. To determine the power requirement for the machine refer to the label on the back of the machine. Always connect the machine to a protected circuit and ensure it is properly grounded to avoid risk of electrocution. - Page 7 00 min 01 secs SETTING 59 mins 59 secs 00 min 01 secs 59 mins 59 secs LOW/HIGH LOW/HIGH 20-100% 001-511 Power On/Off Reset On/Off On/Off On/Off DMX Connector Pin Assignment The machine provides 3 or 5 pin XLR connectors for DMX connection. The diagram below indicates pin assignment information.
- Page 8 Fan 21 – 100% Fluid Only use Antari HZL oil-based liquid for the HZ-1000 Hazer. The machine is tested and calibrated with this liquid to get the best output performance. Warranty will be voided if any other type of liquid is used, improper use of liquid may lead to machine failure and...
-
Page 9: Service And Maintenance
Service and Maintenance Do not allow the machine to become contaminated. ․ Remove dust from air vents with air compressor, vacuum or a soft brush. ․ Only use a damp cloth to clean the casing. ․ It is recommended to run the machine on a monthly basis in order to achieve best ․... -
Page 10: Technical Specifications
Rated power 1150W Fluid consumption 2.2 ml/min Fluid tank capacity 6.4 l (1.69 gal) Compatible fluid Antari HZL Haze Fluid Operating time 40 hrs max. output Ambient temp. range 0 °C - 40 °C (32 °F-104 °F) Output 7500 cu.ft./min. - Page 12 C08HZ1001...
