- Page 1 MANUAL ENGLISH Antari IP-1500 Ordercode: 60899 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Installation ................................... 8 Set Up and Operation ............................... 8 PU pipe installation ............................... 8 Control Modes ................................9 One Antari (Timer mode and Continuous mode) ....................9 Multiple Controllers (DMX Control) ......................... 9 Data Cabling ................................10 Control Panel ................................10 Control Mode ................................10 DMX Addressing ................................10... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: Antari IP-1500 (cable length: 1,5 m) • 1 x PU pipe •... - Page 4 The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. If your Antari fails to work properly, discontinue use immediately. Drain all fog liquid from the tank, •...
-
Page 5: Operating Determinations
Antari IP-1500 Operating Determinations ● This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. ● The maximum ambient temperature ta = 40°C must never be exceeded. -
Page 6: Return Procedure
Antari IP-1500 Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 7: Description Of The Device

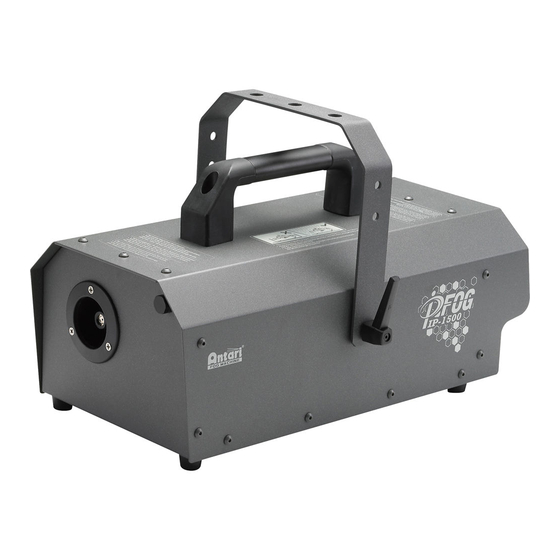

Antari IP-1500 Description of the device Features The Antari IP-1500 is a powerful fog machine. With the Antari, you can create a cosy and foggy atmosphere in any venue. Input Voltage: 100-240V, 60/50Hz • Power consumption: 1300W • Output volume: 20000 cu.ft/min •... -
Page 8: Backside
Antari IP-1500 Backside Fig. 02 05) Schuko power cable 06) Fog fluid IN 07) Circuit breaker 08) 5-pin DMX signal connector IN 09) Wireless receiver 10) Safety eye (included) 11) LCD display + menu buttons Remote control 12) “A” button 13) LED indicator 14) “B”... -
Page 9: Installation
Antari IP-1500 Installation Remove all packing materials from the Antari IP-1500. Check if all foam and plastic padding is removed, especially in the fog output area. Use with fog liquid (ordercodes: 60603, 60629, 60637) or other high-quality fog liquid. Any other types of liquid can damage the unit. -
Page 10: Control Modes
02) Plug the end of the electric mains power cord into a proper electric power supply socket. 03) When the Antari is not connected with a DMX cable, it functions as a stand-alone device. Please see pages 12-14 for more information about Timer mode and Continuous mode. -
Page 11: Data Cabling
FL09150 (1,5 m), FL093 (3 m), FL096 (6 m), FL0910 (10 m), FL0915 (15 m), FL0920 (20 m). DAP Audio DMX adapter: 3-pin/5-pin. Ordercode FLA30. • Control Panel The Antari IP-1500 can be operated with a light controller in control mode or without the controller in stand-alone mode. A) LCD display FUNCTION button... -
Page 12: Menu Overview
Antari IP-1500 Menu Overview Start-up settings 01) Switch power to the Antari IP-1500. 02) The display will promptly show 03) Then, the display will show 04) Place the remote control (or multiple remote controls) near the wireless receiver on the device(s) (09) and press the A or B button on the remote control to activate wireless control. -
Page 13: Main Menu Options
Antari IP-1500 Main Menu Options Control modes Interval settings Duration settings Timer output volume settings Continuous output volume settings DMX settings Wireless settings Fluid sensor Quick start Hibernation mode 1. Control modes With this menu, you can set the desired control mode. -
Page 14: Timer Output Settings (Timer Mode)
1-100% (from small to big output) and NONSTOP BURST (continuous output). 6. DMX settings With this menu, you can set the starting address of the Antari IP-1500. 01) Press the button until the display shows 02) Press the buttons to set the desired DMX address. -
Page 15: Hibernation Mode
Antari IP-1500 10. Hibernation mode With this menu you can set Hibernation mode. 01) Press the button until the display shows 02) Press the buttons to choose between ON and OFF. 03) When the function is switched ON, the device will shut down if it stops receiving DMX signal. When the device receives DMX signal, it will resume operation. -
Page 16: Dmx Channels
Maximum output (100%) Maintenance The Antari IP-1500 requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply and then wipe the cover with a damp cloth. Wipe the front panel with a damp cloth. Do not use alcohol or solvents. Do not immerse in liquid. -
Page 17: Product Specification
Antari IP-1500 Product Specification Model: Antari IP-1500 Input Voltage: 100-240V, 60/50Hz Power consumption: 1300W Fluid consumption: 11L/min. Output volume: 20000 cu.ft/min Warm-up time: 10 min. Dimensions: 460 x 224 x 290 mm (LxWxH) Weight: 12 kg Electro-mechanical effects IP Rating:... -
Page 18: Dimensions
Antari IP-1500 Dimensions Ordercode: 60899... - Page 19 Antari IP-1500 Ordercode: 60899...
- Page 20 ©2015 Antari...
