Page 1: User Manual

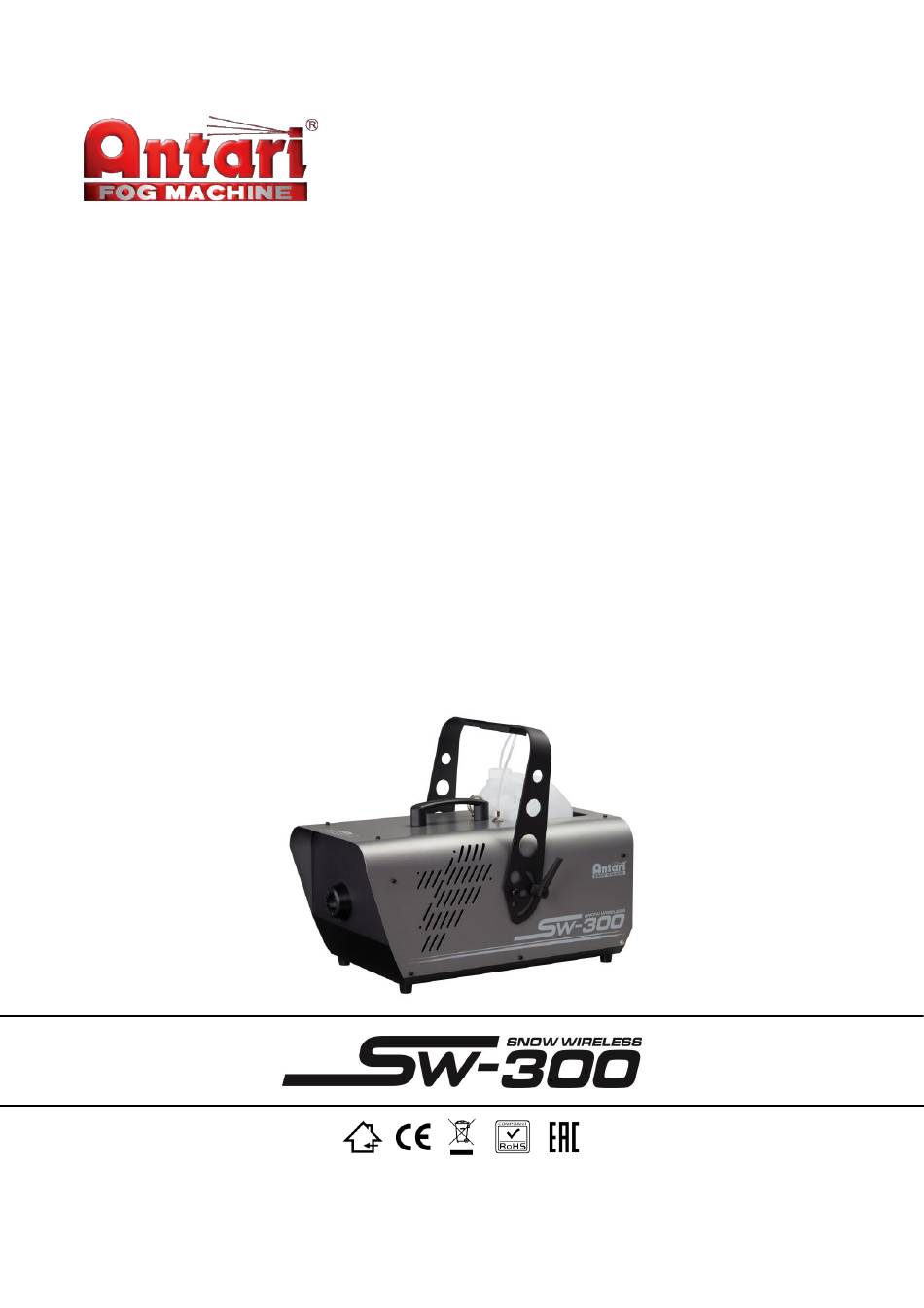

SW-300 Long-Throw Snow Machine User Manual - ENGLISH 中文 © 2019 Antari Lighting and Effects Ltd © 2019 Antari Lighting and Effects Ltd. www.antari.com... - Page 2 © 2019 Antari Lighting and Effects Ltd. www.antari.com...
-
Page 3: Safety Information
Pay attention to all warning labels and instructions in this manual and printed on the machine. If you have questions about how to operate the machine safely, please contact your local Antari dealer for help. Keep this device dry. -
Page 4: Product Dimension

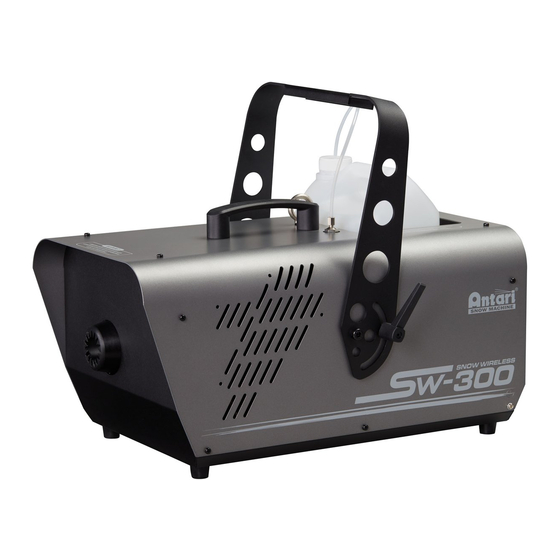

(hanging bracket) H 265.8 mm W 276 mm L 500 mm Product Overview Output Nozzle Fluid Tank LCD Control Panel XLR 5-Pin DMX Connector Wireless Receiver Remote Control Input Power Switch Power Socket © 2019 Antari Lighting and Effects Ltd. www.antari.com... -
Page 5: Operation
Step 1: Place the machine on a flat surface and in a suitably large area with at least 50 cm open space around the machine. Step 2: Fill the fluid tank with Antari approved fluid Step 3: Connect the machine to suitably rated power supply. To determine the power requirement... - Page 6 Turn On or Off W-1 wireless control function Quick Turn On or Off quick start function StartOFF DMX Connector Pin Assignment The machine provides a 5-pin XLR connector for DMX connection. The diagram below indicates pin assignment information. © 2019 Antari Lighting and Effects Ltd. www.antari.com...
- Page 7 Fan Output Level 6 – 255 Fan 21 – 100% RDM Control The SW-300 is RDM enabled, allowing control system to configure, mointor and manage. See below table for supported RDM parameters © 2019 Antari Lighting and Effects Ltd. www.antari.com...
- Page 8 DEVICE_HOURS 0x1000 IDENTIFY_DEVICE Wireless Operation Wireless remote control W-1 consists of a transmitter equipped with two buttons for output ON and OFF; with an onboard receiver attach to the rear of SW-300 W-1 Wireless Transmitter Wireless Receiver Button Function Activate output...
- Page 9 The transmitter can be paired or deleted from the receiver. Each receiver can pair up to 5 transmitters. Follow the steps below to pair or delete a transmitter from the receiver. Step 1: Power on SW-300 Snow Machine Step 2: When “Wireless Setup” shown on display, press button [A] on transmitter Step 3: Once display show “Wireless Setup Ok”, registering process has completed.
- Page 10 Consider nozzle replacement and routine maintenance access when selecting installation location. Adjustable Mouting Bracket Adjust mounting bracket by loosening screws, set the nozzle to desired angle and tighten the screw to finish adjustment. Illustration below demostrates how to adjust mounting bracket. © 2019 Antari Lighting and Effects Ltd. www.antari.com...
-
Page 11: Service And Maintenance
SL-N (New Formula) Artificial snowflake produced by SL-H is the finest (smallest in size and lightest in weight) among Antari snow fluids, which is the driest and leaves least wet residue when it falls on the ground. Recommended for outdoor operation. -
Page 12: Technical Specifications
DMX 512 , Timer , Manual , Wireless -DMX channels 2 channels -Connection IEC (POWER) XLR 5-pin (DMX) -Optional accessories SC-3 Cable Remote -Dimension L 500 W 276 H 265.8 mm (H 332.4mm (hanging bracket) -Weight 11.5 kg © 2019 Antari Lighting and Effects Ltd. www.antari.com... - Page 13 © 2019 Antari Lighting and Effects Ltd. www.antari.com...
- Page 14 © 2019 Antari Lighting and Effects Ltd. www.antari.com...
- Page 15 © 2019 Antari Lighting and Effects Ltd. www.antari.com...
- Page 16 C08SW3001 © 2019 Antari Lighting and Effects Ltd. www.antari.com...
