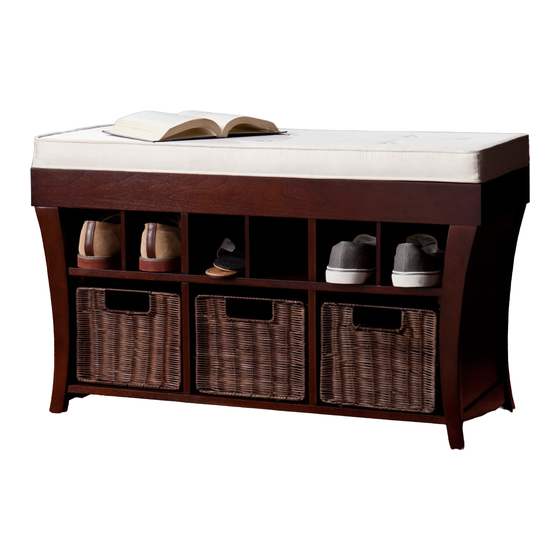

- Page 1 BC272300TX Lowry Storage Bench For assistance with assembly, contact: Southern Enterprises, Inc. Customer Service: 1-800-633-5096 Assembly Instructions service@seidal.com www.seidal.com PO#: Page | 1...
- Page 2 Lowry Storage Bench Parts List Please check packaging for all parts and hardware before discarding. Unpack and lay parts on clean, padded surface like carpet or blanket. Check that you have all parts indicated. Call customer service if hardware is missing. Before beginning assembly, carefully study the diagrams below and sort your hardware according to the pictures.
- Page 3 Quantity Quantity Quantity of 12 of 12 of 20 Cam Bolts Cam Locks Wood Dowels Dia. 5/16"x1-1/4" Quantity Quantity Quantity Bolt Dia. 1/4x1-1/4” L Spring Washer Dia.1/4” Flat washer Dia.1/4” x3/4” Quantity Quantity Quantity of 1 of 28 of 1 Allen Wrench Screw Dia.
- Page 4 Lowry Storage Bench Assembly Instructions Attach the Shelf Panel (4) to the Middle Panel (6) as figure shown. Figure 1 Start with finger to help align Cam Bolts. Insert Cam Locks (B) into corresponding holes on Middle Panel (6). Screw Cam Bolts (A) into threaded holes on Bottom panel (5).
- Page 5 Attach the Left/ Right Side Panel (2/3) to Shelf Panel (4) and Bottom Panel (5) with Bolts (D), Spring Washers (E) and Flat Washers (F) and Wood Dowels (C). Tighten bolt with Allen Wrench (G). Figure 3 Attach Small Middle Panel (7) to Shelf Panel (4) by using Wood Dowels (K) as shown.
- Page 6 Insert Cam Locks (B) into corresponding holes on Left/ Right Side Panel (2/3) & Middle Panel (6). Screw Cam Bolts (A) into threaded holes on Top panel (1). Attach Top Panel (1) to Left/ Right Side Panel (2/3) & Middle Panel (6) by inserting Cam Bolts (A) and Wood Dowel (C/K) into corresponding holes until all panels meet.
- Page 7 Attach Hinges (L) to Top Panel (1) and Cushion (9) using Screws (M). Open Cushion (9), attach Arm Hinges (I/J) to Top Panel (1) and trunk base using Screws (H). Tighten Screws with Phillips screwdriver. Place Adhesive Pads (O) on top corners of Top Panel (1) as shown.
- Page 8 Insert wicker baskets. Figure 9 Now your Lowry Storage Bench is ready to Figure 10 Page | 8...
-
Page 9: Parts Replacement Form
90 days of your receipt, we are under no obligation to provide parts or replacement merchandise. For product issues, please contact Southern Enterprises at 800-633-5096 (toll-free) / 972-869-0111 (Dallas), Mon-Fri 9am – 4pm CST, or email us at service@seidal.com. Please ask for customer service representative for issues involving damages or replacement parts.
