Southern Enterprises BC403900TX Assembly Instruction Manual

Southern Enterprises BC403900TX Assembly Instruction Manual

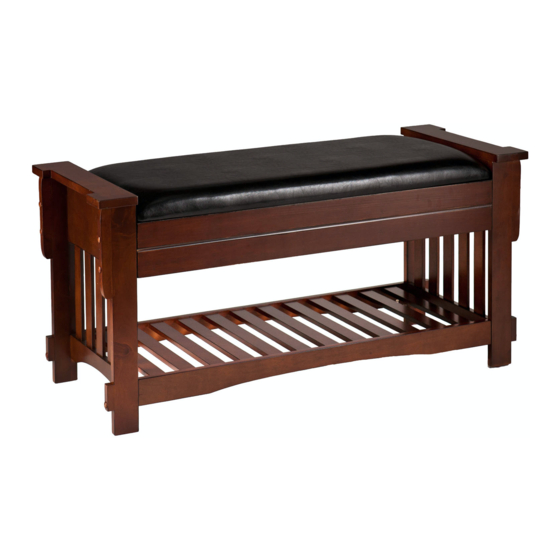

Mission storage bench

Advertisement

Quick Links

BC403900TX
For assistance with assembly, contact:
Mission Storage Bench
Southern Enterprises Inc.
Customer Service 1-800-633-5096
service@seidal.com
Assembly Instruction
www.seidal.com
PO# 13412

Advertisement

loading
Need help?

Need help?

Do you have a question about the BC403900TX and is the answer not in the manual?

Questions and answers

Summary of Contents for Southern Enterprises BC403900TX

  • Page 1 BC403900TX For assistance with assembly, contact: Mission Storage Bench Southern Enterprises Inc. Customer Service 1-800-633-5096 service@seidal.com Assembly Instruction www.seidal.com PO# 13412...
  • Page 2 BC403900TX Mission Storage Bench Parts List Please review all parts and hardware before disposing of any packaging. Call Customer Service if missing hardware. Do not return to store/retailer. Using a screw that is too long will cause damage. Before beginning assembly, separate each type of screw.
  • Page 3 BC403900TX Mission Storage Bench Assembly Instructions Step 1: Insert Wood Dowels (3) into Right Side Frame (C). Attach Front Panel (D), Back Panel (E) and Bottom Shelf (F) with Right Side Frame (C) using Barrel Nuts (2) and Bolts (1) as shown.
  • Page 4 Step 3: Insert Bottom Panel (G). Step 4: Attach Hinges (5) to Back Panel (E) using Screws (4).
  • Page 5 Step 5: Attach Cushion (A) to the hinges using Screws (4). Step 6: Attach Springs (6) and (7) to Cushion (A) and Left/Right Side Frame (C) and (B) using Screws (4).
  • Page 6 Step 7: Cover holes using Wood Plugs (8).
  • Page 7: Customer Service

    90 days of your receipt, we are under no obligation to provide parts or replacement merchandise. Please contact Southern Enterprises at 800-633-5096 or in Dallas 972-869-0111/ 9am – 4pm Mon-Fri Central time if you have product issues or email us at service@seidal.com.
