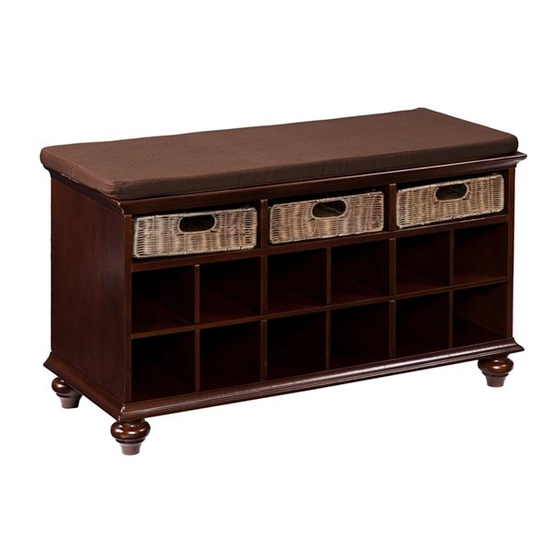

- Page 1 BC4013R0TX-ESPRESSO BC401400TX-WHITE BC401500TX-BLACK “CHELMSFORD” SHOE BENCH For assistance with assembly contact: Assembly Instructions Southern Enterprises, Inc. Customer Service 1-800-633-5096 service@seidal.com wwww.seidal.com PO#12862 Max seat load: 250 lb.
- Page 2 Parts List “CHELMSFORD” SHOE BENCH Please review all parts and hardware before disposing of any packaging. Call Customer Service if missing hardware. Using a screw that is too long will cause damage. Before beginning assembly, separate each type of screw. Carefully study the screw diagrams below. You may receive extra hardware with your unit.
- Page 3 “CHELMSFORD” SHOE BENCH Parts List Please review all parts and hardware before disposing of any packaging. Call Customer Service if missing hardware. Using a screw that is too long will cause damage. Before beginning assembly, separate each type of screw. Carefully study the screw diagrams below. You may receive extra hardware with your unit.
- Page 4 “CHELMSFORD” SHOE BENCH Assembly Instructions Assembly Instructions: Wood may scratch easily, Be careful when assembling. Do not scratch. Step 1 Unpack and lay parts on clean, padded surface like carpet or blanket. Check that you have all parts indicated on the front page.
- Page 5 “CHELMSFORD” SHOE BENCH Assembly Instructions Connect the Bottom panel (G), with 12pcs Wood Dowels(3),4pcs Cam Bolts (1) and Cam Locks (2). Figure 4 Attach the Legs(I) and Center Support Leg (J) to the Bottom Frame (G). Please remove plastic off legs before attaching them to bottom panel Figure 5...
- Page 6 “CHELMSFORD” SHOE BENCH Assembly Instructions Connect the Back Panel (N) to the assembled unit with 20pcs Wood Screws (4). Figure 7 Attach the wicker bottom (L) to wicker frame (K) Figure 8 Cover cam-locks (4) with cotton mats (5) provided. Insert wicker baskets.
- Page 7 90 days of your receipt, we are under no obligation to provide parts or replacement merchandise. Please contact Southern Enterprises at 800-633-5096 or in Dallas 972-869-0111/ 9am – 4pm Mon-Fri Central time if you have product issues or email us at service@seidal.com. Please ask for customer service representative for issues involving damages or replacement parts.
