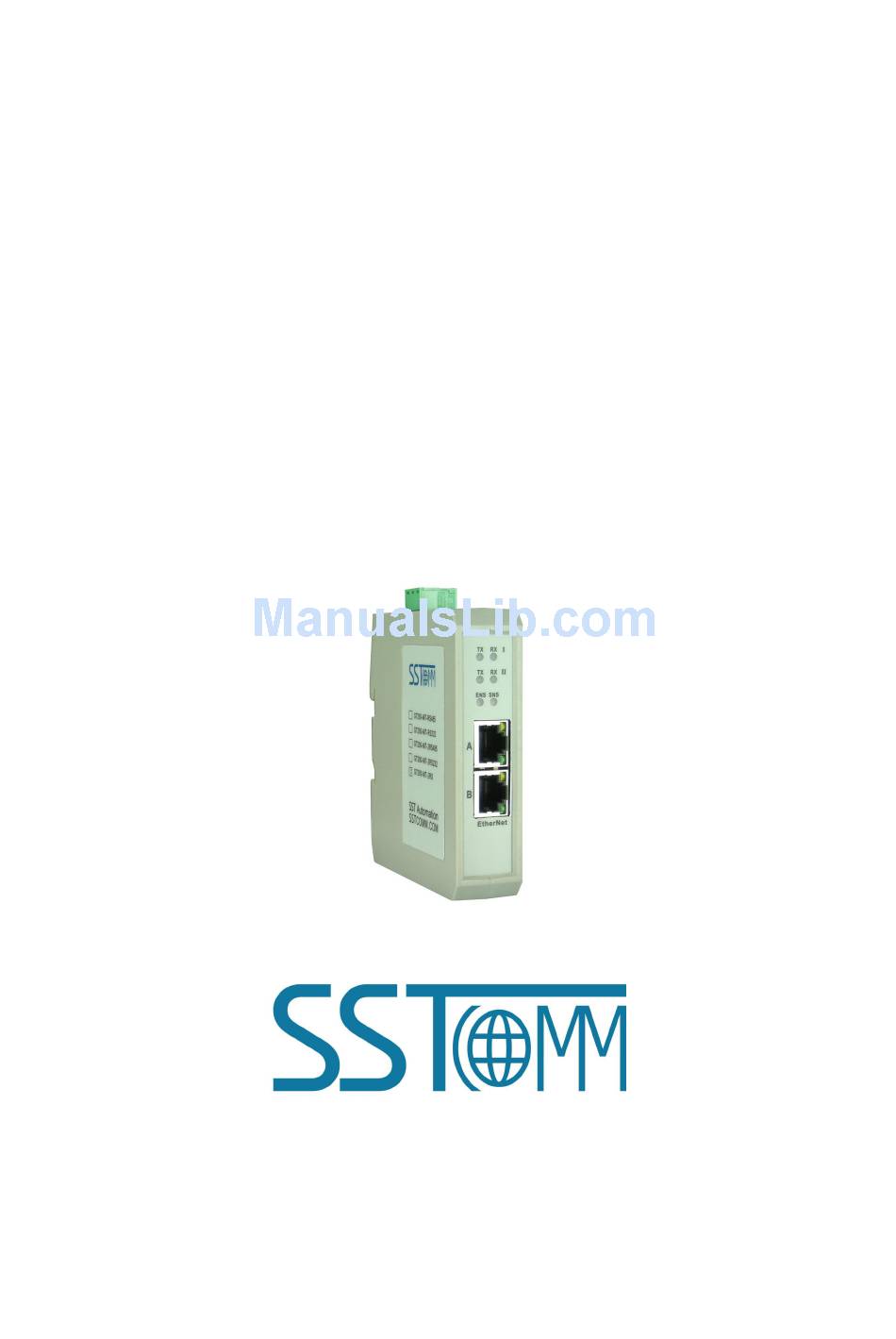

- Page 1 Industrial Ethernet Serial Gateway （Modbus RTU/ASCII / Modbus TCP） Modbus Serial/TCP Series User Manual REV 1.4 SST Automation support@sstcomm.com E-mail: WWW.SSTCOMM.COM...
-
Page 2: Table Of Contents
Modbus Serial/TCP Series Industrial Ethernet Serial Gateway User Manual Catalog 1 Product Overview..............................4 1.1 Product Function.............................4 1.2 Product Features............................. 4 1.3 Technical specifications..........................5 2 Hardware Description..............................6 2.1 Appearance..............................6 2.2 Indicators.................................7 2.3 DIP switch...............................7 2.4 Interface................................8 2.4.1 Power interface............................ 8 2.4.2 Ethernet interface..........................9 2.4.3 Serial interface........................... - Page 3 Modbus Serial/TCP Series Industrial Ethernet Serial Gateway User Manual 5.2 Installation Method............................34 WWW.SSTCOMM.COM...
-
Page 4: Product Overview
Dual Ethernet interface , built-in switch, support cascade , can be used in a ring network ,save field connection cables and switches; GT200-MT-RS: One RS485 interface or RS232 interface, 1KV electromagnetic isolation; GT200-MT-2RS: Two RS485 interfaces or RS232 interfaces, 1KV electromagnetic isolation; Ethernet 10/100M self-adaptive; ... -
Page 5: Technical Specifications
Modbus Serial/TCP Series Industrial Ethernet Serial Gateway User Manual Packet request is automatically routed to the serial port; Network security settings; Limit the IP address range of clients’ communication machine; Login password can be set; Debugging function; ... -
Page 6: Hardware Description
Power interface Indicators Dual Ethernet interface Serial interfaceⅠ Serial interface Ⅱ Notes: 1. The picture above shows the appearance of GT200-MT-2RS; 2. GT200-MT-2RS , two serial ports : serial I and serial II; 3. GT200-MT-RS, one serial port: serial I. WWW.SSTCOMM.COM... -
Page 7: Indicators
Modbus Serial/TCP Series Industrial Ethernet Serial Gateway User Manual 2.2 Indicators product Indicators Status Descriptions model GT200-MT- Blinking(Green) Serial port is receiving data Blinking (Green) Serial port is transmitting data RX blinking(Green) Serial portⅠis receiving data Ⅰ TX blinking (Green) Serial portⅠis transmitting data GT200-MT- RX blinking (Green) -
Page 8: Interface
Modbus Serial/TCP Series Industrial Ethernet Serial Gateway User Manual On 1 2 Mode (bit 1) Function (bit 2) Description Run mode, allowing reading and writing of configuration data Configuration mode, IP address is 192.168.0.10 (fixed), this mode can read and write configuration data but cannot finish communication between Modbus TCP and Modbus RTU devices Run mode, forbidding reading and writing of configuration... -
Page 9: Ethernet Interface
Modbus Serial/TCP Series Industrial Ethernet Serial Gateway User Manual Power supply wiring is shown as below: 24V+ 24V+ DC power: +24V Power interface 2.4.2 Ethernet interface Ethernet interface uses RJ-45 connector; its pin (standard Ethernet signal) is defined as below: Signal Description TXD+, Tranceive Data+, Output TXD-, Tranceive Data-, Output... -
Page 10: Serial Interface
Modbus Serial/TCP Series Industrial Ethernet Serial Gateway User Manual 2.4.3 Serial interface Modbus Serial/TCP series gateway uses a 3-pin 5.08mm closed terminal of two ends. Ports support RS485 or RS232. Pin of RS232 interface is defined as below: Signal Description TX, connect with RX of user device RX, connect with TX of user device Pin of RS485 interface is defined as below:... - Page 11 Modbus Serial/TCP Series Industrial Ethernet Serial Gateway User Manual ② Transmission rate: 1200 bps~115.2Kbps. ③ Media: Shielded twisted-pair cable and also can cancel the shielding, depending on environmental conditions (EMC). ④Site numbers: 32 stations per subsection (without repeater), and can up to 127 stations (with RS485 repeater).
-
Page 12: Instructions Of Configuration Software
3 Instructions of Configuration Software Double click the configuration software and finish the configuration of Modbus Serial/TCP series gateway. (GT200-MT-2RS as an example below) Notes: The factory setting of Modbus Serial/TCP series gateway is 192.168.0.10, subnet mask is 255.255.255.0, and gateway address is 192.168.0.1. -
Page 13: Search Equipment
Modbus Serial/TCP Series Industrial Ethernet Serial Gateway User Manual 3.2 Search equipment Before configuring parameters of Modbus Serial/TCP, users need to search the gateway using the software. The software provides two ways to search the gateway. 3.2.1 Search all equipment in Ethernet Click “Search Equipment”... -
Page 14: Ip Search
Modbus Serial/TCP Series Industrial Ethernet Serial Gateway User Manual 3.2.2 IP search Click “IP Search” button of the main interface will pop up a dialog box which demands you to input IP address. WWW.SSTCOMM.COM... - Page 15 Modbus Serial/TCP Series Industrial Ethernet Serial Gateway User Manual After entering the correct IP address, the software will search Modbus Serial/TCP series gateway with this IP address in the network, and list the information of the equipment in the main interface. Notes: WWW.SSTCOMM.COM...
-
Page 16: Configuration
Modbus Serial/TCP Series Industrial Ethernet Serial Gateway User Manual If users select the “IP Search”, users need to enter correct IP address or it will not search equipment. 3.3 Configuration Select the equipment to be configured in the list, and the “Locate”, “Configuration”, “Remote Reset”, “New”, “Open”... -
Page 17: Mode Selection
Modbus Serial/TCP Series Industrial Ethernet Serial Gateway User Manual 3.3.1 Mode selection Now Modbus Serial/TCP series gateway supports four operating modes: Modbus RTU slave mode——Modbus TCP master communicate with Modbus RTU slave through the gateway; Modbus RTU master mode——Modbus RTU master communicate with Modbus TCP salve through the gateway. -
Page 18: Ethernet Parameters
Modbus Serial/TCP Series Industrial Ethernet Serial Gateway User Manual 3.3.2 Ethernet parameters Ethernet parameters include: “Name”, “Assign IP Mode”, “IP Address”, “Subnet Mask”, “Default Gateway”, “DNS1” and “DNS2”. Name——enter a name to identify the device in order to distinguish from other equipment; Assign IP Mode——set the IP address configuration mode of the equipment;... - Page 19 Data bit——8 (currently only support 8 data bits) Notes: GT200-MT-2RS gateway: You only need to set one serial port, if all serial port parameters are consistent, and then click "Apply to All Serial Ports”, all serial port parameters can be configured to the current display serial port parameters.
-
Page 20: Id Mapping (Advanced Parameters)
Modbus Serial/TCP Series Industrial Ethernet Serial Gateway User Manual 3.3.4 ID mapping (Advanced parameters) When you select RTU slave or ASCII slave mode, and only configure the basic configuration, this cannot be configured. When you select RTU master or ASCII master mode, please indicate which server the request packets are sent to. -
Page 21: Modbus Parameters (Advanced Parameters)
RTU/ASCII in the following interface: Notes: When users use GT200-MT-2RS gateway, you only need to set one serial port if all serial port parameters are consistent, and then click "Apply to All Serial Ports”, all serial port parameters can be configured to the current display serial port parameters. -
Page 22: Priority Control (Advanced Parameters)
Modbus Serial/TCP Series Industrial Ethernet Serial Gateway User Manual 3.3.6 Priority control (Advanced parameters) When users select RTU slave or ASCII slave mode, and only configure the basic configuration, this does not need to be configured. (Modbus Serial/TCP series gateway does not support this feature temporarily) Ethernet speed is faster than serial port, and it will cause queuing of frame, then you can set priority of frames. -
Page 23: Advanced (Advanced Parameters)
Modbus Serial/TCP Series Industrial Ethernet Serial Gateway User Manual 3.3.7 Advanced (Advanced parameters) When you select RTU slave or ASCII slave mode, and only configure the basic configuration, this cannot be configured. Advanced parameters include: "Password", "Confirm Password", "Use default port", "Port Number", "Start-up Delay of Serial Port", "Restore Factory Settings", "TCP Connect Idle Time", and "Limitation of communication IP Range". -
Page 24: Ok, Cancel And Help
Modbus Serial/TCP Series Industrial Ethernet Serial Gateway User Manual again. If users want to delete the password, just set your password to empty. Restore Factory Settings——when users click the button, the previous configuration information will be lost. TCP Connect Idle Time and Keep-Alive——When a TCP connection idle time reaches the set value, if “Keep-Alive”... -
Page 25: Locate
Modbus Serial/TCP Series Industrial Ethernet Serial Gateway User Manual Save: Save the configuration as ". inf " format to the local disk; Download: Download the configuration to the equipment; Save and Download: Save to the hard disk and download to the equipment. (2) Cancel: Yes: Save to the hard drive and close;... -
Page 26: Remote Reset
Modbus Serial/TCP Series Industrial Ethernet Serial Gateway User Manual 3.5 Remote reset The function of “remote reset” is restarting the selected equipment. Click remote reset, ENS and SNS red indicators will be on at the same time Select the equipment in the list first, click “Remote reset” button, it will pop up a confirmation dialog, then click “OK”... -
Page 27: Open
Modbus Serial/TCP Series Industrial Ethernet Serial Gateway User Manual Enter into the new configuration interface; all of the data is the factory defaults. 3.7 Open Open: Including open online and open offline; Open online (as shown below ) : is equivalent to import, select the device from the list , click the " Open " , if the equipment type of the gateway is the same with the opened configuration file type , and the equipment allows remote configuration , open successfully ;... -
Page 28: Save
Modbus Serial/TCP Series Industrial Ethernet Serial Gateway User Manual 3.8 Save Save: is equivalent to export, select a device and click “Save, save the parameters of the device as “.inf” format on the hard disk WWW.SSTCOMM.COM... - Page 29 Modbus Serial/TCP Series Industrial Ethernet Serial Gateway User Manual Notes: The configuration file can be opened with notepad, you can modify the data inside; make sure the accuracy of the modified data; Please don’t modify keywords, don’t add a space. WWW.SSTCOMM.COM...
-
Page 30: Communication Test
Modbus Serial/TCP Series Industrial Ethernet Serial Gateway User Manual 3.9 Communication test "Communication Test" can send Modbus TCP request manually, it is convenient for user's debugging serial equipment, click "Communication Test" to enter: IP Address: the IP address of equipment needs to be connected; Port: the port number of equipment needs to be connected;... -
Page 31: Typical Application
Modbus Serial/TCP series gateway can connect Modbus master/slave devices to Ethernet in order to realize the communication between Ethernet and serial devices. The following is some typical application of Modbus Serial/TCP series gateway. (Take GT200-MT-2RS as an example) 4.1 Multiple Ethernet master connect with multiple serial slave GT200-MT-2RS supports dual Ethernet ports, built-in switch function. -
Page 32: Multiport Serial Master Connect With Multiple Ethernet Slave
Modbus Serial/TCP Series Industrial Ethernet Serial Gateway User Manual 4.2 Multiport serial master connect with multiple Ethernet slave WWW.SSTCOMM.COM... -
Page 33: Serial Master Connect With Serial Slave Via Ethernet
Modbus Serial/TCP Series Industrial Ethernet Serial Gateway User Manual 4.3 Serial master connect with serial slave via Ethernet Serial devices communicate via Ethernet, not subject to the limitation of the transmission distance. WWW.SSTCOMM.COM... -
Page 34: Installation
Modbus Serial/TCP Series Industrial Ethernet Serial Gateway User Manual 5 Installation 5.1 Machine Dimension Size: 1.57 in (width)*4.92 in (height)*4.33 in (depth) 5.2 Installation Method 35mm DIN rail mounting WWW.SSTCOMM.COM... - Page 35 Modbus Serial/TCP Series Industrial Ethernet Serial Gateway User Manual WWW.SSTCOMM.COM...
