Setup Screen Details

Locking/Unlocking Changes to Settings

Changes to the settings can be locked in the Power Button Menu.
Clock
Locked
LED Off
About
When changes are locked, several controls and actions can still be used:
• Settings can still be unlocked
• Menus can still be browsed
When locked, POWER CAN ONLY BE TURNED OFF by removing the
•
batteries.

Main Window Indicators

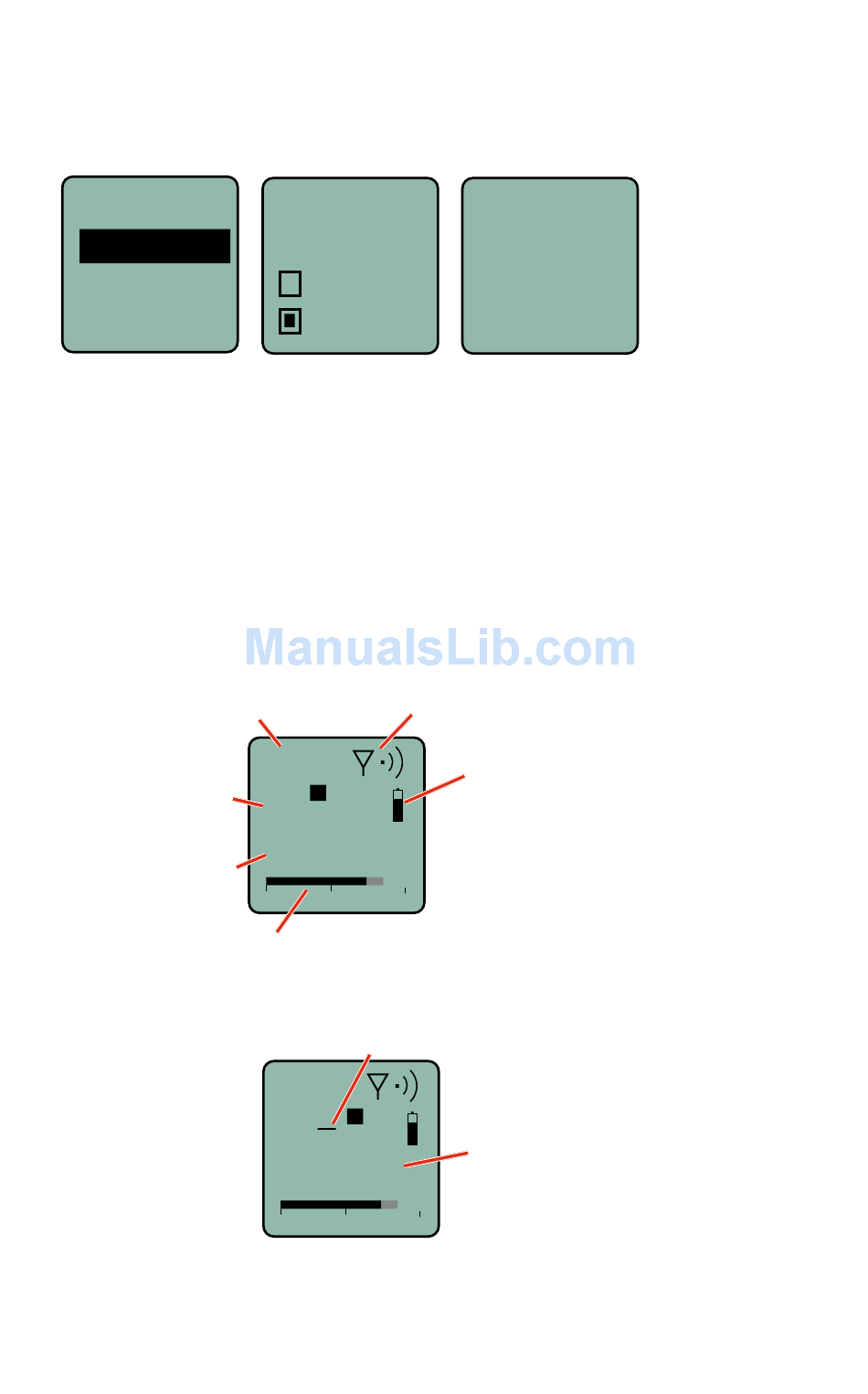

The Main Window displays the band number, Standby or Operating mode,
operating frequency, audio level, battery status and programmable switch
function. When the frequency step size is set at 100 kHz, the LCD will look
like the following.
Block number
Frequency
(hex number)
Frequency (MHz)
When the frequency step size is set to 25 kHz, the hex number will appear
smaller and may include a fraction.
1/4 = .025 MHz
1/2 = .050 MHz
3/4 = .075 MHz
10
Locked?
No
Yes
Operating mode
b 470
2C
474.500
-40 -20
Audio level
Fraction
b 470
2C 1
4
474.525
-40 -20
LOCKED
(menu to
unlock)
Battery status
0
Note that the
frequency has
increased by 25
kHz from the upper
example.
0
