Lectrosonics SMDWB series Quick Start Manual page 6

Transmitter Operating Instructions
• Install battery(s)
• Turn power on in the Standby mode (see previous section)
• Connect microphone and place it in the position where it will be used.
• Have user talk or sing at the same level that will be used in the produc-
tion, and adjust the input gain so that the -20 LED blinks red on louder
peaks.
Gain
Freq
Rolloff
Compat
Signal Level
Less than -20 dB
-20 dB to -10 dB
-10 dB to +0 dB
+0 dB to +10 dB
Greater than +10 dB
• Set the frequency and compatibility mode to match the receiver.
Turn the RF output on with the Rf On? item in the power menu, or by
•
turning the power off and then back on while holding the power button in
and waiting for the counter to reach 3.
NOTE: The translucent "bubble" next to the antenna connector is
an IR port that can be used to transfer settings from an IR enabled
Lectrosonics receiver. Refer to the receiver manual for details.
6

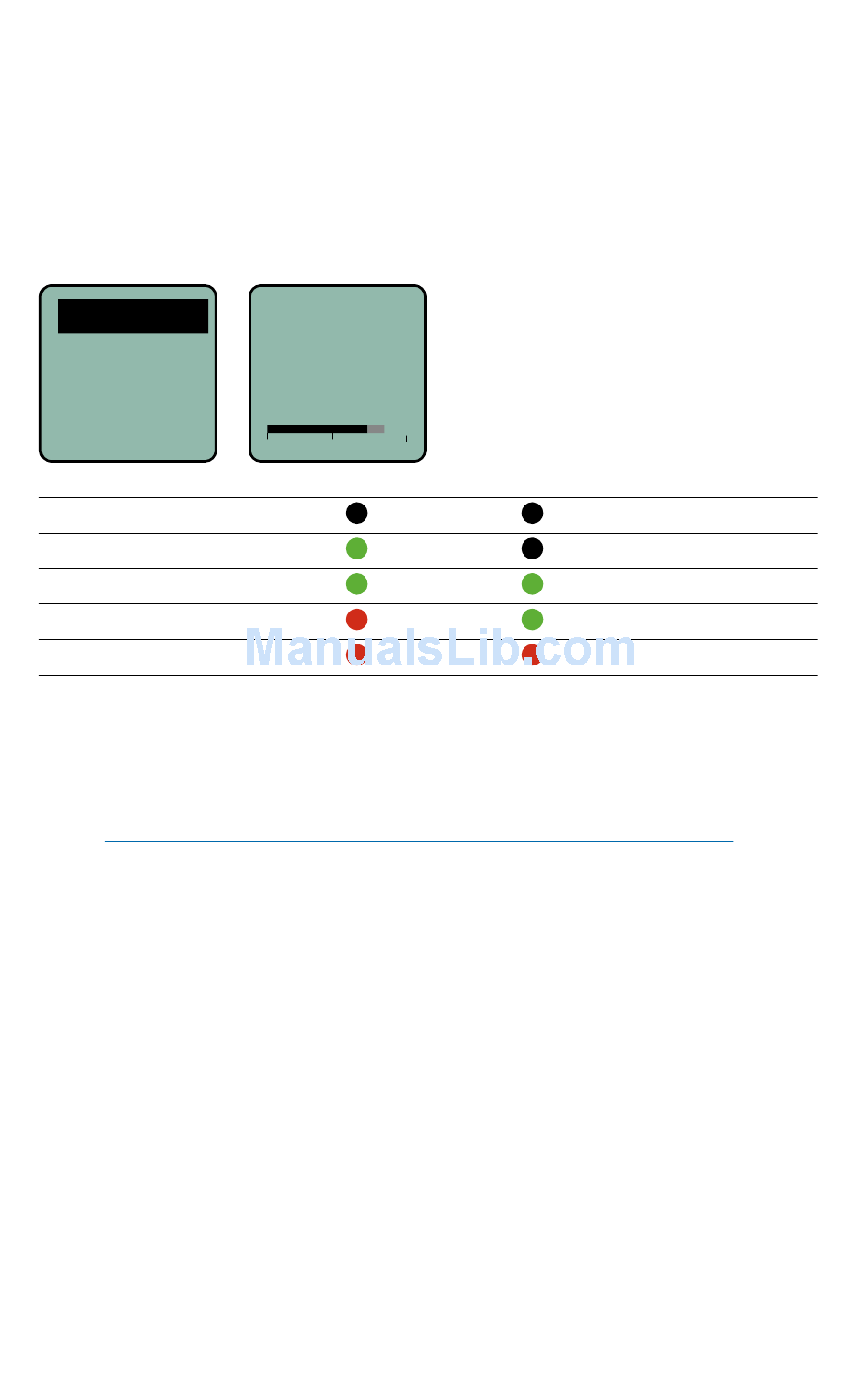

Gain
25
-40
-20 0
-20 LED
Off
Green
Green
Red
Red
Use the UP and DOWN
arrow buttons to adjust
the gain until the -20
LED blinks red on
louder peaks
-10 LED
Off
Off
Green
Green
Red
