Hypertherm MAX200 Instruction Manual page 60

SETUP
008176 Pin (4)
IHS End

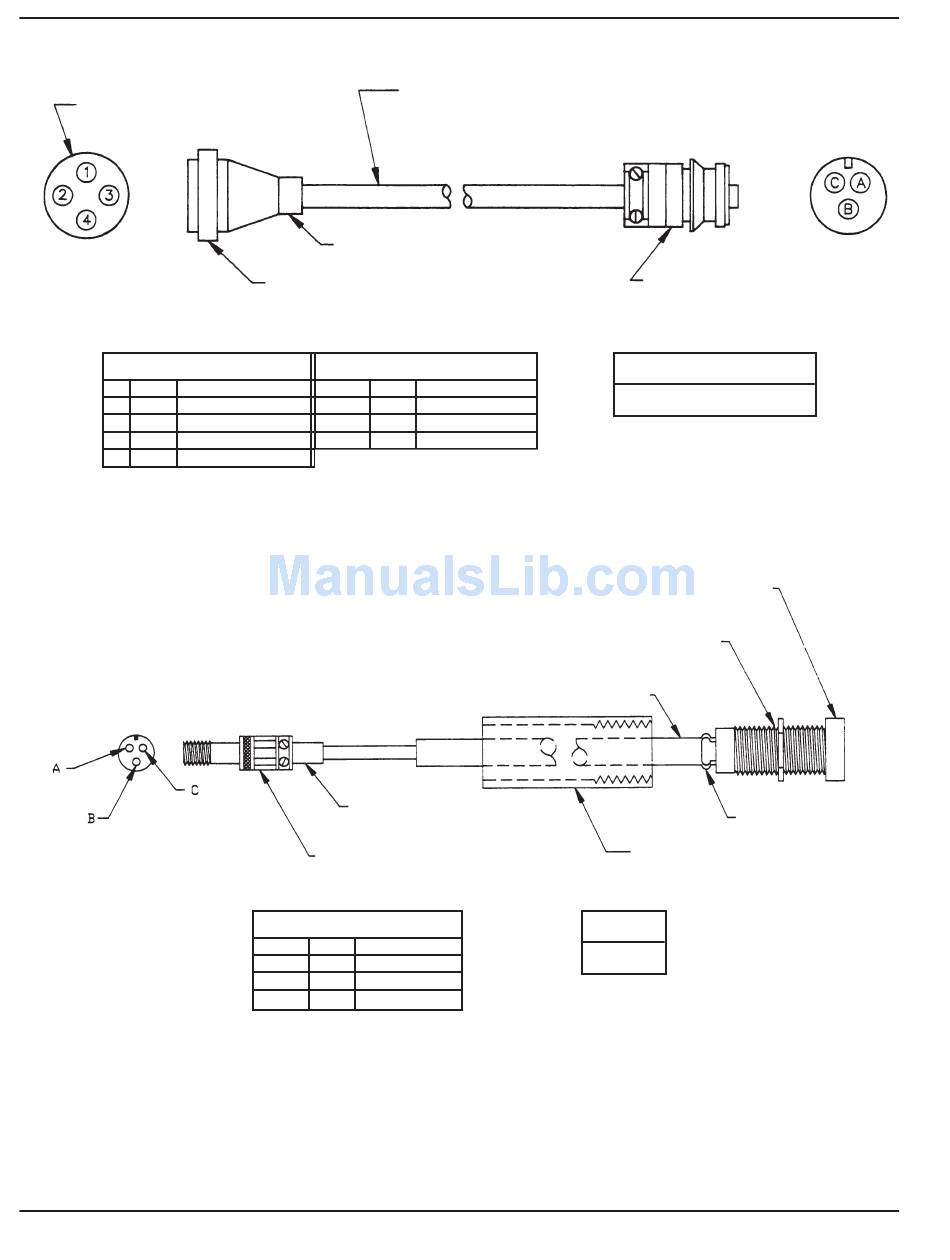

LEGEND – IHS END
PIN COLOR
1 Clear
2 Blk
3 Braid
4 Red Power (+15 VDC)
Inductive Sensor End
Rearview
Figure 3-17
3-36
14
008195 Strain Relief
009211 Plug, Shell 11–4, Rev Sex
LEGEND – INDUCTIVE SENSOR END
FUNCTION SOCKET COLOR
Signal A Red
Common B Blk
Shield C Clear
NOTE: Cut Shield Sensor End.
IHS/Sensor Cable
(Ref Cable Boot
008145 RECP, 3 Pin Male
LEGEND – INDUCTIVE SENSOR END
SOCKET COLOR FUNCTION
A Brn Power (+15 VDC)
B Blu Common
C Blk Signal
Inductive Probe Assembly
IHS Control Module to Inductive Probe Assembly Interface Cables
047029 Cable, 22–3 TW, OA Shielded
Belden #8771 (40')
Inductive Sensor End
FUNCTION
Power (+15 VDC)
Common
Signal
005085 Inductive Probe
046023, 3' Tygon Tubing
008144 Plug, 3–Pin F
(Amphenol)
Part No. Length
023111 40 ft (12.2 m)
005078 Probe Cap
027109 Hose Clamp
004085 Nut, Insulating
Part No.
005074
MAX200 Instruction Manual
