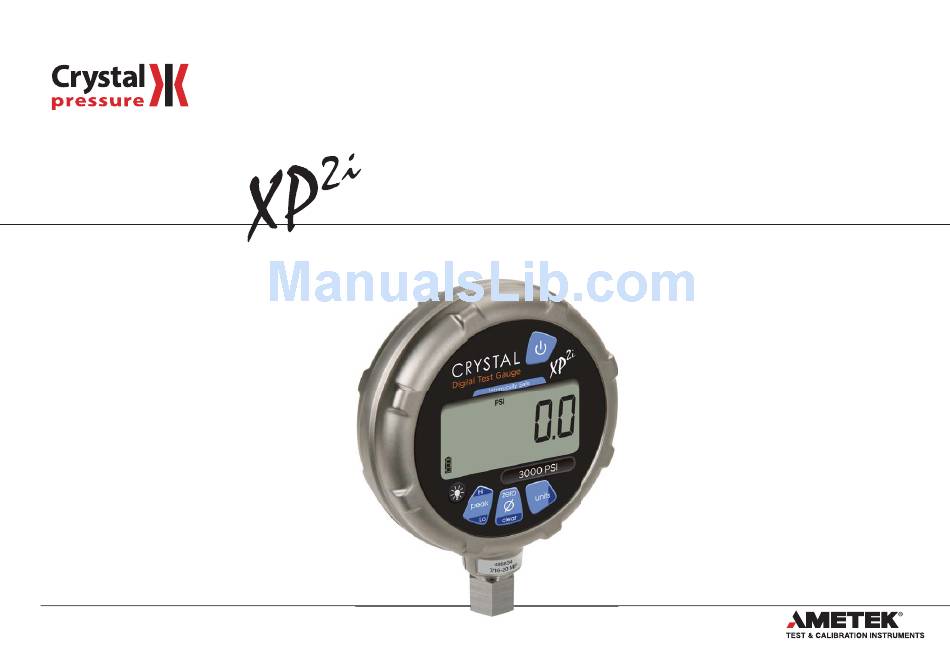

  • Page 1 Operation Manual for XP2i Digital Test Gauge (Standard and Dual-Display(DD))

  • Page 2: Table Of Contents

    ........XP2i DataLoggerXP Gauge Operation ............

  • Page 3: Introduction

    Overview INTRODUCTION Thank you for choosing the XP2i Digital Test Gauge from Crys tal En gi neer ing Corporation. Your XP2i is a combination of leading edge tech nol o gy and rug ged in dus tri al de sign.

  • Page 4: Overview

    Connect the XP2i to your system. CAUTION: Use a wrench (¾" or 19mm) for installation and removal of XP2i! There is a limit to how much rotational force can be applied to the case, so don’t rely on, or use, the case to screw the XP2i into a fi tting, and don’t use the case to remove the XP2i fi tting, either.
  • Page 5 Units that you don’t need or never use can be turned off . You can also defi ne a special unit for your XP2i with Confi gXP. You can use the XP2i to display directly in a unit not otherwise available, such as feet of seawater, or foot-pounds of torque. When you select your custom unit from the keypad, the screen displays the USER icon.

  • Page 6: Functions

    WARNING: This gauge can display zero pressure when connected to a source of pressure! Do not rely on the display indication before disconnecting— it may not be indicating true pressure. Never disconnect pressure instrumentation without fi rst relieving system pressure!  To Clear the Zero Value on an XP2i Turn off peak indication as described above, then press and hold the zero...
  • Page 7 ( -DD, Dual-Line Display XP2i Only ) Diff erential mode allows the XP2i-DD gauge (the master) to be connected to a second XP2i or XP2i-DD gauge (the slave) and display the pressure diff erence between the two gauges. A standard RS232 cable (p/n 2400) and null modem adapter (p/n 3456) or a null modem cable are required to directly connect the gauges.
  • Page 8 If you start the XP2i in the No Auto Off mode, you may select the brightness level in the same way. The light will never time out and turn off . Turn off the XP2i,...
  • Page 9 The following applies only to models where inches of water is a selectable pressure unit. As shipped from the factory, the XP2i is set to display inches of water corresponding to the density of water at 4° C (39.2° F). You may require a diff erent water density for your application, so the XP2i can be set to use the density of water at 20°...
  • Page 10 The XP2i uses 3 AA batteries. Loosen the four rear pan el screws to gain ac cess to the battery com part ment. These four panel screws are captive inside the panel and are not removable. Pull the panel up to expose the battery compartment. Af ter re plac ing the bat ter ies, the XP2i will start op er at ing im me di ate ly...
  • Page 11 Reset If for some rea son the XP2i needs to be re set, re move any battery for at least one minute, then re in stall the battery. If the reset is suc cess ful, the XP2i will start operating without press ing the on/off button.

  • Page 12: Data Logging With Dataloggerxp

    DataLoggerXP is an optional data logging mode available for the XP2i gauge. You may purchase the DataLoggerXP option with your original order or add it later. With the XP2i’s long battery life, and Ultra Low Power (ULP) mode, you can log data over an entire year, without the need for external power supplies or battery replacements.
  • Page 13 ..... . A set of one or more readings taken by the XP2i. The user can specify diff...

  • Page 14: Installing The Software

    To Authorize a Gauge Connect the gauge to your computer. From the File menu, choose Authorize Gauge to start the Authorization Wizard. Follow the on-screen instructions. XP2i Operation Manual...

  • Page 15: Dataloggerxp Software Operation

    DATALOGGERXP SOFTWARE OPERATION As described in the prior section, the DataLoggerXP application provides complete control of the settings for data logging mode on the XP2i. You can change logging parameters and download data using the application. In this section, you will fi nd a description of each of the functional areas of the application.
  • Page 16  To Connect to the Gauge Plug the serial cable into the computer and XP2i gauge ports. In the DataLoggerXP main window, click Connect. The program will retrieve the current logging parameters, and then allow downloading, viewing, and saving data, as well as updating the logging parameters.
  • Page 17 Data Logging Parameters Logging parameters can be set up one of two ways: on a computer connected to an XP2i, or from the XP2i keypad. This second option allows the user to make changes in the logging parameters while in the fi eld. Once the logging parameters have been selected, the gauge can begin recording data. The two param- eters that aff...
  • Page 18 In the Data View dialog box, you can select the run you wish to display, and choose to include or exclude recording events. Events are non-data readings, such as tare values, low battery indications, or logging parameters. XP2i Operation Manual...
  • Page 19 If the fi le name does not include a “.xlt” or “.xls” extension, the data will be saved as a comma separate text fi le (ending either “.txt” or “.csv”) of that name.  To Clear All Data Runs  In the DataLoggerXP main window, click the Clear button to erase all runs from the gauge, making all memory available for the next sequence of runs. XP2i Operation Manual...

  • Page 20: Xp2I Dataloggerxp Gauge Operation

    XP2I DATALOGGERXP GAUGE OPERATION When in data logging mode, XP2i provides data logging capability along with many of the features of a standard XP2i. In order to allow operation as a data logger, some of the standard functionality of the standard XP2i is suspended.
  • Page 21 Keypad Usage The following buttons and button combinations are used to control data logging runs on the XP2i. Where two keys are indicated, the operation is executed by pressing and holding down the fi rst key, then pressing and holding down the second key until the action is completed.
  • Page 22 Units + Zero Holding these two keys will clear the logging memory of the XP2i. If the gauge is recording, you must fi rst stop logging as described above. When these but- tons are pressed, the gauge will fi rst display its current state...
  • Page 23 XP2i Reset or Battery Change Data collected by the XP2i will not be lost with a gauge reset or battery change, although any run in progress will be stopped. A reset or battery change will aff ect the operation of the gauge’s real-time clock. When the XP2i is connected to DataLoggerXP and the logging parameters are set, DataLoggerXP also sets the gauge’s real-time clock.

  • Page 24: Excel Templates

    You can bypass this selection during the save process to choose a diff erent template to save your data into. Select the Use Excel Template check box and use the Browse button to fi nd and select an alternative template. XP2i Operation Manual...

  • Page 25: Enclosure

    WRENCH HEX DIAPHRAGM ADDITIONAL SENSOR LENGTH WITH OPTIONAL FITTING ADAPTERS 1.15 1.03 1.30 (29.1) (26.1) (32.6) 1/4 INCH MNPT 1/4 INCH MBSP ADAPTER ADAPTER M20X1.5 (P/N MPM-1/4MPT) (P/N MPM-1/4BSP) ADAPTER (P/N MPM-M20X1.5) ALL DIMENSIONS ARE IN INCHES (MILLIMETERS) XP2i Operation Manual...

  • Page 26: Serial Numbers

    SERIAL NUMBERS Serial Number Location The serial number of your XP2i is located in two places; on the stem above the pressure fi tting and behind the battery cover under the battery furthest from the serial port connection. You may also fi nd your serial number using Confi gXP software. See Confi gXP for more information.

  • Page 27: Specifi Cations

    Storage......-40 to 75° C (-40 to 167° F). Battery should be removed if stored for more than one month. Media Compatibility Liquids and gases com pat i ble with 316 Stainless Steel. XP2i Operation Manual...
  • Page 28 Wetted Materials ....(Wrench Tight) 316 stainless steel Diaphragm Seal Fluid ... . Dow Corning 200 (Finger Tight) 316 stainless steel and Viton (internal o-ring) XP2i Operation Manual...

  • Page 29: Power

    Bat ter ies ......Three size AA (LR6) batteries. WARNING: Do not remove or change the batteries in hazardous locations. Approved Batteries  ATEX/IECEx: The XP2i is Intrinsically Safe only if powered by one of the following battery types: Approved Battery Type Marking Rayovac Max Plus 815 -20 to 50°...

  • Page 30: Pressure Ranges, Display Scales, & Resolution

    MPa models can display pressure in kPa, MPa, and bar (or mbar) only. PSI and bar models can display all available units. • XP2i will indicate pressure up to 10% above Range Pressure. Above 110%, the XP2i display will fl ash, indicating that the applied pressure exceeds the cali- —...

  • Page 31: Safety & Certifi Cations

    Equipment Directive per our declaration(s). This XP2i is approved for use as a portable test instrument for Marine use and complies with Det Norsjke Veritas’ Rules for Classifi cation of Ships, High Speed & Light Craft, and Off shore Standards.
  • Page 32 David K Porter, P.E. Division Vice President & Crystal Business Manager David K Porter, P.E. Crystal Engineering Corporation, an AMETEK Inc. company AMETEK Denmark A/S 708 Fiero Lane, Suite 9, San Luis Obispo, CA 93401, USA Gydevang 32-34, 3450 Allerød, Denmark Crystal Engineering Corporation, an AMETEK Inc.
  • Page 33 Declares under sole responsibility that the product as originally delivered Product Name: nVision Series Reference Recorder XP2i Series and XP2i-DD Series Digital Pressure Gauge nVision Series Lab Reference 30 Series and IS90 Series Pressure Calibrator CPF Series Fittings and Hoses...

  • Page 34: Atex/Iecex Safety Instructions

    Za správné použití tohoto přístroje v prostředí s nebezpečím výbuchu odpovídá jeho uživatel.  Schválené Baterie – ČESKY (Czech) Přístroj XP2i je jiskrově bezpečný pouze pokud je napájen jedním z následujících typů baterií: Approved Battery Type Marking Rayovac Max Plus 815 -20 to 50°...
  • Page 35 Es responsabilidad del usario comprender la aplicación de este producto en atmósferas potencialmente explosivas  Pilas Aprobadas – ESPAÑOL (Spanish) El XP2i solo es intrínsecamente seguro si se alimenta con uno de los siguientes tipos de pilas: Approved Battery Type Marking Rayovac Max Plus 815 -20 to 50°...
  • Page 36 Il est de la responsabilité de l’utilisateur de bien comprendre l’application appropriée de ce produit en atmosphères explosives.  Piles Approuvées – FRANÇAIS (French) Le XP2i est un système à sécurité Intrinsèque seulement s’il est alimenté par un des Piles de type suivant: Approved Battery Type Marking Rayovac Max Plus 815 -20 to 50°...
  • Page 37 Het is de verantwoordelijkheid van de gebruiker om dit product op een juiste wijze toe te passen.  Batterijen Welke Zijn Goedgekeurd – NEDERLANDS (Dutch) De XP2i is alleen intrinsiek veilig bij gebruik van de volgende batterijen: Approved Battery Type Marking Rayovac Max Plus 815 -20 to 50°...
  • Page 38 Käyttäjän vastuulla on laitteen käyttö räjähdysvaarallisissa tiloissa. Mittausovellus ja käyttöympäristö on ehdottomasti selvitettävä ennen käyttöä.  Käyttöön Hyväksytyt Paristot – SUOMEN KIELI (Finnish) XP2i mittari on turvallinen määritellyissä räjähdysvaarallisissa tiloissa ainoastaan, kun käytetään seuraavia paristoja: Approved Battery Type Marking Rayovac Max Plus 815 -20 to 50°...

  • Page 39: Support

    TROUBLESHOOTING The XP2i is a very high performance gauge. Due to the high resolution of this prod uct, you may observe conditions that appear to be defects in the product, but are in fact a result of being able to resolve and measure pressure to a degree not possible with other in stru ments.

  • Page 40: Calibration

    Although we prefer that you return the XP2i to Crystal En gi neer ing for calibration, ordinary re cer ti fi ca tion and/or ad just ments may be performed by any qualifi...

  • Page 41: Software

    AC adapter kit Permits operation of an XP2i from an AC supply of 90 - 264 VAC and 47 - 63 Hz. Includes in ter change able in ter na tion al plugs (for USA, Europe, U.K., and Australia). Adapter will not charge batteries, but in the event of AC power loss, XP2is will automatically revert to battery operation.

  • Page 42: Contact Us

    WARRANTY Crystal Engineering Corporation warrants the XP2i Digital Test Gauge to be free from defects in material and workmanship under normal use and service for one (1) year from date of purchase to the original purchaser. It does not apply to batteries or when the product has been misused, altered or damaged by accident or abnormal conditions of operation.
  • Page 43 © 2013 Crystal Engineering Corporation 708 Fiero Lane, Suite 9, San Luis Obispo, California 93401-8701 4870. G...
