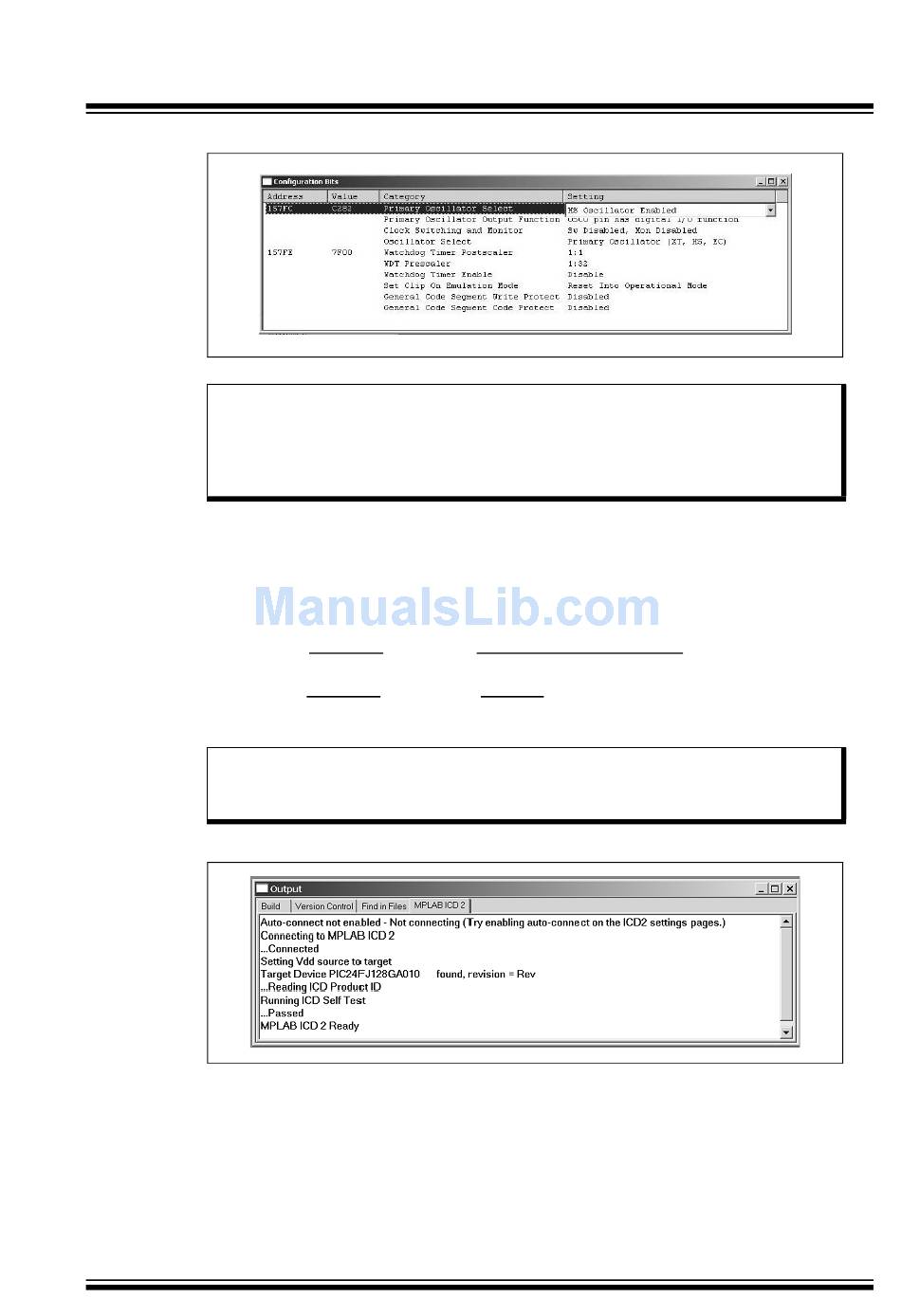

FIGURE 2-10:
Note:
2.6.2
1. Connect the MPLAB ICD 2 module to the PC with the USB cable.
2. Connect the MPLAB ICD 2 to the Explorer 16 Development Board with the short
RJ-11 cable.
3. Apply power to the Explorer 16 board.
4. From the Debugger menu, click Select Tool > MPLAB ICD 2 to set the MPLAB
ICD 2 as the debug tool in MPLAB IDE.
5. From the Debugger menu, select Connect to connect the debugger to the device.
MPLAB IDE should report that it found the PIC24FJ128GA010 device, as shown
in Figure 2-11.
Note:
FIGURE 2-11:
© 2005 Microchip Technology Inc.
Explorer 16 Programming Tutorial
CONFIGURATION SETTINGS (PIC24)
Do not use the Configuration Bits window to set device configuration if
configuration macros are already used in the source code. In cases where
both methods are used, configuration macros may override settings from
the Configuration Bits window. Refer to the MPLAB IDE Simulator, Editor
User's Guide (DS51025) for additional information.
Connect and Enable MPLAB ICD 2
MPLAB IDE may need to download new firmware if this is the first time the
MPLAB ICD 2 is being used with a PIC24FJ device. Allow it to do so. If any
errors are shown, double-click the error message to get more information.
ENABLING MPLAB
®
ICD 2
Status indicates
device is found
