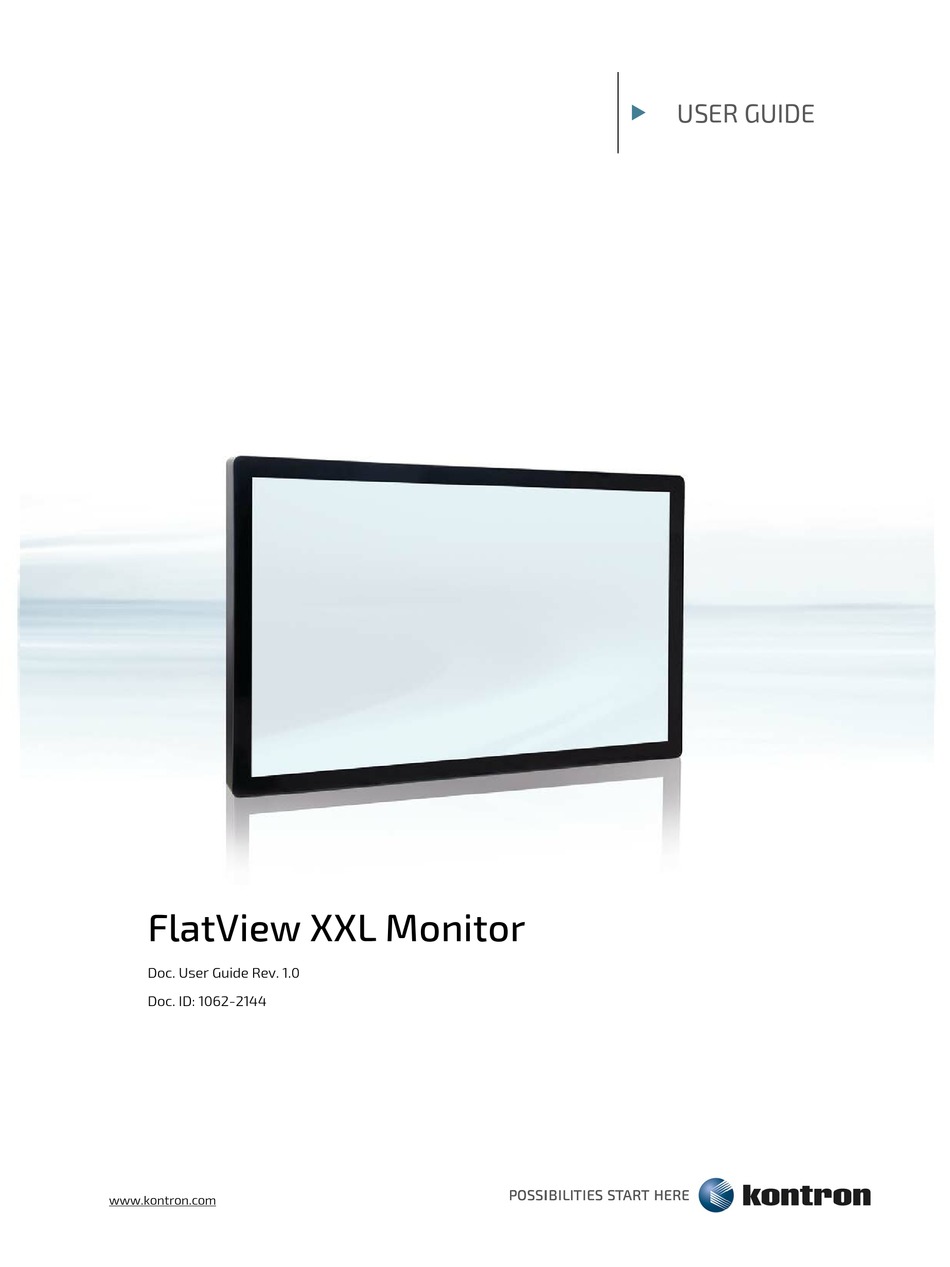

- Page 1 USER GUIDE FlatView XXL Monitor Doc. User Guide Rev. 1.0 Doc. ID: 1062-2144 www.kontron.com // 1...
- Page 2 FlatView XXL Monitor – User Guide Rev. 1.0 This page has been intentionally left blank www.kontron.com // 2...
- Page 3 In cases of doubt, please contact Kontron. This user guide is protected by copyright. All rights are reserved by Kontron. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means (electronic, mechanical, photocopying, recording, or otherwise), without the express written permission of Kontron.
- Page 4 ENVIRONMENTAL DAMAGE (COLLECTIVELY, "HIGH RISK APPLICATIONS"). You understand and agree that your use of Kontron devices as a component in High Risk Applications is entirely at your risk. To minimize the risks associated with your products and applications, you should provide adequate design and operating safeguards.
-
Page 5: Revision History
If you have any difficulties using this user guide, discover an error, or just want to provide some feedback, contact Kontron support. Detail any errors you find. We will correct the errors or problems as soon as possible and post the revised user guide on our website. -
Page 6: Symbols
Eye protection per manufacturer notice shall review before servicing. This symbol indicates general information about the product and the user guide. This symbol also indicates detailed information about the specific product configuration. This symbol precedes helpful hints and tips for daily use. www.kontron.com // 6... -
Page 7: For Your Safety
Therefore, in the interest of your own safety and of the correct operation of your new Kontron product, you are requested to conform with the following guidelines. -
Page 8: Lithium Battery Precautions
General Instructions on Usage In order to maintain Kontron’s product warranty, this product must not be altered or modified in any way. Changes or modifications to the product, that are not explicitly approved by Kontron and described in this user guide or received from Kontron Support as a special handling instruction, will void your warranty. -
Page 9: Table Of Contents
4.3.4. WEEE ......................................... 17 4.4. Mechanical Specification ..................................18 4.4.1. 32” Full Metal Variant (F632) ................................18 4.4.2. 42” Full Metal Variant (F642) ................................19 4.4.3. 55” Full Metal Variant (F655) ................................19 4.4.4. 65” Full Metal Variant (F665) ................................20 Product Description .................................. -
Page 10: List Of Tables
Figure 1: FlatView XXL Monitor ..................................11 Figure 2: Type Label ......................................14 Figure 3: 32” Full Metal Variant (F632) ..............................18 Figure 4: 42” Full Metal Variant (F642) ..............................19 Figure 5: 55” Full Metal Variant (F655) ..............................19 Figure 6: 65”... -
Page 11: 1/ Introduction
The Kontron FlatView XXL series with its brilliant and large screens up to 65-inch opens the door to meaningful, clear and comprehensive visualization. The industrial grade design includes an IP54 sealed metal housing and guarantees a reliable 24x7 operation even in challenging environments. -
Page 12: 2/ General Safety Instructions For It Equipment
If the following general safety instructions are not observed, it could lead to injuries to the operator and/or damage of the product; in cases of nonobservance of the instructions Kontron is exempt from accident liability, this also applies during the warranty period. -
Page 13: Electrostatic Discharge (Esd)
Keep the work area free of non-conductive materials such as ordinary plastic assembly aids and styrofoam. Use field service tools such as cutters, screwdrivers, and vacuum cleaners that are conductive. Always place drives and boards with the PCB-assembly-side down on the foam. www.kontron.com // 13... -
Page 14: 3/ Scope Of Delivery And Accessories
To identify the product refer to the type label positioned on the rear side of the housing. Figure 2: Type Label Product name Model number with barcode Serial Number (S/N) with barcode For internal production use Certification information Technical data www.kontron.com // 14... -
Page 15: Product Variants
55” 65” Touch screen: IR-touch Protection glass (without IR-touch) Further options: Cables 2 m, 3 m and 5 m 1.8 m, 3 m and 5 m USB 2.0 Type A -2 m, 3 m and 5 m www.kontron.com // 15... -
Page 16: 4/ Technical Data
For AC power connection. The power source must meet the power requirement specified on the FlatView XXL type label. Table 4: Power Specification Display Size 32” 42” 55” 65” 65” Power Supply (V AC ) 90 V AC to 264 V AC, at 47 Hz to 63 Hz www.kontron.com // 16... -
Page 17: Environmental Specification
4.3.4. WEEE WEEE Directive Compliant with the Waste Electrical and Electronic Equipment (WEEE) Directive to reduce waste of electrical and electronic equipment, encourage recycling and environmental disposal and increase the environmental awareness of producers www.kontron.com // 17... -
Page 18: Mechanical Specification
VESA mounting holes, opening hinges, OSD control panel, and cable lead through or external I/O connector panel. 4.4.1. 32” Full Metal Variant (F632) Figure 3: 32” Full Metal Variant (F632) www.kontron.com // 18... -
Page 19: 42" Full Metal Variant (F642)
FlatView XXL Monitor – User Guide Rev. 1.0 4.4.2. 42” Full Metal Variant (F642) Figure 4: 42” Full Metal Variant (F642) 4.4.3. 55” Full Metal Variant (F655) Figure 5: 55” Full Metal Variant (F655) www.kontron.com // 19... -
Page 20: 65" Full Metal Variant (F665)
FlatView XXL Monitor – User Guide Rev. 1.0 4.4.4. 65” Full Metal Variant (F665) Figure 6: 65” Full Metal Variant (F665) www.kontron.com // 20... -
Page 21: 5/ Product Description
The mounting and operation of the FlatView XXL is allowed in both the horizontal and vertical position. The vertical operating position is only possible when supported by the OS used. When mounting in your application, use a heavy duty VESA compliant mounting system. For more information, see Chapter 7.1 Mounting Instructions. www.kontron.com // 21... -
Page 22: Front View
The 65” Full metal variant (FS65) does not include opening hinges and locking screws. To open the FS65 variant release the back panel by unscrewing the fastening screws and then remove the complete back panel. www.kontron.com // 22... -
Page 23: Rear View
5.2.1. Back Panel Views The back panel of the F632 (32-inch), F642 (42-inch) and F6 (55-inch) displays provide factory configured cables led out of the housing for direct connection. Specific features of each back panel are listed in the table below. -
Page 24: Table 8: Back Panel Mechanical Features - 65" Displays
16 VESA mounting holes (M6) 1x OSD Control Panel keypad I/O connector panel Power connector and power switch Top Side 2x VESA mounting holes (M8) to hang the system horizontally Side 2x VESA mounting holes (M8) to hang the system vertically www.kontron.com // 24... -
Page 25: I/O Interface Connections
1x USB 2.0 (Type A) – only for IR-touch variant For the factory installed I/O interface Full metal variants (F632, F642 and F655) the requested I/O interfaces are lead out of the housing using two (IP65) three-hole lead-throughs on the rear side of the housing and externally available for direct use. -
Page 26: 6/ Configuration
For the display size 65-inch the FlatView XXL comes with an external I/O Interface connector and if required it is possible to change the external Interface configuration. For more information, on the possible configuration options, see Chapter 3.2: Product Variants. Do not open the FlatView XXL housing. No user-serviceable parts inside. www.kontron.com // 26... -
Page 27: 7/ Installation And Starting Up
It is possible to mount by hanging using the available VESA mounting holes. This F632, F642 and F655 variants can hang horizontally using VESA mounting holes at the top of the housing, see Table 7: Back Panel Mechanical Features - 32”, 42” and 55” Displays. - Page 28 Failure to connect the I/O Interface cables, displays a ‘No Cable’ message for each of the possible I/O interfaces. Press the main power on button, to start the FlatView XXL. The LED power indicator turns green. To alter any of the display setting, use the OSD control panel keypad. www.kontron.com // 28...
-
Page 29: 8/ System Settings With On-Screen Display Menu
OSD main menus Adjust (increase +) Moves right to enter the highlighted items sub menu Adjust (decrease -) Moved down the OSD menu list Select Selects the highlighted menu item Not available No function for this product family www.kontron.com // 29... -
Page 30: Osd Menu
The main menu setting are Input Select, Image Adjustments, Color Adjustment, OSD Setting and System Settings. 8.1.1. Main Menu: Input Select 8.1.1.1. Sub Menu: Main Picture Channel 8.1.1.2. Sub Menu: Scan Inputs www.kontron.com // 30... - Page 31 8.1.2.5. Sub Menu: Phase Only active with other display interfaces than DVI. 8.1.2.6. Sub Menu: Hor. Position Only active with other display interfaces than DVI. 8.1.2.7. Sub Menu: Ver. Position Only active with other display interfaces than DVI. www.kontron.com // 31...
- Page 32 FlatView XXL Monitor – User Guide Rev. 1.0 8.1.3. Main Menu: Color Adjustment 8.1.3.1. Sub Menu: Backlight 8.1.3.2. Sub Menu: Brightness 8.1.3.3. Sub Menu: Contrast www.kontron.com // 32...
- Page 33 FlatView XXL Monitor – User Guide Rev. 1.0 8.1.3.4. Sub Menu: Color Temperature 8.1.3.5. Sub Menu: RGB Not active to select. 8.1.3.6. Sub Menu: Theme www.kontron.com // 33...
- Page 34 FlatView XXL Monitor – User Guide Rev. 1.0 8.1.4. Main Menu: OSD Settings 8.1.4.1. Sub Menu: OSD Timeout 8.1.4.2. Sub Menu: OSD Hor. Pos. 8.1.4.3. Sub Menu: OSD Ver. Pos. www.kontron.com // 34...
- Page 35 FlatView XXL Monitor – User Guide Rev. 1.0 8.1.4.4. Sub Menu: OSD Blend 8.1.4.5. Sub Menu: OSD Orientation 8.1.4.6. Sub Menu: OSD Language www.kontron.com // 35...
- Page 36 FlatView XXL Monitor – User Guide Rev. 1.0 8.1.5. Main Menu: System Settings 8.1.5.1. Sub Menu: Info 8.1.5.2. Sub Menu: Mode Info 8.1.5.3. Sub Menu: Restore user defaults Not active to select. www.kontron.com // 36...
- Page 37 FlatView XXL Monitor – User Guide Rev. 1.0 8.1.5.4. Sub Menu: Save user defaults 8.1.5.5. Sub Menu: Reset factory defaults 8.1.5.6. Sub Menu: AA Option www.kontron.com // 37...
-
Page 38: 9/ Standard Interface Connector - Pin Outs
AUX+ TX1- TX2+ AUX- Pin 20 Pin 2 TX2- TX3+ 9.1.1.3. DVI Connector Table 11: DVI Connector Pinout Signal Signal Signal Rx2+ Rx1+ Rx0+ Pin 1 Pin 8 RxC+ RxC- Pin 17 Pin 24 BLUE GREEN HSYNC www.kontron.com // 38... -
Page 39: 10/ Technical Support
FlatView XXL Monitor – User Guide Rev. 1.0 Technical Support Before contacting Kontron for support of a technical problem, check the troubleshooting information below to find out more about possible solutions. If the troubleshooting table does not contain a solution for the technical problem, contact Kontron Support (http://www.kontron.com/support). -
Page 40: 11/ Warranty
Limitation/Exemption from Warranty Obligation In general, Kontron shall not be required to honor the warranty, even during the warranty period, and shall be exempted from the statutory accident liability obligations in the event of damage caused to the product due to failure to observe the following: ... -
Page 41: Returning Defective Merchandise
The buyer accepts responsibility for all freight charges for the return of goods to Kontron's designated facility. Kontron will pay the return freight charges back to the buyer's location in the event that the equipment is repaired or replaced within the stipulated warranty period. Follow these steps before returning any product to Kontron. - Page 42 Phone: +49 (0) 821 4086-0 Fax: +49 (0) 821 4086 111 Email: service@kontron.com After Kontron Europe GmbH receives the product, a confirmation of the order is sent via email to the address named on the RMA sheet. www.kontron.com // 42...
-
Page 43: 12/ Storage, Transportation And Maintenance
The storage facility must meet the products environmental storage requirements as stated within this user guide. Kontron recommends keeping all the original packaging material for future storage or warranty shipments. -
Page 44: 13/ Disposal
Many of the components used are capable of being recycled. Kontron follows the Waste Electrical and Electronic Equipment (WEEE) Directive that aims to reduce waste arising from Electrical and Electronic waste and therefore encourages customers to return Kontron products for proper disposal. For more information regarding WEEE compliance, see the Disposal and Recycling section at the start of this user guide. -
Page 45: Appendix A: List Of Acronyms
PCI Industrial Computer Manufacturers Group Return Material Authorization Real Time Clock SATA Serial ATA SD card Secure Digital memory card System Event Log ShMC Shelf Management Controller SMBus System Management Bus SMWI System Monitor Web Interface Serial Number www.kontron.com // 45... - Page 46 FlatView XXL Monitor – User Guide Rev. 1.0 About Kontron Kontron is a global leader in embedded computing technology (ECT). As a part of technology group S&T, Kontron offers a combined portfolio of secure hardware, middleware and services for Internet of Things (IoT) and Industry 4.0 applications.
