Summary of Contents for Kontron FlatClient HYG

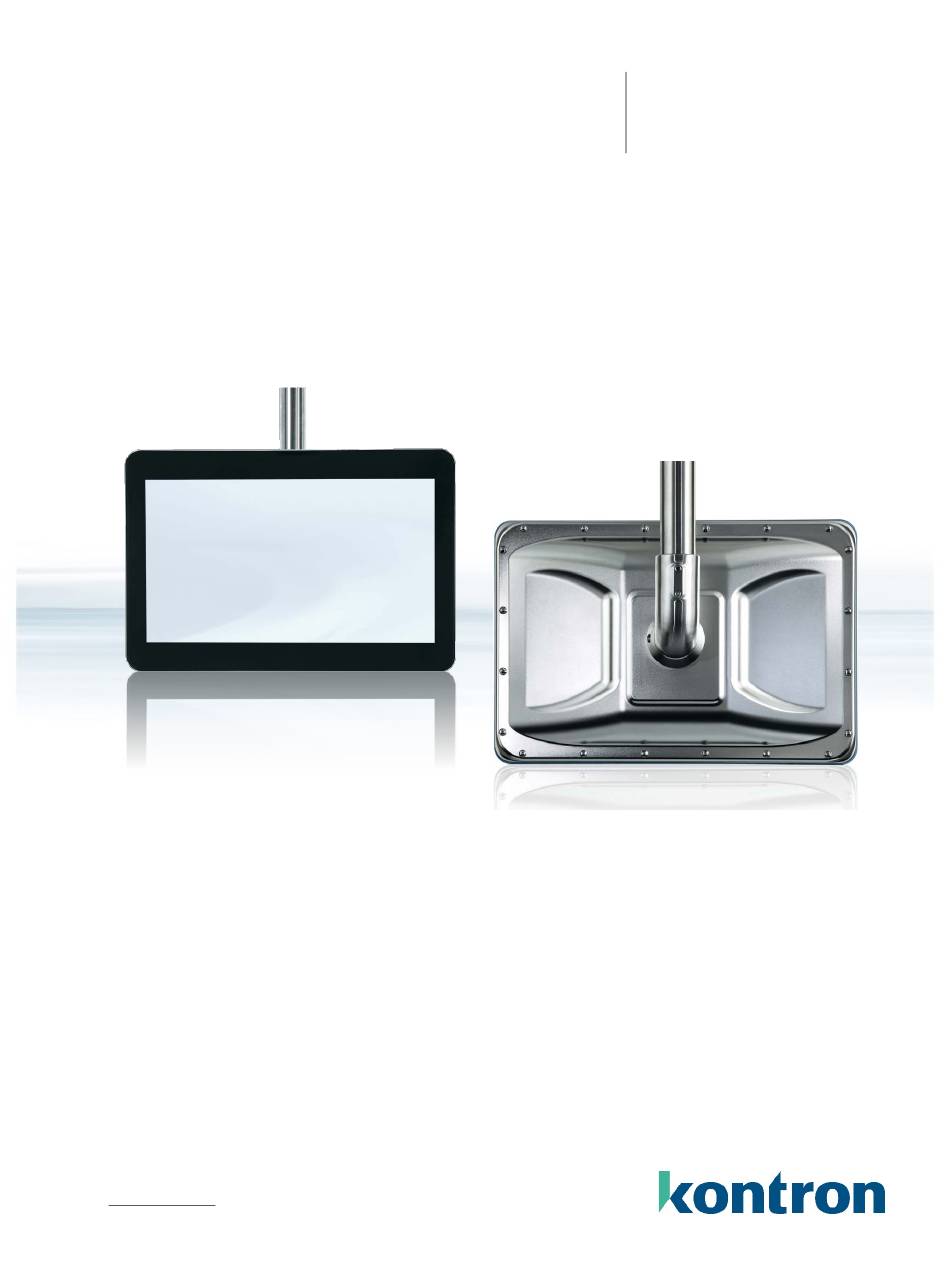

- Page 1 USER GUIDE FlatClient HYG User Guide Rev. 2.0 Doc. ID: 1066-7497 www.kontron.com // 1...
- Page 2 FlatClient HYG – User Guide Rev. 2.0 This page has been intentionally left blank www.kontron.com // 2...
- Page 3 Kontron with respect to technical processes described in the user guide or any product characteristics set out in the user guide. Kontron assumes no responsibility or liability for the use of the described product(s), conveys no license or title under any patent, copyright or mask work rights to these products and makes no representations or warranties that these products are free from patent, copyright or mask work right infringement unless otherwise specified.
-
Page 4: Intended Use
ENVIRONMENTAL DAMAGE (COLLECTIVELY, “HIGH RISK APPLICATIONS”). You understand and agree that your use of Kontron devices as a component in High Risk Applications is entirely at your risk. To minimize the risks associated with your products and applications, you should provide adequate design and operating safeguards. -
Page 5: Revision History
If you have any difficulties using this user guide, discover an error, or just want to provide some feedback, contact Kontron support. Detail any errors you find. We will correct the errors or problems as soon as possible and post the revised user guide on our website. -
Page 6: Symbols
FlatClient HYG – User Guide Rev. 2.0 Symbols The following symbols may be used in this user guide DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury. -
Page 7: For Your Safety
Therefore, in the interest of your own safety and of the correct operation of your new Kontron product, you are requested to conform with the following guidelines. -
Page 8: Lithium Battery Precautions
General Instructions on Usage In order to maintain Kontron’s product warranty, this product must not be altered or modified in any way. Changes or modifications to the product, that are not explicitly approved by Kontron and described in this user guide or received from Kontron Support as a special handling instruction, will void your warranty. -
Page 9: Table Of Contents
10.1. Support Arm Mounting ..................................30 10.2. VESA Mounting ....................................... 30 10.3. Startup Procedure ....................................31 10.4. Starting up FlatClient HYG Support Arm ............................31 10.5. Starting up FlatClient HYG VESA ............................... 32 Technical Support ..................................... 33 11.1. Warranty ........................................33 11.2. -
Page 10: List Of Tables
FlatClient HYG – User Guide Rev. 2.0 About Kontron ........................................36 List of Tables Table 1: Scope of Delivery FlatClient HYG support-arm variant ....................... 15 Table 2: Scope of Delivery FlatClient HYG VESA variant ........................15 Table 3: Accessories ......................................16 Table 4: Technical Data FlatClient HYG .............................. -
Page 11: 1/ Introduction
1/ Introduction With its FlatClient HYG Monitor series, Kontron offers high mechanical flexibility with respect to the design. It can be used as VESA 100 solution as well as a support-arm solution. The support-arm variant offers an IP69K protection, the VESA variant an IP67 protection. -
Page 12: 2/ General Safety Instructions
Only connect the product to an external power supply providing the voltage type (AC or DC) and the input power (max. current) specified on the Kontron Product Label and meeting the requirements of the Limited Power Source (LPS) and Power Source (PS2) of UL/IEC 62368-1 . -
Page 13: Electrostatic Discharge (Esd) Precautions
– as stipulated by EN62368-1 or VDE0100 or EN60204 or UL61010-1 regulations. For the General Safety Instruction in German or French, visit Kontron’s product web page> Downloads> Manuals>General Safety Instruction. 2.1. Electrostatic Discharge (ESD) Precautions A sudden discharge of electrostatic electricity can destroy static-sensitive devices or micro- circuitry. -
Page 14: Instructions For Lithium Battery
FlatClient HYG – User Guide Rev. 2.0 2.3. Instructions for Lithium Battery If the product is equipped with a lithium battery. When replacing the battery observe the instructions below. Caution: Risk of Explosion if Battery is replaced by an Incorrect Type. Dispose of Used Batteries According to the Instructions. -
Page 15: 3/ Scope Of Delivery
Please check that your delivery is complete and contains the items below (according to the ordered unit configuration). If you discover damaged or missing items, please contact your dealer. Table 1: Scope of Delivery FlatClient HYG support-arm variant Part Number... -
Page 16: 4/ Accessories
FlatClient HYG – User Guide Rev. 2.0 4/ Accessories The following components may be ordered for the FlatClient HYG. Table 3: Accessories Part Qty. Part Number Part Description ER40-100009-01 AC/DC Power Supply (24V/65W) ER40-100010-01 AC/DC Power Supply (24V/65W) for VESA IP67... -
Page 17: 5/ Product Description
FlatClient HYG – User Guide Rev. 2.0 5/ Product Description 5.1. Product Views Figure 3: Front View FlatClient HYG TFT Display with PCAP touch RFID (optional) Figure 4: Rear View Arm Mount Version Mounting arm (Rittal 6664.500) 2x Support arm bracket fastening screws www.kontron.com... -
Page 18: Figure 5: Rear View Vesa Mount Version
FlatClient HYG – User Guide Rev. 2.0 Figure 5: Rear View VESA Mount Version 2x stub for optional connectors 1x USB VESA 100 (red circles, use M4 screws with a maximal penetration 8 mm and typical 1.3 Nm torque) 1x LAN... -
Page 19: Block Diagrams
FlatClient HYG – User Guide Rev. 2.0 5.2. Block Diagrams Figure 6: FlatClient HYG Arm Version Block Diagram Board www.kontron.com // 19... -
Page 20: Figure 7: Flatclient Hyg Vesa Version Block Diagram Board
FlatClient HYG – User Guide Rev. 2.0 Figure 7: FlatClient HYG VESA Version Block Diagram Board www.kontron.com // 20... -
Page 21: 6/ Technical Data And Environmental Specification
Only connect the product to an external power supply providing the voltage type (AC or DC) and the input power (max. current) specified on the Kontron Product Label. The external power supply must meet the requirements of ES1/PS2 according to IEC/UL 62368-1. -
Page 22: Table 5: Dimensions Flatclient Hyg
Waste Electrical and Electronic Equipment 2002/19/EC (WEEE) FlatClient HYG is intended for indoor use only. To avoid product damage do not use in a sheltered outdoor, outdoor or sunlit environment. Observe that the product is not exposed to direct sunlight (UV radiation): •... -
Page 23: 7/ Order Information
FlatClient HYG – User Guide Rev. 2.0 7/ Order Information E N 0 0 - y y y y y y - x x Internal Code (Standard FlatClient) YY: CPU Y8 = Intel® Pentium® Quad Core™ N4200/Intel® Celeron® J3455 XD = Intel® Core™ i5-7300U WD = Intel®... -
Page 24: 8/ Mechanical Specification
FlatClient HYG – User Guide Rev. 2.0 8/ Mechanical Specification 8.1. 21.5“ VESA Variant www.kontron.com // 24... -
Page 25: Arm Mount Variant
FlatClient HYG – User Guide Rev. 2.0 8.2. 21.5“ Arm Mount Variant www.kontron.com // 25... -
Page 26: 9/ Connectors
FlatClient HYG – User Guide Rev. 2.0 9/ Connectors 9.1. External Connectors 9.1.1. External Connectors for Arm Mount Variant The support arm variant comes with included cables. Number, length and Type depends on the system configuration. Power is always required, LAN and USB in most cases. -
Page 27: Usb 3.0 Type-A Socket
FlatClient HYG – User Guide Rev. 2.0 9.1.2. USB 3.0 Type-A Socket This Socket provides a USB 3.0 connection (downstream). The maximum allowed current per channel is 900 mA. They are connected to CPU board with a cable. Figure 9: USB 3.0 Type-A Connector Table 10: Pinout USB 3.0... -
Page 28: Usb 3.0 Connector Ip67 Protected
FlatClient HYG – User Guide Rev. 2.0 9.1.3.2. USB 3.0 Connector IP67 Protected This connector is IP67 protected and provides a USB 3.0 connection (downstream). The maximum allowed current per channel is 900 mA. They are connected to CPU board with a cable. -
Page 29: Rfid (Optional)
FlatClient HYG – User Guide Rev. 2.0 Table 13: M12 X-coded LAN Connector Signal Name Signal Name MDI0+ MDI3+ MDI0- MDI3- MDI1+ MDI2+ MDI2- MDI1- 9.2. RFID (Optional) Figure 13: Screen with optional RFID function The RFID reader is recognized and addressed as a Communication Device Class (CDC). -
Page 30: 10/ Installation And Start
VESA 100. To mount, always use four M4 screws that are long enough to secure the FlatClient HYG. The required screw length depends on the thickness of the VESA bracket used and may not require a free thread length of more than 8 mm. -
Page 31: Startup Procedure
FlatClient HYG – User Guide Rev. 2.0 10.3. Startup Procedure The FlatClient HYG starts automatically when connected to power. Before connecting the FlatClient HYG to an external DC power supply, observe the General Safety Instructions within this user guide and the instructions within this chapter. -
Page 32: Starting Up Flatclient Hyg Vesa
10.5. Starting up FlatClient HYG VESA To connect the FlatClient HYG VESA to the supplied external AC/DC power supply, perform the following: Attach the power cable’s 5-pin M12 A coded power connector to the power connector on the rear side of the FlatClient HYG (Figure 5, pos. -
Page 33: 11/ Technical Support
FlatClient HYG – User Guide Rev. 2.0 11/ Technical Support For technical support, please contact Kontron http://www.kontron.com/support To request support via e-mail, report documentation errors, or general customer feedback, use Kontron’s Contact Support form by visiting: http://www.kontron.com/about-kontron/company-overview/contact-us/forms/contact-support. In case the request form does not work or you do not get a response within 48 hours, follow up with support@kontron.com... -
Page 34: Returning Defective Merchandise
RMA number. The Buyer accepts responsibility for all freight charges for the return of goods to Kontron's designated facility. Kontron will pay return freight charges back to the Buyer's location in the event that the equipment is repaired or replaced within the warranty period stipulated herewith. -
Page 35: Appendix A: List Of Acronyms
FlatClient HYG – User Guide Rev. 2.0 Appendix A: List of Acronyms Application Programming Interface Base Management Controller Command-Line Interface Computer-on-Module Error Checking and Correction Field Replaceable Unit Graphics Processing Unit HD/HDD Hard Disk /Drive PICMG Hardware Platform Management specification family... -
Page 36: About Kontron
FlatClient HYG – User Guide Rev. 2.0 About Kontron Kontron is a global leader in embedded computing technology (ECT). Kontron offers a combined portfolio of secure hardware, middleware and services for Internet of Things (IoT) and Industry 4.0 applications. With its standard products and tailor-made solutions based on highly reliable state-of-the-art embedded technologies, Kontron provides secure and innovative applications for a variety of industries.
