Summary of Contents for Kontron FusionView FV 156

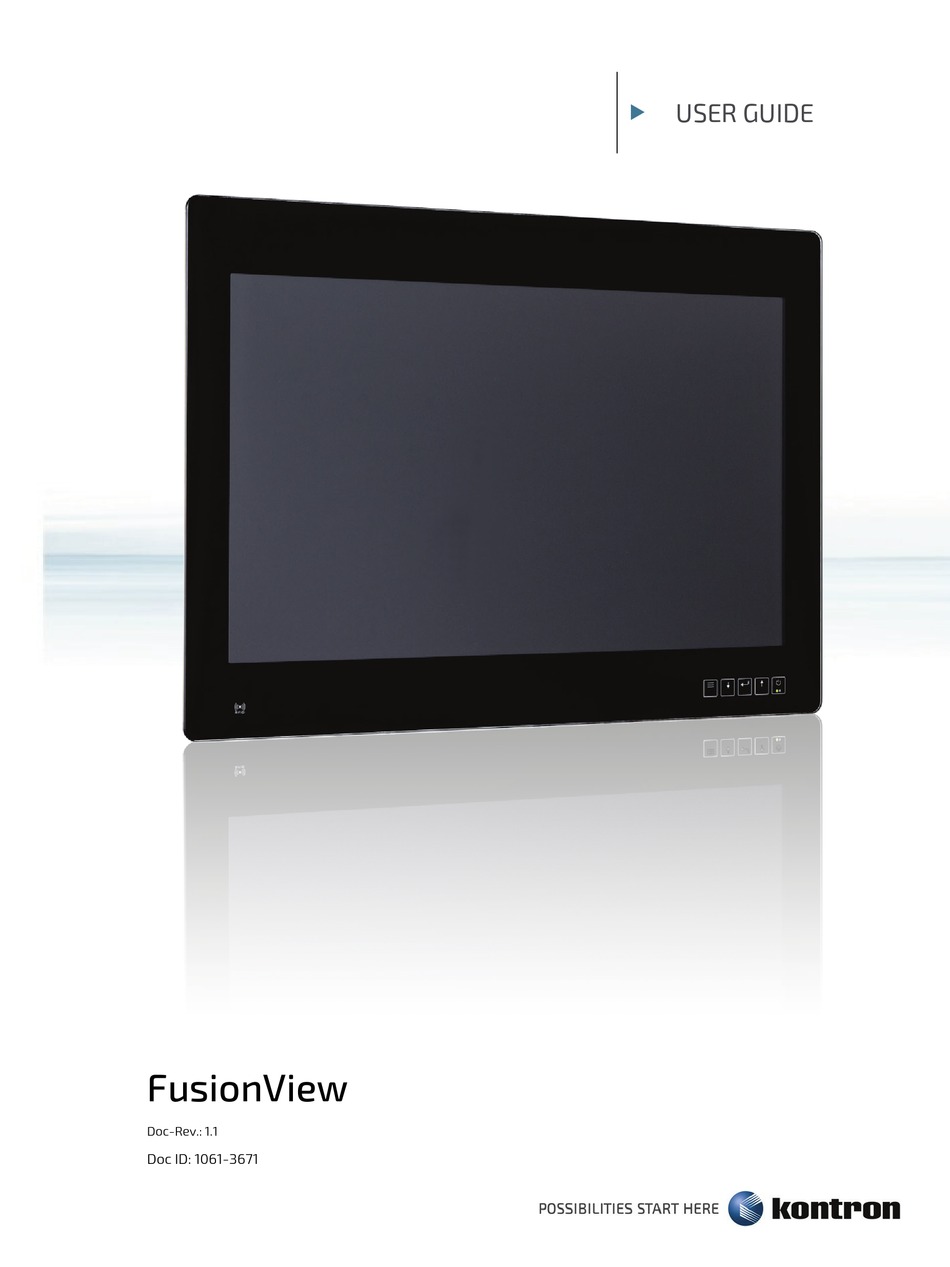

- Page 1 USER GUIDE FusionView Doc-Rev.: 1.1 Doc ID: 1061-3671...
- Page 2 FusionView – User Guide Doc-Rev.: 1.1 This page has been intentionally left blank. www.kontron.com // 2...
- Page 3 In cases of doubt, please contact Kontron. This user guide is protected by copyright. All rights are reserved by Kontron. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means (electronic, mechanical, photocopying, recording, or otherwise), without the express written permission of Kontron.
- Page 4 ENVIRONMENTAL DAMAGE (COLLECTIVELY, "HIGH RISK APPLICATIONS"). You understand and agree that your use of Kontron devices as a component in High Risk Applications is entirely at your risk. To minimize the risks associated with your products and applications, you should provide adequate design and operating safeguards.
-
Page 5: Revision History
If you have any difficulties using this user guide, discover an error, or just want to provide some feedback, contact Kontron support. Detail any errors you find. We will correct the errors or problems as soon as possible and post the revised user guide on our website. -
Page 6: Symbols
This device will heat up during operation and if touched may cause burns. This symbol indicates general information about the product and the user manual. This symbol also indicates detail information about the specific product configuration. This symbol precedes helpful hints and tips for daily use. www.kontron.com // 6... -
Page 7: For Your Safety
Therefore, in the interest of your own safety and of the correct operation of your new Kontron product, you are requested to conform with the following guidelines. -
Page 8: General Instructions On Usage
General Instructions on Usage In order to maintain Kontron’s product warranty, this product must not be altered or modified in any way. Changes or modifications to the product, that are not explicitly approved by Kontron and described in this user guide or received from Kontron Support as a special handling instruction, will void your warranty. -
Page 9: Table Of Contents
4.3.3. Buttons and Indicators ..................................35 4.3.3.1. Colors of Power LEDs ..................................36 4.3.4. USB 3.0 ........................................36 4.3.5. DisplayPort ......................................36 4.3.6. Mounting Slots on the bottom Side of the Touch Display Unit .................... 36 4.4. Rear Side ........................................38 www.kontron.com // 9... -
Page 10: List Of Tables
Technical Support ..................................... 67 9.1. Returning Defective Merchandise ..............................67 Appendix B – List of Acronyms ................................... 68 About Kontron ........................................69 List of Tables Table 1: FusionView - Scope of delivery..............................15 Table 2: FusionView - System configuration options .......................... 16 Table 3: FusionView –... - Page 11 Figure 62: Main Menu OSD Settings, Sub Menu OSD Ver. Pos......................57 Figure 63: Main Menu OSD Settings, Sub Menu OSD Blend ........................ 57 Figure 64: Main Menu OSD Settings, Sub Menu OSD Orientation ....................57 www.kontron.com // 11...
- Page 12 Figure 71: Main Menu System Settings, Sub Menu Reset Factory Default ................... 60 Figure 72: Screen Connection of Soft-OSD .............................. 61 Figure 73: Screen Image of Soft-OSD................................ 62 Figure 74: Screen OSD of Soft-OSD ................................62 Figure 75: Screen VGA of Soft-OSD ................................63 www.kontron.com // 12...
-
Page 13: 1/ General Safety Instructions For It Equipment
Kontron is exempt from accident liability, this also applies during the warranty period. The product has been built and tested according to the basic safety requirements for low voltage (LVD) applications and has left the manufacturer in safety-related, flawless condition. -
Page 14: Electrostatic Discharge (Esd)
Keep work area free of non-conductive materials such as ordinary plastic assembly aids and Styrofoam. Use only field service tools which are conductive, such as cutters, screwdrivers, and vacuum cleaners. Always place drives and boards PCB-assembly-side down on the foam. www.kontron.com // 14... -
Page 15: 2/ Scope Of Delivery
DC power terminal Mounting clamps with Allen screws for front panel of system (delivered and mounted to the front panel of the FusionView) Number of mounting clamps depends on the model ordered Safety instruction for IT equipment www.kontron.com // 15... -
Page 16: Optional System Configuration
Table 3: FusionView – Optional Accessories Adaptor Description External AC/DC adaptor (90-264 V AC/24 V DC), including power cable for EU and US. Mating connector (DC power terminal for DC power supply) is supplied with the system. www.kontron.com // 16... -
Page 17: 3/ Technical Data
Driver support Windows/Linux Touch controller options Glove Support, Palm Rejection Support, Water rejection Mode (only on demand) Glass 4 mm thickness, Glass is chemically hardened with the C-shape of the edge Options RFID LF/125kHz, EM4100/EM4050 HF/13.56kHz, ISO15693 www.kontron.com // 17... -
Page 18: Electrical Specifications
3.0 A max. 3.5 A max. 3.5 A max. 3.2. Mechanical Specifications 3.2.1. Dimensions and weight For detailed mechanical dimensions, please see the outline dimensions drawings on the web site www.kontron.com. Table 6: FusionView Dimensions FusionView FV 121 FV 156... -
Page 19: Mechanical Dimensions Of The Monitor
FusionView – User Guide Doc-Rev.: 1.1 3.2.2. Mechanical Dimensions of the Monitor Figure 1: Mechanical specification - Front view of the FV 121 Figure 2: Mechanical specification - top view of the FV 121 www.kontron.com // 19... -
Page 20: Figure 3: Mechanical Specification - Rear View Of The Fv 121
FusionView – User Guide Doc-Rev.: 1.1 Figure 3: Mechanical specification - rear view of the FV 121 Figure 4: Mechanical specification - Front view of the FV 156 www.kontron.com // 20... -
Page 21: Figure 5: Mechanical Specification - Rear View Of The Fv 156
FusionView – User Guide Doc-Rev.: 1.1 Figure 5: Mechanical specification - Rear view of the FV 156 Figure 6: Mechanical specification - top view of the FV 156 www.kontron.com // 21... -
Page 22: Figure 7: Mechanical Specification - Front View Of The Fv 185
FusionView – User Guide Doc-Rev.: 1.1 Figure 7: Mechanical specification - Front view of the FV 185 Figure 8: Mechanical specification - Rear view of the FV 185 www.kontron.com // 22... -
Page 23: Figure 9: Mechanical Specification - Top View Of The Fv 185
FusionView – User Guide Doc-Rev.: 1.1 Figure 9: Mechanical specification - Top view of the FV 185 Figure 10: Mechanical specification - Front view of the FV 215 www.kontron.com // 23... -
Page 24: Figure 11: Mechanical Specification - Rear View Of The Fv 215
FusionView – User Guide Doc-Rev.: 1.1 Figure 11: Mechanical specification - Rear view of the FV 215 Figure 12: Mechanical specification - Top view of the FV 215 www.kontron.com // 24... -
Page 25: Mechanical Dimensions Of The Pc Box
FusionView – User Guide Doc-Rev.: 1.1 3.2.3. Mechanical Dimensions of the PC Box Figure 13: Mechanical specification - Side view of the PC Box Figure 14: Mechanical specification - Bottom view of the PC Box www.kontron.com // 25... -
Page 26: Cooling
Electrical Safety Harmonized Standards EUROPE Information technology equipment - Safety - Part 1: General requirements EN 60950-1 U.S.A. / Canada Certified to IEC/UL 60950-1 + CAN/CSA C22.2 No. 60950-1 CB Report IEC 60950-1(ed.2); Amendment 1 (Am1), Am2 www.kontron.com // 26... -
Page 27: Electromagnetic Compatibility (Class A Device)
Kontron is not responsible for any radio television interference caused by unauthorized modifications of this equipment or the substitution or attachment of connecting cables and equipment other than those specified by Kontron. - Page 28 FusionView – User Guide Doc-Rev.: 1.1 RFID Specification RFID Reader IDS-R13MP HF/13.56MHz ISO15693 Internal antenna Internal connected Read distance (d Peak) 0 mm to 20 mm www.kontron.com // 28...
-
Page 29: 4/ Product Description
Installation by using of a VESA 75/100 compliant mounting system must be properly designed to support the heavy load of the FusionView system. No user-serviceable parts inside. Do not open the FusionView system. The following sections detail each of these components and their function in the FusionView. www.kontron.com // 29... -
Page 30: Product Images Of Fusionview (Shown As 21.5", Other Units Similar)
FusionView – User Guide Doc-Rev.: 1.1 4.1. Product Images of FusionView (shown as 21.5", other units similar) Figure 16: Bottom view Figure 17: Right view Figure 18: Front view Figure 19: Left view Figure 20: Top view www.kontron.com // 30... -
Page 31: Figure 21: Rear View
FusionView – User Guide Doc-Rev.: 1.1 Figure 21: Rear view www.kontron.com // 31... -
Page 32: Front View
The integrated touch screen registers contacts of fingers and allows the user to operate the system without a keyboard or a pointing device. The implemented touch technology allows 10-touch operations with fingers or thin gloves. For technical specification of the built-in display and touch screen refer to chapter 3/ “Technical Data”. www.kontron.com // 32... -
Page 33: Rfid Card Reader (Option)
For technical specifications, refer to section 3.7. Depending on your application installed the RFID card reader allows reading of chip cards for authentication functions or for services that requires user-specific authorizations (for access rights control). www.kontron.com // 33... -
Page 34: Bottom Side (With Interfaces)
The system is equipped with a reverse voltage protection (30 V max). For connection to a DC power supply, refer to subsection 6.2.1. For connection to an AC power supply by use of the optional AC/DC adaptor refer to subsection 6.2.2. www.kontron.com // 34... -
Page 35: Grounding Stud
Set and Hotkey for Brightness, Contrast, Backlight Menu up Power Button (Off, orange LED) Power Button (On, green LED) Hotkey for button 3: Tap – Window Brightness appears Tap – Window Contrast appears Tap – Window Backlight appears www.kontron.com // 35... -
Page 36: Colors Of Power Leds
The FV 156 system will be secured into a wall/panel by use of: four mounting clamps at the top and bottom side two mounting clamps at the left and right side www.kontron.com // 36... - Page 37 FusionView – User Guide Doc-Rev.: 1.1 The FV 121 system will be secured into a wall/panel by use of: two mounting clamps at the top and bottom side two mounting clamps at the left and right side www.kontron.com // 37...
-
Page 38: Rear Side
VESA mount Gasket location (around the rear side of the touch display unit) When powering on the FusionView, make sure that the air intake and exhaust openings are not obstructed and the cooling fins not covered by objects. www.kontron.com // 38... -
Page 39: Vesa 75/100 Mounting Holes
Ensure that the length of the cable connections to power and peripherals are sufficient for this operating position. Figure 28: Rear view with holes (M4 - depth 8 mm) for VESA 75/100 mounting www.kontron.com // 39... -
Page 40: 5/ Installation Instructions
5.1. Installation by use of the Mounting Clamps The mounting clamps with screws (supplied), allow the easy and fast mounting of the FusionView FV-SD. The outline and mounting drawing can be found on our web site www.kontron.com. Table 13: FusionView - Specification for mounting... -
Page 41: Figure 29: Wall/Panel Cutout Dimensions For Fusionview Systems
Never place the FusionView on the edges or corners of the glass front. Always use two hands when carrying the device. The glass front of the FusionView is provided with edge protection and a protective foil. Only remove this protective material after the installation. www.kontron.com // 41... -
Page 42: Figure 30: Wall/Panel Mounting Of The Fusionview By Use Of The Mounting Clamps
To mount the system to a wall or to a panel, follow these steps: Depending on the dimension of the display enclosure of your FusionView, prepare a cutout in the wall/panel. The maximum thickness of the wall/panel is 6 mm. Refer to Table 13 and www.kontron.com // 42... - Page 43 Doc-Rev.: 1.1 Figure 29 for the wall/panel cutout dimensions or to the corresponding mechanical drawings for your FusionView on our web site www.kontron.com. The system must be properly powered down and disconnected from the power source and peripherals. The wall/panel where you intend to install the system must be accessible from both sides (front as well as rear).
-
Page 44: 6/ Starting Up
[refer to Figure 31, Figure 24 or subsection 8.1.1 “Power Input Connector”]. Fasten the screws to secure the wires into the clamps of the plug terminal. Close the cover (Figure 31, pos. 2). www.kontron.com // 44... -
Page 45: Connecting To Power
Connect the other ends of the DC power wires to the connections of the DC main power supply. Pay attention to the polarity of the connections. Switch on the disconnecting device (circuit breaker) in order to apply voltage to the terminals of the power wires. www.kontron.com // 45... -
Page 46: Ac Power Connection
Plug the AC connector of the adaptor into an AC wall outlet of the AC power source. 6.3. System Settings with On-Screen Display (OSD) Menu 6.3.1. Buttons and Indicators Figure 32: FusionView - Buttons and Indicators Menu Menu down Menu up Power Button (Off, orange LED) Power Button (On, green LED) www.kontron.com // 46... -
Page 47: Starting Osd-Screens
After pressing the Menu Button the Main Menu screen appears. Figure 33: Main Menu of the user interface by pressing on Menu Button Figure 34: On-Screen Display (OSD) Menu Figure 35: System Setting by pressing on Set Button www.kontron.com // 47... -
Page 48: Osd Menu
After pressing on the menu button appears the user interface. It will disappear 12 seconds later, if no action happened. Figure 36: Main Menu: Input Select Figure 37: Main Menu: Input Select, Sub Menu: Main picture channel www.kontron.com // 48... -
Page 49: Figure 38: Main Menu: Input Select, Sub Menu: Scan Inputs
FusionView – User Guide Doc-Rev.: 1.1 Figure 38: Main Menu: Input Select, Sub Menu: Scan Inputs Figure 39: Main Menu: Image Adjustments Figure 40: Main Menu Image Adjustments, Sub Menu Backlight www.kontron.com // 49... -
Page 50: Figure 41: Main Menu Image Adjustments, Sub Menu Brightness
FusionView – User Guide Doc-Rev.: 1.1 Figure 41: Main Menu Image Adjustments, Sub Menu Brightness Figure 42: Main Menu Image Adjustments, Sub Menu: Contrast Figure 43: Main Menu Image Adjustments, Sub Menu: Sharpness www.kontron.com // 50... -
Page 51: Figure 44: Main Menu Image Adjustments, Sub Menu: Gamma
FusionView – User Guide Doc-Rev.: 1.1 Figure 44: Main Menu Image Adjustments, Sub Menu: Gamma Figure 45: Main Menu Color Adjustment, Sub Menu Theme Figure 46: Main Menu Color Adjustment, Sub Menu Color Temp. www.kontron.com // 51... -
Page 52: Figure 47: Main Menu Color Adjustment, Sub Menu Red
FusionView – User Guide Doc-Rev.: 1.1 Figure 47: Main Menu Color Adjustment, Sub Menu Red Figure 48: Main Menu Color Adjustment, Sub Menu Green Figure 49: Main Menu Color Adjustment, Sub Menu Blue www.kontron.com // 52... -
Page 53: Figure 50: Main Menu Color Adjustment, Sub Menu Saturation
FusionView – User Guide Doc-Rev.: 1.1 Figure 50: Main Menu Color Adjustment, Sub Menu Saturation Figure 51: Main Menu Color Adjustment, Sub Menu Hue Figure 52: Main Menu VGA Settings www.kontron.com // 53... -
Page 54: Figure 53: Main Menu Vga Settings, Sub Menu Auto Adjust
FusionView – User Guide Doc-Rev.: 1.1 Figure 53: Main Menu VGA Settings, Sub Menu Auto Adjust Figure 54: Main Menu VGA Settings, Sub Menu Auto Color Adjust Figure 55: Main Menu VGA Settings, Sub Menu Clock www.kontron.com // 54... -
Page 55: Figure 56: Main Menu Vga Settings, Sub Menu Phase
FusionView – User Guide Doc-Rev.: 1.1 Figure 56: Main Menu VGA Settings, Sub Menu Phase Figure 57: Main Menu VGA Settings, Sub Menu Hor. Position Figure 58: Main Menu VGA Settings, Sub Menu Ver. Position www.kontron.com // 55... -
Page 56: Figure 59: Main Menu Osd Settings
FusionView – User Guide Doc-Rev.: 1.1 Figure 59: Main Menu OSD Settings Figure 60: Main Menu OSD Settings, Sub Menu OSD Timeout Figure 61: Main Menu OSD Settings, Sub Menu OSD Hor. Pos. www.kontron.com // 56... -
Page 57: Figure 62: Main Menu Osd Settings, Sub Menu Osd Ver. Pos
FusionView – User Guide Doc-Rev.: 1.1 Figure 62: Main Menu OSD Settings, Sub Menu OSD Ver. Pos. Figure 63: Main Menu OSD Settings, Sub Menu OSD Blend Figure 64: Main Menu OSD Settings, Sub Menu OSD Orientation www.kontron.com // 57... -
Page 58: Figure 65: Main Menu Osd Settings, Sub Menu Osd Language
FusionView – User Guide Doc-Rev.: 1.1 Figure 65: Main Menu OSD Settings, Sub Menu OSD Language Figure 66: Main Menu System Settings Figure 67: Main Menu System Settings, Sub Menu Info www.kontron.com // 58... -
Page 59: Figure 68: Main Menu System Settings, Sub Menu Mode Info
FusionView – User Guide Doc-Rev.: 1.1 Figure 68: Main Menu System Settings, Sub Menu Mode Info Figure 69: Main Menu System Settings, Sub Menu Color Controls Figure 70: Main Menu System Settings, Sub Menu Save User Defaults www.kontron.com // 59... -
Page 60: Figure 71: Main Menu System Settings, Sub Menu Reset Factory Default
FusionView – User Guide Doc-Rev.: 1.1 Figure 71: Main Menu System Settings, Sub Menu Reset Factory Default www.kontron.com // 60... -
Page 61: Windows-Software Soft-Osd
FusionView – User Guide Doc-Rev.: 1.1 6.5. Windows-Software Soft-OSD From the homepage www.kontron.com the user can download the Windows-software Soft-OSD for configuring the monitor. On four screens the admin can adjust the connection, image, OSD and VGA. Figure 72: Screen Connection of Soft-OSD www.kontron.com... -
Page 62: Figure 73: Screen Image Of Soft-Osd
FusionView – User Guide Doc-Rev.: 1.1 Figure 73: Screen Image of Soft-OSD Figure 74: Screen OSD of Soft-OSD www.kontron.com // 62... -
Page 63: Figure 75: Screen Vga Of Soft-Osd
FusionView – User Guide Doc-Rev.: 1.1 Figure 75: Screen VGA of Soft-OSD www.kontron.com // 63... -
Page 64: 7/ Maintenance And Cleaning
DC power cord is disconnected either from the DC main or the unit. Therefore, the DC power cord and its connectors must always remain easily accessible. No user-serviceable parts inside. Do not open the FusionView system. www.kontron.com // 64... -
Page 65: 8/ Standard Interfaces - Pin Assignments
Table 16: USB 3.0 Pinout Signal Name 9-pin USB Connector Type B Version 3.0/2.0 USB 2.0 contact pins USB 3.0 contact pins VCC, fused (900 mA max.) StdA_SSRX- Data- StdA_SSRX+ Data+ GND_DRAIN GND (ground for power return) StdA_SSTX- StdA_SSTX+ www.kontron.com // 65... -
Page 66: Dvi Connector
Receiver Signal (+) TMDS Data 0 shield Not connected Not connected TMDS clock shield RXC+ Digital clock signal+ RXC- Digital clock signal- Analog red GREEN Analog green BLUE Analog blue Analog horizontal sync Analog ground Analog ground www.kontron.com // 66... -
Page 67: 9/ Technical Support
RMA No. e-mail: service@kontron.com Ensure that you have received an RMA number from Kontron Customer Services before returning any device. Write this number clearly on the outside of the package. Describe the fault that has occurred. -
Page 68: Appendix B - List Of Acronyms
Inter IC bus C / I2C Inter-integrated circuit, two-wire serial bus Light Emitting Diode MTBF Mean Time Between Failures On Screen Display Power Supply Unit RFID Radio Frequency Identification Reset Universal Serial Bus WEEE Waste Electrical and Electronic Equipment www.kontron.com // 68... -
Page 69: About Kontron
Fusion View SD – User Guide (Rev. 0.1 Preliminary) About Kontron Kontron, a global leader in embedded computing technology and trusted advisor in Internet of Things (IoT), works closely with its customers, allowing them to focus on their core competencies by offering a complete and integrated portfolio of hardware, software and services designed to help them make the most of their applications.
