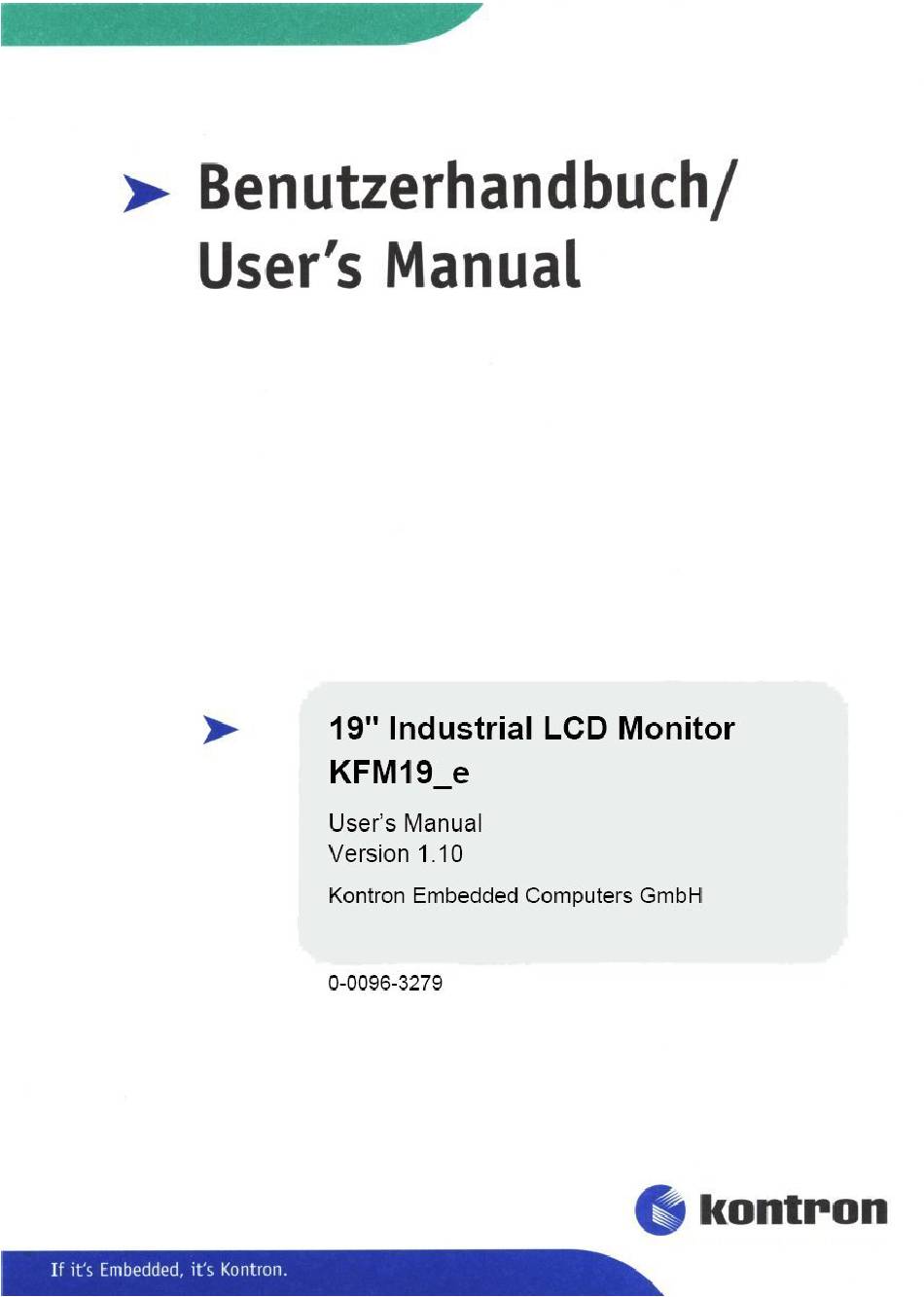

Kontron KFM19_e User Manual

Kontron KFM19_e User Manual

19" industrial lcd monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KFM19_e and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kontron KFM19_e

Summary of Contents for Kontron KFM19_e

  • Page 2: Table Of Contents

    Power Supply ...................... 21 Power Cord Connection..................21 AC Connection ....................22 DC Connection....................23 Installation Instructions ..................25 Instruction for Mounting ..................25 Panelmount Version .................... 26 Rackmount Version ..................... 26 19" Industrial LCD Monitor KFM19_e – User’s Manual (Version 1.10)
  • Page 3 CE Directives and Standards ................36 Technical Appendix – Interfaces ..............37 VGA Connector ....................37 DVI-D Connector....................38 S-Video Connector....................39 C-Video (Composite) Connector ................39 USB Touchscreen Connector................39 Serial Touchscreen Connector (RS232)...............40 Technical Support....................41 Returning Defective Merchandise ................42 19" Industrial LCD Monitor KFM19_e – User’s Manual (Version 1.10)

  • Page 4: Introduction

    The attached documentation does not entail any guarantee on the part of Kontron Embedded Computers with respect to technical processes described in the manual or any product characteristics set out in the manual.

  • Page 5: Symbols Used In This Manual

    This symbol indicates general information about the product and the user manual. This symbol precedes helpful hints and tips for daily use. 19" Industrial LCD Monitor KFM19_e – User’s Manual (Version 1.10)

  • Page 6: Important Instructions

    In the event of damage to the device caused by failure to observe the hints in this manual and eventually on the device (especially the safety instructions), Kontron Embedded Computers shall not be required to honor the warranty even during the warranty period and shall be exempted from the statutory accident liability obligation.

  • Page 7: Safety Instructions

    Please observe the warnings and instructions on the device and in the manual. The industrial LCD monitor KFM19_e has been built and tested by Kontron Embedded Computers in accordance with EN 60950/VDE 0805 and left the company in a perfectly safe condition.
  • Page 8 ❏ All plugs on the connection cables must be screwed or locked to the housing. ❏ The device is designed to be used in vertical position. ❏ Repairs may only be carried out by a person authorized by Kontron Embedded Computers.

  • Page 9: Fcc Statement

    (EMC Rules 89/336/EEC) and/or the German EMC laws apply. If the user modifies and/or adds to the equipment (e.g. installation of add-on cards), the prerequisites for the CE conformity declaration (safety requirements) may no longer apply. 19" Industrial LCD Monitor KFM19_e – User’s Manual (Version 1.10)

  • Page 10: Scope Of Delivery

    ❏ CD-ROM with the installation software and the driver for touchscreen (if the KFM19_e is ordered with the optional touchscreen) Type Labels and Product Identification The type label of your monitor KFM19_e is attached at the back of the device. Type label Product identification...

  • Page 11: Product Description

    Composite-video (analog) signal inputs and provides therewith compatibility with the existing and the future computer-generation. The KFM19_e can be alternatively equipped with an AC or a DC power supply unit. The supply voltage range is indicated on the type label. The type label is located on the back of the unit.

  • Page 12: Front Panel

    Product Description Front Panel The front plate of the KFM19_e is available alternatively as 19" front plate or in panelmount version. The 19" front plate version is suitable for the installation of the monitor in 19" industrial cabinets. Therefore are available four mounting holes.

  • Page 13: Display

    COM (RS232) or USB interface to an external PC with corresponding interface. The display surface of the KFM19_e is also mechanically protected through the touchscreen. The touchscreen registers contact of a finger or a pen and moves the mouse pointer.

  • Page 14: Controls And Led Indicator

    Fig. 3: KFM_19e – Controls and LED indicator at the Fig. 3a: KFM_19e – Laterally front side installed controls On/Off button Status LED Select button Down button Up button Menu button Fig. 4: Controls and LED indicator 19" Industrial LCD Monitor KFM19_e – User’s Manual (Version 1.10)
  • Page 15 On Screen Display Buttons The OSD buttons allow you to select, to scroll, to install in the OSD main menu or OSD submenu (refer to the “On Screen Display (OSD)” chapter. 19" Industrial LCD Monitor KFM19_e – User’s Manual (Version 1.10)

  • Page 16: Left Side

    5 Touchscreen terminal (USB or COM) (shows with serial touchscreen 2 VGA (analog) interface interface) 3 C-Video (analog) interface 6 AC or DC power plug (depending on 4 S-Video (analog) interface the ordered version) 19" Industrial LCD Monitor KFM19_e – User’s Manual (Version 1.10)

  • Page 17: Interfaces

    The VGA input is a 15-pin D-SUB connector (female), and allows you to connect an analog graphics card using the supplied VGA cable connector. The industrial LCD monitor KFM19_e supports at this interface data transfer with up to a resolution of 1280 x 1024, 85 Hz (SXGA) and Sync-On-Green (SOG).

  • Page 18: Power Plug

    The S-Video input is a 4 pin Mini DIN connector (female), and allows you to connect external analog signal sources as e.g. DVD or video player. The industrial LCD monitor KFM19_e supports at this interface TV pictures format PAL (768 x 576), NTSC (640 x 480) and SECAM.

  • Page 19: Rear Side

    Product Description Rear Side At the rear side of the KFM19_e are the threaded studs (available only at panelmount front plate version) and the rubber seal. Fig. 6: Rear side of the KFM19_e (shown as panelmount front plate version) Threaded studs metric (available...

  • Page 20: Air Openings

    When installing and switching on the monitor, make sure that the air openings at the bottom and upper side of the device (behind the front panel) are not obstructed by objects. 19" Industrial LCD Monitor KFM19_e – User’s Manual (Version 1.10)

  • Page 21: On Screen Display (Osd)

    7. Press the button <Menu> to choose the sub menu values. 8. To save a new setting, press the button <Menu> of the KFM19_e. 9. Press the button <Select> to leave the sub-menu. 10. Press the button <Select> to leave the main-menu.

  • Page 22: Power Supply

    Product Description Power Supply The KFM19_e can be optionally equipped with an AC PSU or a DC PSU. The supply voltage range is indicated on the type label. The type label is located on the rear of the unit. System...

  • Page 23: Ac Connection

    Do not remove or alter the grounding prong on the power cord. In situations where a two-slot receptacle is present, have it replaced with a properly grounded three-prong grounding type receptacle. 19" Industrial LCD Monitor KFM19_e – User’s Manual (Version 1.10)

  • Page 24: Dc Connection

    1. Cut the required length of two isolated wires ( ∅ up to 1.5 mm 2. Strip each end 5 –7 mm. 3. Twist the striped wire ends and tin it with solder. 19" Industrial LCD Monitor KFM19_e – User’s Manual (Version 1.10)
  • Page 25 The second end of each wire will be prepared as required for the connection to the DC power supply. Connect the KFM19_e to the DC power source as follows: 1. Plug the one end of the DC cable connection (Phoenix plug terminal) to the Phoenix plug of the KFM19_e.

  • Page 26: Installation Instructions

    For detailed information about the available interfaces refer to the section “Interfaces”. Important Instructions! The installation of the KFM19_e may only be carried out by qualified personnel. Ensure there is sufficient air circulation around the device when installing the KFM19_e.

  • Page 27: Panelmount Version

    Installation Instructions Panelmount Version If you install the panel version of the KFM19_e into an instrument panel or other cabinets, use the eight threaded M4 metric studs on the rear side of the front plate. For the panel assembly cut a window and pre-drill holes according Fig. 12 . The monitor must be attached firmly with eight M4 metric nuts.

  • Page 28: Monitor Connecting And Turning On

    KFM19_e using the supplied video signal cable (depending on your ordering). 2. If your KFM19_e is equipped with touchscreen (with COM or USB connection) you have to connect the touchscreen to the corresponding interface of the PC system using the supplied touchscreen cable connector.

  • Page 29: Touchscreen Software Installation

    USB connection of the touch controller, depending on the ordered KFM19_e configuration. For serial connection, select: [DMC TSC-10 Series, Serial]. For USB connection, select: [DMC TSC-10 Series, USB]. Fig. 13: Selecting the touchscreen controller 19" Industrial LCD Monitor KFM19_e – User’s Manual (Version 1.10)
  • Page 30 Fig. 14: Selection of the corresponding port After installing the touchscreen driver, be sure to restart your computer to load and activate the touchscreen driver. Afterwards the calibration of the touchscreen has to be carried out. 19" Industrial LCD Monitor KFM19_e – User’s Manual (Version 1.10)

  • Page 31: Calibrating The Touchscreen

    ❏ Sets the active area of the touchscreen. ❏ Aligns the active area of the touchscreen to the screen’s image. Before you calibrate the touchscreen, let the KFM19_e warm up for 30 minutes. Do not use a hard or a pointed object to operate the touchscreen, since it can damage the touchscreen surface.
  • Page 32 After calibrating the touchscreen you can test the alignment by pressing the “Test ” button to view the tracking accuracy. Whenever you change the resolution, you have to calibrate the touchscreen. 19" Industrial LCD Monitor KFM19_e – User’s Manual (Version 1.10)

  • Page 33: Maintenance And Prevention

    ❏ Remove persistent dirt by use of a soft, slightly damp cloth (use only a mild detergent). Use no abrasives, abrasion sponges, steel wool, metal threads, or solvent like alcohol, acetone, washing gasoline to clean the displays protection pane or the surface of the touchscreen. 19" Industrial LCD Monitor KFM19_e – User’s Manual (Version 1.10)

  • Page 34: Technical Data

    1x Status LED Plug & Play VESA DDC1/2B EDID Ver. 1.3 Compatibility AC or DC Power Plug At the left side (rear mounted) Backlight Lifetime 40,000 h Protection Class IP65 frontal 19" Industrial LCD Monitor KFM19_e – User’s Manual (Version 1.10)

  • Page 35: Mechanical Specifications

    100 - 240 VAC KFM19_e - A AC Power Supply 50 - 60 Hz max. 0.6 A 20 - 34 DC KFM19_e - B DC Power Supply max. 2.3 A 19" Industrial LCD Monitor KFM19_e – User’s Manual (Version 1.10)

  • Page 36: Environmental Specifications

    10 – 58 Hz, ± 0.075 mm Operating Vibration 58 – 500 Hz, 1.0 G 10 – 58 Hz, ± 0.15 mm Storage / Transit Vibration 58 – 500 Hz, 2.0 G 19" Industrial LCD Monitor KFM19_e – User’s Manual (Version 1.10)

  • Page 37: Ce Directives And Standards

    73/23/EEC (Electrical Safety) EMC Directive 89/336/EEC Electrical Safety Standards EUROPE EN 60950-1: 2000 Standards Emission: EN 61000-6-4: 2001 EUROPE Immunity: EN 61000-6-2: 2001 FCC 47 CFR Part 15, Class A 19" Industrial LCD Monitor KFM19_e – User’s Manual (Version 1.10)

  • Page 38: Technical Appendix - Interfaces

    Low-active signals are indicated by a minus sign. VGA Connector Signal Name 15-pin D-SUB Socket (female) green blue 4 is NC 5–8 Fused VCC DDC Data HSYNC VSYNC DDC Clock 19" Industrial LCD Monitor KFM19_e – User’s Manual (Version 1.10)

  • Page 39: Dvi-D Connector

    Hot Plug Detection TMDS0– Differential TMDS Data 0– TMDS0+ Differential TMDS Data 0+ TMDS Shield 20–21 Reserved for future use TMDS Shield TMDSSCL– Differential TMDS Clock– TMDSSCL+ Differential TMDS Clock + 19" Industrial LCD Monitor KFM19_e – User’s Manual (Version 1.10)

  • Page 40: S-Video Connector

    C-Video (Composite) Connector Signal Name Description Cinch Connector (yellow) (female) Ground Composite video CVBS signal USB Touchscreen Connector Pin Signal Name 4 pin USB Socket Type A Version 1.1 Data– Data+ 19" Industrial LCD Monitor KFM19_e – User’s Manual (Version 1.10)

  • Page 41: Serial Touchscreen Connector (Rs232)

    9-pin D-SUB Socket DCD (Data Carrier Detect) RXD (Receive Data) (Transmit Data) (Data Terminal Ready) GND (Signal Ground DSR (Data Set Ready) (Request to Send) (Clear to Send) (Ring Indicator) 19" Industrial LCD Monitor KFM19_e – User’s Manual (Version 1.10)

  • Page 42: Technical Support

    Be ready to explain the nature of your problem to the service technician. If you have questions about Kontron Embedded Computers or our products and services, you may reach us at the aforementioned numbers, or at: www.kontron.com...

  • Page 43: Returning Defective Merchandise

    (+49) 8165-77 412 e-mail: service@kontron.com 2. Make sure that you receive an RMA number from Kontron Embedded Computers-Service before returning any merchandise. Clearly write or mark this number on the outside of the package you are returning. 3. Describe the device failure behavior.
