2.3 Parts of the iServer Unit
Side or Bottom
Wire Entry for
Relay Connector
Removable Plug
Connector for Relays
under the Cover
6
1

Table 2.1 Parts of iServer Unit

ETHERNET RJ45 interface for 10BASE-T connection.
RESET Button: Used for power reseting the iServer.
ACTIVITY LED (Red) Blinking: Indicates network activities (receiving or sending packets).
NET LINK LED (Green) Solid: Indicates good network link.
TX LED (Yellow) Blinking: Indicates transmitting data from iServer to flash memory card
RX LED (Green) Blinking: Indicates receiving data to iServer from flash memory card
°C/°F
Button: Change display units of measurement from °C to °F
TIME Button: Change display from DATE and TIME to RH and TEMP
STBY Button: Will stop the Flash from recording.
BKLT Button: Display Back Light
When using the small push buttons, hold the button until "WAIT" is displayed on the LCD and
then release.
iServer iServer Reset Button
RJ45 interface
ETHERNET
Flash
Memory
Card
C/ F
TEMPERATURE/HUMIDITY
Flash
Memory
Card
Reset
Button
DB9
Connector

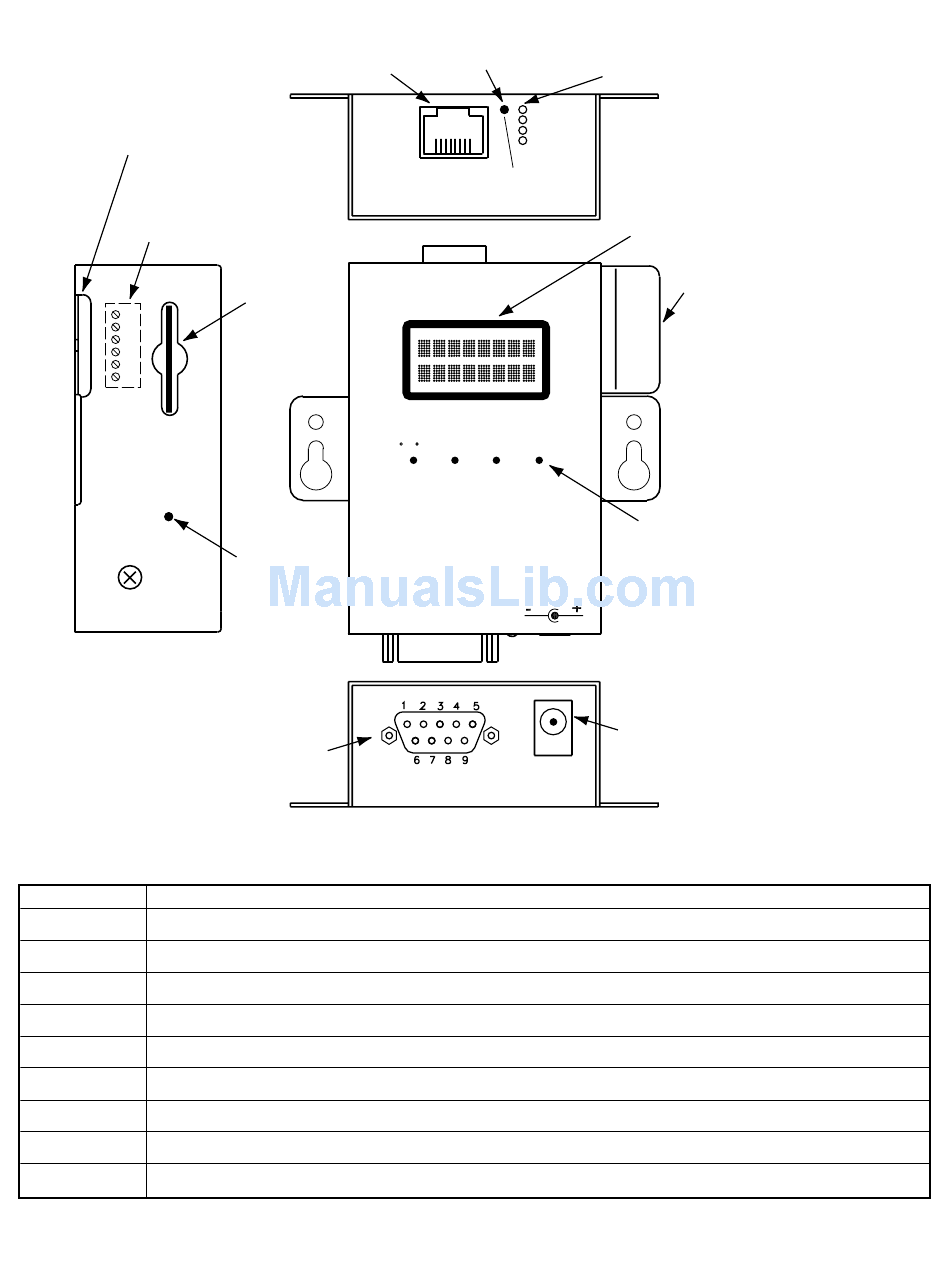

Figure 2.3 Parts of the iServer Unit
iServer LEDs
ACTIVITY
NETWORK LINK
TX-TRANSMIT
RX-RECEIVE
8 1
RESET
TIME STBY BKLT
9-12 Vdc
5
16 Digit
LCD Display
Probe
Handle
Clip
Buttons
dc Power Input
