4.3 Setup and Operation Using a Web Browser

• Start your web browser.
• In the URL field, type http://eisxxxx using the last four-digits from the MAC
address label located on the device if DHCP and DNS are used. If a static IP address
is used, then simply type http://x.x.x.x, where x.x.x.x is the iServer's IP address.
• The Home Page, shown in Figure 4.5, will be displayed.
In order to access certain menu items of the Home Page, users may be prompted for a
password, as shown in Figure 4.5.
There are 2 different access levels:
1. Admin Password (administrator) allows certain groups and individual users to access and
modify "All" iServer menu items without any restrictions. The default password is
00000000. This password can be up to 16 alphanumeric case-sensitive characters.
2. Login Password (operator) allows certain groups and individual users to access and
modify "Configuration/Device Setup" menu only. The default password is 12345678.
This password can be up to 16 alphanumeric case-sensitive characters.
If no passwords are needed, simply leave the password fields blank and save your screen.

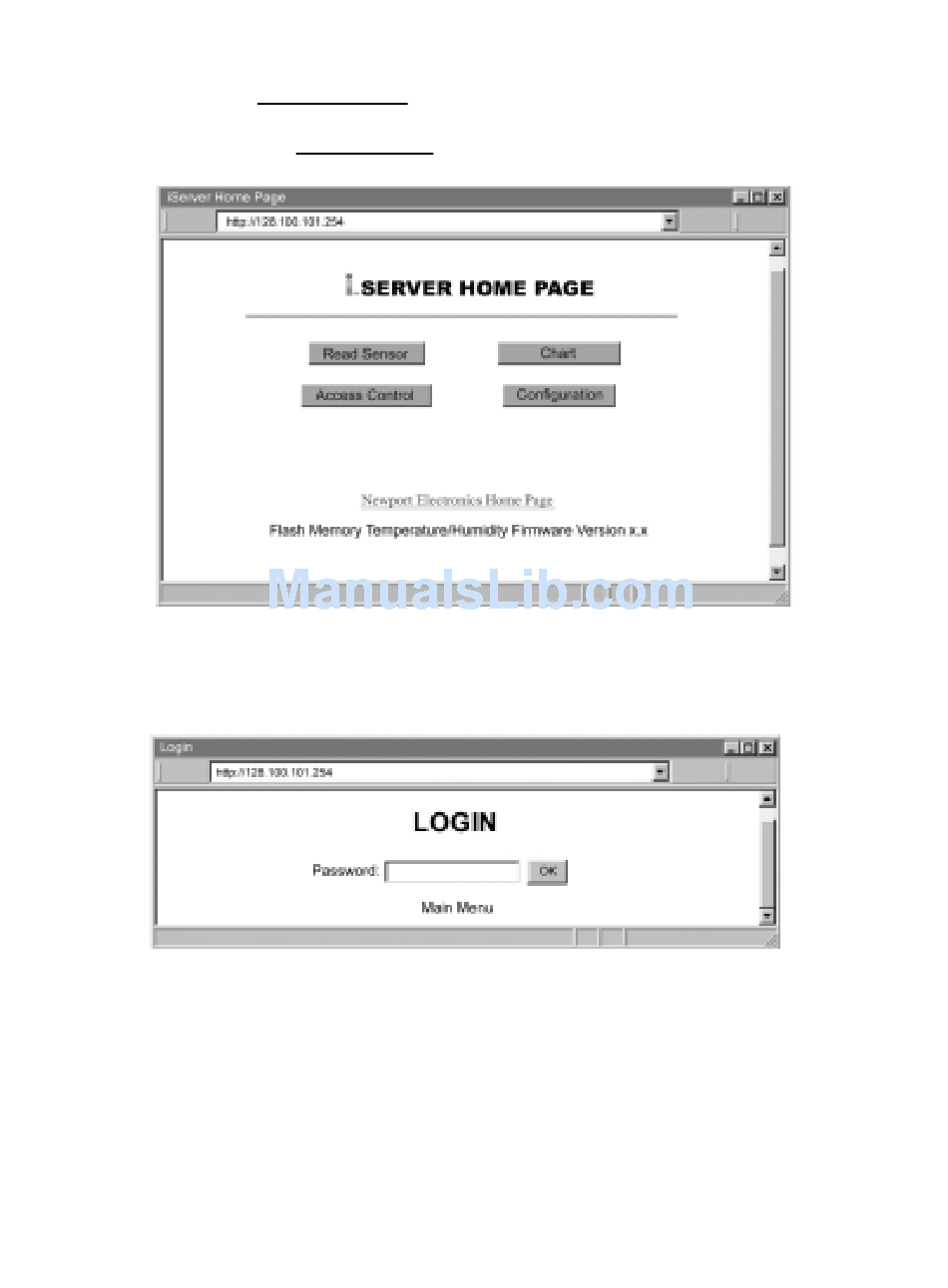

Figure 4.5 iServer Home Page Menu

Figure 4.6 Login Password

14
