5
Reference Information
Meter Modes
Run Mode - The meter is in the run mode when the
display is actively showing a process.
Configuration Mode - The meter is in the configuration
mode when you press the MENU button to enable
meter configurations.
Jumpers
The following table gives you information about
jumpers. Refer to the illustration below for exact
jumper location. Refer to the Operator's Manual for
additional jumper information.
Jumper
Description
S1
Installed: 10 V excitation
Removed: 24 V excitation
S2
Installed: Front-panel buttons locked
out Removed: All buttons operable
S3
Installed: PEAK shows when
button is pushed. PrsT (Peak Reset)
is active when RESET is pushed.
Press
/MAX to show PEAK value.*
Removed: VALLEY shows when
/MAX button is pushed. VrST
(Valley Reset) is active when
RESET is pushed. Press
/MAX to
show VALLEY value.*
*Shows in run mode only
S3
S2
S1
S1 - S3 Jumpers
6
Configuration Mode
The following table lists display prompts that appear
when the meter is in the configuration mode.
MENU
/TARE
InP
0-10
4-20
20-4
0-5
1-5
dEc.P
FFF.F
FFFF.
FFFF
F.FFF
FF.FF
ScAL
int
LivE
/MAX
* Shows only if you press the
Tare
The following buttons enable tare functions in the run
mode:
T-RST
Clears tare value
/TARE
Tares display value to zero.
This device is marked with the international caution symbol. It is important to read
the Setup Guide before installing or commissioning this device as it contains
important information relating to safety and EMC.
It is the policy of NEWPORT to comply with all worldwide safety and EMC/EMI
regulations that apply. NEWPORT is constantly pursuing certification of its products to the
European New Approach Directives. NEWPORT will add the CE mark to every
appropriate device upon certification.
The information contained in this document is believed to be correct but NEWPORT
Electronics, Inc. accepts no liability for any errors it contains, and reserves the right to
alter specifications without notice.
WARNING: These products are not designed for use in, and should not be used for,
patient connected applications.
TRADEMARK NOTICE:
NEWPORT
NEWPORT
,
,
®
, and
are trademarks of NEWPORT Electronics, Inc.
TM
Warranty/Disclaimer
NEWPORT Electronics, Inc. warrants this unit to be free of defects in materials and
workmanship for a period of one (1) year from the date of purchase. In addition to
NEWPORT's standard warranty period, NEWPORT Electronics will extend the warranty
period for one (1) additional year if the warranty card enclosed with each instrument is
returned to NEWPORT.
If the unit should malfunction, it must be returned to the factory for evaluation.
NEWPORT's Customer Service Department will issue an Authorized Return (AR) number
immediately upon phone or written request. Upon examination by NEWPORT, if the unit
is found to be defective it will be repaired or replaced at no charge. NEWPORT's
/MAX
WARRANTY does not apply to defects resulting from any action of the purchaser,
including but not limited to mishandling, improper interfacing, operation outside of design
limits, improper repair, or unauthorized modification. This WARRANTY is VOID if the unit
shows evidence of having been tampered with or shows evidence of being damaged as a
result of excessive corrosion; or current, heat, moisture or vibration; improper
specification; misapplication; misuse or other operating conditions outside of
NEWPORT's control. Components which wear are not warranted, including but not
limited to contact points, fuses, and triacs.
NEWPORT is pleased to offer suggestions on the use of its various
products. However, NEWPORT neither assumes responsibility for any
omissions or errors nor assumes liability for any damages that result
from the use of its products in accordance with information provided by
NEWPORT, either verbal or written. NEWPORT warrants only that the
parts manufactured by it will be as specified and free of defects.
NEWPORT MAKES NO OTHER WARRANTIES OR REPRESENTATIONS OF
ANY KIND WHATSOEVER, EXPRESSED OR IMPLIED, EXCEPT THAT OF
TITLE, AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
HEREBY DISCLAIMED. LIMITATION OF LIABILITY: The remedies of
purchaser set for th herein are exclusive and the total liability of
NEWPORT with respect to this order, whether based on contract,
warranty, negligence, indemnification, strict liability or otherwise, shall
rd1*
not exceed the purchase price of the component upon which liability is
based. In no event shall NEWPORT be liable for consequential,
XXXX
incidental or special damages.
CONDITIONS: Equipment sold by NEWPORT is not intended to be used, nor shall it be
rd 2*
used: (1) as a "Basic Component" under 10 CFR 21 (NRC), used in or with any nuclear
installation or activity; or (2) in medical applications or used on humans. Should any
*XXXX
Product(s) be used in or with any nuclear installation or activity, medical application, or
used on humans, or misused in any way, NEWPORT assumes no responsibility as set
forth in our basic WARRANTY / DISCLAIMER language, and additionally purchaser will
/MAX button.
indemnify NEWPORT and hold NEWPORT harmless from any liability or damage
whatsoever arising out of the use of the Product(s) in such a manner.
Return Requests/Inquiries
Direct all warranty and repair requests/inquiries to the NEWPORT Customer Service
Department.
BEFORE RETURNING ANY PRODUCT(S) TO NEWPORT,
PURCHASER MUST OBTAIN AN AUTHORIZED RETURN (AR) NUMBER FROM
NEWPORT'S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID
PROCESSING DELAYS). The assigned AR number should then be marked on the
outside of the return package and on any correspondence.
The purchaser is responsible for shipping charges, freight, insurance and proper
packaging to prevent breakage in transit.
FOR WARRANTY RETURNS, please
have the following information available
BEFORE
contacting NEWPORT:
1. P.O. number under which the product
was PURCHASED,
2. Model and serial number of the
product under warranty, and
3. Repair instructions and/or specific
problems relative to the product.
NEWPORT's policy is to make running changes, not model changes, whenever an
improvement is possible. This affords our customers the latest in technology and
engineering.
NEWPORT is a registered trademark of NEWPORT Electronics, Inc.
© Copyright 2002 NEWPORT Electronics, Inc. All rights reserved.
This document may not be copied, photocopied, reproduced, translated, or reduced to
any electronic medium or machine-readable form, in whole or in part, without prior
written consent of NEWPORT Electronics, Inc.
PATENT NOTICE: The "Meter Case Bezel Design" is a trademark of NEWPORT
Electronics, Inc., registered in the U.S. This product is covered by one or more of the
following patents: U.S. Pat. No. Des. 336,895, 5,274,577/ Canada 2052599, 2052600/
Italy 1249456, 1250938/ France Brevet No. 91 12756/ Spain 2039150, 2048066/ UK
Patent No. GB2 249 837, GB2 248 954/ Germany DE 41 34398 C2. OTHER
, newportUS.com ,
,
INTERNATIONAL PATENTS PENDING.
®
®
12172ML-01 Rev. E

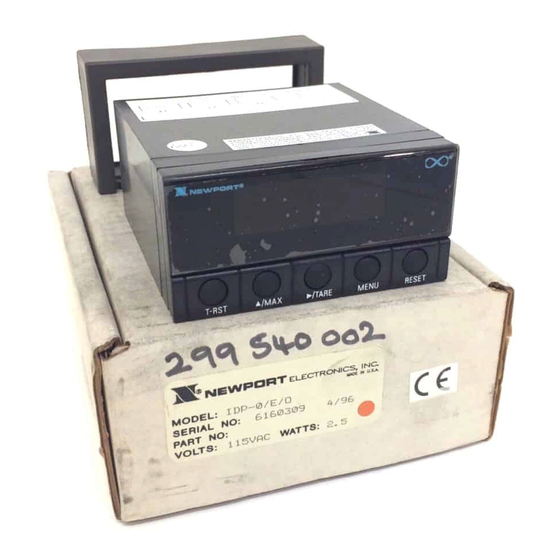

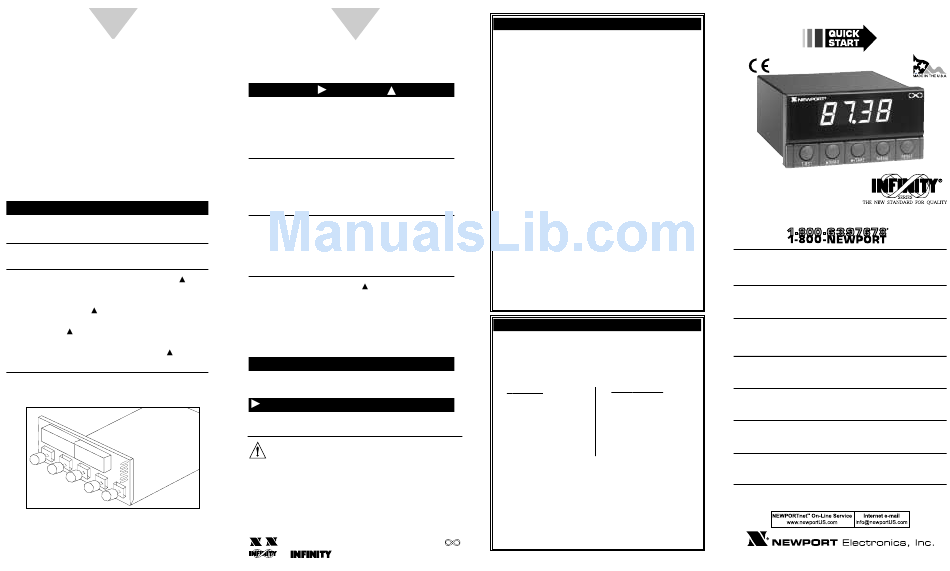

IDP
Process Meter
For immediate technical or application assistance please call:
2229 South Yale Street • Santa Ana, CA • 92704 • U.S.A.
Toll Free: 1-800-639-7678 • http://www.newportUS.com • e-mail:info@newportUS.com
Toll Free: 1-800-639-7678 • http://www.newport.ca • e-mail:sales@newport.ca
Northbank, Irlam • Manchester M44 5BD • United Kingdom
Toll Free: 0800 488 488 • http://www.newportuk.co.uk • e-mail:sales@newportuk.co.uk
Postbus 8034 • 1180 LA Amstelveen • The Netherlands
Toll Free: 0800 0993344 • http://www.newport.nl • e-mail: sales@newport.nl
FOR NON-WARRANTY REPAIRS,
consult NEWPORT for current repair
Rudé armády 1868, 733 01 Karviná 8 • Czech Republic
charges. Have the following information
available BEFORE contacting
Toll Free: 0800-1-66342 • http://www.newport.cz • e-mail: sales@newport.cz
NEWPORT:
1. P.O. number to cover the COST of the
repair,
Daimlerstrasse 26 • D-75392 Deckenpfronn • Germany
2. Model and serial number of product,
and
Toll Free: 0800 / 6397678 • http://www.newport.de • e-mail: sales@newport.de
3. Repair instructions and/or specific
problems relative to the product.
Toll Free: 0800-4-06342 • http://www.newport.fr • e-mail: sales@newport.fr
MQS1866/N/0202
