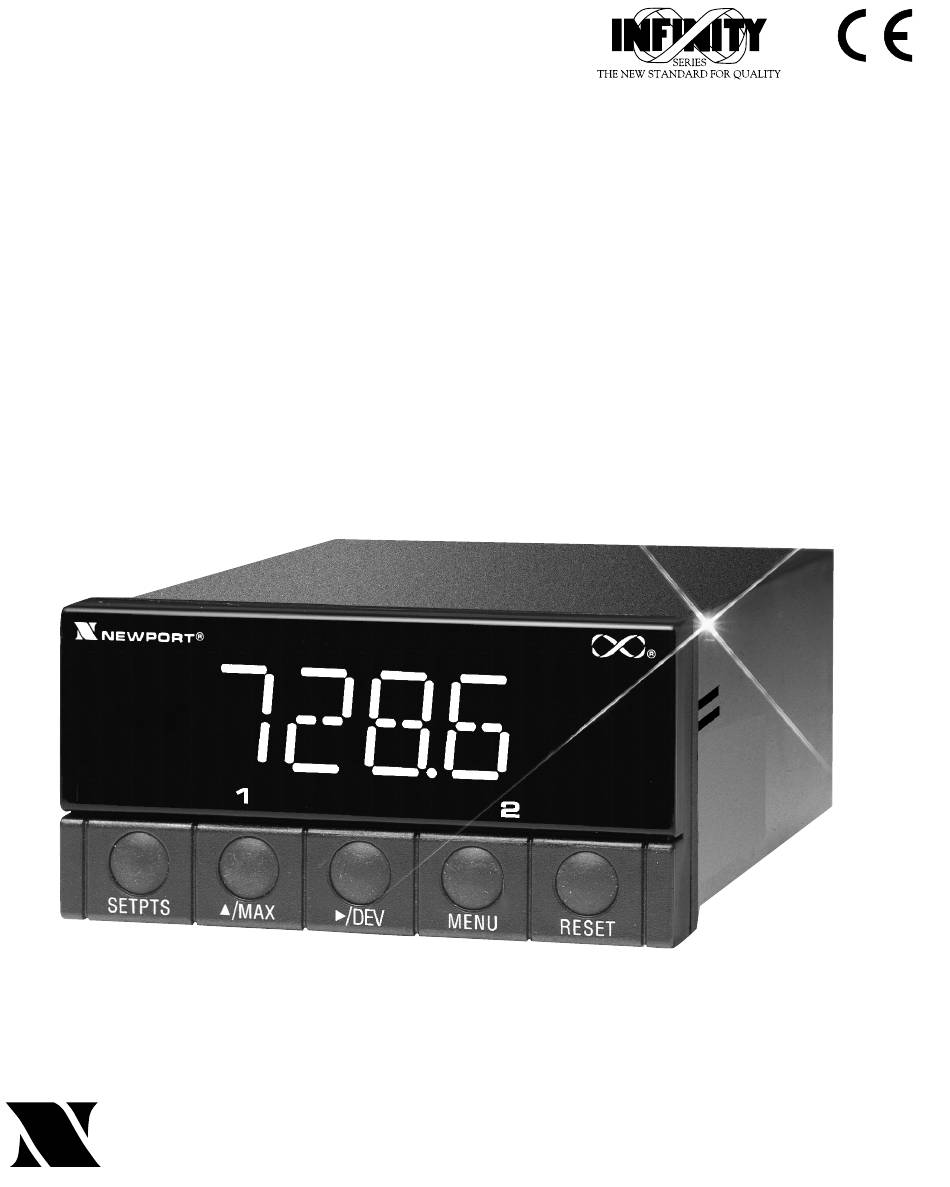

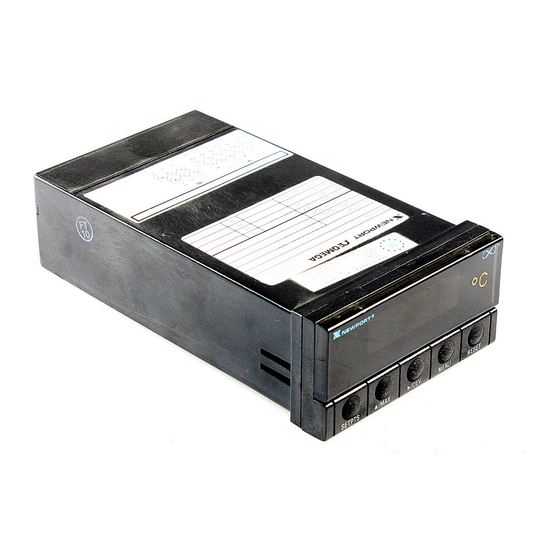

INFCR
INFINITY
¨
C Programmable Digital
RTD Meter
OperatorÕ s Manual
Made in the USA
NEWPORT Electronics, Inc.
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INFINITY INFCR and is the answer not in the manual?

Questions and answers

Related Manuals for Newport INFINITY INFCR

Summary of Contents for Newport INFINITY INFCR

  • Page 1 ® INFCR INFINITY ¨ C Programmable Digital RTD Meter OperatorÕ s Manual Made in the USA NEWPORT Electronics, Inc. ®...
  • Page 2 It is the policy of NEWPORT to comply with all worldwide safety and EMC/EMI regulations that apply. NEWPORT is constantly pursuing certification of its products to the European New Approach Directives. NEWPORT will add the CE mark to every appropriate device upon certification.
  • Page 3 PREFACE Manual Objectives This manual shows you how to set up and use the Programmable Digital RTD Meter. Standard Procedures: Checking voltage jumpers, or changing voltage power Mounting the panel Selecting the input type Selecting a decimal point position Setting the setpoint's active band Selecting a latched or unlatched operation Setting setpoint deadbands Enabling/disabling setpoint changes...

  • Page 4: Table Of Contents

    Table of Contents Section Page 1. INTRODUCTION ..........1 1.1 UNPACKING .
  • Page 5 Table of Contents 4.8 OUTPUT CONFIGURATION (OT.CF) ......22 4.8.1 To Enable or Disable The Analog Output ....22 4.8.2 To Select Analog Output as Current or Voltage .
  • Page 6 Table of Contents List of Figures Figure Page Figure 2-1. Front-Panel Illustration ........5 Figure 2-2.
  • Page 7 Table of Contents NOTES, WARNINGS and CAUTIONS Information that is especially important to note is identified by these labels: ¥ NOTE ¥ WARNING ¥ CAUTION ¥ IMPORTANT NOTE: provides you with information that is important to successfully setup and use Note the Programmable Digital Meter.

  • Page 9: Introduction

    SECTION 1. INTRODUCTION 1.1 UNPACKING Remove the Packing List and verify that all equipment has been received. If there are any questions about the shipment, use the phone numbers listed on the back cover to contact the Customer Service Department nearest you. Upon receipt of shipment, inspect the container and equipment for any signs of damage.

  • Page 10: Safety Considerations

    Introduction 1.2 SAFETY CONSIDERATIONS This device is marked with the international caution symbol. It is important to read this manual before installing or commissioning this device as it contains important information relating to Safety and EMC (Electromagnetic Compatibility). Unpacking & Inspection Unpack the instrument and inspect for obvious shipping damage.

  • Page 11: About The Meter

    SECTION 2. ABOUT THE METER 2.1 DESCRIPTION The Resistance Temperature Detector (RTD) meter is a value packed indicator/controller. Four full digits accurately display your temperature. Select from 2, 3 or 4 wire input configuration. Your meter may be a basic indicator or it may include analog output or dual relay output. Analog or dual relay output must be ordered at time of purchase.

  • Page 12: Available Accessories

    About The Meter 2.3 AVAILABLE ACCESSORIES Table 2-1. Accessories and Add-Ons Add-On Options Special Calib/Config SPC4 NEMA-4 Splash Proof Cover SPC18 NEMA-4 Splash Proof Cover, NEW Accessories TP1A Trimplate panel adaptor. Adapts DIN1A/DIN2A cases to larger panel cutouts RP18 19-In. Rack Panel for one (1) 1/8 DIN instrument RP28 19-In.

  • Page 13: Front Of The Meter

    About The Meter 2.4 FRONT OF THE METER Figure 2-1 shows each part of the front of the meter. Figure 2-1. Front-Panel Illustration METER DISPLAY: -1.9.9.9. or 9.9.9.9. 4-digit 14 segment, 0.54" high LED Digital LED display: display with programmable decimal point. Setpoint LED: Display windows light when appropriate: 1 - Setpoint 1 Status 2 - Setpoint 2 Status...
  • Page 14 About The Meter METER BUTTONS SETPTS Button This button functions only in the run mode. When the meter is in the run mode, press this button to sequentially recall the previous setpoint settings. After using the /MAX and /DEV buttons to alter these settings as desired, press the SETPTS button to store these new values.
  • Page 15 About The Meter MENU Button In the run mode, press the MENU button to terminate the current measuring process and enter you into the configuration mode. In the configuration mode, press the MENU button to store changes in the non-volatile memory and then advance you to the next menu item.

  • Page 16: Rear Of The Meter

    About The Meter 2.5 REAR OF THE METER Figure 2-2 shows the connector label mounted at the top of the meter housing. Table 2-2 gives a brief description of each connector at the rear of the meter. RELAY2 RELAY 1 OUT N/C N.O.1 N.C.1 COM1 N.O.2 N.C.2 COM2 VOLT...

  • Page 17: Table 2-2. Rear Connector Description

    About The Meter 2.5 BACK OF THE METER (Continued) Table 2-2. Rear Connector Description Connector Description TB1-1 Setpoint 1: Normally open (N.O.1) connection TB1-2 Setpoint 1: Normally closed (N.C.1) connection TB1-3 Setpoint 1: Common (COM1) connection TB1-4 Setpoint 2: Normally open (N.O.2) connection TB1-5 Setpoint 2: Normally closed (N.C.2) connection TB1-6...

  • Page 18: Conditions Requiring Disassembly

    About The Meter 2.6 DISASSEMBLY You may need to open up the meter for one of the following reasons: ¥ To check or change the 115 or 230 Vac power jumpers. ¥ To install or remove jumpers on the main board. Disconnect the power supply before proceeding.

  • Page 19: Getting Started

    SECTION 3. GETTING STARTED Caution: The meter has no power-on switch, so it will be in operation as soon you apply power. If you power off/on the meter, or perform a hard reset (press the RESET button twice), the meter shows "RST", followed by "PROC".

  • Page 20: Figure 3-2. Main Board Jumper Positions (6 S2 Pins)

    Getting Started 3.2 MAIN BOARD POWER JUMPERS (Continued) Figure 3-2 shows the main board jumpers. Version #1 with Non-Removable connectors. Version #2 with upper & lower level MAIN BOARD pull-out connector plugs. TP10 TP11 Figure 3-2. Main Board Jumper Positions (6 S2 Pins) Attach cable to P1.

  • Page 21: Table 3-1. S3 Jumper Functions

    Getting Started 3.2 MAIN BOARD POWER JUMPERS (Continued) S2 jumpers are for sensor break indications: S2A jumper is not used S2B jumper is for positive sensor break (i.e. heating) S2C & S2D are not used S3 jumpers are used for the following (refer to Table 3-1): To enable or disable the front panel push-buttons To allow for an extremely low resistance load for analog output To disable the MENU button...

  • Page 22: Panel Mounting

    Getting Started 3.3 PANEL MOUNTING CONNECTOR LABEL CASE BEZEL Figure 3-4. Meter - Exploded View PANEL THICKNESS 1. Cut a hole in your panel, as 6,4 (.25) MAX shown in Figure 3-4. For 0,8 (.03) MIN specific dimensions refer to Figure 3-5.

  • Page 23: Connecting Sensor Input

    Getting Started 3.4 CONNECTING SENSOR INPUT Figures 3-6 through 3-8 describe how to connect your sensors. Version #1 Version #2 Figure 3-6. 2-Wire RTD Input Connection Version #1 Version #2 Figure 3-7. 3-Wire RTD Input Connection Version #1 Version #2 Figure 3-8.

  • Page 24: Connecting Main Power

    Getting Started 3.5 CONNECTING MAIN POWER Connect the ac main power connections as shown in Figure 3-8. WARNING: Do not connect ac power to your meter until you have completed all input and output connections. Failure to do so may result in injury! Figure 3-9.

  • Page 25: Analog And Relay Output Connections

    Getting Started 3.5 CONNECTING MAIN POWER (Continued) Connect the dc main power connections as shown in Figure 3-10. Figure 3-10. Main Power Connections - DC 3.6 ANALOG AND RELAY OUTPUT CONNECTIONS If you have purchased a meter with analog or dual relay or isolated analog output, refer to the following figures for output connections.

  • Page 26: Figure 3-12. Relay Output Connections

    Getting Started 3.6 ANALOG AND RELAY OUTPUTS (Continued) Figure 3-12. Relay Output Connections. Figure 3-13. Isolated Analog Output Connections.

  • Page 27: Configuring The Meter

    SECTION 4. CONFIGURING THE METER Note Refer to Table 6-1 for a summary list of menu configuration. 4.1 SELECTING THE INPUT TYPE (INPT) To select your appropriate input type signal. Press the MENU button until the meter shows "INPT" . Press the /DEV button.

  • Page 28: Reading Configuration ("Rd.cf")

    Configuring The Meter 4.3 READING CONFIGURATION ("RD.CF") To determine if your meter shows in ¡F (Fahrenheit) or ¡C (Celsius). Press the MENU button until the meter shows "RD.CF" . Press the /DEV button. The meter shows one of the following: "R.1=F"...

  • Page 29: Setpoint 2 Configuration (S2.Cf)

    Configuring The Meter 4.5 SETPOINT 2 CONFIGURATION (S2.CF) Setpoint 2 is not active unless your meter has dual relay output capabilities. The LED's will display whether the (S2.CF) is active or not. You may use Setpoint 2 Configuration (S2.CF) for the following: To set the setpoint's active band above or below your chosen value To select whether the setpoint operation is latched or unlatched...

  • Page 30: Setpoint 2 Deadband (S2.Db)

    Configuring The Meter 4.7 SETPOINT 2 DEADBAND (S2.DB) Setpoint 2 Deadband is not active unless your meter has dual relay output capabilities. The LEDÕs will display whether the (S2.DB) is active or not. To set the deadband (hysteresis) of Setpoint 2, follow these steps: Press the MENU button until the meter shows "S2.DB".

  • Page 31: To Select Analog Output As Current Or Voltage

    Configuring The Meter 4.8.2 To Select Analog Output as Current or Voltage Press the /DEV button. The meter shows one of the following: "O.2=V" (Analog output = voltage) "O.2=C" (Analog output = current) Press the /MAX button to toggle between choices. Press the /DEV button to select analog output/proportional or press the MENU button to store your choice.

  • Page 32: Proportional Band

    Configuring The Meter 4.9 PROPORTIONAL BAND (P.BND) Proportional controls are designed to eliminate the cycling associated with on-off control. A proportional controller decreases the average power being supplied to the heater, as the temperature approaches setpoint. This has the effect of slowing down the heater, so that it will not overshoot the setpoint, but will approach the setpoint and maintain a stable temperature.

  • Page 33: Manual Reset (M.rst)

    Configuring The Meter 4.10 MANUAL RESET (M.RST) Manual Reset (M.RST) is not active unless your meter has analog output capabilities. The menu will display whether analog output is present or not. This feature allows you to offset the error that may occur within your setpoint.

  • Page 34: Output Scale And Offset (Ot.s.o)

    Configuring The Meter 4.11 OUTPUT SCALE AND OFFSET (OT.S.O) Output Scale and Offset (OT.S.O) is not active unless your meter has analog output capabilities. The menu will display whether analog output is present or not. Output Scale and Offset (OT.S.O) scales your analog output to be equal to the meter's display and/or any engineering units you require.
  • Page 35 Configuring The Meter Press the /DEV button. The last previously stored 4-digit number (-1999 through 9999) displays with flashing 4th digit. Press the /MAX button to change the value of the flashing digit. If you continue to press the /MAX button, the flashing digit's value continues to change. Press the /DEV button to scroll to the next digit.

  • Page 36: Lock Out Configuration (Lk.cf)

    Configuring The Meter 4.12 LOCK OUT CONFIGURATION (LK.CF) Use Lock Out Configuration (LK.CF) for the following: To enable or disable setpoint changes To enable or disable the RESET button in the run mode. 4.12.1 To Enable or Disable Setpoint Changes Press the MENU button until the meter shows "LK.CF"...

  • Page 37: Rtdtemperature Offset. (T.off)

    Configuring The Meter 4.13 RTD TEMPERATURE OFFSET. (T.OFF) A new item has been added to calibrate for any offset error due to the RTD. This item will enable you to compensate any temperature offset due to the RTD transducer: OFFSET = ACTUAL TEMPERATURE - DISPLAY TEMPERATURE Press the MENU button until "T.OFF"...

  • Page 38: Display Messages

    SECTION 5. DISPLAY MESSAGES Table 5-1. Display Messages MESSAGE DESCRIPTION RTD Meter Hard (power on) reset INPT Input type DEC.P Decimal point RD.CF Reading configuration S1.CF Setpoint 1 configuration S2.CF Setpoint 2 configuration S1.DB Setpoint 1 deadband S2.DB Setpoint 2 deadband OT.CF Output Configuration P.BND...

  • Page 39: Table 6-1. Menu Configuration

    SECTION 6. MENU CONFIGURATION Not all menu items display on standard meters. Table 6-1. Menu Configuration MENU SUBMENU DESCRIPTION INPT INPUT TYPE RTD.2 2-wire RTD 100 ½ PT., DIN standard. RTD.3 3-wire RTD 100 ½ PT., DIN standard RTD.4 4-wire RTD 100 ½ PT., DIN standard DEC.P DECIMAL POINT POSITION FFFF.

  • Page 40: Menu Configuration

    Menu Configuration Table 6-1 Continued MENU SUBMENU DESCRIPTION OT.CF OUTPUT CONFIGURATION Analog Output: D: Disabled E: Enabled V: Voltage analog out C: Current analog out O: Proportional to reading P: Proportional to Setpoint 1 D: Direct reading R: Reverse acting F: 0-10 V proportional H: 0-5 V proportional P.BND...

  • Page 41: Table 6-2. Front Panel Displays

    Menu Configuration Not all menu items display on standard meters. Table 6-2. Front Panel Displays MENU /DEV /MAX DESCRIPTION INPT Show input SIGNAL INPUT choices RTD.2 2-wire RTD RTD.3 3-wire RTD RTD.4 4-wire RTD DEC.P Show input FFFF. DECIMAL POINT choices FFF.F RD.CF...
  • Page 42 Menu Configuration Not all menu items display on standard meters. Table 6-2. Front Panel Displays (Continued) MENU /DEV /MAX DESCRIPTION OT.CF OUTPUT CONFIGURATION O.1= Disable analog output Enable analog output O.2= Analog output = voltage Analog output = current O.3= Regular analog output Proportional analog output O.4=...

  • Page 43: Table 6-3. Run Mode Displays

    Menu Configuration Table 6-3. Run Mode Displays DISPLAY /DEV /MAX RESET DESCRIPTION PEAK Shows peak Reset the peak PEAK READING reading and reading when Shows the highest must be in this mode. reading since last reset pressed again to return to the normal operating mode without...

  • Page 44: Setpoint Configuration Displays

    SECTION 7. SETPOINT CONFIGURATION DISPLAYS Table 7-1. Setpoint Configuration Displays MENU /DEV /MAX DESCRIPTION SP 1 Scroll right one digit Change the flashing SETPOINT 1 digit's value Select from -1999 through 9999 SP 2 Scroll right one digit Change the flashing SETPOINT 2 digit's value Select from -1999 through 9999...
  • Page 45 SECTION 8. SPECIFICATIONS SIGNAL INPUT Isolation: Dielectric strength to 2500V transient per 3mm spacing based on EN 61010 for 260Vrms or dc working voltage Noise Rejection: Normal Mode Rejection (NMR) = 60dB Common Mode Rejection (CMR) = 120dB Input Protection: Voltage Input = 120Vrms max Current Input = 200mA max Protection:...

  • Page 46: Specifications

    Specifications ANALOG OUTPUT (if applicable) Signal type: Current or voltage Signal level: Current: 10 V max compliance at 20 mA output Voltage: 20 mA max for 0-10 V output Function: May be assigned to a display range or proportional control output with setpoint #1 when used as a control output.
  • Page 47 Specifications ALARM OUTPUTS (if applicable) 2 Form "C" on/off relays. Configurable for latched and unlatched by software. Max current: 5 AMPS, resistive load. Max voltage: 250 V ac or 30 V dc ISOLATED ANALOG OUTPUT (TB5, if applicable) Same as non-isolated analog output except isolated to 1000 Vdc. Signal Type: Current or voltage Signal Level:...

  • Page 48: Figure 8-1. Meter Dimensions

    Specifications 48,00 (1.890) 96,00 (3.780) 17,78 (.700) CASE REAR COVER SIDE VIEW TOP VIEW PANEL THICKNESS 6,4 (.25) MAX 0,8 (.03) MIN R (.06) 45,00 + 0,61/-0,00 (1.772 + .024/–.000) 4 PLCS 92,00 + 0,81/–0,00 (3.622 + .032/–.000) NOTE: Dimensions in Millimeters (Inches) Figure 8-1.

  • Page 49: Factory Preset Values

    SECTION 9. FACTORY PRESET VALUES Table 9-1. Factory Preset Values MENU ITEM FACTORY PRESET VALUES INPT Input Type: RTD.3 DEC.P Decimal Point: FFFF. RD.CF Reading Configuration: R.1=F S1.CF Setpoint 1 Configuration: S.1=A S.2=U S2.CF Setpoint 2 Configuration: S.1=A S.2=U S1.DB Setpoint 1 Deadband: 0003 S2.DB Setpoint 2 Deadband: 0003...
  • Page 51 Warranty/Disclaimer NEWPORT Electronics, Inc. warrants this unit to be free of defects in materials and workmanship for a period of one (1) year from the date of purchase. In addition to NEWPORTÕs standard warranty period, NEWPORT Electronics will extend the warranty period for one (1) additional year if the warranty card enclosed with each instrument is returned to NEWPORT.
  • Page 52 Postbus 8034 ¥ 1180 LA Amstelveen ¥ The Netherlands TEL: (31) 20 6418405 ¥ FAX: (31) 20 6434643 Toll Free: 0 800 0993344 ¥ http://www.newport.nl ¥ e-mail: info@newport.nl Newport Electronics spol s.r.o. RudŽ arm‡dy 1868, 733 01 Karvina-Hranice ¥ Czech Republic TEL: 420 (69) 6311899 ¥...
