3onedata PS1005G-1GT-4PoE User Manual

Unmanaged full gigabit industrial ethernet poe switch

Advertisement

Quick Links

PS1005G-1GT-4PoE User Manual
PS1005G-1GT-4PoE
Unmanaged Full Gigabit
Industrial Ethernet PoE Switch

User Manual

Version 1.0, 2017.8.29

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS1005G-1GT-4PoE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for 3onedata PS1005G-1GT-4PoE

  • Page 1: User Manual

    PS1005G-1GT-4PoE User Manual PS1005G-1GT-4PoE Unmanaged Full Gigabit Industrial Ethernet PoE Switch User Manual Version 1.0, 2017.8.29...
  • Page 2: Table Of Contents

    PS1005G-1GT-4PoE User Manual Table of Contents Chapter 1 Product Introduction ....................2 Product Overview ..................... 2 Features ........................2 Package Contents ....................2 Chapter 2 External Component Description ................ 3 Front Panel ......................... 3 Rear Panel ........................4 Chapter 3 Installing and Connecting the Switch ..............5 3.1 Installation ........................
  • Page 3: Chapter 1 Product Introduction

    PS1005G-1GT-4PoE User Manual Chapter 1 Product Introduction Congratulations on your purchasing of the Gigabit PoE Ethernet switch . Before you install and use this product, please read this manual carefully for full exploiting the functions of this product. 1.1 Product Overview The product which is fully compliance with IEEE802.3at standard, is a PoE Ethernet...
  • Page 4: Chapter 2 External Component Description

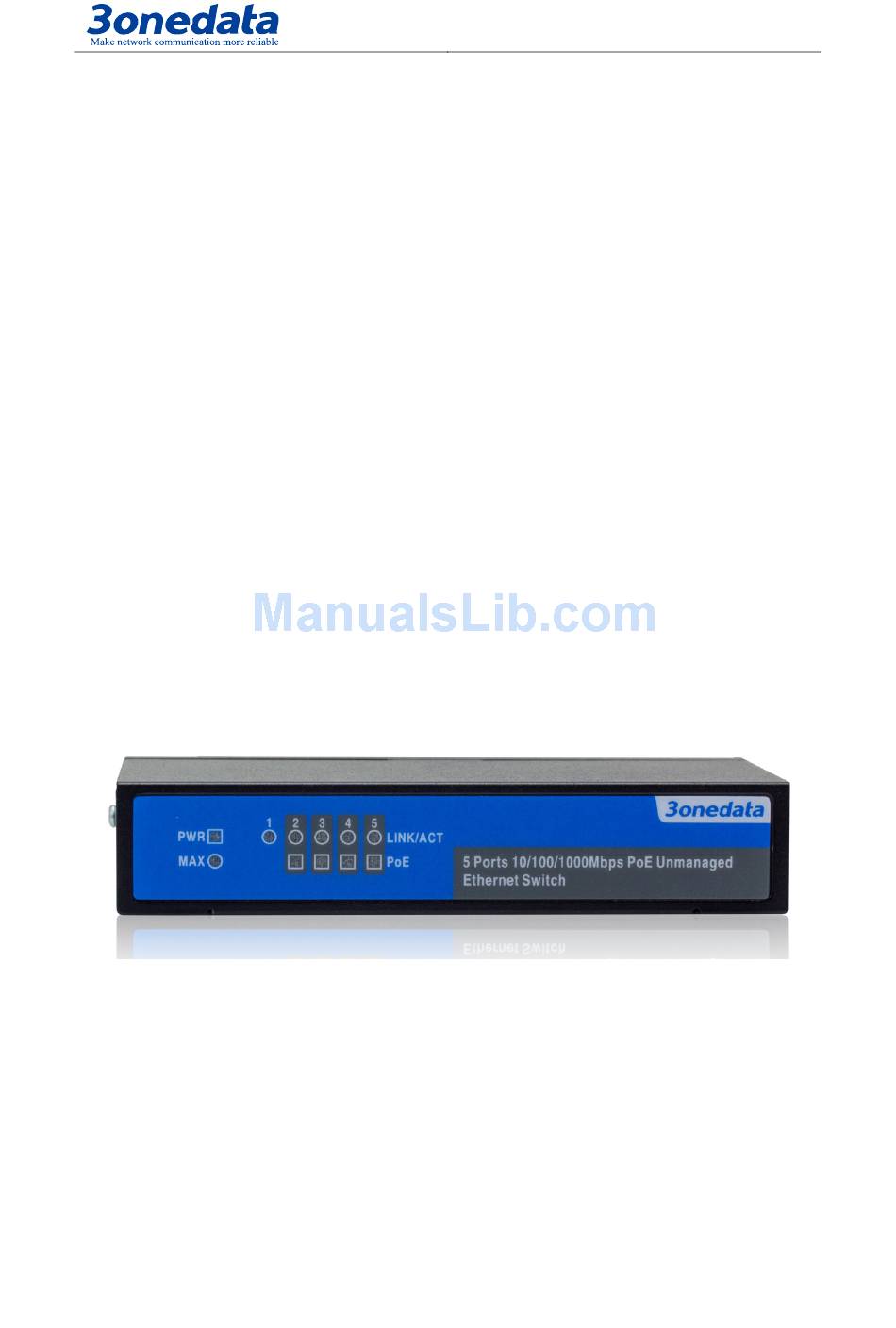

    PS1005G-1GT-4PoE User Manual Chapter 2 External Component Description 2.1 Front Panel The front panel of the Switch consists of series of LED indicators, shown as below: Figure 1 – Front Panel LED indicators: The LED indicators will allow you to monitor, diagnose and troubleshoot any potential program with the Switch, connection and attached devices.
  • Page 5: Rear Panel

    PS1005G-1GT-4PoE User Manual 2.2 Rear Panel The rear panel of the Switch consists of 5 10/100/1000Mbps RJ-45 ports and a DC power connector shown as below. Figure 3 - Rear Panel 5 10/100/1000Mbps RJ-45 ports (1-5): Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or 1000Mbps.
  • Page 6: Chapter 3 Installing And Connecting The Switch

    PS1005G-1GT-4PoE User Manual Chapter 3 Installing and Connecting the Switch This part describes how to install your Ethernet Switch and make connections to it. Please read the following topics and perform the procedures in the order being presented. 3.1 Installation Please follow the following instructions in avoid of device damage and security threat because of the incorrect installation.
  • Page 7 PS1005G-1GT-4PoE User Manual 3.2 Connect Computer (NIC) to the Switch Please insert the NIC into the computer, after installing network card driver, please connect one end of the twisted pair to RJ-45 jack of your computer, the other end will be connected to any RJ-45 port of the Switch, the maximum distance between Switch and computer is around 100 meters.
  • Page 8: Appendix: Technical Specifications

    PS1005G-1GT-4PoE User Manual Appendix: Technical Specifications SPEC IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3x, Standards IEEE802.3az, IEEE802.3at 10BASE-T: UTP category 5 cable (maximum 100m) Network Media (Cable) 100BASE-TX: UTP category 5,5e cable (maximum 100m) 1000BASE-T: UTP 5,5e,6 cable (maximum 100m) 5 x 10/100/1000Mbps RJ-45 ports (Auto Negotiation/ Auto...
