Page 2
LS-579 User’s Manual Copyright Copyright 2017, all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.

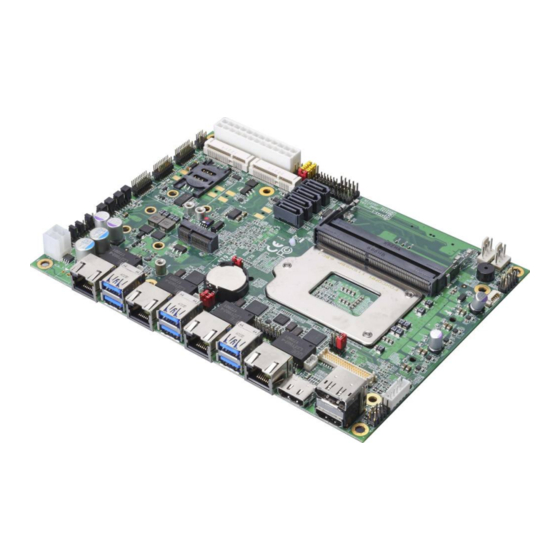

LS-579 User’s Manual Packing List: Please check the package content before you starting using the board. 1 x LS-579 5.25’’ Desktop Miniboard (include Heat sink) 1 x Power Cable (OALATX-P3S2 / 1040058) 2 x SATA Cable 1 x VGA Cable...
LS-579 User’s Manual 1.3 <Block Diagram> 2 x HDMI Channel A DDR4 DIMM 1.2V 1 x DisplayPort & 7 Channel B DDR4 DIMM 1.2V Gen Processor PTN3355 2 x M.2 (Key M) 1 x VGA PTN3460 1 x LVDS DMI GEN3...
LS-579 User’s Manual 2.2 <CPU and Memory Setup> 2.2.1 <CPU installation> LS-579 has a LGA1151 CPU socket onboard; please check following steps to install the processor properly. Attention If LS-579 need RMA please Keep CPU socket cover on the CPU Socket.
LS-579 User’s Manual 2.2.2 <Memory Setup> LS-579 has two 260-pin DDR4 SO-DIMM support up to 32GB of memory capacity and 1.2 Voltage. The memory frequency supports 1866/2133 MHz. Only Non-ECC memory is (Xeon® E3-1200 v5 / v6 Product support ECC memory) supported.
LS-579 User’s Manual 2.3.2 <Clear CMOS and Power on type selection> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values.
LS-579 User’s Manual 2.4.2 <Ethernet interface> The board provide I219-LM PHY Gigabit Ethernet and I210-AT Gigabit Ethernet on rear I/O.Intel I219-LM and I210 supports operation at 10/100/1000 Mb/s data rates, with IEEE802.3 compliance and Wake-On-LAN supported. I210-AT I219-LM LAN3 LAN4...
LS-579 User’s Manual 2.4.4 <Display interface> Based on the 6 & 7 Gen CPU with built-in HD Graphics 530, VGA up to 1920x1080@60Hz, DisplayPort up to 4096x2304@60Hz , HDMI up to 4096x2304@24Hz on rear IO. About the internal Display, LVDS (PTN3460) up to 1920x1200@60Hz support 18/24-bit color depth and single/dual channel.
Page 16
LS-579 User’s Manual CN_CRT: VGA 16-pin connector (Pitch 2.00 mm) Signal Signal IOGND1 IOGND1 IOGND1 IOGND1 IOGND1 5VCDA 5HSYNC 5VSYNC 5VCLK CN_LVDS: LVDS 40-pin connector ( Model: HIROSE DF13-40DP-1.25V compatible Signal Signal Set by JVLCD Set by JVLCD Detect (Active low)
LS-579 User’s Manual CN_INV: LVDS 5-pin Backlight power connector Signal Backlight Control Enable Backlight JVLCD: LVDS panel power select jumper Jumper settings Function 3.3V (Default) 2.4.5 <Serial Port interface> JCSEL11 JCSEL12 CN_COM1/2 JCSEL21 JCSEL22 CN_COM3/4 CN_COM5/6 -16-...
Page 18
LS-579 User’s Manual COM1/2: RS232/422/485 20-pin header (Pitch 1.27mm x 2.54mm) Signal Signal DCD/ 422TX-/ 485- RXD/ 422TX+/ 485+ TXD/ 422RX+ DTR/ 422RX- Set by JP2 DCD/ 422TX-/ 485- RXD/ 422TX+/ 485+ TXD/ 422RX+ DTR/ 422RX- Set by JP1 Note: COM1 Use JCSEL12 select communication mode.
Page 19
LS-579 User’s Manual JP1, JP2: COM1, COM2 pin-9 setting Jumper settings Function RI (Default) Effective patterns of connection: 1-2 / 3-4 / 5-6 Other may cause damage JCSEL12/22, JCSEL11/21: For configure COM1 &COM2 communication mode Function JCSEL12/ JCSEL22 JCSEL11/ JCSEL21...
LS-579 User’s Manual 2.4.8.1 < M.2 interface > M2-1 (Key E) with 2x PCI Express x1 support WI-FI and Bluetooth Module M2-2 and M2-3 (Key M) with 4x PCI Express x1 3.0 / 2.0 bandwidth, up to 32Gbit / s data transfer speed, support NVMe SSD.
LS-579 User’s Manual 2.4.9 <Front panel switch and indicator> JFRNT JFRNT: Front panel switch and indicator 14-pin header (Pitch 2.54mm) Signal Signal Power_ON- Power_ON+ Speaker- Speaker+ HDD_LED- HDD_LED+ Power_LED- Power_LED+ Reset+ Reset- 2.4.10 <GPIO and Other interface> CN_PS2 CN_LPC CN_SMBUS...
Page 25
LS-579 User’s Manual When using GPIO function, please note: As Output: Open-drain, most applications need use an external pull up resistor. (If not may cause damage) As Input: TTL-level. GPIO DC characteristics Parameter UNIT Conditions Input Low Voltage Input High Voltage...
Page 26
LS-579 User’s Manual CN_SMBUS: SMBus 5-pin connector (Pitch 2.54mm) Signal SMBDAT SMBCLK CPUFAN: CPU cooler fan 4-pin connector Signal Sensor Control SYSFAN: System cooler fan 4-pin connector Signal Sensor Control -25-...
Page 28
LS-579 User’s Manual The DC_4P and DC_2P are CO-LAY design, support 9 ~ 35V wide voltage input. Note that the DC_4P and ATX do not use at the same time, it will certainly cause damage. DC_4P: ATX12V 4-pin connector Signal...
LS-579 User’s Manual Appendix A <Flash BIOS> A.1 <Flash tool> The board is based on Phoenix BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: FPT TOOL The tool’s file name is “fpt.exe”, it’s the utility that can write the data into the...
Page 30
LS-579 User’s Manual BIOS panel type selection form (BIOS Version:1.0) Single / Dual channel Single / Dual channel Type Type VBIOS DEFAULT 1366 x 768 640 x 480 1680 x 1050 800 x 600 1920 x 1200 1024 x 768...
LS-579 User’s Manual Appendix C <Programmable Watch Dog Timer> The watchdog timer makes the system auto-reset while it stops to work for a period.The integrated watchdog timer can be setup as system reset mode by program.You can select Timer setting in the BIOS, after setting the time options, the system will reset according to the period of your selection.
LS-579 User’s Manual -o 4F 01 ; activate WDTO# function -o 4E F0 -o 4F 00 ;set “00” is second mode, set “08” is minute mode -o 4E F1 -o 4F 05 ;00h: Timeout Disable ;01h: Timeout occurs after 1 minute only ;02h: Timeout occurs after 2 second/minute...
LS-579 User’s Manual Appendix E <Programmable GPIO > The GPIO’ can be programmed with the MS-DOS debug program using simple IN/OUT commands. The DC characteristics please refer to GPIO paragraph (Page20). GPIO -o 4E 87 ;enter configuration -o 4E 87...
LS-579 User’s Manual Appendix F <RAID Setting> When use RAID function, it need to enter the BIOS set RAID mode first. [Advanced] [Intel Advanced Menu] [PCH-IO Configuration] [SATA Configuration] [SATA Mode Selection] If this screen stop time is too short, it can be set in the BIOS.
Taiwan Commate computer Inc. 19F., NO.94, Sec. 1, Xintai 5 Rd., Xizhi Dist., New Taipei Address City 22102, Taiwan. +886-2-26963909 +886-2-26963911 Website www.commell.com.tw info@commell.com.tw (General infomation) E-mail tech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan Commate computer Inc. -34-...
