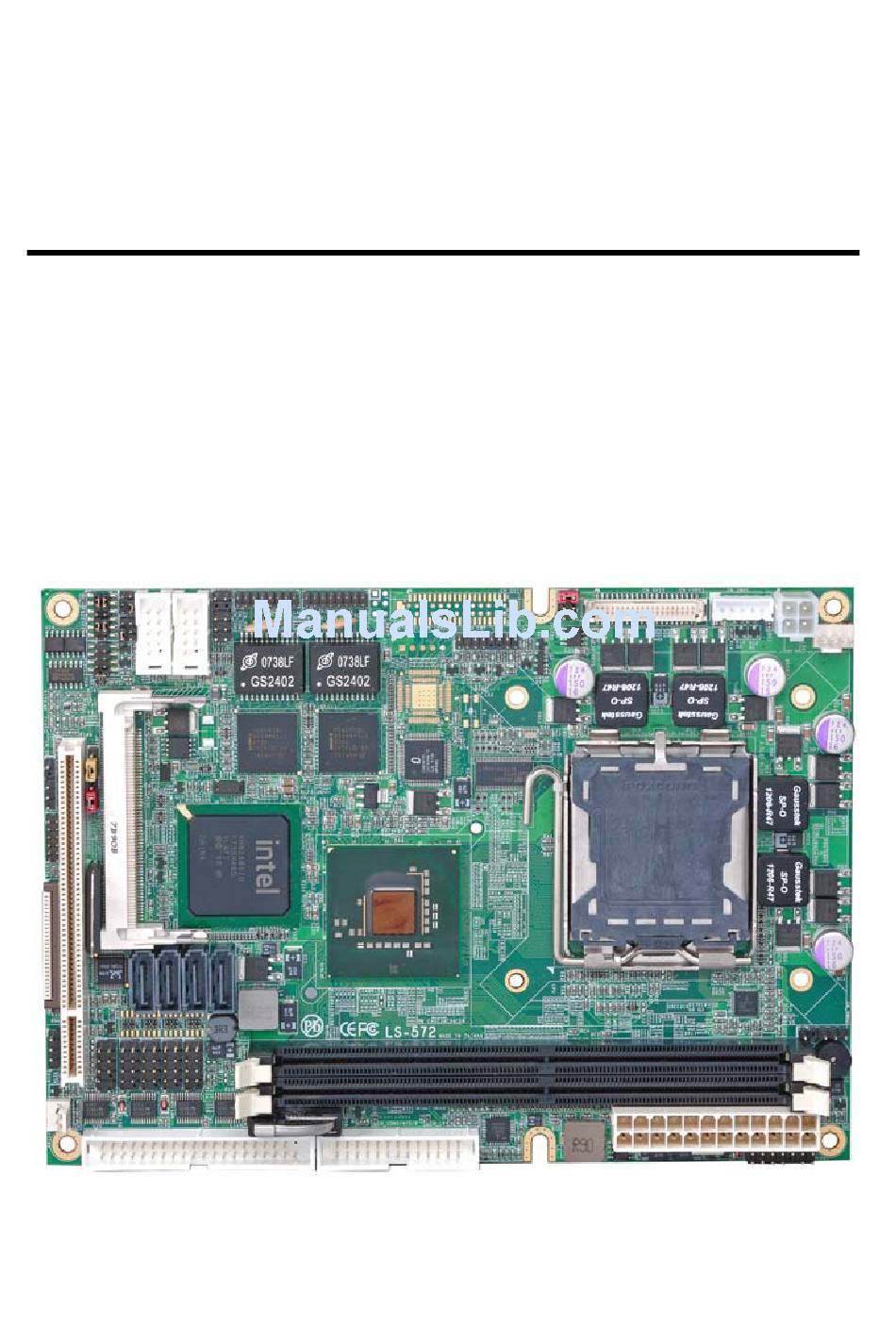

- Page 1 LS-572 5.25” Embedded Miniboard User’s Manual Edition: 1.3 2014/02/07...
- Page 3 LS-572 User’s Manual Copyright Copyright 2008. All rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 4: Packing List
LS-572 User’s Manual Packing List Please check package component before you use our products. Hardware: LS-572 Embedded Miniboard Cable Kit: SATA Cable x 2 (OALSATA) DVI module with DVI Cable x 1 (LS-572D Only) (ADPDVI + OALDVI-P) 26-pin Slim Type Floppy Cable x 1... - Page 5 LS-572 User’s Manual VGA cable x 1 Audio Port Cable x 1 (OALVGA-S) (OALPJ-HD-NB) RAID drivers Disc for Windows 2000, Windows XP and Windows Server 2003 Other Accessories: Divers CD (including User’s Manual) x 1...
- Page 6 LS-572 User’s Manual Index Chapter1 <Introduction> ............7 1.1 <Product Overview> .....................7 1.2 <Product Specification> ..................8 1.3 <Block Diagram> ....................10 1.4 <Mechanical Drawing >............11 1.5 <Motherboard Dimension >............11 1.5 <Motherboard Dimension >............12 Chapter 2 <Hardware Setup> ..........13 2.1 <Connector Location>..................13 2.2 <Jumper Reference>...
-
Page 7: Contact Information
LS-572 User’s Manual 2.14 <Serial Port> .....................33 2.15 <Switch and Indicator> ..................34 Chapter 3 <System Configuration> ........36 3.1 <SATA configuration>..................36 3.2 <SATA RAID Configuration> ................37 3.3 <Audio Configuration> ..................41 3.4 <Video Memory Setup> ..................42 3.5 <Display Properties Setting>................44 Chapter 4 <BIOS Setup>... - Page 8 LS-572 User’s Manual (This Page is Left for Blank...
-
Page 9: Chapter1
Chapter1 <Introduction> 1.1 <Product Overview> LS-572 is the motherboard with last Intel desktop technology with 5.25 Embedded form factor. Based on Intel® Q35 and ICH9DO, the board integrates a new Core 2 Quad/ Core2 Duo/ Celeron processor 775-pin socket, DDR2 memory socket, Intel® Graphic Media Accelerator 3000 technology, Serial ATA II with RAID function for a powerful desktop system. -
Page 10: Product Specification
LS-572 User’s Manual 1.2 <Product Specification> General Specification Form Factor 5.25 inch Embedded Miniboard Intel® Core 2 Quad/ Core 2 Duo/ Celeron processor with LGA775 socket, Package type: LGA 775 Front side bus: 800/1066/1333MHz (133/200/266MHz x 4) Memory 2 x 240-pin DDR2 667/800 MHz DIMM up to 4GB Chipset Intel®... - Page 11 LS-572 User’s Manual Audio Interface Chipset Intel® ICH9DO with Realtek ALC888HD Audio Intel High Definition Audio compliance Interface 2 channels sound output Connector Internal 10-pin header for line-out, MIC-in, 4-pin header for CD-IN Expansive Interface Mini PCI One Mini-PCI socket TYPE III A (32-bit, 33MHz) Power supply: +3.3V, +5V...
-
Page 12: Block Diagram
LS-572 User’s Manual 1.3 <Block Diagram> Analog CRT LVDS 7308A 2 x DDRII 667/800 MHz DIMM up to 4GB 7307C 4 X SATA 2 x Intel 82573L Gigabit LAN 1 X slim FDD 8 X USB 1 x Mini PCI socket... -
Page 13: Mechanical Drawing
LS-572 User’s Manual 1.4 <Mechanical Drawing >... -
Page 14: Motherboard Dimension
LS-572 User’s Manual 1.5 <Motherboard Dimension > 220 mm 146 mm 28.8 mm... -
Page 15: Chapter 2
LS-572 User’s Manual Chapter 2 <Hardware Setup> 2.1 <Connector Location> CN_LVDS CN_INV CN_COM1/2 CN_PS2 CN_CRT CN_LAN1/2 CN_DVI CN_12V CPUFAN Mini-PCI CN_IR CN_DIO SATA1~4 CDIN CN_SMBUS DDRII1/2 SYSFAN CN_LPT JFRNT CN_USB 1~4 CN_COM 3/4/5/6 CN_AUDIO... -
Page 16: Jumper Reference
LS-572 User’s Manual 2.2 <Jumper Reference> Jumper Function JRTC CMOS Operating/Clear Setting JVLCD Panel Voltage Setting (LS-572X Only) COM1 Power mode COM2 Power mode JCSEL1 COM2 Function select JCSEL2 RS232/422/485 JCSEL1/2 JP1/JP2 JRTC... - Page 17 LS-572 User’s Manual Jumper: JAT Type: onboard 3-pin header Power Mode AT Mode ATX Mode Default setting: ATX Mode Jumper: JP1 (COM 1) Type: onboard 3 x 2-pin header Power Mode Pin1 with 5V signal 1-3,4-6 2-4,3-5 Pin9 with 12V signal...
-
Page 18: Connector Reference
LS-572 User’s Manual 2.3 <Connector Reference> 2.3.1 <Internal Connectors> Connector Function Remark LGA775 CPU socket DDRII1/2 240 -pin DDR2 SDRAM DIMM socket 26-pin slim type floppy connector SATAII1/2/3/4 7-pin Serial ATA II connector 24-pin power supply connector CN_12V 4-pin +12V additional power supply connector... -
Page 19: Cpu And Memory Setup
LS-572 User’s Manual 2.4 <CPU and Memory Setup> 2.4.1 <CPU installation> LS-572 has a LGA775 CPU socket onboard; please check following steps to install the processor properly. Attention If LS-572 need RMA please Keep CPU socket cover on the CPU Socket. -
Page 20: Memory Installation
LS-572 User’s Manual 2.4.2 <Memory installation> LS-572 has two 240-pin DDR2 DIMM support up to 4GB of memory capacity. The memory frequency supports 667/800MHz. DDRII1/2 128-pin 112-pin Please check the pin number to match the socket side well before installing memory module. -
Page 21: Cmos Setup
LS-572 User’s Manual 2.5 <CMOS Setup> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values. -
Page 22: Serial Ata Installation
LS-572 User’s Manual 2.6 <Serial ATA installation> LS-572 has four Serial ATA II interfaces with RAID function, the transfer rate of the Serial ATA II can be up to 300MB/s. Please go to http://www.serialata.org/ for more about Serial ATA technology information. Based on Intel® ICH9DO, it supports Intel® Matrix Storage Technology with combination of RAID 0,1,5 and 10. -
Page 23: Floppy Installation
LS-572 User’s Manual 2.7 <Floppy Installation> LS-572 has one slim type 26-pin floppy interface, it supports notebook use floppy and powering from onboard, please follow up the steps below to install the device. Floppy rear side Lift up this plastic bar... -
Page 24: Lan Installation
LS-572 User’s Manual 2.8 <LAN installation> The board integrates with two Intel 82573L Gigabit Ethernet controllers, as the PCI bus with 133MB/s of transfer rate. The Intel 82573L supports triple speed of 10/100/1000Base-T, with IEEE802.3 compliance and Wake-On-LAN supported. PIN 1 (Orange ) -
Page 25: Onboard Display Interface
LS-572 User’s Manual 2.9 <Onboard Display Interface> Based on Intel Q35 chipset with built-in graphics, the board provides one DB15 connector on real internal I/O port, and one 40-pin LVDS interface with 5-pin LCD backlight inverter connector. (LS-572X Only) The board also provides 26-pin DVI interface. (LS-572D Only ) Notice: When you install any PCI Graphic card, the onboard graphics would be disabled automatically. - Page 26 LS-572 User’s Manual Connector: CN_INV Connector: JVLCD Type: 5-pin LVDS Power Header Type: 6-pin Power select Header Description Description +12V LCDVCC (3.3V) LCDVCC (5V) VCC3 (12V) Default: 1-2 ENABKL Connector: CN_LVDS Type: onboard 40-pin connector for LVDS connector Connector model: HIROSE DF13-40DP-1.25V...
- Page 27 LCD Installation Guide: Preparing the LS-572, LCD panel and the backlight inverter. Please check the datasheet of the panel to see the voltage of the panel, and set the jumper JVLCD to +12V, 5V or +3.3V.
- Page 28 LS-572 User’s Manual After setup the devices well, you need to select the LCD panel type in the BIOS. The panel type mapping is list below: BIOS panel type selection form Single channel Dual channel Output format Output format 800 x 600 (18bit)
-
Page 29: Dvi Display Ls-572D Only
LS-572 User’s Manual 2.9.3 <DVI Display LS-572D Only > The board provides optional DVI-D interface with Intel Q35, compliant with DVI 1.0 standard. Connector: CN_DVI Connector type: 26-pin header connector (pitch = 2.54mm) Pin Number Assignment Pin Number Assignment TX1+... -
Page 30: Audio Installation
LS-572 User’s Manual 2.10 <Audio Installation> The board integrates onboard audio interface with REALTEK ALC888 codec, with Intel next generation of audio standard as High Definition Audio, it offers more vivid sound and other advantages than former HD audio compliance. -
Page 31: Gpio Interface
LS-572 User’s Manual 2.11 <GPIO interface> The board provides a programmable 8-bit digital I/O interface, and a SMBus (System management bus) interface for control panel application. Connector: CN_DIO Type: onboard 2 x 6-pin header, pitch=2.0mm Description Description Ground Ground GP10... -
Page 32: Usb Installation
LS-572 User’s Manual 2.12 < USB Installation> LS-572 integrates eight USB2.0 ports. USB2.0 are listed below: Interface USB2.0 Controller Intel ICH8DO Transfer Rate Up to 480Mb/s Voltage The Intel® ICH9DO contains two Enhanced Host Controller Interface (EHCI) and five Universal Host Controller Interfaces (UHCI), it can determine whether your connected device is for USB1.1 or USB2.0, and change the transfer rate automatically. -
Page 33: Power And Fan Installation
LS-572 User’s Manual 2.13 <Power and Fan Installation> The LS-572 provides a standard ATX power supply with 24-pin ATX connector and additional 12V connector, and the board provides one 4-pin fan connectors supporting smart fan for CPU cooler and one 3-pin cooler fan connectors for system and Northbridge chip. - Page 34 LS-572 User’s Manual Connector: ATX Type: 24-pin ATX power connector PIN assignment 3.3V 3.3V 3.3V -12V PS_ON PW_OK 5V_SB 3.3V Connector: CN_12V Type: 4-pin standard Pentium 4 additional +12V power connector Description Description Ground Ground +12V +12V Connector: CPUFAN Type: 4-pin fan wafer connector...
-
Page 35: Serial Port
LS-572 User’s Manual 2.14 <Serial Port> The board supports one RS232 serial port and one jumper selectable RS232/422/485 serial ports. The jumper JCSEL1 & JCSEL2 can let you configure the communicating modes for COM2. Connector: CN_COM2 Type: 10-pin (5 x 2) 2.54mm x 2.54mm-pitch header for COM2... -
Page 36: Switch And Indicator
LS-572 User’s Manual 2.15 <Switch and Indicator> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. Connector: JFRNT Type: onboard 14-pin (2 x 7) 2.54-pitch header... - Page 37 LS-572 User’s Manual (This Page is Left for Blank)
-
Page 38: Chapter 3
LS-572 User’s Manual Chapter 3 <System Configuration> 3.1 <SATA configuration> SATA Mode: This option can let you select whether the Serial ATA hard drives would work under normal IDE mode or RAID mode. The RAID mode need more than one HDD is applied. -
Page 39: Sata Raid Configuration
LS-572 User’s Manual 3.2 <SATA RAID Configuration> The board integrates Intel® ICH8DO with RAID function for Serial ATA II drives, and supports the configurations below: RAID 0 (Stripping): Two hard drives operating as one drive for optimized data R/W performance. It needs two unused drives to build this operation. - Page 40 LS-572 User’s Manual Please press <CTRL+I> to enter the RAID configuration menu. You can setup the RAID under operation system for Microsoft® Windows XP SP1 or Windows 2000 SP4 version, please install the Intel® Application Accelerator Ver.4.5 later to support RAID configuration with Intel® Matrix Storage Technology.
- Page 41 LS-572 User’s Manual 2. Select Actions to Create RAID Volume Rename the Volume name Select RAID Level as 0 Left as default...
- Page 42 LS-572 User’s Manual 3. Please select two hard drives to prepare to set the RAID volume 4. Specify the Volume size Tune this bar to specify the volume size, if you specify the volume size lower than maximum, you can create a second volume for another RAID set.
-
Page 43: Audio Configuration
LS-572 User’s Manual 3.3 <Audio Configuration> The board integrates Intel® ICH8DO with REALTEK® ALC888 codec. It can support 2-channel sound under system configuration. Please follow the steps below to setup your sound system. Install REALTEK HD Audio driver. Lunch the control panel and Sound Effect Manager. -
Page 44: Video Memory Setup
LS-572 User’s Manual 3.4 <Video Memory Setup> Based on Intel® Q35 chipset with GMA (Graphic Media Accelerator) 3000, the board supports Intel® DVMT (Dynamic Video Memory Technology) 3.0, which would allow the video memory be triggered up to 384MB. To support DVMT, you need to install the Intel GMA 3000 Driver with supported OS. - Page 45 LS-572 User’s Manual Fixed + DVMT Memory Size: You can select the fixed amount and the DVMT amount at the same time for a guaranteed video memory and additional dynamic video memory, please check the table below for available setting.
-
Page 46: Display Properties Setting
LS-572 User’s Manual 3.5 <Display Properties Setting> Based on Intel GM(E)965 GMCH with GMA X3100 (Graphic Media Accelerator), the board supports two DACs for display device as different resolution and color bit. Please install the Intel Graphic Driver before you starting setup display devices. - Page 47 LS-572 User’s Manual 3. This setup options can let you define each device settings. Click Monitor to setup the CRT monitor for Colors, Resolution and Refresh Rate Click Intel® Dual Display Clone setup dual display mode as same screen Set the main display device here...
-
Page 48: Chapter 4
LS-572 User’s Manual Chapter 4 <BIOS Setup> The motherboard uses the Award BIOS for the system configuration. The Award BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based processors and computers. - Page 49 LS-572 User’s Manual (This Page is Left for Blank)
-
Page 50: Appendix A
LS-572 User’s Manual Appendix A <I/O Port Pin Assignment> A.1 <Serial ATA Port> Connector: SATA1/2/3/4 Type: 7-pin wafer connector GND RSATA_TXP1 RSATA_TXN1 GND RSATA_RXN1 RSATA_RXP1 GND A.2<Floppy Port> Connector: FDD Type: 26-pin connector Description Description INDEX DRV0 DSKCHG DRV1 MTR1... -
Page 51: A.3
LS-572 User’s Manual A.3 <IrDA Port> Connector: CN_IR Type: 5-pin header for SIR Ports Description IRRX Ground IRTX A.4 <VGA Port> Connector: CN_CRT Type: 16-pin (2 x 8) 2.0-pitch pin header Description Description Green Blue Ground Ground Ground Ground Ground... -
Page 52: A.6
LS-572 User’s Manual Connector: CN_LAN Type: 16-pin (8 x 2) header for LAN Ports Description Description RTD4+ RTD5- RTD4- RTD5+ Ground RTD6+ RTD7+ RTD6- RTD7- Ground Ground RLINK1 RLINK1H1- RACTLED1 RLINK1G1- A.6 <SMBUS Port> Connector: CN_ SMBUS Type: 5-pin header for SMBUS Ports... -
Page 53: A.9
LS-572 User’s Manual A.8 <Serial Port 2> Connector: COM2 Type: 9-pin header connector on bracket Description Description DCD- /485- /+5V SIN- /485+ SO- /422+ DTR- /422- RI /+12V Ground A.9 <Parallel Port> Connector: LPT Type: 26-Pin header Connector on bracket... -
Page 54: A.10
LS-572 User’s Manual A.10 <COM 3/4/5/6Port> Connector: COM 3/4/5/6 Type: header Connector on bracket Description Description Description HS_DCD1 Ground HS_RI3- HS_RXD1 HS_DSR2- HS_TXD1 HS_RTS2- HS_DCD4- HS_DTR1- HS_CTS2- HS_RXD4 Ground HS_RI2- HS_TXD4 HS_DSR1- HS_DTR4- HS_RTS1- HS_DCD3- Ground HS_CTS1- HS_RXD3 HS_DSR4- HS_RI1-... -
Page 55: Appedix B
LS-572 User’s Manual Appedix B <System Resources> B1.<I/O Port Address Map> -53-... - Page 56 LS-572 User’s Manual -54-...
- Page 57 LS-572 User’s Manual...
- Page 58 LS-572 User’s Manual B2.<Memory Address Map> -56-...
- Page 59 LS-572 User’s Manual B3.<System IRQ Resources>...
- Page 60 LS-572 User’s Manual -58-...
-
Page 61: Appedix C
LS-572 User’s Manual Appedix C <Flash BIOS> C.1 BIOS Auto Flash Tool The board is based on Award BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: h ttp://www.award.com... -
Page 62: Appendix D
LS-572 User’s Manual Appendix D <Programming GPIO’s> The GPIO’can be programmed with the MSDOS debug program using simple IN/OUT commands.The following lines show an example how to do this. GPIO0…..GPIO7 bit0……bit7 -o 2E 87 ;enter configuration -o 2E 87 -o 2E 07 -o 2F 09 ;enale GPIO function... -
Page 63: Appendix E
LS-572 User’s Manual Appendix E <Watch Dog timer Setting > The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program. Timeout Value Range... -
Page 64: Contact Information
