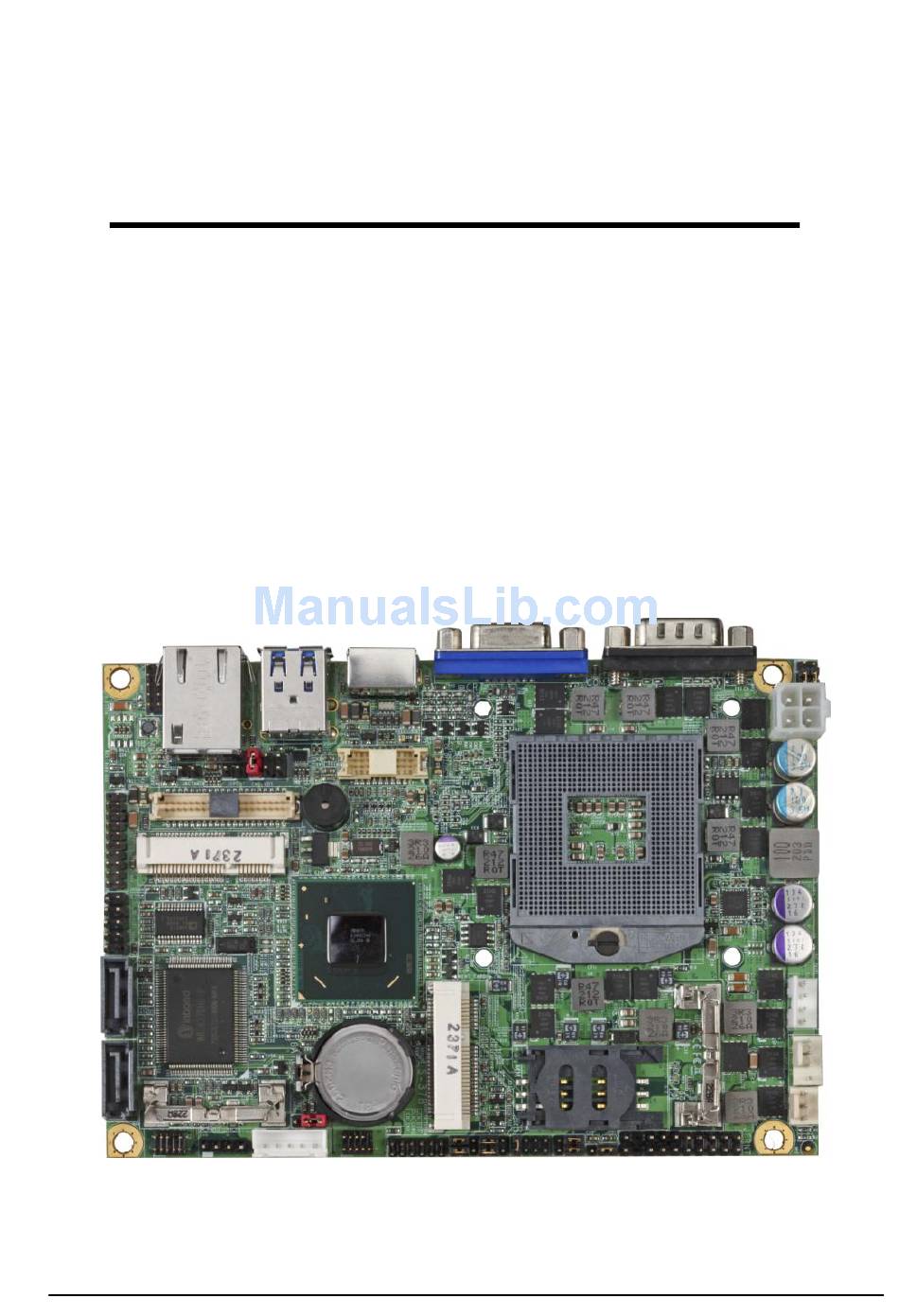

- Page 1 LS-37B 3.5 inch Motherboard User’s Manual Edition 1.0 2012/09/20...
- Page 2 Trademark All trademarks are the property of their respective holders. Any questions please visit our website at h ttp://www.commell.com.tw...
-
Page 3: Oalusba
LS-37B User’s Manual Packing List: Please check the package content before you starting using the board. Hardware: LS-37B 3.5“ Miniboard x 1 Cable Kit: SATA Cable x 1 DC Power Cable x 1 (OALSATA-L) (OALDC-A) USB2.0 Cable x 1 DVI module with bracket x 1 (OALUSBA-3) (ADPDVI &... - Page 4 LS-37B User’s Manual Optional Cable: USB3.0 Cable (OALUSB3NB)
- Page 5 LS-37B User’s Manual Index Chapter 1 <Introduction> ................8 1.1 <Product Overview> ..................8 1.2 <Product Specification> ................9 1.3 <Mechanical Drawing> ................10 1.4 <Block Diagram> ..................11 Chapter 2 <Hardware Setup> ..............12 2.1 <Connector Location> ................12 2.2 <Jumper Location &...
- Page 6 LS-37B User’s Manual 2.14.2 <Power Output> ................36 2.14.3 <Fan connector> ................37 2.15 <Switch and Indicator> ................38 Chapter 3 <System Setup> ................. 39 3.1 <Audio Configuration> ................39 3.2 <Display Properties Setting> ..............40 Chapter 4 <BIOS Setup> ................42 Appendix A <I/O Port Pin Assignment>...
- Page 7 LS-37B User’s Manual (This page is left for blank)
-
Page 8: Product Overview

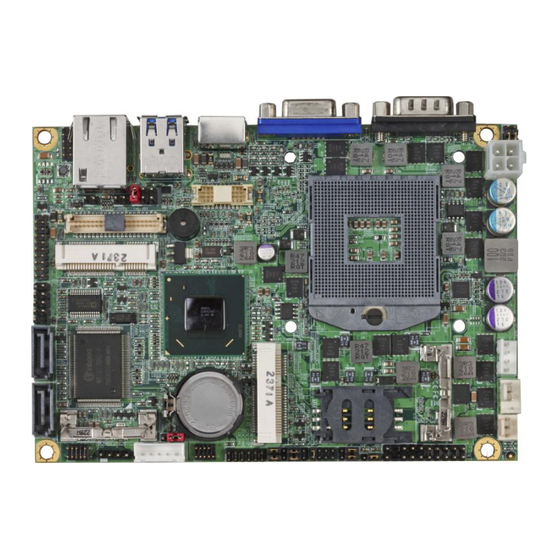

LS-37B User’s Manual Chapter 1 <Introduction> 1.1 <Product Overview> LS-37B the 3 Generation Intel of the 3.5 inch miniboard, supports 3 Generation Intel® Core™ i7, Core™ i5, Core™ i3 Mobile Processor and features Intel QM77 chipset, integrated HD Graphics, DDR3 memory, REALTEK High Definition Audio, Serial ATA and Intel Gigabit LAN. -
Page 9: Product Specification
LS-37B User’s Manual 1.2 <Product Specification> General Specification Form Factor 3.5 inch motherboard Generation Intel® Core™ i7, Core™ i5, Core™ i3 Mobile Processor Package type: rPGA988B Memory 1 x DDRIII SO-DIMM 1066/1333/1600 MHz up to 8GB Non-ECC, unbuffered memory supported only... -
Page 10: Mechanical Drawing
LS-37B User’s Manual 1.3 <Mechanical Drawing>... -
Page 11: Block Diagram
LS-37B User’s Manual 1.4 <Block Diagram> Generation Intel® Core™ i7, Core™ i5, Core™ i3 Mobile Processor 1 x 204-pin DDR3 SO-DIMM 1066/1333/1600 MHz up to 8GB 1 x CRT 2 x PCI Express mini card 1 x LVDS QM77 4 x USB3.0 1 x DVI 2 x USB2.0... -
Page 12: Connector Location
LS-37B User’s Manual Chapter 2 <Hardware Setup> 2.1 <Connector Location> CN_LVDS CN_DVI CN_LPC DC_IN JACT JSPD CN_LVDS CN_USB3-0 MINI_CARD1 CN_USB1 MINI_CARD2 SATA2 DC_OUT SIMM SATA1 CPUFAN SYSFAN CN_AUDIO CN_INV CN_COM2 CN_IR JFRNT CD_IN CN_DIO CN_SMBUS... - Page 13 LS-37B User’s Manual SO-DIMM COM1 RJ45...
-
Page 14: Jumper Location & Reference
LS-37B User’s Manual 2.2 <Jumper Location & Reference> Jumper Function JRTC CMOS Operating/Clear Setting JVLCD Panel Voltage Setting Power mode select Com1 Voltage Setting (For Pin 9) Com2 Voltage Setting (For Pin 9) CN_COM2 RS-232 RS422 RS485 Setting JCSEL1 JCSEL2... -
Page 15: Connector Reference
LS-37B User’s Manual 2.3 <Connector Reference> 2.3.1 <Internal Connectors> Connector Function Remark Socket rPGA988B for PGA988 CPU SO-DIMM 204 -pin DDR3 SO-DIMM socket SATA 1/2 7-pin Serial ATAIII connector DC_IN DC 9~24V input connector DC_OUT 4-pin DC output connector CN_AUDIO... -
Page 16: Cpu And Memory Setup
LS-37B User’s Manual 2.4 <CPU and Memory Setup> 2.4.1 <CPU Setup> The board comes with the socket rPGA988 for Intel Ivy Bridge Processor, Please follow the instruction to install the CPU properly. Unlock way Socket CPU Check point 1. Use the flat-type screw drive 2. -
Page 17: Memory Setup
LS-37B User’s Manual 2.4.2 <Memory Setup> The board provides 204-pin DDR3 SO-DIMM to support 1066/1333/1600MHz DDR3 memory module up to 8GB. SO-DIMM... -
Page 18: Cmos & Atx Setup
LS-37B User’s Manual 2.5 <CMOS & ATX Setup> The board‟s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values. -
Page 19: Serial Ata Interface
LS-37B User’s Manual 2.6 <Serial ATA Interface> Based on Intel PCH, the board provides two Serial ATAIII (SATA Port1/2) interfaces with up to 600MB/s of transfer rate . SATA2 SATA1 2.7 <Ethernet Interface> The board integrates with one Intel 82579LM controllers, The Intel Gigabit Ethernet supports triple speed of 10/100/1000Base-T, with IEEE802.3 compliance. -
Page 20: Onboard Display Interface
LS-37B User’s Manual 2.8 <Onboard Display Interface> Based on Intel CPU with built-in HD Graphic, the board provides one DB15 Ivy Bridge connector on real external I/O port, one 40-pin LVDS interface with 5-pin LCD backlight inverter connector and provides 20-pin DVI interface. -
Page 21: Digital Display
LS-37B User’s Manual 2.8.2 <Digital Display> The board provides one 40-pin LVDS connector for 24-bit single/dual channel panels, supports up to 2048 x 1536 (UXGA) resolution, with one LCD backlight inverter connector and one jumper for panel voltage setting. JVLCD... - Page 22 LS-37B User’s Manual Connector: CN_INV Connector: JVLCD Type: 5-pin LVDS Power Header Type: 6-pin Power select Header Description Description +12V LCDVCC (3.3V) Reserved (Note) LCDVCC (5V) LCDVCC (12V) Default: 1-2 ENABKL Note: Reserved for MB internal test Please treat it as NC.
- Page 23 LS-37B User’s Manual To setup the LCD, you need the component below: A panel with LVDS interfaces. An inverter for panel‟s backlight power. A LCD cable and an inverter cable. For the cables, please follow the pin assignment of the connector to make a cable, because every panel has its own pin assignment, so we do not provide a standard cable;...
- Page 24 LS-37B User’s Manual After setup the devices well, you need to select the LCD panel type in the BIOS. The panel type mapping is list below: BIOS panel type selection form (BIOS Version:1.0) Single / Dual channel Single / Dual channel...
-
Page 25: Dvi Interface
LS-37B User’s Manual 2.8.3 <DVI Interface> Connector: CN_DVI Connector type: HIROSE DF13-20DP-1.25V Pin Number Assignment Pin Number Assignment +3.3V Ground TMDSTX0N TMDSTX0P Ground TMDSTX1N TMDSTX1P Ground TMDSTX2N TMDSTX2P Ground TMDSTXCN TMDSTXCP Ground DVI_DA DVI_SL AUXN AUXP CN_DVI... -
Page 26: Integrated Audio Interface
LS-37B User’s Manual 2.9 <Integrated Audio Interface> The board provides the onboard high definition audio with Realtek ALC888 Connector: CN_AUDIO Type: 10-pin (2 x 5) 1.27mm x 2.54mm-pitch header Description Description MIC_L Ground MIC_R Speaker_R MIC Detect SENSE Speaker_L Speaker Detect Connector: CDIN Type: 4-pin header (pitch = 2.54mm) -
Page 27: Usb Interface
LS-37B User’s Manual 2.10 <USB Interface> LS-37B integrates four USB3.0 ports and two USB2.0 ports. The specifications of USB3.0 are listed below: Interface USB3.0 Intel®QM77 Controller Transfer Rate Up to 5Gb/s Voltage The specifications of USB2.0 are list Interface USB2.0 Intel®QM77... - Page 28 LS-37B User’s Manual Connector: CN_USB3-0 Type: 20-pin (2 x 10) header (pitch = 2.0mm) Description Description USB3.0_RX0- USB3.0_RX0+ USB3.0_RX1- Ground USB3.0_RX1+ USB3.0_TX0- Ground USB3.0_TX0+ USB3.0_TX1- Ground USB3.0_TX1+ Data0- Ground Data0+ Data1- Data1+ Connector: CN_USB1 Type: 10-pin (2 x 5) header (pitch = 2.54mm)
-
Page 29: Serial Port
LS-37B User’s Manual 2.11 <Serial Port> The board supports one RS232 serial port and one jumper selectable RS232/422/485 serial ports. The jumper JCSEL1 & JCSEL2 can let you configure the communicating modes for COM2. COM1 Connector: COM1 Type: 9-pin D-sub male connector on bracket for COM1... - Page 30 LS-37B User’s Manual COM1 CN_COM2 JCSEL1 JCSEL2 Jumper: JP1/JP2 (COM1/2) Type: onboard 6-pin header Power Mode JP1/2/3/4 Pin 9 with 5V Power Pin 9 with 12V Power Standard COM port Default setting -30-...
-
Page 31: Pcie Mini Card And Sim Interface
MPX-SDVOD card will not work if it is placed in other slot. Please also be noted that this slot is the only slot for MPX-SDVOX card but a customized BIOS is needed for the MPX-SDVOX card. Please contact Commell for customized BIOS for your MPX-SDVOX card. - Page 32 LS-37B User’s Manual Connector: SIMM Type: 6-pin SIM socket Description Description SIMVCC SIMRST SIMCLK SIMVPP SIMDATA...
-
Page 33: Sim Setup
LS-37B User’s Manual 2.12.1 <SIM Setup> Step1. SIM card holder is marked by circle. Slide the cap toward OPEN direction. Step 2. Make sure that the cap is now at the OPEN position. Step 3. Flip the cap up for inserting a SIM card into. - Page 34 LS-37B User’s Manual Step 4. Insert a SIM card as shown in the photo. Be sure that the corner cut is on top and the golden pads are up. Step 5. Now, flip down the cap as shown in the photo.
-
Page 35: Gpio And Smbus Interface
LS-37B User’s Manual 2.13 <GPIO and SMBUS Interface> The board provides a programmable 8-bit digital I/O interface; you can use this general purpose I/O port for system control like POS or KIOSK. Connector: CN_DIO Type: 12-pin (6 x 2) header (pitch = 2.0mm) -
Page 36: Power Supply And Fan Interface
LS-37B User’s Manual 2.14 <Power Supply and Fan Interface > 2.14.1 <Power Input> The board requires DC input with 4-pin header, the input voltage range is from 9V to 24V, for the input current, please take a reference of the power consumption report on appendix. -
Page 37: Fan Connector
LS-37B User’s Manual 2.14.3 <Fan connector> The board provides one 4-pin fan connectors supporting smart fan for CPU cooler and one 3-pin cooler fan connectors for system. CPUFAN SYSFAN Connector: CPUFAN Type: 4-pin fan wafer connector Description Description Ground +12V... -
Page 38: Switch And Indicator
LS-37B User’s Manual 2.15 <Switch and Indicator> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. Connector: JFRNT Type: onboard 10-pin (2 x 5) 2.54-pitch header... -
Page 39: Chapter 3
LS-37B User’s Manual Chapter 3 <System Setup> 3.1 <Audio Configuration> The board integrates Intel® QM77 with REALTEK® ALC888 codec. It can support 2-channel sound under system configuration. Please follow the steps below to setup your sound system. Install REALTEK HD Audio driver. -
Page 40: Display Properties Setting
LS-37B User’s Manual 3.2 <Display Properties Setting> Based on Intel QM77 with HD Graphic, the board supports two DACs for display device as different resolution and color bit. Please install the Intel Graphic Driver before you starting setup display devices. - Page 41 LS-37B User’s Manual 3. This setup options can let you define each device settings. Click Monitor to setup the CRT monitor for Resolution and Refresh Rate Click Intel® Dual Display Clone to setup the dual display mode as same screen...
-
Page 42: Chapter 4
LS-378 User’s Manual Chapter 4 <BIOS Setup> The motherboard uses the Phoenix BIOS for the system configuration. The Phoenix BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based processors and computers. - Page 43 LS-37B User’s Manual (This page is left for blank)
-
Page 44: Appendix A
LS-37B User’s Manual Appendix A <I/O Port Pin Assignment> A.1 <Serial ATA Port> Connector: SATA1/2 Type: 7-pin wafer connector GND RSATA_TXP1 RSATA_TXN1 GND RSATA_RXN1 RSATA_RXP1 GND A.2 <IrDA Port> Connector: CN_IR JCSEL1 must jump to “SIR” Type: 5-pin header for SIR Ports... -
Page 45: A.5
LS-37B User’s Manual A.5 <LAN LED Port> Connector: JSPD1/2 Type: 5-pin header for LAN Speed LED connector When Lan speed 10/100Mbps Description LED- LED+ When Lan speed 1Gbps Description LED+ LED- Connector: JATC1/2 Type: 5-pin header for LAN Activity LED connector... -
Page 46: Appendix B
LS-37B User’s Manual Appendix B <Flash BIOS> B.1 <Flash Tool> The board is based on Phoenix BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: http://www.phoenix.com/en/home/ http://www.commell.com.tw/Support/Support_SBC.htm File name of the tool is “Phlash16.exe”, it‟s the utility that can write the data into the... -
Page 47: Appendix C
LS-37B User’s Manual Appendix C <Programming GPIO’s> The GPIO‟can be programmed with the MSDOS debug program using simple IN/OUT commands.The following lines show an example how to do this. GPIO0…..GPIO7 bit0……bit7 -o 2 E 87 ;enter configuration -o 2E 87... -
Page 48: Appendix D
LS-37B User’s Manual Appendix D <Programming Watchdog Timer > The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program. Timeout Value Range... -
Page 49: Contact Information
Taiwan Commate Computer Inc. 19F., No.94, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Address Taipei City 22102, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw E-Mail i nfo@commell.com.tw (General Information) t ech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan commate computer Inc.
