- Page 1 LS-37L 3.5 inch Desktop Miniboard User’s Manual Edition 1.1 2018/11/20...
- Page 2 LS-37L User’s Manual Copyright Copyright 2018, all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
- Page 3 LS-37L User’s Manual Packing List: Please check the package content before you starting using the board. 1 x Cooler Fan 1 x LS-37L 3.5 inch Miniboard (OHSF-37L / 2181010033 ) 1 xDC Input Power Cable 1 x SATA Power Cable...
-
Page 4: Table Of Contents
LS-37L User’s Manual Index Chapter 1 <Introduction>............... 4 1.1 <Product Overview>............4 1.2 <Product Specification> ............5 1.3 <Block Diagram>..............6 Chapter 2 <Hardware setup>............7 2.1 <Connector Location and Reference> ........ 7 2.1.1 <Internal connectors list> ..........8 2.1.2 <External connectors list>.........8 2.2 <CPU, Heatsink and Memory installation guide>... -
Page 5: Chapter 1

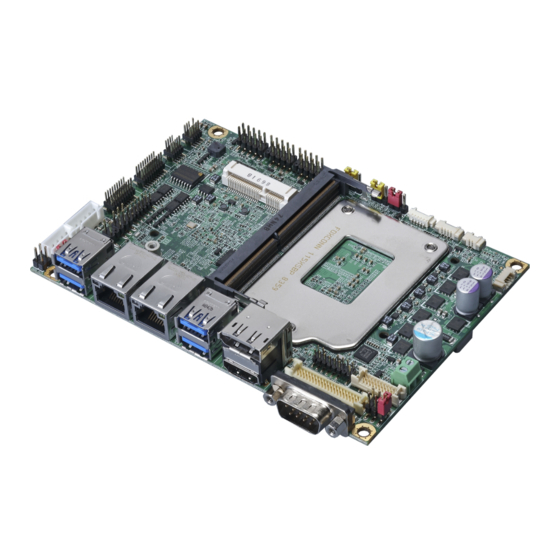

LS-37L User’s Manual Chapter 1 <Introduction> 1.1 <Product Overview> LS-37L is 3.5 inch Miniboard which supports 8th generation Intel® Core™, Pentium® and Celeron® processor families (Coffee Lake S) with Intel® Q370 Chipset, integrated HD Graphics , DDR4 memory, Realtek High Definition Audio, Intel Gigabit LAN, Serial ATA3 Intel Coffee Lake-S Processor with Intel®... -
Page 6: Product Specification
LS-37L User’s Manual 1.2 <Product Specification> System Support 8th Generation Intel® Core™ Desktop Processors, Processor FCLGA1151 package (Support up to 65W TDP) Chipset Intel® Q370 1 x DDR4 DIMM 2666 MHz up to 16GB, Memory Support Non-ECC, unbuffered memory (i3,... -
Page 7: Block Diagram
LS-37L User’s Manual 1.3 <Block Diagram>... -
Page 8: Chapter 2
LS-37L User’s Manual Chapter 2 <Hardware setup> 2.1 <Connector Location and Reference> CN_LVDS CN_CRT DDR4_A CN_PS2 DC_OUT CN_DVI CN_INV DC_IN CN_DIO CN_COM5/6 MINI_CARD CN_COM3/4 CN_COM2 CPUFAN CN_AUDIO CN_BAT JFRNT SYSFAN CN_SMBus CN_USB2-2 CN_USB2-1 CN_SATA3-2 CN_SATA3-1 Display Port USB3.1 Gen2 I210-AT I219-LM USB3.1 Gen2 HDMI... -
Page 9: Internal Connectors List
LS-37L User’s Manual 2.1.1 <Internal connectors list> Connector Function DDR4_A 260-pin DDR4 SO-DIMM slot CN_SATA3-1/2 10-pin Serial ATA3 connector CN_AUDIO 5 x 2-pin audio pin header CN_LVDS 20 x 2-pin LVDS connector CN_INV 5-pin LCD inverter connector CN_DVI 10 x 2-pin DVI connector... -
Page 10: Cpu, Heatsink And Memory Installation Guide
2.2 <CPU, Heatsink and Memory installation guide> 2.2.1 <CPU installation> LS-37L has a LGA1151 CPU socket onboard; please check following steps to install the processor properly. Attention If LS-37L needs RMA, please Keep CPU socket cover on the CPU Socket. -
Page 11: Memory Setup
LS-37L User’s Manual 2.2.2 <Memory Setup> LS-37L has 260-pin DDR4 DIMM support up to 16GB of memory capacity and 1.2 Voltage. The memory frequency supports 2666 MHz. Only Non-ECC memory is supported. In the process, the board must be powered off. -
Page 12: Jumper Location And Reference
LS-37L User’s Manual 2.3 <Jumper Location and Reference> JVUSB JVLCD JAT JMSATA JRTC 2.3.1 <Jumper list> Jumper Function Power mode select JRTC CMOS Normal/Clear Setting JVLCD Panel Voltage Setting JMSATA MiniCard mSATA Setting JVUSB USB Voltage Setting -11-... -
Page 13: Clear Cmos And Power On Type Selection
LS-37L User’s Manual 2.3.2 <Clear CMOS and Power on type selection> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values. -
Page 14: Ethernet Interface
LS-37L User’s Manual 2.4.2 <Ethernet interface> The board provide I219-LM PHY Gigabit Ethernet and I210-AT Gigabit Ethernet on rear I/O.Intel I219-LM and I210 supports operation at 10/100/1000 Mb/s data rates, with IEEE802.3 compliance and Wake-On-LAN supported. I210-AT I219-LM 2.4.3 <Display interface>... - Page 15 LS-37L User’s Manual CN_LVDS JVLCD CN_CRT CN_DVI CN_INV CN_CRT: VGA 16-pin connector (Pitch 2.00 mm) Signal Signal IOGND1 IOGND1 IOGND1 IOGND1 IOGND1 5VCDA 5HSYNC 5VSYNC 5VCLK CN_DVI: DVI on board 20-pin connector Signal Signal Ground TMDSTX0N TMDSTX0P Ground TMDSTX1N TMDSTX1P...
- Page 16 LS-37L User’s Manual CN_LVDS: LVDS 40-pin connector ( Model: HIROSE DF13-40DP-1.25V compatible Signal Signal Set by JVLCD Set by JVLCD Detect (Active low) A_LVDS_0- B_LVDS_0- A_LVDS_0+ B_LVDS_0+ A_LVDS_1- B_LVDS_1- A_LVDS_1+ B_LVDS_1+ A_LVDS_2- B_LVDS_2- A_LVDS_2+ B_LVDS_2+ A_LVDS_CLK- B_LVDS_3- A_LVDS_CLK+ B_LVDS_3+ A_LVDS_3-...
-
Page 17: Serial Port Interface
LS-37L User’s Manual 2.4.4 <Serial Port interface> COM1 CN_COM5/6 CN_COM3/4 CN_COM2 COM1: DB9 connector Signal Signal -16-... - Page 18 LS-37L User’s Manual COM2: RS232 9-pin header Signal Signal DCD/ 422TX-/ 485- RXD/ 422TX+/ 485+ TXD/ 422RX+ DTR/ 422RX- COM3/4: RS232/422/485 20-pin header (Pitch 2.54 x 1.27mm) Signal Signal DCD1/ 422TX-/ 485- RXD1/ 422TX+/ 485+ TXD1 DTR1 DSR1/ 422RX+ RTS1...
- Page 19 LS-37L User’s Manual COM5/6: RS232 20-pin header (Pitch 2.54 x 1.27mm) Signal Signal DCD1 RXD1 TXD1 DTR1 DSR1 RTS1 CTS1 DCD2 RXD2 TXD2 DTR2 DSR2 RTS2 CTS2 -18-...
-
Page 20: Usb Interface
LS-37L User’s Manual 2.4.5 <USB interface> USB3.1 Gen2 (Left) USB3.1 Gen2 (Right) JVUSB CN_USB2-2 CN_USB2-1 CN_USB 2-1/2-2: USB2.0 10-pin header (Pitch 2.54 mm) Signal Signal 5VSB 5VSB DATA0- DATA1- DATA0+ DATA1+ -19-... -
Page 21: Audio Interface
LS-37L User’s Manual JVUSB: 6-pin Power select jumper Description 1-3 & 2-4 5V_SB (Default) 3-5 & 4-6 Effective patterns of connection: 1-3 & 2-4 or 3-5 & 4-6 JVUSB can control USB3.0(RIGHT) power. 2.4.6 <Audio interface> CN_AUDIO CN_AUDIO: Front panel audio 10-pin header (Pitch 2.54mm) -
Page 22: Expansion Slot
LS-37L User’s Manual 2.4.7 <Expansion slot> MINI_CARD JMSATA MINI_CARD have some special design to compatible our mini-PCIe card. (ex: MPX-574D2, MPX-210D2 etc) MINI_CARD support mSATA by JMSATA JMSATA: Setting MINI_CARD to support PCIe/mSATA Jumper settings Function Support mSATA Normal operation (Default) -
Page 23: Front Panel Switch And Indicator
LS-37L User’s Manual 2.4.8 <Front panel switch and indicator> JFRNT JFRNT: Front panel switch and indicator 14-pin header (Pitch 2.54mm) Signal Signal Power_ON- Power_ON+ Speaker- Speaker+ HDD_LED- HDD_LED+ Power_LED- Power_LED+ Reset+ Reset- -22-... -
Page 24: Gpio And Other Interface
LS-37L User’s Manual 2.4.9 <GPIO and Other interface> CN_DIO CN_PS2 CPUFAN CN_SMBus SYSFAN -23-... - Page 25 LS-37L User’s Manual When using GPIO function Press Delete to enter BIOS Setup menu On Front Page screen, click Setup Utility On Advenced screen, click SIO NCT6116D,then click GPIO 4 Configuration Internal Resistance: Select output type, Push pull or Open drain...
-
Page 26: Power Supply
LS-37L User’s Manual CN_PS/2: PS/2 10-pin header (Pitch 2.54mm) Signal Signal KB_DATA M_DATA KB_CLK M_CLK CN_SMBus: SMBus 5-pin connector (Pitch 2.54mm) Signal SMBDAT SMBCLK CPUFAN & SYSFAN: cooler fan 4-pin connector Signal Sensor Control 2.5 <Power supply> 2.5.1 <Power input>... -
Page 27: Power Output
LS-37L User’s Manual 2.5.2 <Power output> DC_OUT DC_OUT: SATA power 4-pin connector Signal -26-... -
Page 28: Appendix A
LS-37L User’s Manual Appendix A <Flash BIOS> A.1 <Flash tool> The board is based on Insyde BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: FPT Tool The tool’s file name is “FPT.exe”, it’s the utility that can write the data into the... -
Page 29: Appendix B
LS-37L User’s Manual Appendix B <LCD Panel Type select> According your panel, it need to select the correct resolution in the BIOS. If there is no fit your panel type, please feedback for us to make OEM modol. Find the setting from Front Page->... - Page 30 LS-37L User’s Manual Advanced SA configurationGraphics confuguration LCD controlLCD Panel Type There are 16 resolutions in LCD Panel Type. (For Dual boot and Legacy boot) -29-...
-
Page 31: Appendix C
LS-37L User’s Manual Appendix C <Programmable Watch Dog Timer> The watchdog timer makes the system auto-reset while it stops to work for a period.The integrated watchdog timer can be setup as system reset mode by program.You can select Timer setting in the BIOS, after setting the time options, the system will reset according to the period of your selection. - Page 32 LS-37L User’s Manual Timeout value range 1 to 255 Minute and Second Program sample Watchdog timer setup as system reset with 5 second of timeout -o 4E 87 ;enter configuration -o 4E 87 -o 4E 07 -o 4F 08 ;select Logical Device...
-
Page 33: Appendix D
LS-37L User’s Manual Appendix D <Hardware Monitor> Find the setting from AdvancedSIO NCT6116DHardware Monitor -32-... -
Page 34: Appendix E
LS-37L User’s Manual Appendix E <Programmable GPIO> The GPIO’ can be programmed with the MS-DOS debug program using simple IN/OUT commands. GPIO -o 4E 87 ;enter configuration -o 4E 87 -o 4E 07 -o 4F 07 ;select Logical Device -o 4E 30 -o 4F 10 ;activate GPIO function (The board use GPIO4) -
Page 35: Appendix F
LS-37L User’s Manual Appendix F <RAID Setting> When use RAID function, it need to enter the BIOS set RAID mode first. Advanced PCH-IO Configuration SATA and RST Configuration SATA Mode Selection At boot time, press <CTRL + I> to enter the RAID configuration menu. -
Page 36: Appendix G
Taiwan Commate computer Inc. 19F., NO.94, Sec. 1, Xintai 5 Rd., Xizhi Dist., New Taipei Address City 22102, Taiwan. +886-2-26963909 Website www.commell.com.tw info@commell.com.tw (General infomation) E-mail tech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan Commate computer Inc. -35-...
